new 12 color dispensing machine
4 week ago
Product details

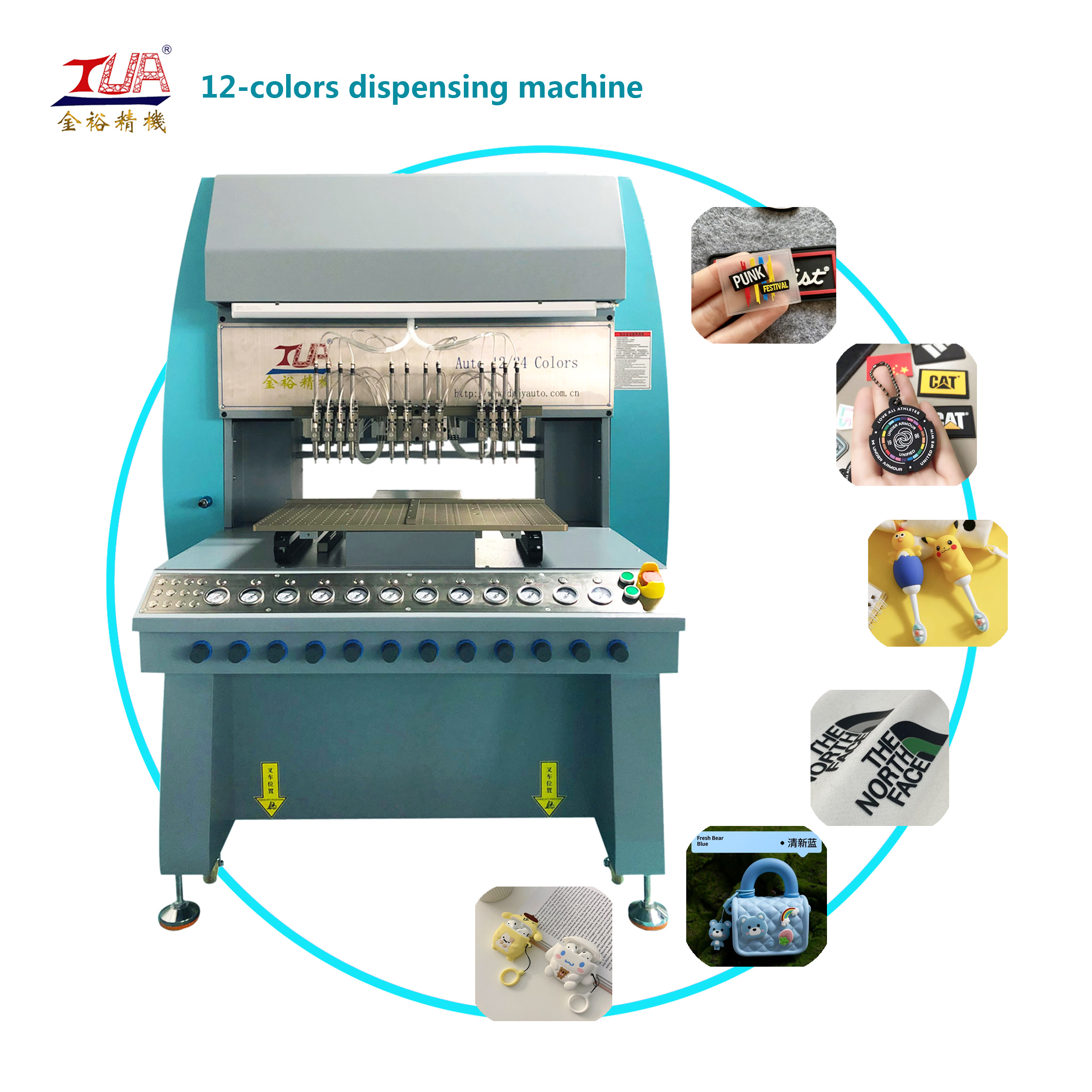

You probably mean the 12-color drop molding machine(dispensing machine), and its features are as follows:
1. Multi-color one-time forming: It can realize dispensing of 12 different colors at one time, meeting the production needs of complex patterns and multi-color products. It reduces the need for multiple operations in traditional multi-color drop molding, improving production efficiency and product quality consistency.
2. High degree of automation: It adopts full computerized automatic operation, with patterns that can be freely programmed and input. Equipped with a full servo system, it runs stably, with a dispensing accuracy of up to 0.001 grams and a fast production speed. It can precisely control the drop molding process, reduce manual operation errors, and improve production accuracy and efficiency. One machine can replace 3-4 traditional manual workers.
3. Strong applicability: By being installed with sliders, chutes, the first mounting frame and a workbench plate, the position of the workbench plate can be adjusted in a timely manner according to the user's needs. It can adapt to molds and products of different sizes and shapes, meeting diversified production requirements.
4. Durable and reliable: Most of the spare parts are from Japan, Germany, Taiwan and other places, with reliable quality. The machine is durable, has few failure rates, can run stably for a long time, reduces maintenance costs and downtime, and improves production efficiency.
5. Diversified functions: By being installed with card slots, fixing bolts, drop molding valves and mounting parts, it is convenient to disassemble and install the drop molding valves. Different drop molding valves can be replaced according to different production needs to achieve different drop molding effects and functions.
6. Easy to move and brake: Equipped with rollers and foot supports, the equipment is both easy to move and brake, facilitating transfer and fixation in different production sites, and improving the flexibility and practicality of the equipment. Jinyu new design automatic dispensing machine
| Name | 12 Colors dispensing machine |
| Model | JY-B02 |
| Voltage | 220V/50Hz |
| Number of valve | 12 |
| Wore area | 620*370mm |
| Motor power | 3*0.4kw |
| Heating Power | 0.6kw |
| Power | 1.2kw |
| Air pressure | 6~8/kgf/cm-2 |
| Dispensing speed | 400/mm.s-1 |
| X.Y.Z axis stroke | 470*360*90mm |
| Size | 1330*1000*1720mm |
| Weight | 500kg |

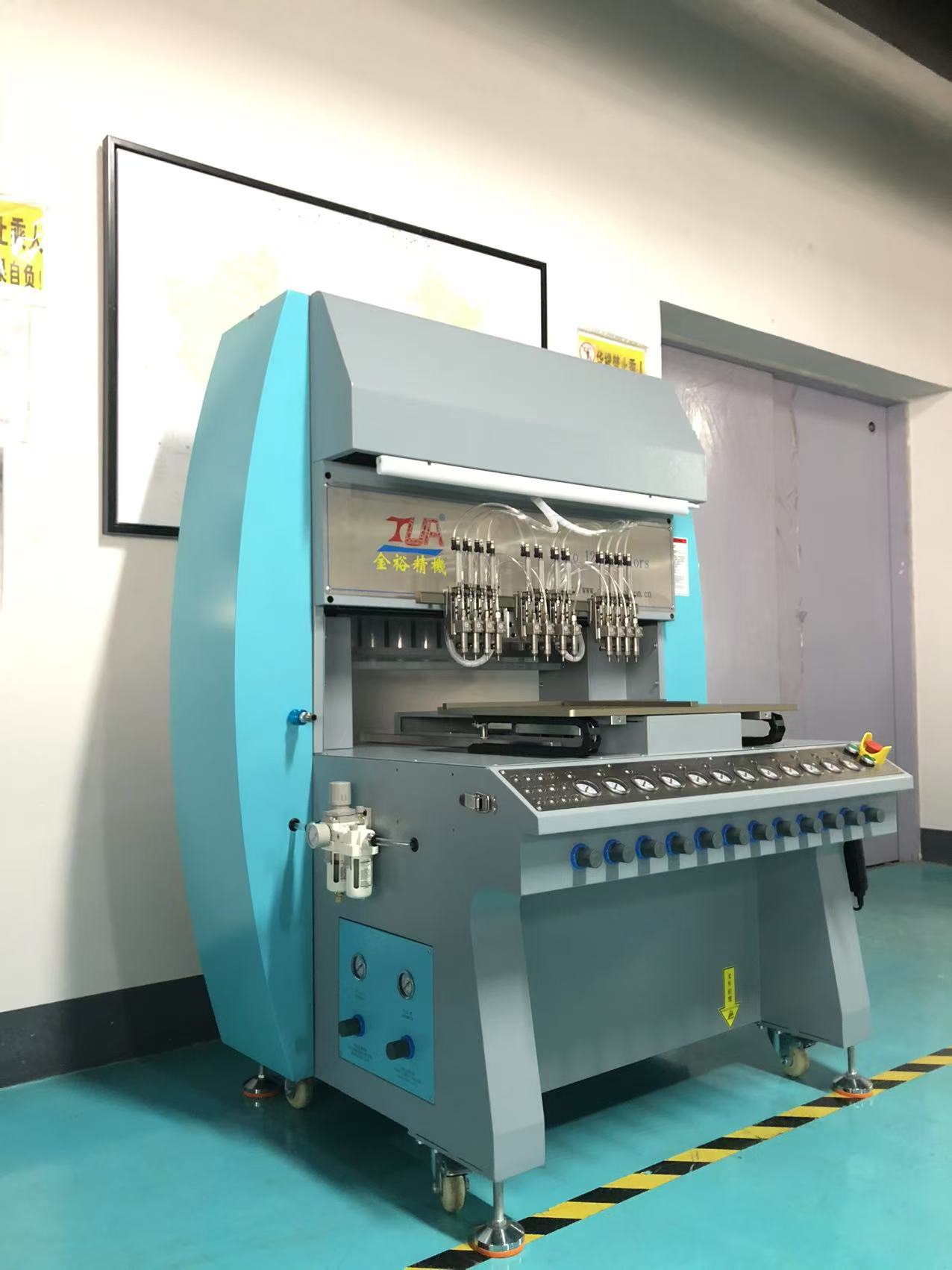

The 12-color dispensing machine from Jingyu Machinery TUA has been upgraded again.

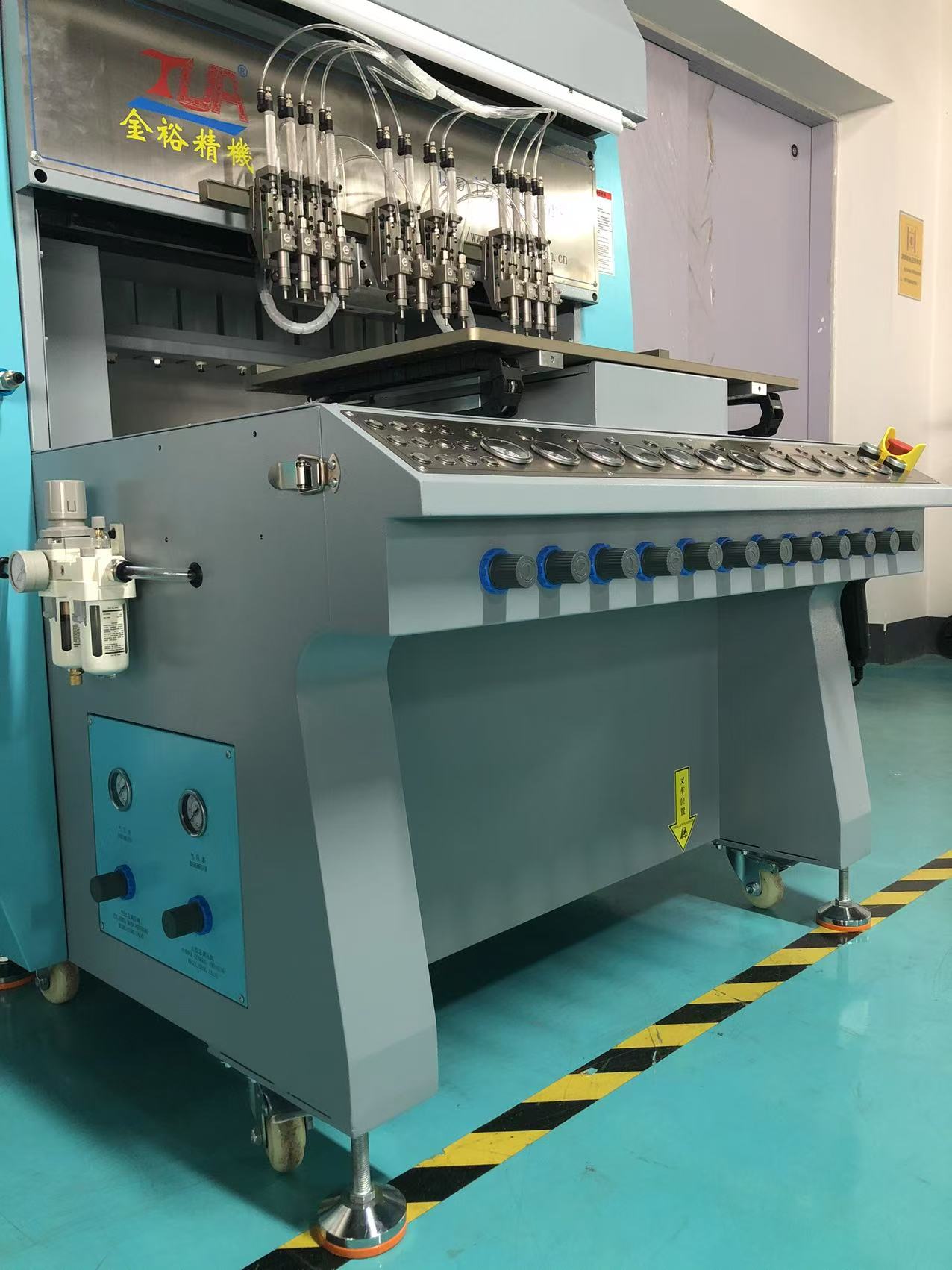

First, in terms of appearance, the overall design conforms to ergonomics. It allows operators to sit while working, with enough space for legs to stretch in.
Then, the tabletop: the table plate is made of higher-quality sheet metal with refined finishing treatment.

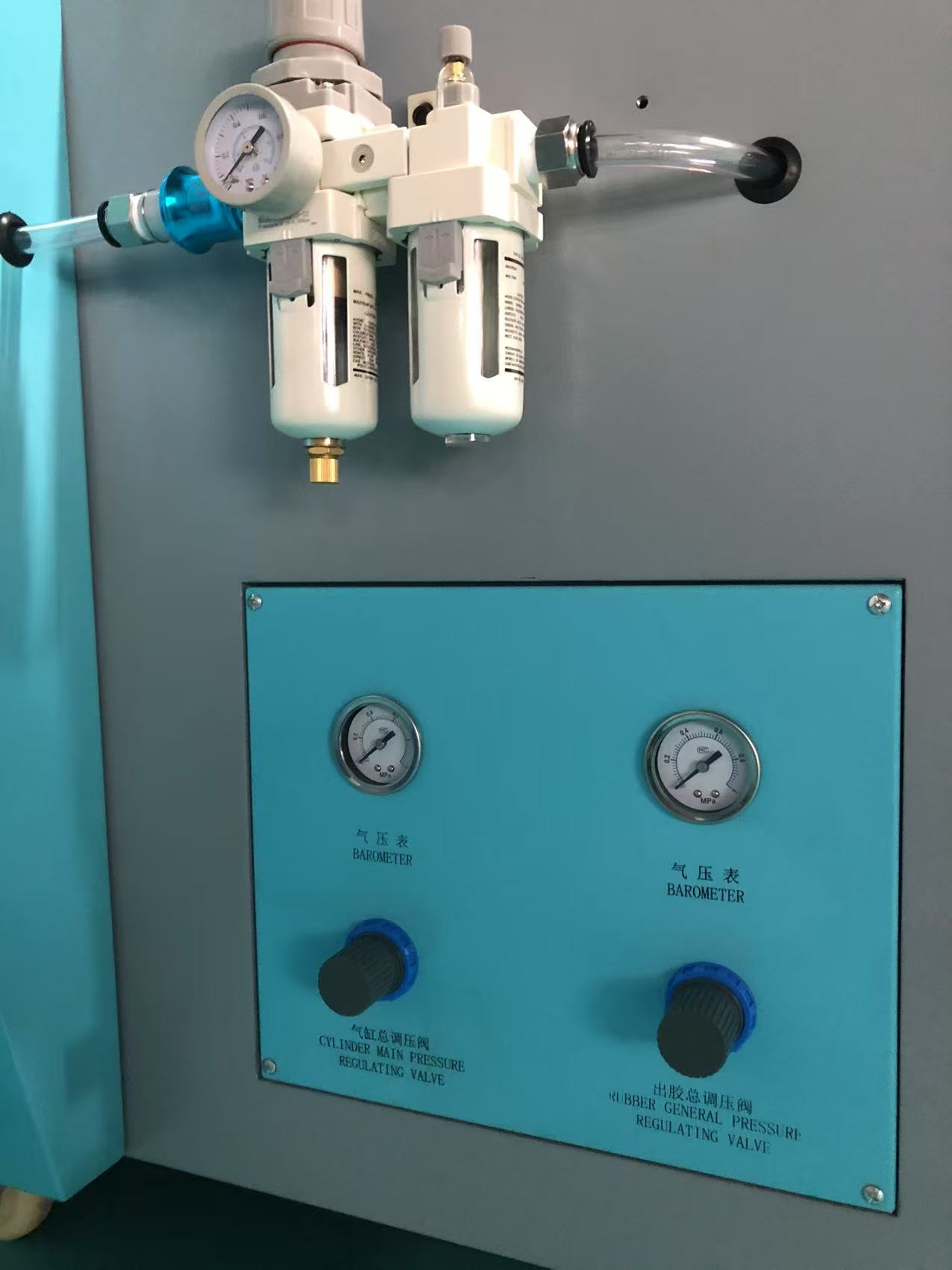

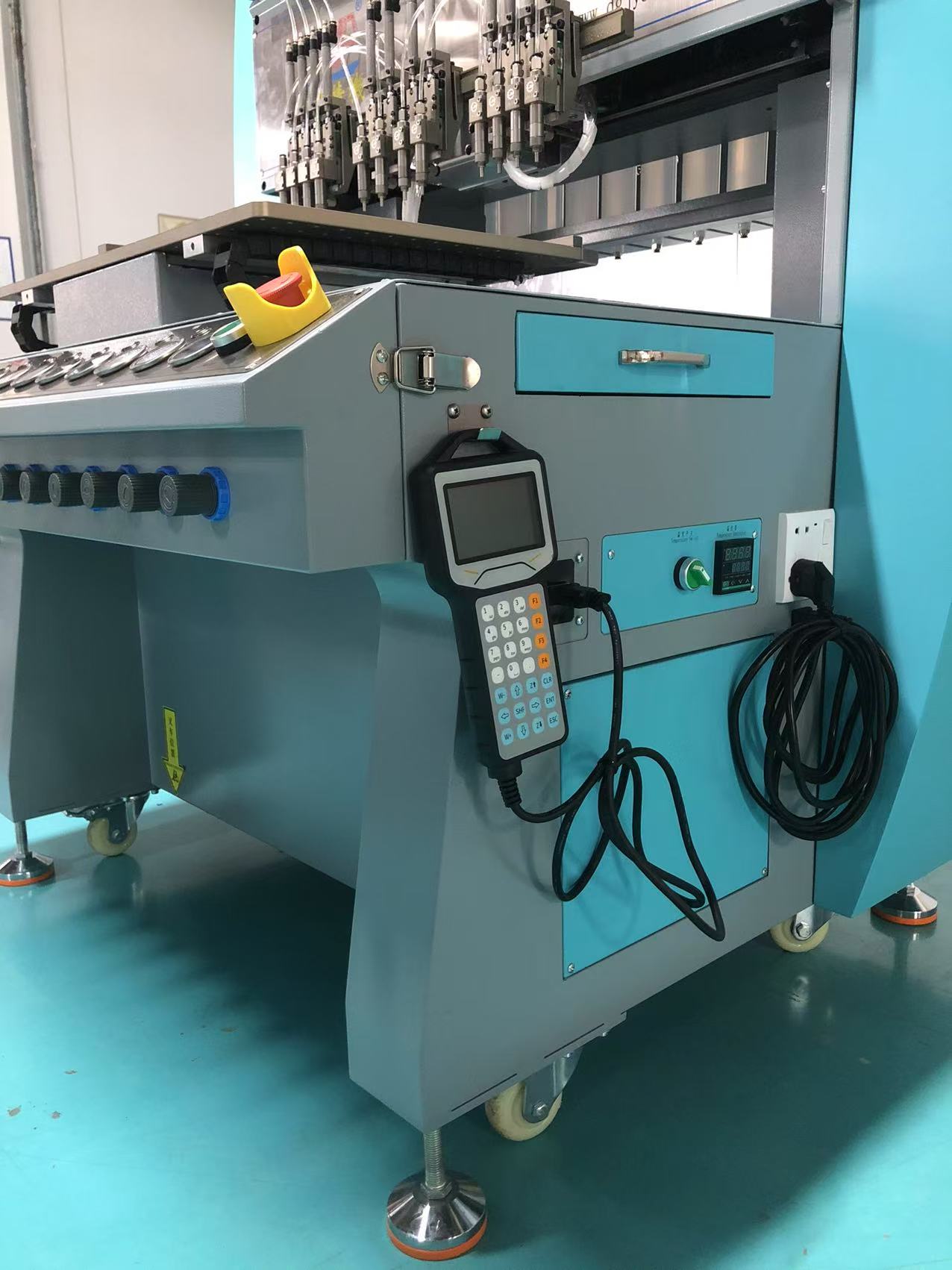

Other upgrades include an enhanced air pressure device and an upgraded dispensing programmer. The dispensing valve is designed with a dovetail groove, making it more stable, and the dispensing function is equipped with a braking feature.

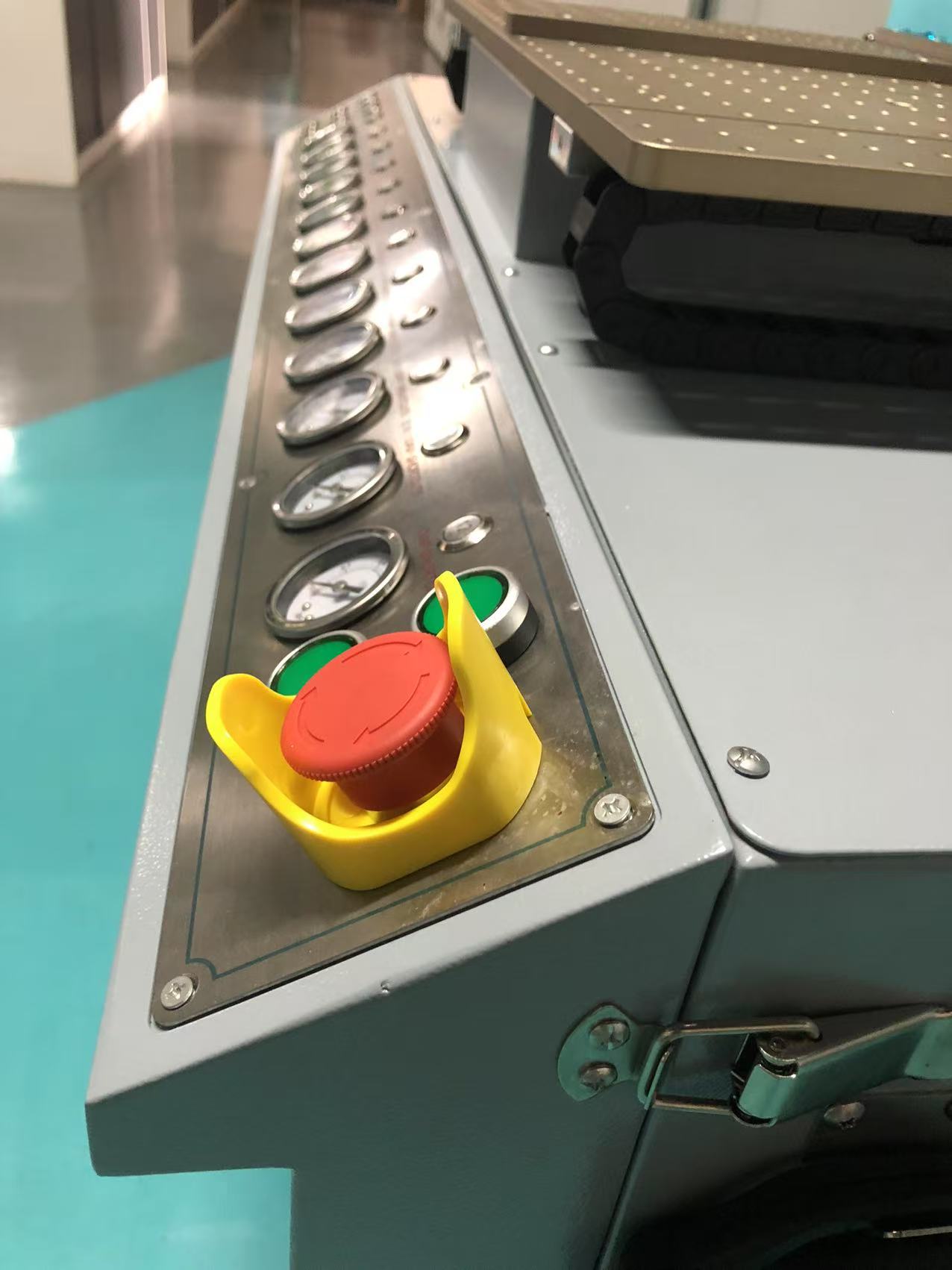

The operation panel has a heating function. Also, some small designs have been improved—for example, the buttons are equipped with better protective measures for easier operation, and shortcut keys are added.
In addition, the air pressure pipes and spray air pipes have been upgraded. The entire machine not only supports four-corner adjustment but also comes with movable wheels. The foot cups have also been upgraded in accordance with the machine's increased weight.

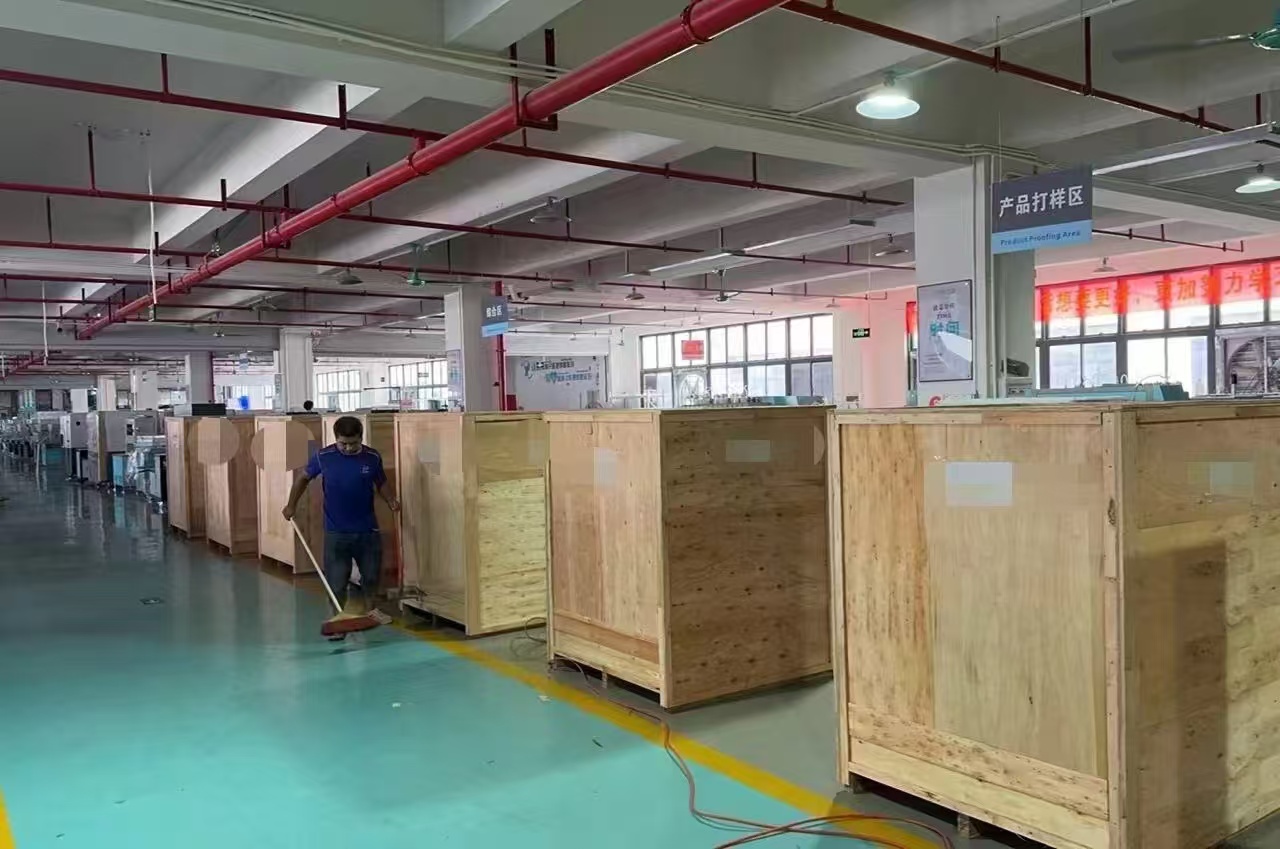

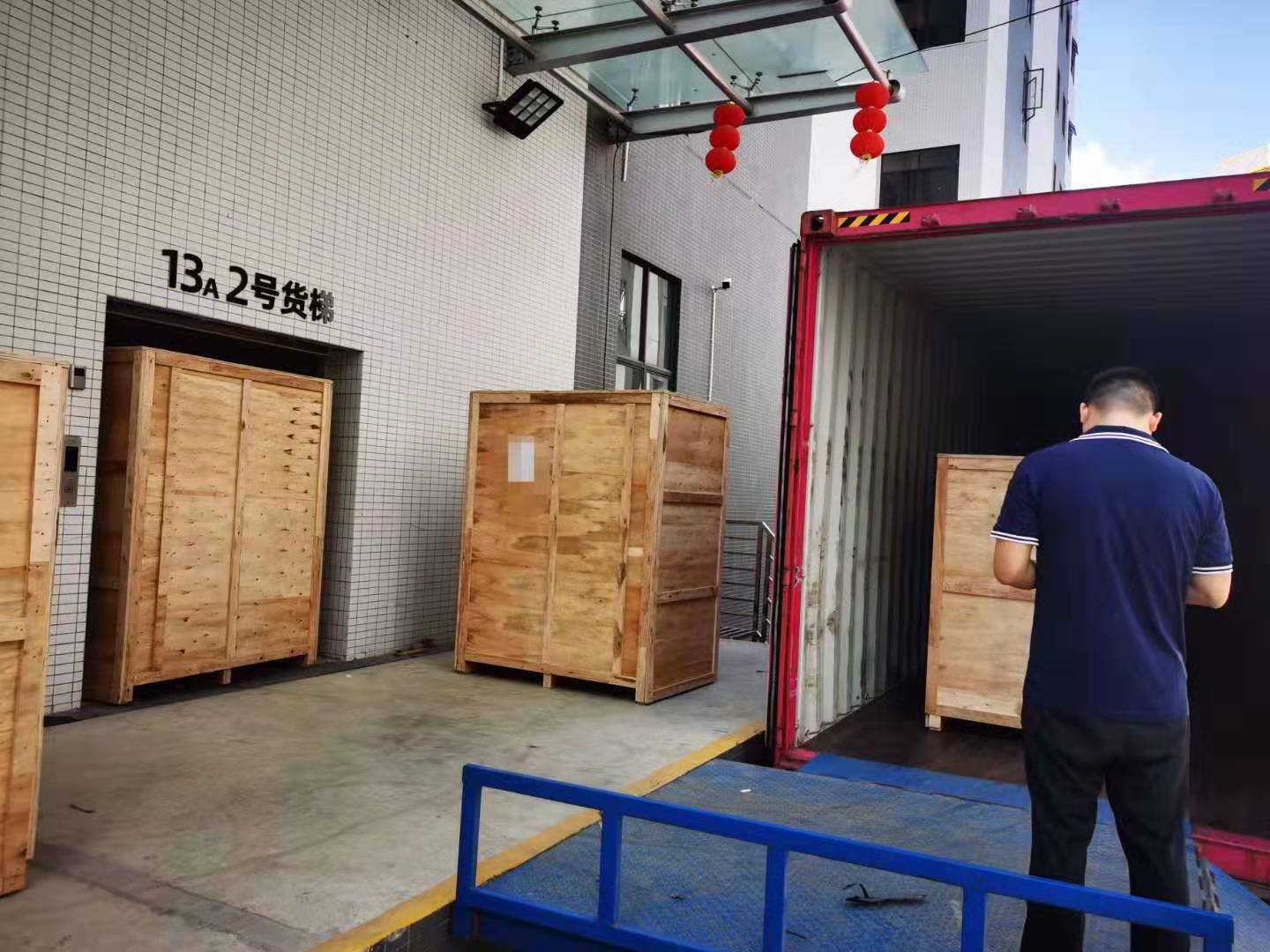

We also take great care in packaging our machines, which strictly complies with international standards. Each machine is wrapped thoroughly—layer after layer—and packed in a seaworthy wooden case. Some shipments go into bulk containers, while for other customers, full sets of equipment(silicone machines or PVC machines) are loaded together in a single container. Additionally, we provide molds, materials, and so on.
