Intelligent High-Speed Line Marking Machine

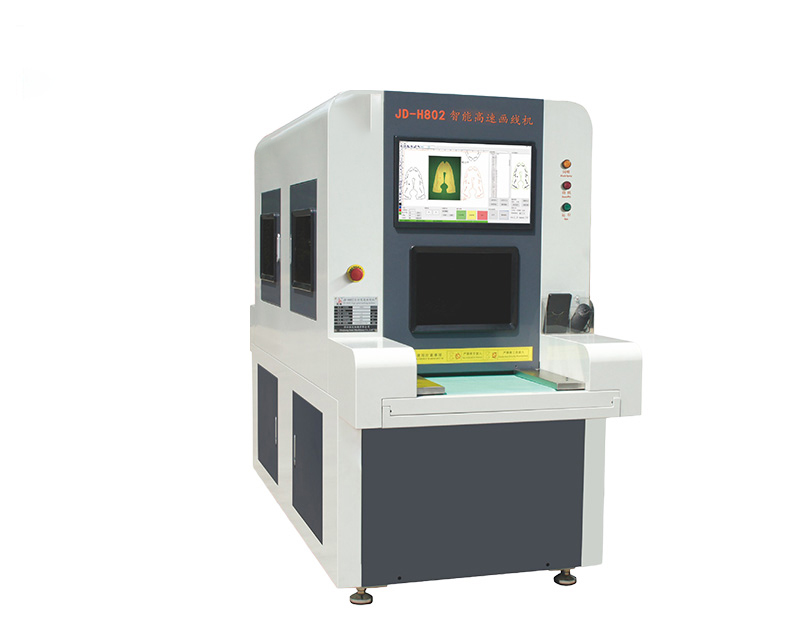

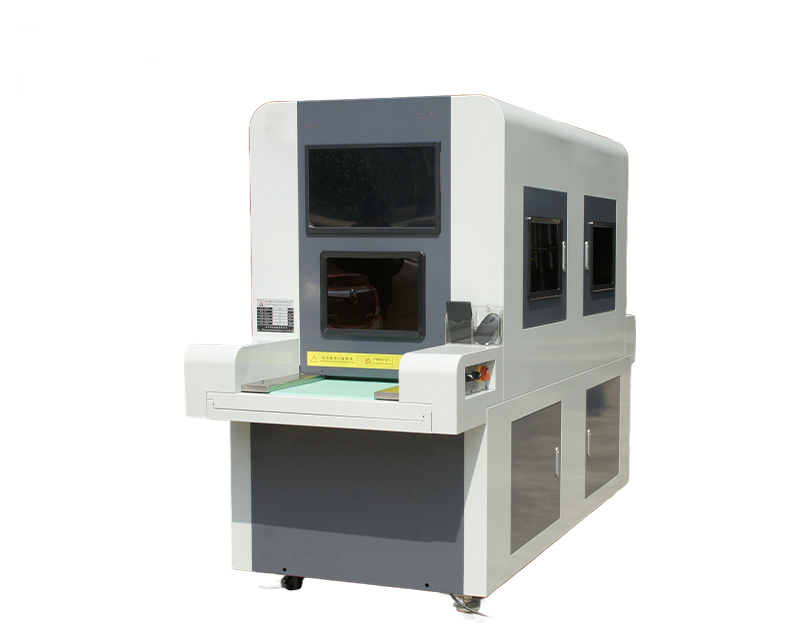

JD-H802 Intelligent High-Speed Line Marking Machine

This shoe upper line marking machine is designed to automatically draw precise seam marking lines on shoe uppers made of materials such as leather, synthetic leather, or fabric. By importing templates, it replaces traditional manual line marking, efficiently positioning complex patterns, ensuring precise seam alignment and improving product consistency.

Features

● Vision Positioning System: Equipped with a high-speed industrial camera and applying dynamic vision algorithms, it achieves high precision and efficiency.

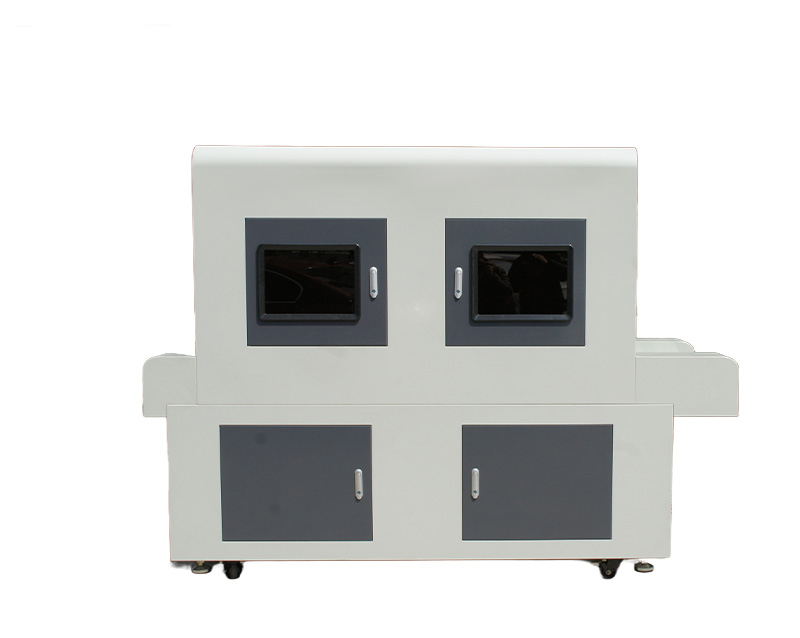

● Optimized Mechanical Structure: Utilizing a narrow-width drive belt design, it occupies 60% less space than traditional equipment, eliminating the need for waiting for material loading and increasing line marking efficiency by three times.

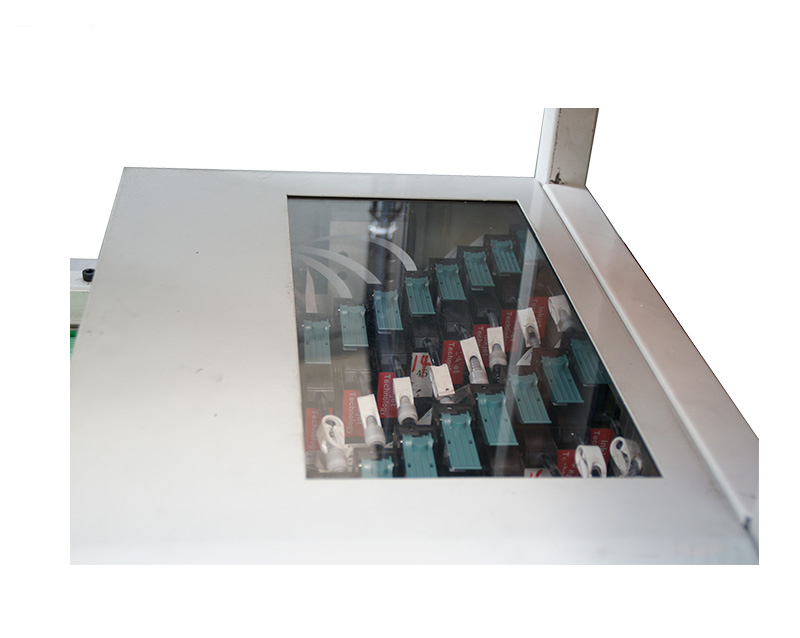

● Intelligent Inkjet System: 16 ink cartridges are arranged across a horizontal array, equipped with an ink cartridge maintenance system to extend cartridge life.

● Intelligent Control System: 24-inch industrial display, PLC central control system, Chinese and English graphical user interface, and self-diagnosis and fault prompts.

 Technical Parameters

Model: JD-H802

Operating Voltage: 220V, 50Hz

Operating Air Pressure: 0.4 MPa

Operating Speed: 30 m/min

Power: 1.1 kW

Weight: 500 kg

Dimensions: 2700 x 985 x 1780 mm
