Product details

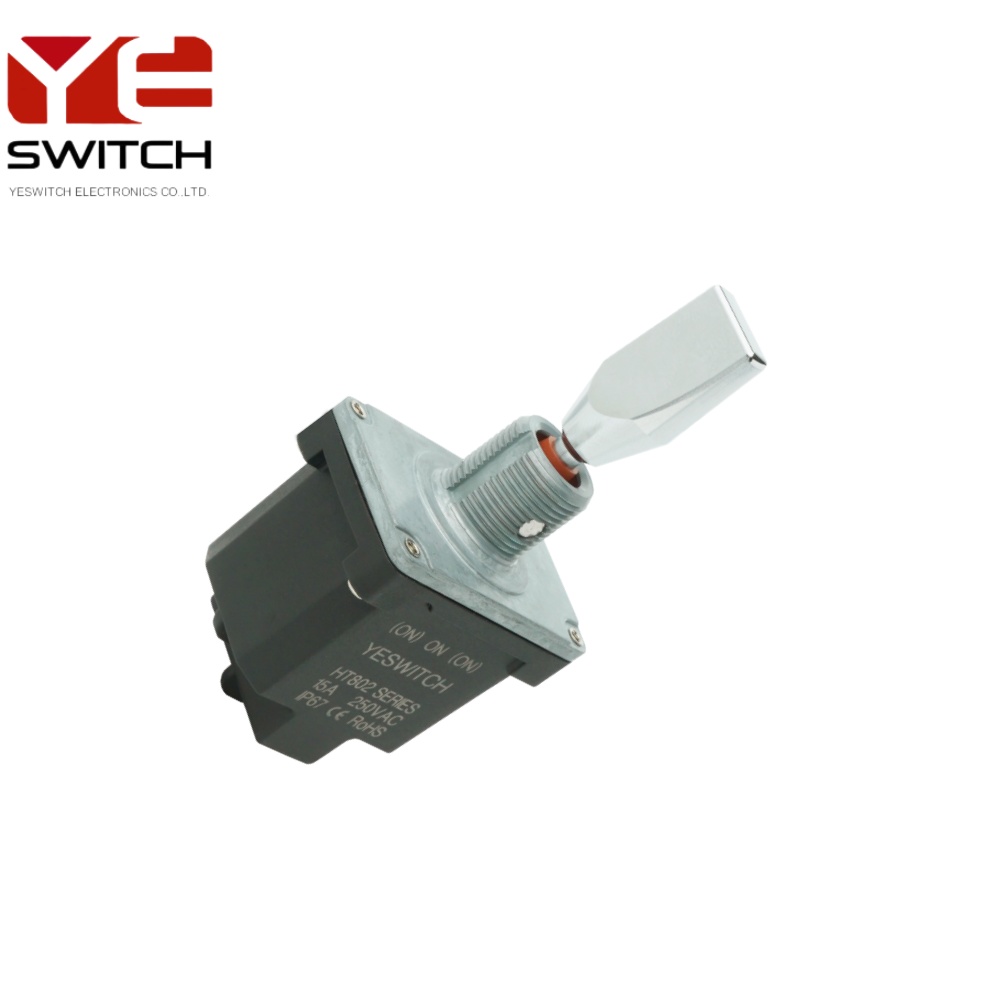

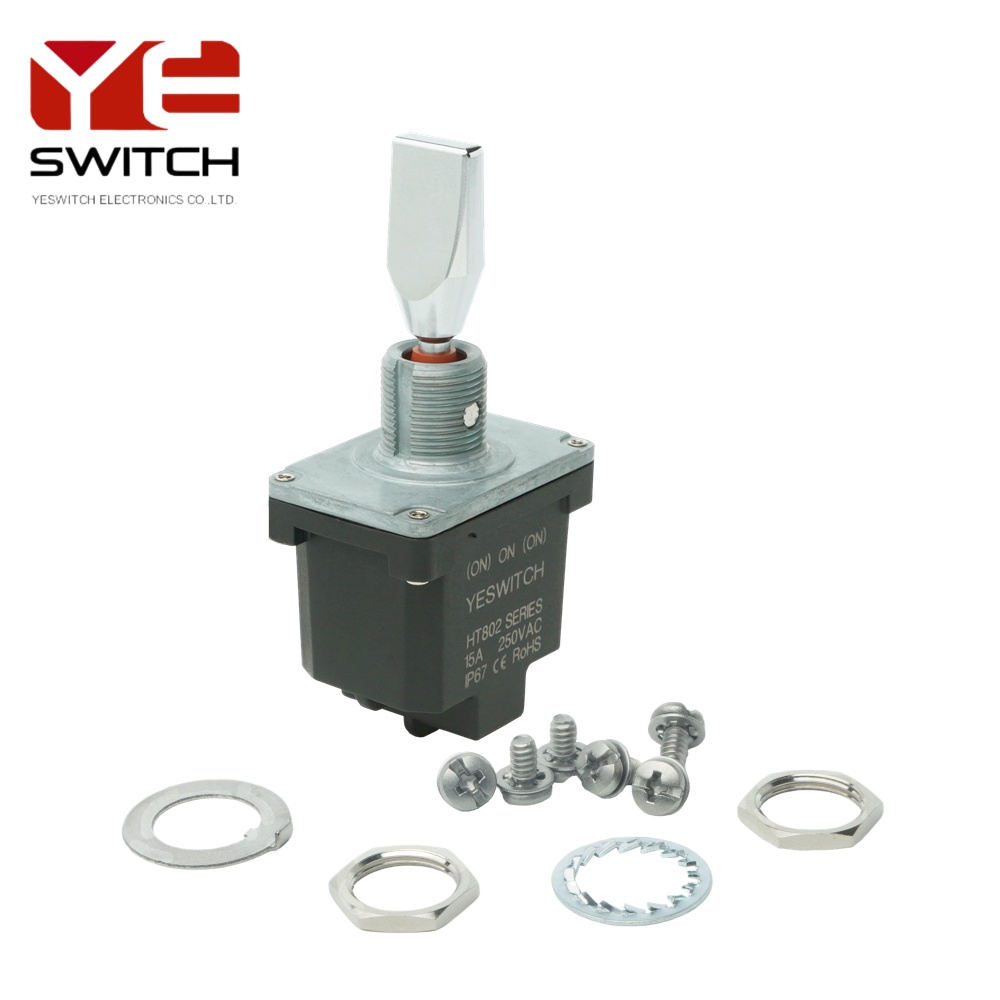

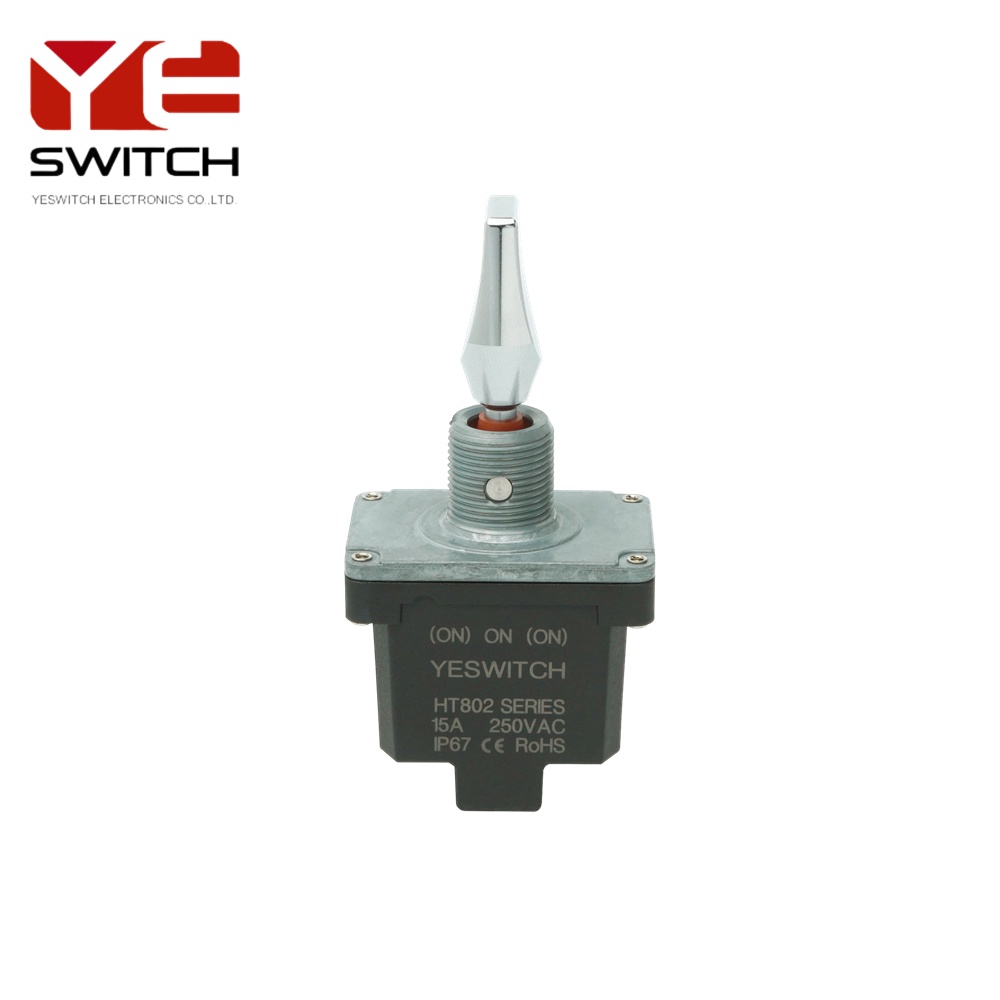

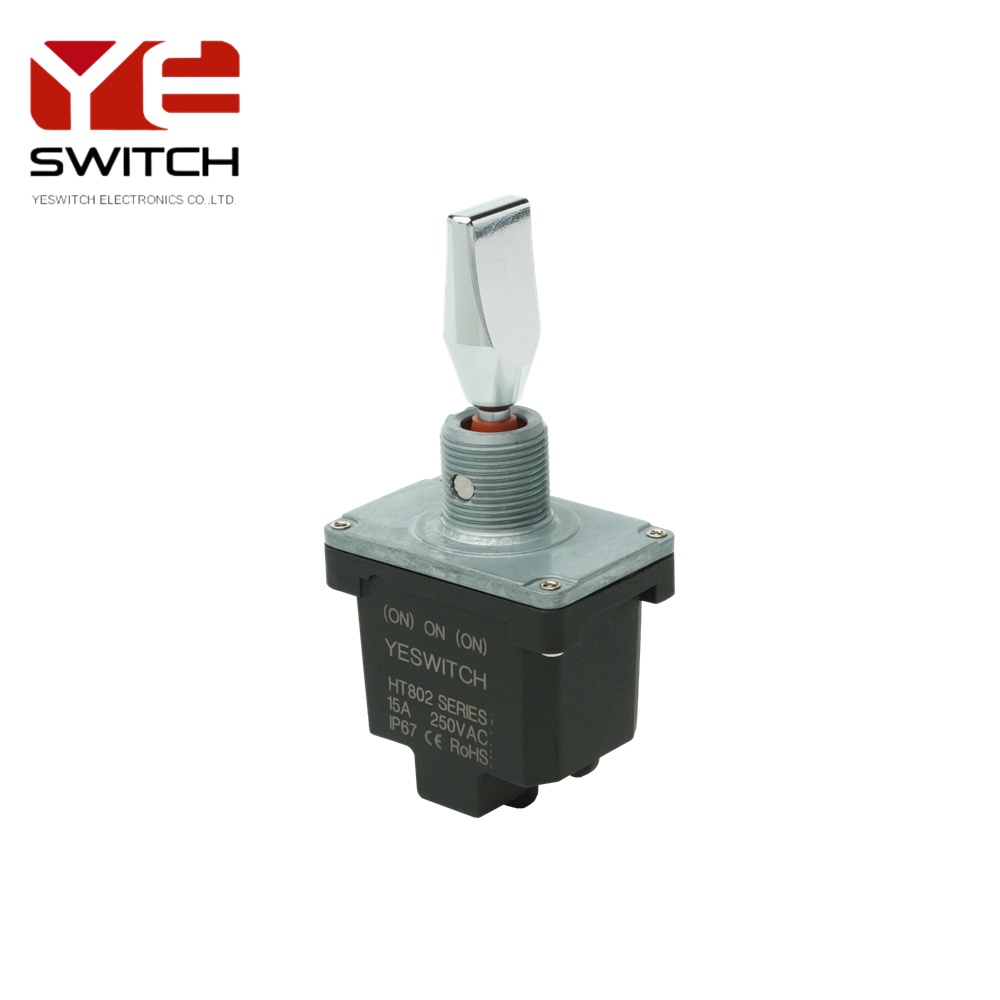

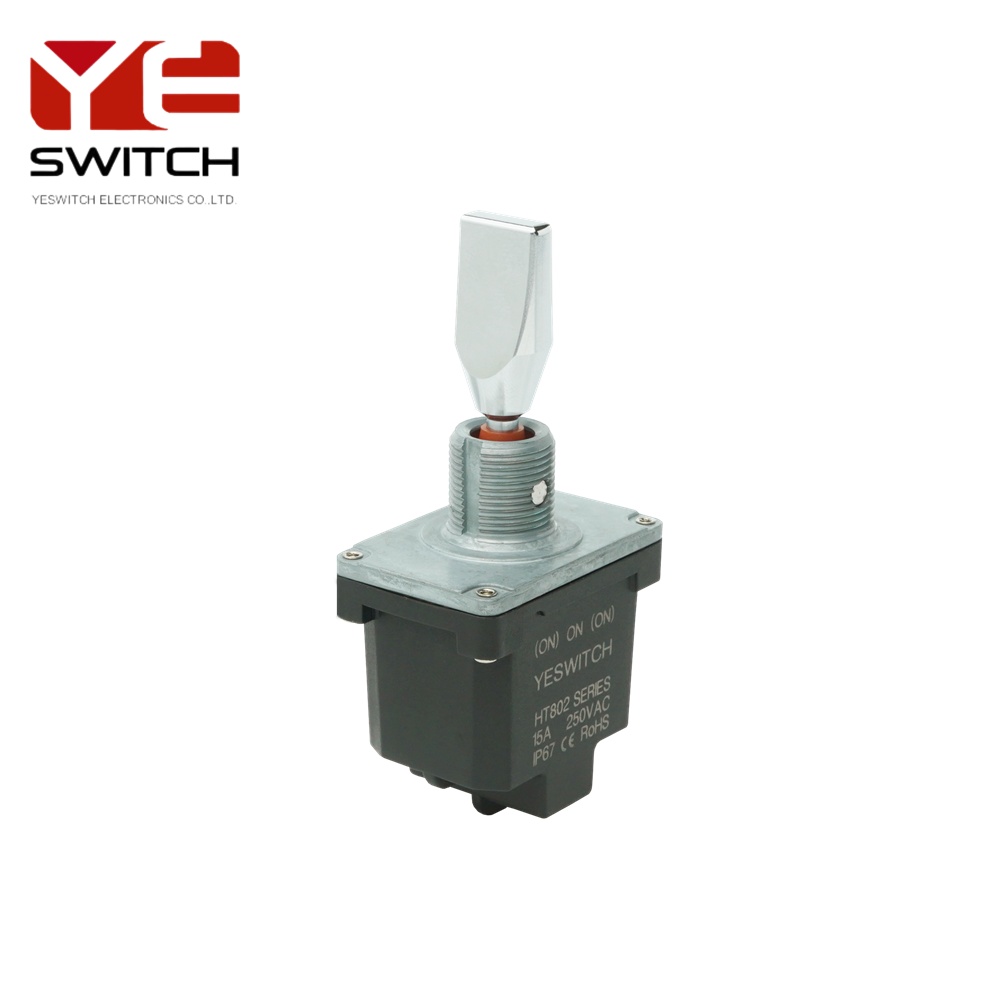

16A High Current IP68 Dual (ON)-ON-(ON) Flat Metal Handle Screw Terminal Toggle Switch

YESWITCH HT802 Series high-current toggle switches are high-performance switching solutions designed specifically for heavy machinery and aerial work platforms.

Key Features

Dual-way (ON)-ON-(ON) reset function

A unique three-position design supports dual-way momentary triggering (resettable by pressing in both directions), with the neutral position being the off position, meeting complex operational requirements such as emergency equipment pauses, direction changes, or mode transitions.

A precise and reliable return spring ensures automatic return to center after operation, preventing accidental contact and resulting in continuous power flow.

16A High Current Carrying Capacity

Copper alloy contacts with an optimized conductive structure can stably carry loads of 16A/250VAC or 16A/28VDC, making them suitable for high-power equipment such as motors and hydraulic pumps.

Low contact resistance (max 20mΩ) reduces heat loss and extends life.

Industrial-grade protection and durability

IP68 protection rating: Fully sealed and dustproof, it withstands high-pressure water washdowns, oil, and dust intrusion, making it suitable for harsh environments such as mines and ports. Flat Metal Handle: Made of stainless steel with an anti-corrosion finish, it's impact-resistant and easy to operate with gloves.

Efficient Connection and Installation

Screw Terminal Wiring: Silver-plated copper terminals resist vibration and loosening.

Typical Applications

Heavy Machinery: Excavator boom control, crane direction switching, and power on/off for mining equipment.

Aerial Work Platforms: Lift motor start/stop, emergency stop reset, and platform tilt adjustment.

Others: Marine deck equipment, agricultural machinery hydraulic systems, and rail transit auxiliary circuits.

The YESWITCH HT802, with its high reliability and environmental adaptability, has become the benchmark switch component of choice for heavy-duty applications.

SPECIFICATIONS

CONTACT RESISTANCE:20m ohm(Max)
INSULATION RESISTANCE:100VDC-100M ohm(Min)
DIELECTRIC STRENGTH:1500VAC-1MINUTE
MECHANICAL LIFE CYCLE:100.000 CYCLES
OPERATING TEMPERATURE:-40 to +85 DEGREES
FRONT SEAL:IP68

RATING

RESISTIVE LOAD:16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:15A 28VDC

MATERIAL

ACTUATOR:COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:COPPER ALLOY
CONTACT:COPPER ALLOY
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL
