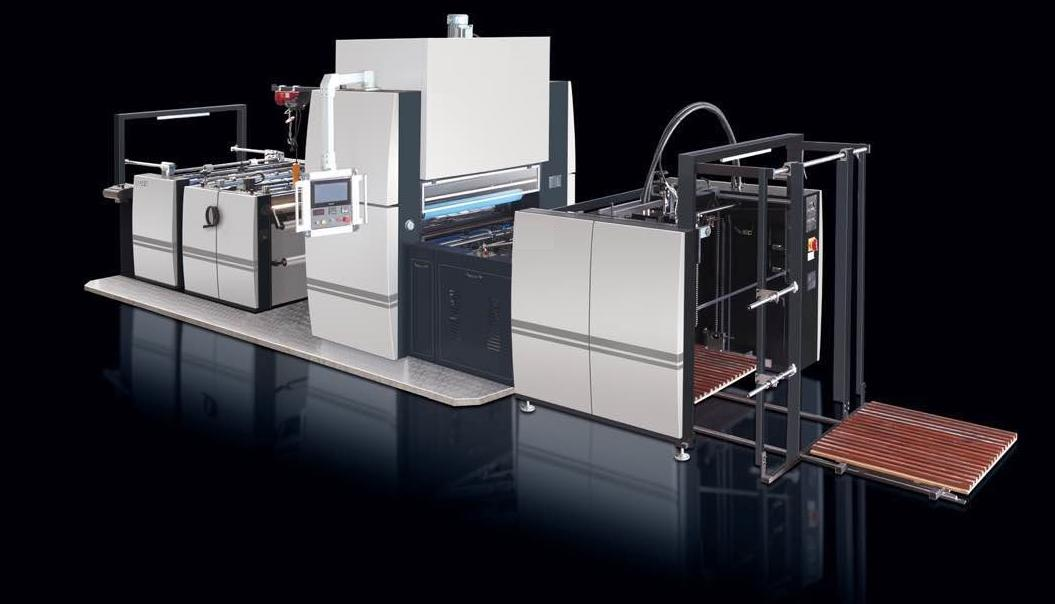

Automatic Vertical Laminating Machine

Fully automatic vertical lamination machine is designed for water-based glue and pre-glued film laminating multi-functions.The film is firstly coated with water-base glue and then dried by the big drying roller. Meanwhile, automatic feeder conveys paper sheets to laminating unit. Then the coated film will be laminated on paper surface by the heating and pressuring roller. The big drying roller and pressure roller adopt hot air circulation system with quick temperature rise and stable and precise temperature control. The laminated products can be conveyed through separating system and cut into paper sheets. Paper sheets can be received with automatic paper stacker.

It’s with latest built-in electromagnetic heating device, one-touch start, and automatic stacking board exchanging functions. Features high automation, high laminating speed, high accuracy, electrical appliance is centralized by programmable system, touch screen easy to operate.

Machine highlights:(water-based glue, pre-coated film)

I.  Pre-stack unit to realize non-stop paper feeding and paper delivery.

II.  Adopt high-speed feeder (12000 sheets/hour) to ensure fast and stable operation

III.  High intelligence, the whole machine is controlled by PLC and man-machine interaction system, and the frequency conversion and servo linkage of each part ensure that the speed is synchronized and easy to operate by one person. The main motor adopts frequency conversion motor and servo control to overlap, which has higher accuracy.

IV.  The drying system adopts the hot air circulation system, combined with the active follow-up drying and heating device, which improves the drying efficiency of acceleration and deceleration.

V.  The main transmission of the whole machine adopts synchronous belt transmission, which makes the transmission stable and accurate, while ensuring the accuracy, greatly improving the stability and service life of the machine.

Ⅵ.  Module combination, optional matching! (Powder removal, double-sided, embossed, light-cured, double-pressed, chain knife, hot knife, corona device, etc. optional)

Manual Content :

1. Application range

2. Specification

3. Detailed function of main system

4. List of main electrical accessories

5. Configuration items for each part

6. About company

7. Service and warranty

8. Quotation

1. Application range

FH series are practical multi-purpose machines which can improve the printed products: waterproof, dustproof, surface beautification, etc. This laminating process can be used for posters, books, information books, posters, color boxes , color box packaging, etc.

2. Specification

3. Detailed function of main system

i. Automatic paper feeding section and its features

The paper feeder is an important part of the laminating machine. The function of the paper feeder is to automatically, accurately, steadily and periodically separate the sheets one by one, and continuously send them to the regular positioning parts.

The paper feeding method of this machine is continuous paper feeding, which has the advantages of high automation, compact structure, good performance, convenient operation, accurate paper feeding and high precision. The main components of the paper feeder are paper feeding bridge, paper feeding head, paper stacking table, lifting system and transmission system.

(1) Adopt oil-free vacuum air pump suction system;

(2) High-speed offset printing feeder (12,000 sheets/hour) ensures high-speed and stable operation!

(3) Stepless frequency conversion speed regulation paper feeding

(4) The paper feeding table of the production line is positioned and conveyed by vacuum suction to ensure smooth, tidy and stable conveying.

(5) The upper and lower limit protection devices of the feeding table; manual rapid lifting;

(6) The paper feeding table automatically replenishes the paper feeding system;

(7) Attached double sheet controller: double or multiple sheet feeding detection and shutdown system: use the induction of the safety voltage detector to detect double or multiple sheets of paper;
