IP68 (ON)-ON-(ON) Flat Metal Toggle Switch

2 week ago

0 0 

8 year

Product details

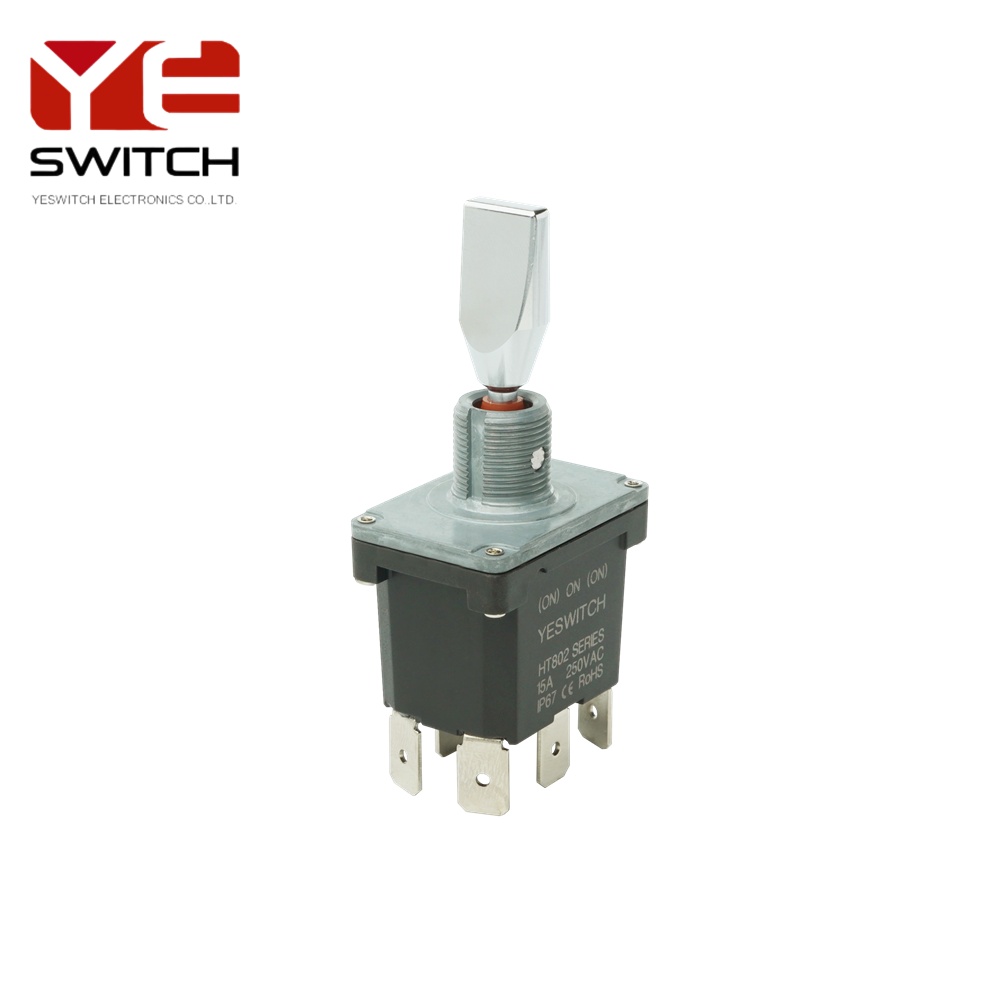

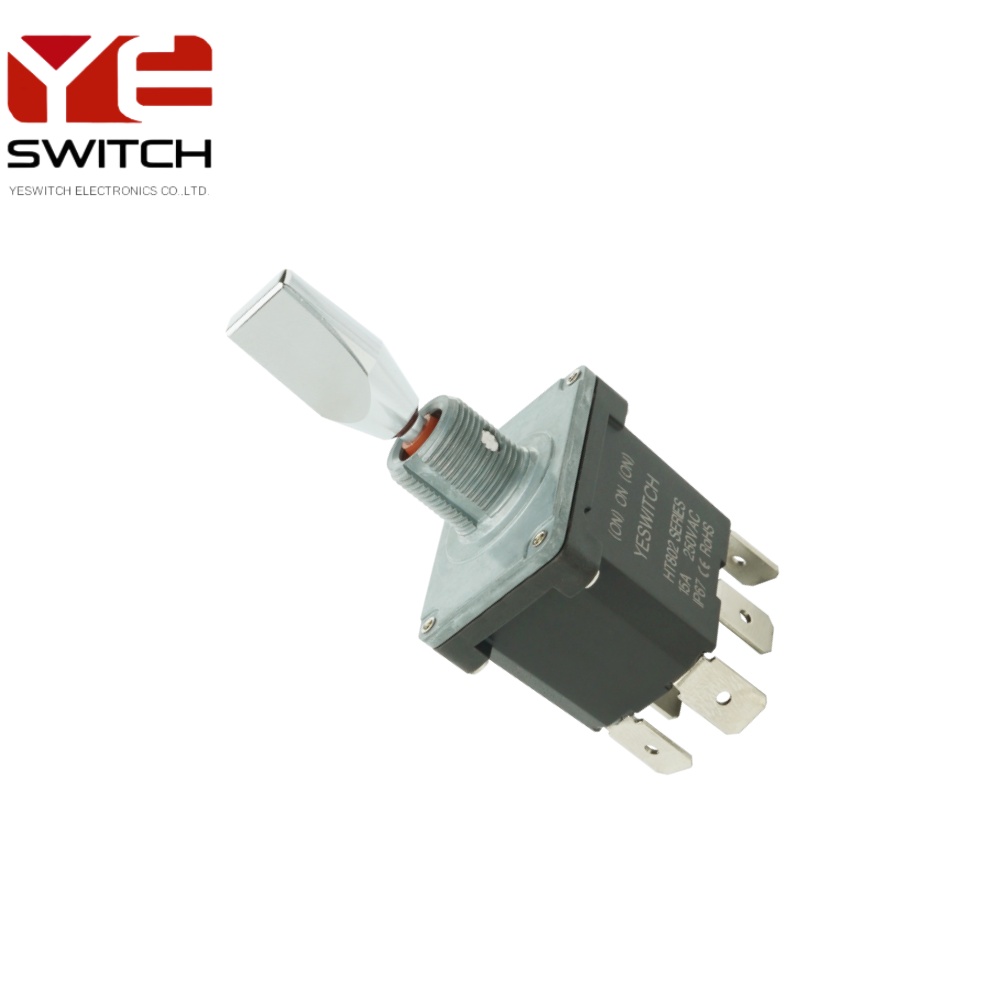

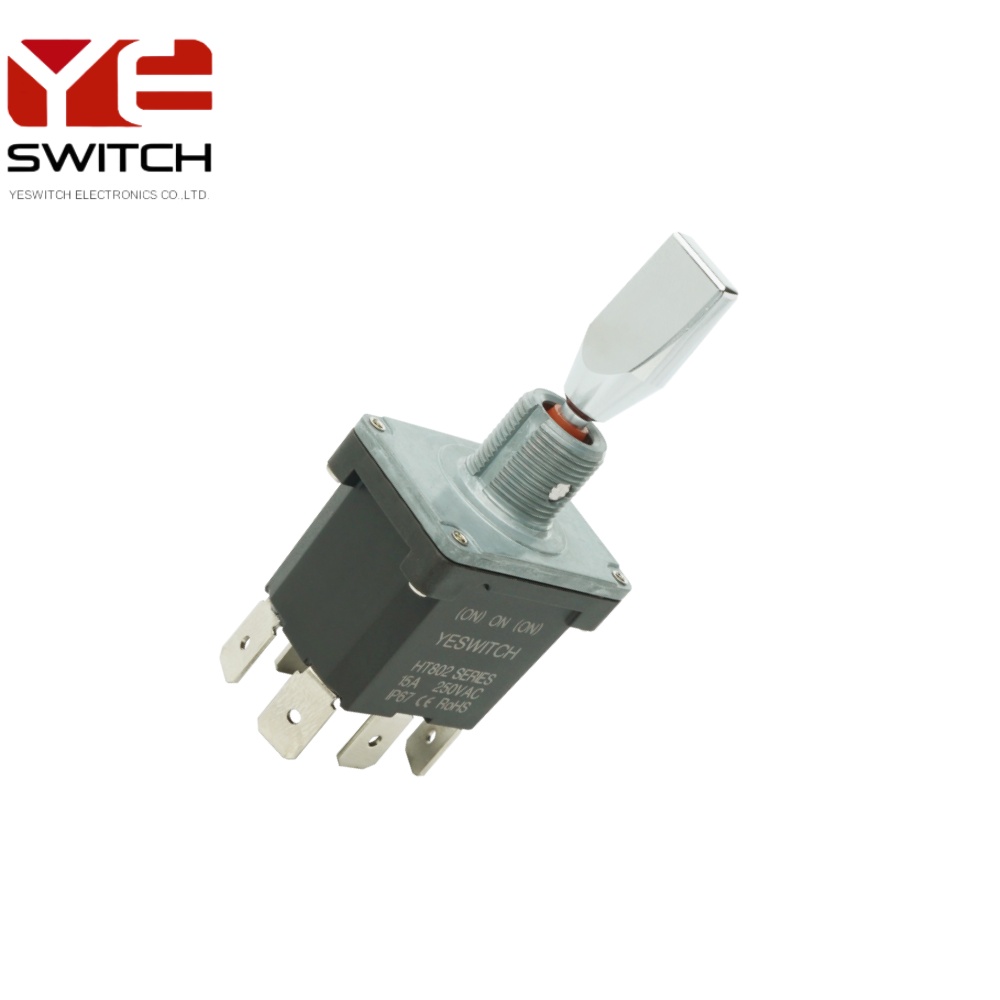

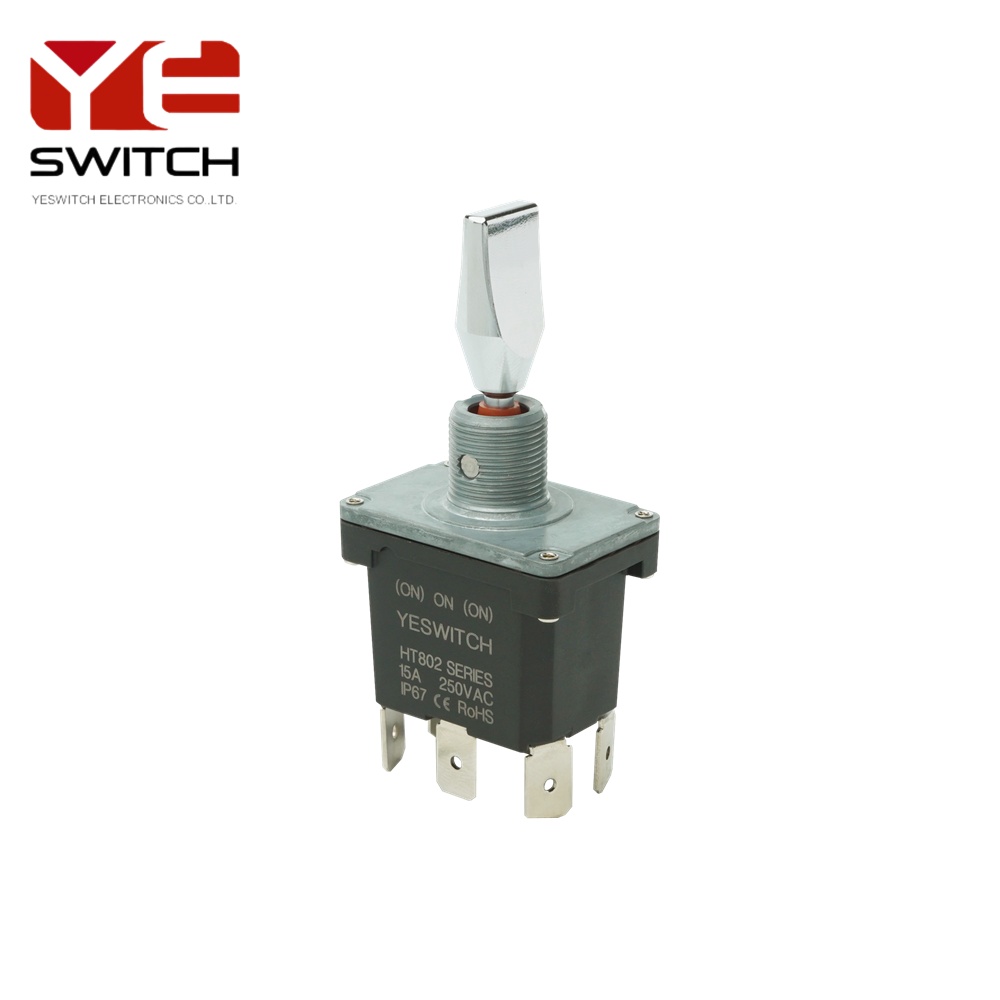

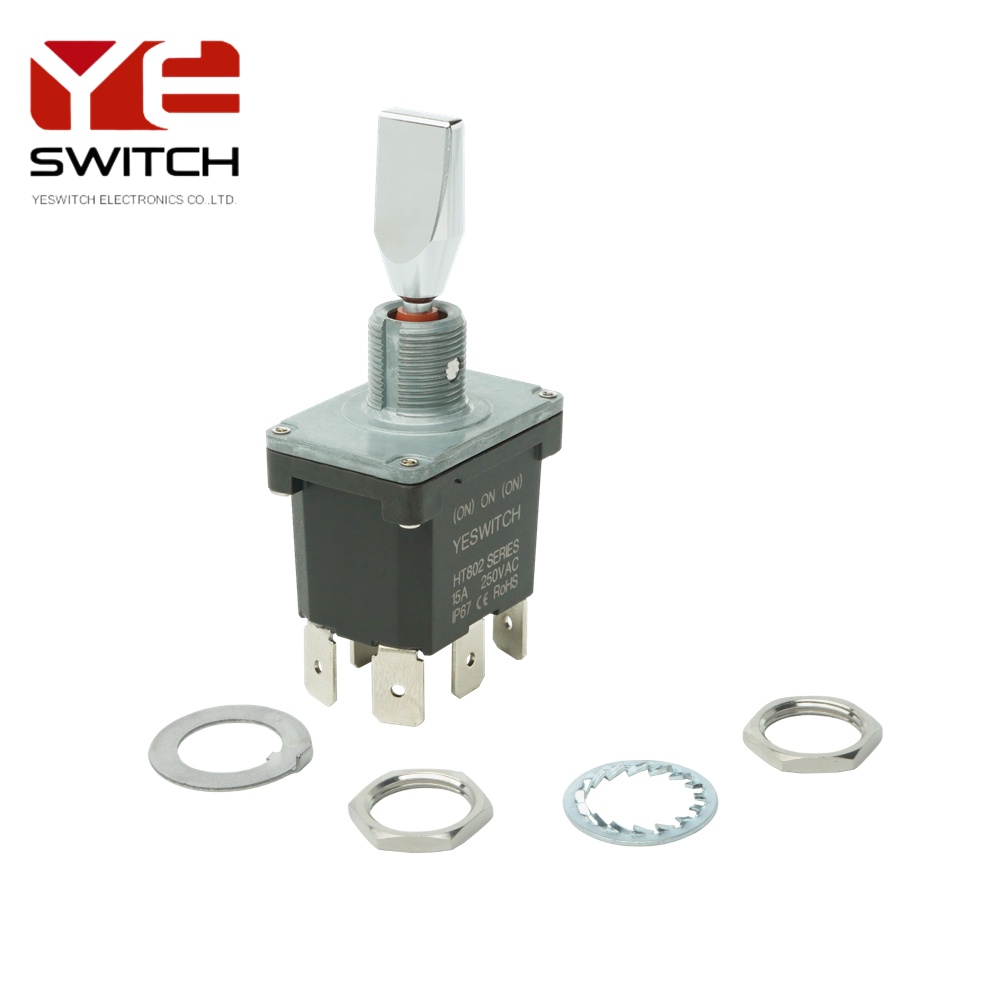

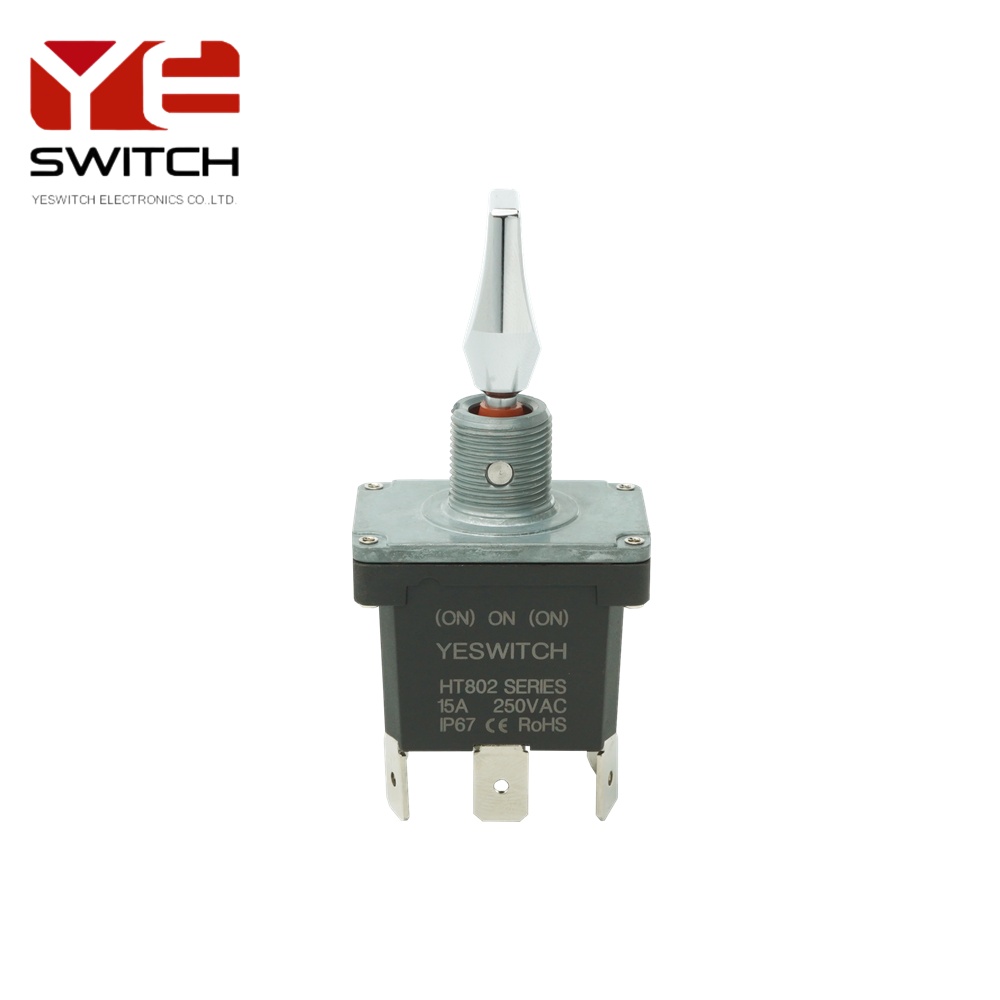

16A High Current IP68 Dual (ON)-ON-(ON) Flat Metal Handle PC Terminal Toggle Switch

YESWITCH HT802 Series high-current toggle switches are high-performance,dual-way reset switches designed specifically for heavy machinery and aerial work platforms.

Key Features

Dual-way (ON)-ON-(ON) reset function

Features a unique three-position,dual-circuit structure with a center reset position and two side instantaneous conduction positions.The toggle switch automatically resets to the center position when the switch is released.This design is ideal for applications requiring bidirectional instantaneous control (such as equipment start/stop,direction switching) with automatic reset, enhancing operational safety.

16A High Current Carrying Capacity

The contacts are made of a highly conductive copper alloy (with silver plating) and can stably carry 16A/250VAC or 28VDC,withstanding arcing caused by frequent switching.

Tested for over 100,000 cycles,it is suitable for high-load circuit control in heavy machinery.

Metal Flat Handle Design

The handle is made of copper alloy with a flat,non-slip texture,making it ergonomically suitable for operation with gloves.

PC terminals with IP68 protection

PC terminals are impact-resistant,oil-resistant, and operate over a wide operating temperature range of -40 to 85 degrees.

The IP68 fully sealed structure is dust-proof and waterproof,and can withstand high-pressure spray and brief immersion,making it suitable for use in harsh outdoor environments on aerial work platforms.

Typical Applications

Heavy Machinery:Excavator hydraulic arm control and crane emergency brake.

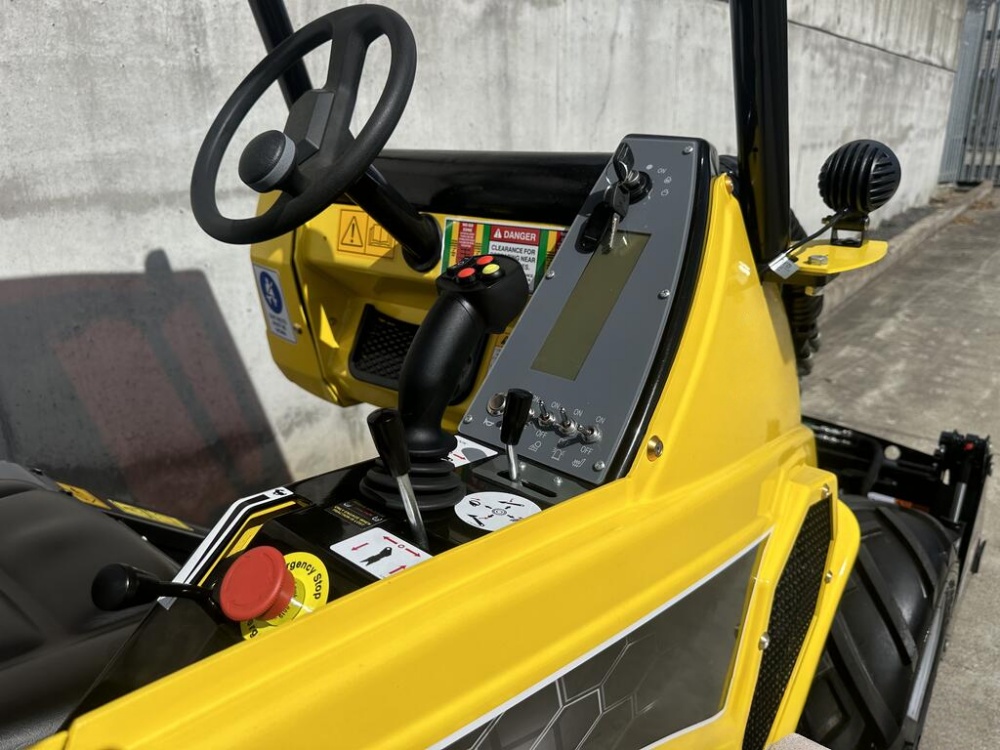

Aerial Work Platforms:Bidirectional adjustment of the lifting mechanism and emergency stop switch.

Other Applications:Marine equipment and high-voltage distribution boxes for new energy vehicles.

SPECIFICATIONS

CONTACT RESISTANCE:20m ohm(Max)
INSULATION RESISTANCE:100VDC-100M ohm(Min)
DIELECTRIC STRENGTH:1500VAC-1MINUTE
MECHANICAL LIFE CYCLE:100.000 CYCLES
OPERATING TEMPERATURE:-40 to +85 DEGREES
FRONT SEAL:IP68

RATING

RESISTIVE LOAD:16A 125/250VAC,15A 28VDC
INDUCTIVE LOAD:15A 28VDC

MATERIAL

ACTUATOR:COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:COPPER ALLOY
CONTACT:COPPER ALLOY
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL
