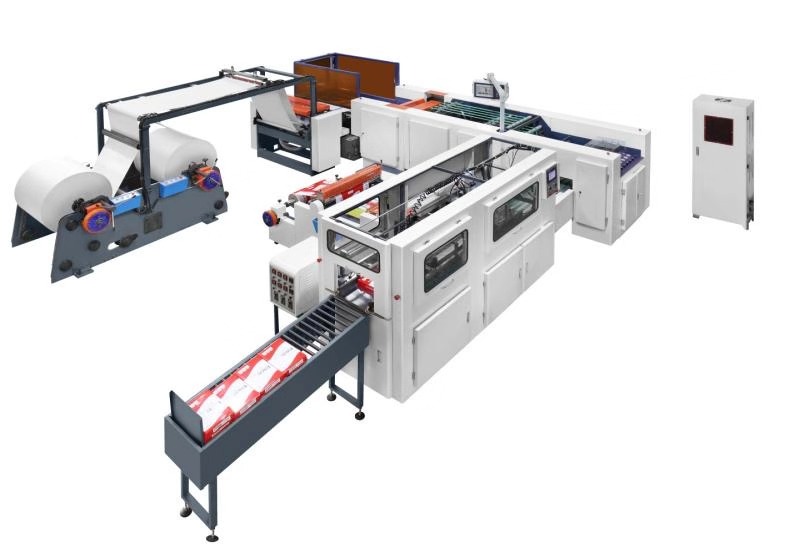

A4-10 copy paper cutting and packing machine
2 week agoA4 copy paper production line
SPECIFICATION
2.1. Technics of Equipment

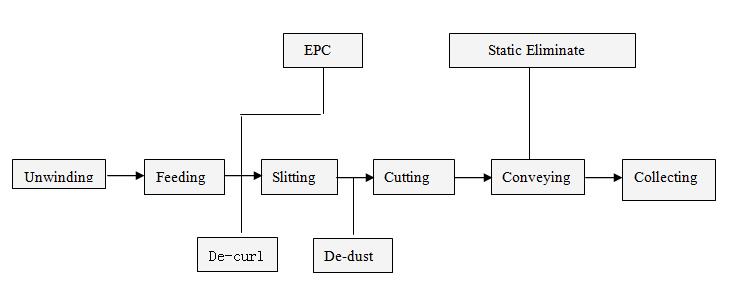

As technics of our machine, we hereby describe the related functions and work flow for paper products: unwinding - cutting - onveying - collecting - Packaging.
A. A4-2(pocket) sheet cutting machine
A.1. Main Technical Parameter
Paper Width |
|
Gross width 850mm, net width 840mm |
Cutting numbers |
|
2 cutting-A4 210mm (width) |
Paper roll`s diameter |
|
Max. 1450mm. Min. 600mm |
Paper core`s diameter |
|
3 inch(76.2mm)or 6 inch(152.4mm) or according to the clients`demand |
Packing Paper grade |
|
High-grade copy paper; High-grade office paper High grade Free Wood paper etc. |
Paper weight |
|
60-100gsm |
Sheet length |
|
297mm ( specially design for A4 paper, the cutting length is 297mm) |
Ream amount |
|
500 sheets Max. Height 45-55mm |
Production speed |
|
Max 0-200m/min(depends on different paper quality) |
Max. Numbers of cutting |
|
Max 841/min |
Output of the ream |
|
Max 13reams/min |
Load of |
|
100gsm |
Cutting accuracy |
|
0.2mm |
Cutting condition |
|
No variation of the speed, no break, cut all the paper at one time and need the eligible paper. |
Main power supply |
|
3*380V /50HZ |
Voltage |
|
220V AC /24V DC |
Power |
|
23KW |
Air consumption |
|
200NL/min |
Air pressure |
|
6 bar |
Edge cutting |
|
5-15mm*2 |
Safety standard |
|
Design according the safety standard of China |
A.2.Standard Configuration
1. Unwind Stand (1Sets is just 1Rolls)
A-1 Type: CHM-A4-2
3 inch(76.2mm) air expansion
shaft chuck
Machine Type
Each machine table can take 2 sets of shaftless paper rack
Diameter of the paper roll
Max. 1450mm
Width of the paper roll
Max. 850mm
material
Steel
Clutch device
Pneumatic Braker and control
Clip arm adjustment
Manual adjust by oil pressure
Paper core demanding
2. Automatic tension control system
A-2 Type: Automatic tension control system
1 When the paper through inductor, that automatic feedback to the
PLC control system to increase brake load, increase or reduce the
tension that control the paper tension automatically.
3 High precision cutting knife system
A-3 Type: High precision cutting knife system
1 Upper and lower knives are rotary make the cutting accuracy is
very precision.
2 Anti-curve device Include one set of square bar and steel
wheel. When the curve paper through paper edge unit that can
adjust the paper square and let it flat.
3 5 sets slitting knives
Upper slitting knife take by air pressure and spring. Lower knife connect with bear drive(the diameter is 180mm ) and move with spring. The upper and lower round knife is made by SKH.The lower slitting knife (diameter is 200mm) and drive with in-phase belts. The lower slitting knife is 5 groups, each group have two knife edge.
4 Paper feeding wheel
Upper wheel 200*550mm (rubber covered)
Lower wheel 400*550mm (anti-glide)
5 Cutting knife group
Upper cutting knife 1 sets 550mm
Lower cutting knife 1 sets 550mm
6 Driving group(High precision bear and belt drive)
7 Main driving motor group: 15KW
4. Transporting System
A-4.Type: Transporting system
1 Transporting by level and overlapping device
2 High speed transporting belt and press wheel. Upper and lower
transport belt corresponding pressure paper, automatic tension and
close system.
3 Static removal device (Include static removal bar and Negative Iongenerator)
A-5 Type: Paper collecting system5.
Paper collecting system
1 Automatic device for paper stack up and down
2 Jogging device and clap paper tidy. Control by air vat, when design
sheet, the cylinder up and down by cut paper bar. After transport paper
to belt, transport to the pack table cross.
B. Wrapping Machine
B.1. Main Technical Parameters:
Paper Width |
|
Gross width:310mm ;net width :297mm |
Ream packing high |
|
Max 55mm Min 45mm |
Packing roll dia |
|
Max.1000 mm Min.200mm |
Packing roll width |
|
560mm |
Packing sheets weight |
|
70-100gsm |
Packing sheets grade |
|
high-grade copy paper, high-grade office paper, high-grade offset paper etc. |
Design speed |
|
Max 50 reams/min |
Operation Speed |
|
Max 35 reams/min |
Packing condition |
|
no speed variations, no breaks, cut all the paper at one time and qualified packing paper. |
Driving |
|
AC Servo Precision Control |
Main power supply |
|
3*380V /50HZ( or as required) |
Voltage |
|
220V AC /24V DC (or as required) |
Power |
|
18KW |
Compressing air consumption |
|
300NL/min |
Air pressure |
|
6bar |
C. All the machine is controlled by PLC.
Included the following function: speed control, paper count, paper ream output, fault alarm and automatic stop(Indicate fault code shown on the panel screen)
D. Prepare items by buyer
1)The civil engineering and substructure of this machine
2)The machine main power wiring and electric line setting work out of this machine control box.
3)Air pressure source and pipe for this machine.
4)The suspend and unload work at scene.
E. Other terms
This machine design by the newest technical and technology development, so in the ruler of not effect the production and quality, we remain the right to modify and change.
