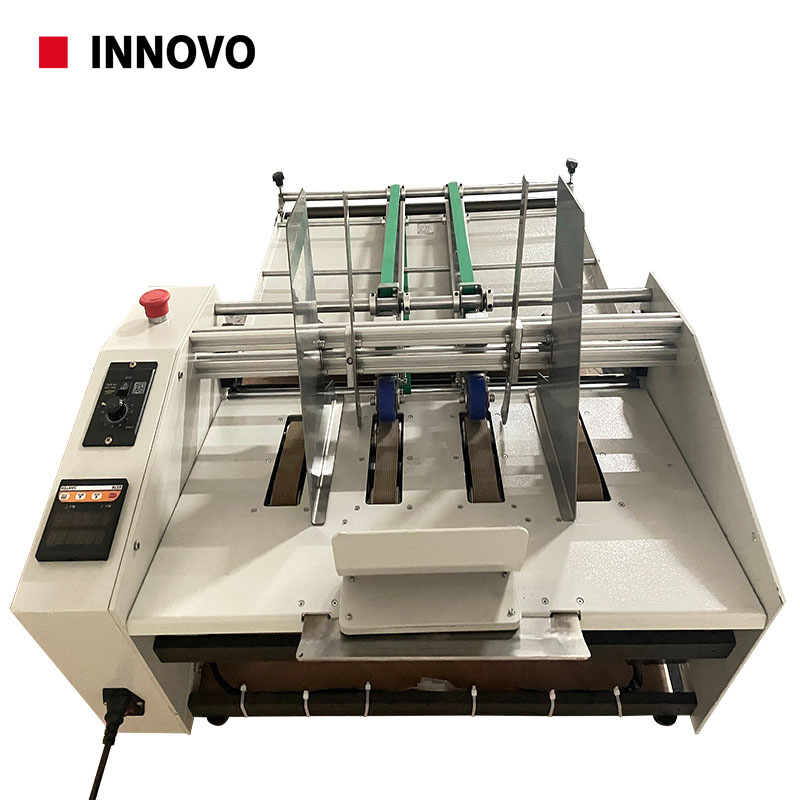

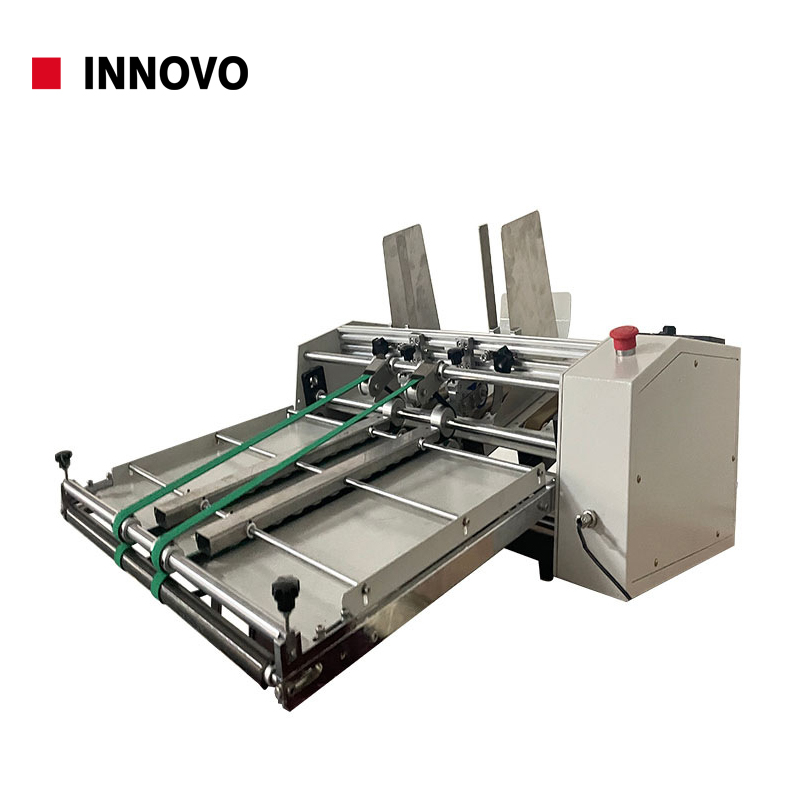

Automatic Paper feeding machine

Model:  FZ600, Customize in various sizes

Voltage: 220V 50Hz

Total Power: 300W

Applicable to a wide range of paperboard, cardboard, plastic sheets, and more.

Applicable Thickness: 80gsm to 500gsm cardboard, plastic sheets, and more.

Applicable Paper Width: 130-600mm, Length: 100-600mm.

Maximum Speed: 40m/min, adjustable.

Dimensions: 900*750*400mm.

Net Weight: 70kg

Features of this machine:

Replaces manual paper feeding, easy to operate, energy-efficient, cost-effective, and compact design.

1. High efficiency, simple commissioning and operation, ready for immediate operation.

2. High cost-effectiveness, with speed comparable to fully automatic machines. High precision and a wide range of applications.

3. User-friendly design and stable operation.

4. Exquisite design, low energy consumption, low noise, and adaptable to various working environments.

Commissioning and Installation

1. Place the paper machine horizontally. Lock the universal wheels for stability.

2. Align the paper feeder with the downstream equipment to ensure smooth entry of the downstream equipment. Secure the photoelectric detection sensor at the conveyor outlet. When it detects an item, the machine stops and removes the feeder.

3. Adjust the width of the left and right feed stop gauges and the gap between the blades. Install an extended pallet for extra-long materials.

4. Connect to a 220V power supply, adjust the speed, and you're ready to go. Troubleshooting

Double sheets of paper are being ejected, paper is being ejected skewed, and the blade gap needs to be adjusted.

Care and Maintenance

1. Keep the equipment clean and perform necessary maintenance before starting work. Clean any necessary cleaning and check for loose parts before starting the machine. This will increase equipment lifespan, work efficiency, and operational safety.

2. Regularly check the tension and wear of belts and conveyor belts.

3. Strictly implement the job responsibility system before starting the machine. Operate according to correct operating procedures. Take precautions against fire, electric shock, and scratches. Turn off the power supply at the end of each shift.

4. This machine must be operated, maintained, repaired, and serviced by professionally trained personnel.

5. This machine has a six-month warranty for electrical components and a one-year warranty for mechanical components, excluding man-made or natural disasters.
