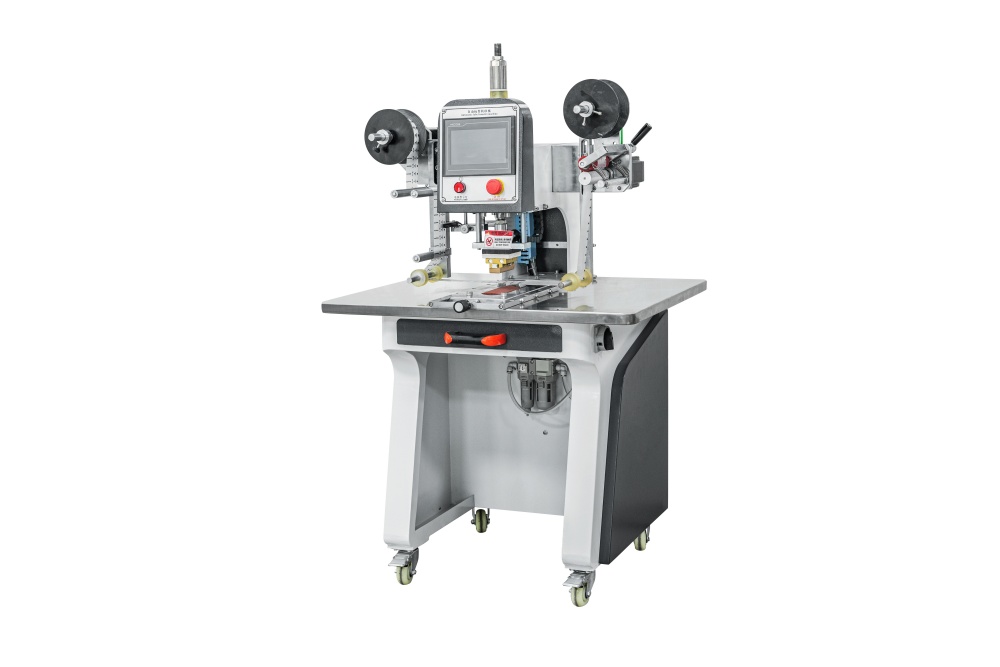

863　Automatic Label Transfer Machine

Features

High-Quality Components: This machine utilizes all-imported electrical and pneumatic components, ensuring stability and durability.

Advanced Control System: The control system utilizes a PLC and touch screen, offering intuitive and easy operation and improving work efficiency.

Precise Temperature Control: The temperature control system utilizes a PID temperature module connected to the touch screen, eliminating the need for a separate temperature controller. Precise temperature control, with a temperature differential of approximately 1°C, ensures transfer quality.

Unique Mis-Impression Protection: The pressing die automatically stops pressing when no material is present or an abnormality occurs, preventing losses caused by misoperation.

Intelligent Unloading System: The unloading system utilizes a reverse motor operation principle, ensuring the label tape is always taut, reducing errors during labeling.

Adjustable Power Frequency and Low Noise: The power frequency can be adjusted to meet diverse processing requirements. Quiet operation provides a comfortable working environment. Multifunctional Operating Mode: This machine features two operating modes: hot stamping and hot stamping, which can be switched between at will, achieving multiple uses.

Wide Applicability: Suitable for heat transfer and hot stamping of flat-soled, curved insoles/tongues, and a variety of other applications, including leather branding.

Product Parameters

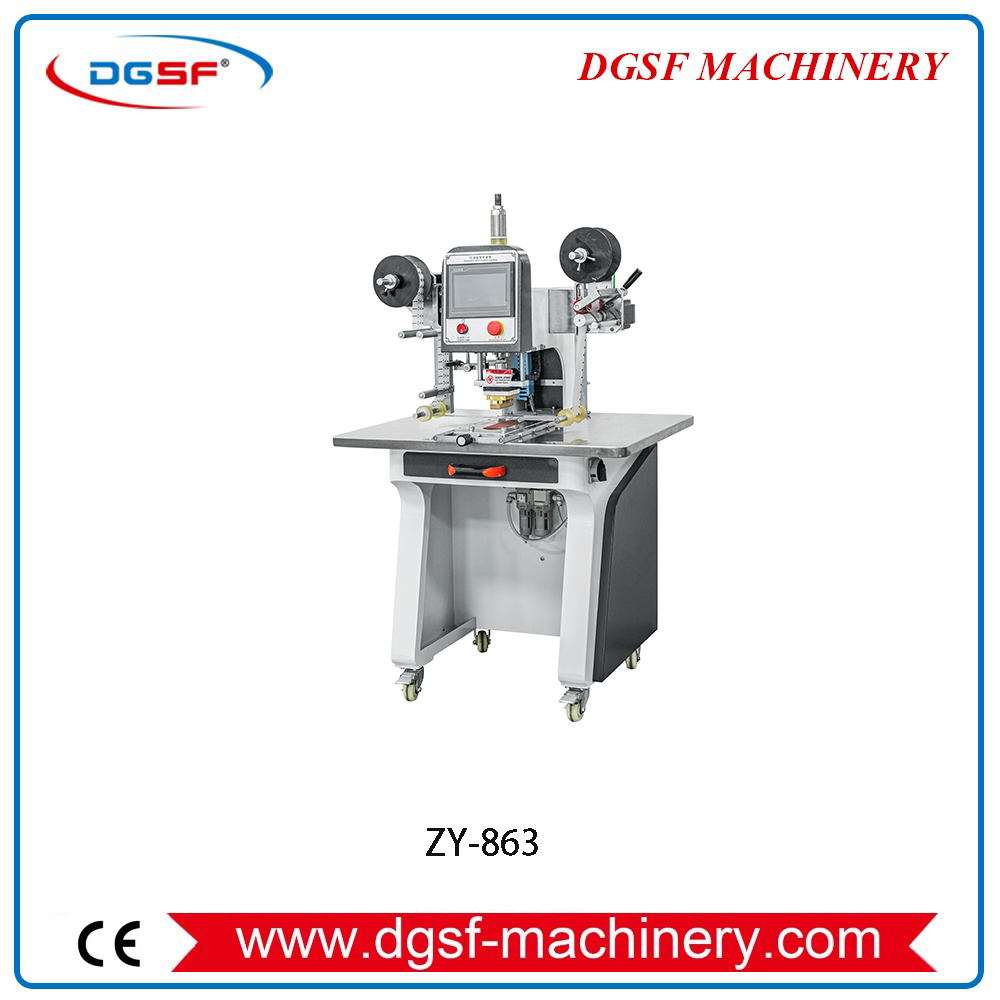

Model: ZY-863

Machine Dimensions: 780*880*1430mm

Packaging Dimensions: 880+980*1600mm

Power: 1HP

Voltage: 220V

Gross Weight/Gross Weight: 173/231kg
