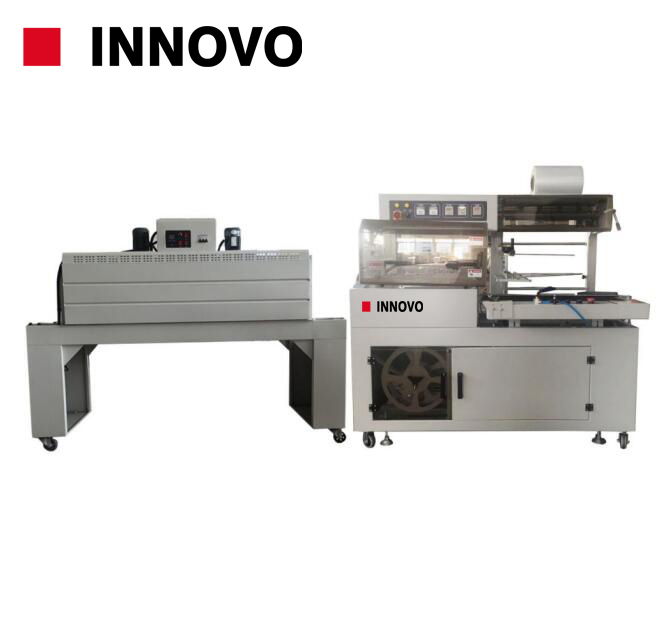

FQL-450 Automatic L-bar Sealing and Shrink Packing Machine
2 week ago
Pharmaceutical, food, stationery, cosmetics, electronic products, toys, etc.
Performance characteristics:
1. Fully enclosed packaging.
2. Automatic film feeding, bag making, sealing and cutting, waste collection, leveling, shrinking, and packaging finished products are completed in one time.
3. Constant temperature special grade aluminum alloy sealing cutter, anti-adhesive, fine sealing line, no coking, no smoke, zero pollution.
4. The knife will automatically bounce after cutting into the package.
5. The size of the package can be adjusted freely without changing the mold.
6. All the conveyor belts are covered with PTFE insulated tubes, which are not hot and do not damage the membrane.
7. The shrink chamber is double-circulating hot air system, and the temperature can be adjusted freely.
8. The conveying motor adopts the infinitely variable speed motor, which has long service life and low noise.
Technical Parameter:
Sealing machine:
|
Sealing and cutting form |
L-type fully enclosed |
|
Power supply |
220V/50-60Hz |
|
Max speed |
15--25pack/minute |
|
Sealing line size |
470x570mm |
|
Film used |
POF folded film |
|
Max film size |
330mm wide, 140mm high (width+height does not exceed 380mm; length+height does not exceed 500mm) |
|
Tower power |
2.0kw |
|
Air pressure |
6-8kg/cm² |
|
Machine dimension |
1630*900*1470mm |
|
Machine weight |
300kg |
Packing machine:
|
Power supply |
380V/18kw |
|
Max speed |
0-15m/min |
|
Heating area |
L1500×W450×H220(mm) |
|
Packing size |
W≤400×H≤150(mm) |
|
Machine dimension |
1900*660*1330mm |
|
Machine weight |
235kg |
