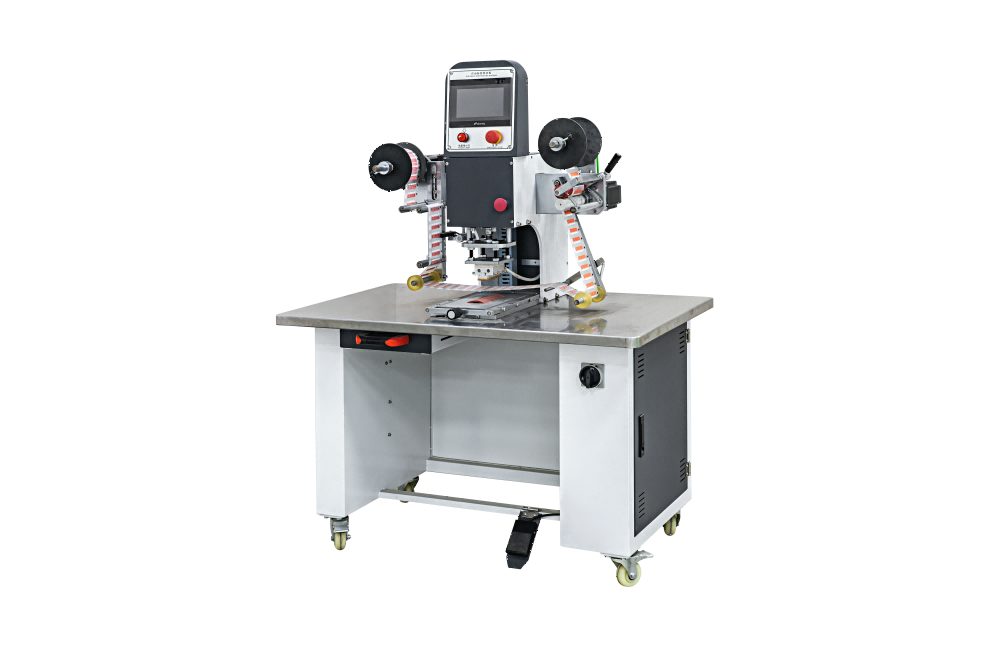

ZY-863G Large Insole Transfer Machine

Features

High-Quality Components: This machine utilizes all imported electrical and pneumatic components, ensuring stability and durability.

Advanced Control System: The control system utilizes a PLC and touch screen, offering intuitive and easy operation, improving work efficiency.

Automatic Color Discrimination: Utilizing an imported color mark sensor, it automatically distinguishes seven colors, providing precise positioning and adjustable sensitivity with an accuracy within 0.02mm.

Precise Temperature Control: The temperature control system utilizes a PID temperature module connected to the touch screen, eliminating the need for a separate temperature controller. Precise temperature control maintains a temperature differential of approximately 1°C, ensuring transfer quality.

Unique Mis-Impression Protection: When there is no material or an abnormality occurs, the pressing die automatically stops pressing, preventing losses caused by misoperation.

Intelligent Unwinding System: The unwinding system utilizes a reverse motor operation principle, ensuring the label tape is always taut, minimizing errors during labeling. Adjustable Power Frequency and Low Noise: The power frequency can be adjusted to meet different processing requirements. It operates silently, providing a comfortable working environment.

Multi-Functional Operating Mode: This machine features two operating modes: hot labeling and hot stamping, which can be switched between at will, enabling multiple uses.

Wide Applicability: Suitable for heat transfer and hot stamping on flat-soled, curved insoles/tongues, and a variety of other applications, including leather branding.

 Product Parameters

Model: ZY-863G

Machine Dimensions: 1140*700*1504mm

Packaging Dimensions: 1240*800*1674mm

Power: 1HP

Voltage: 220V

Net Weight/Gross Weight: 173/231kg
