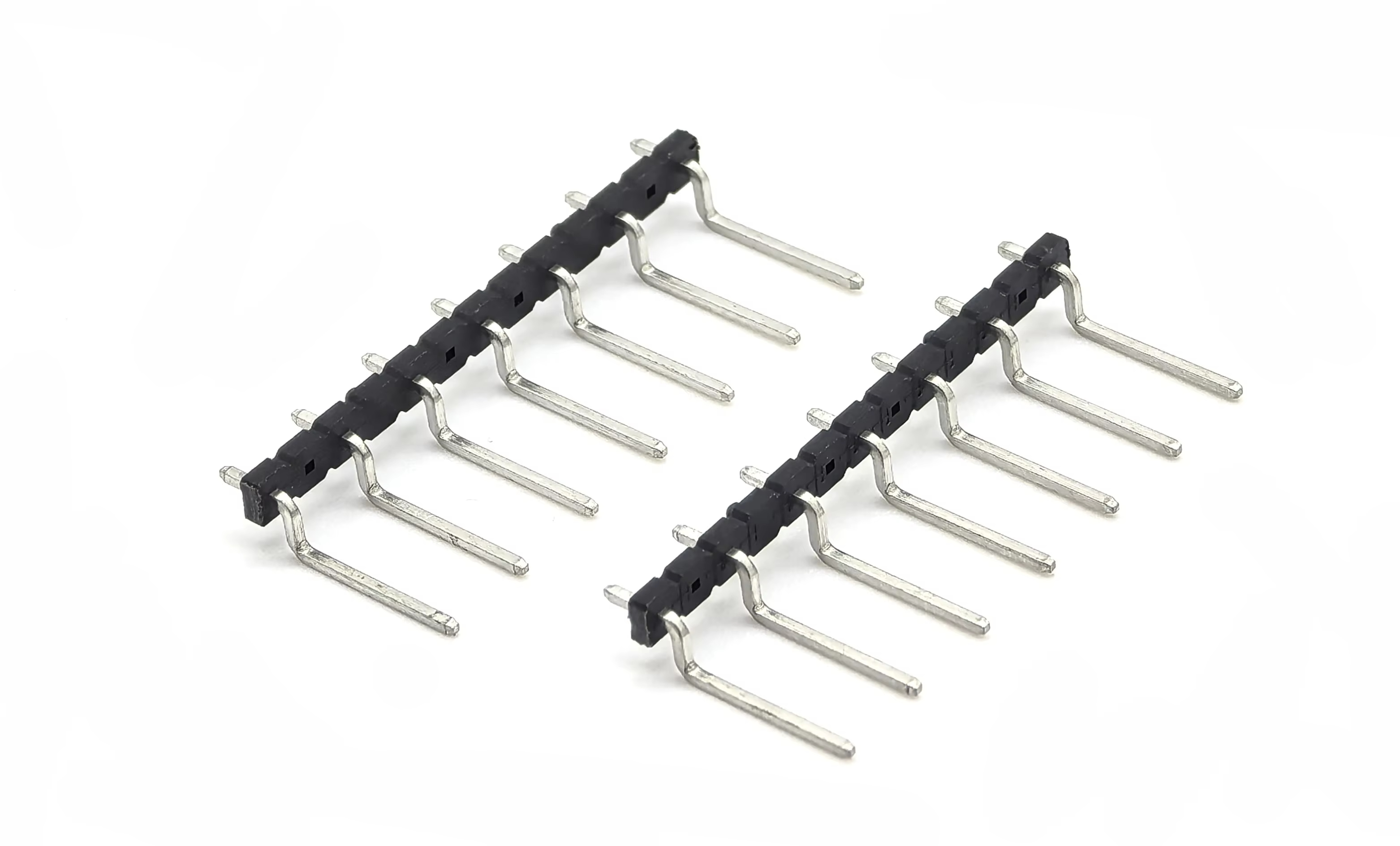

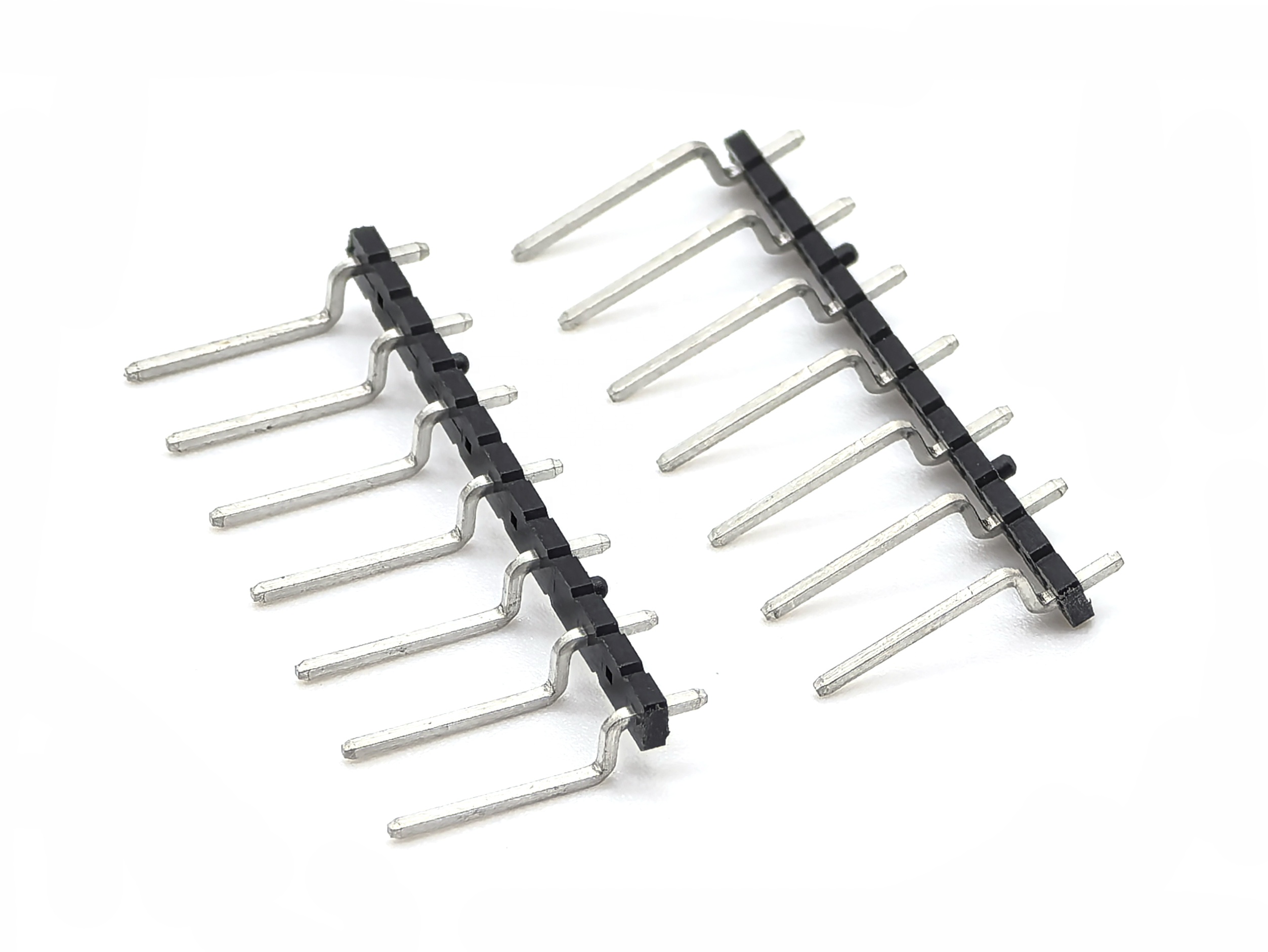

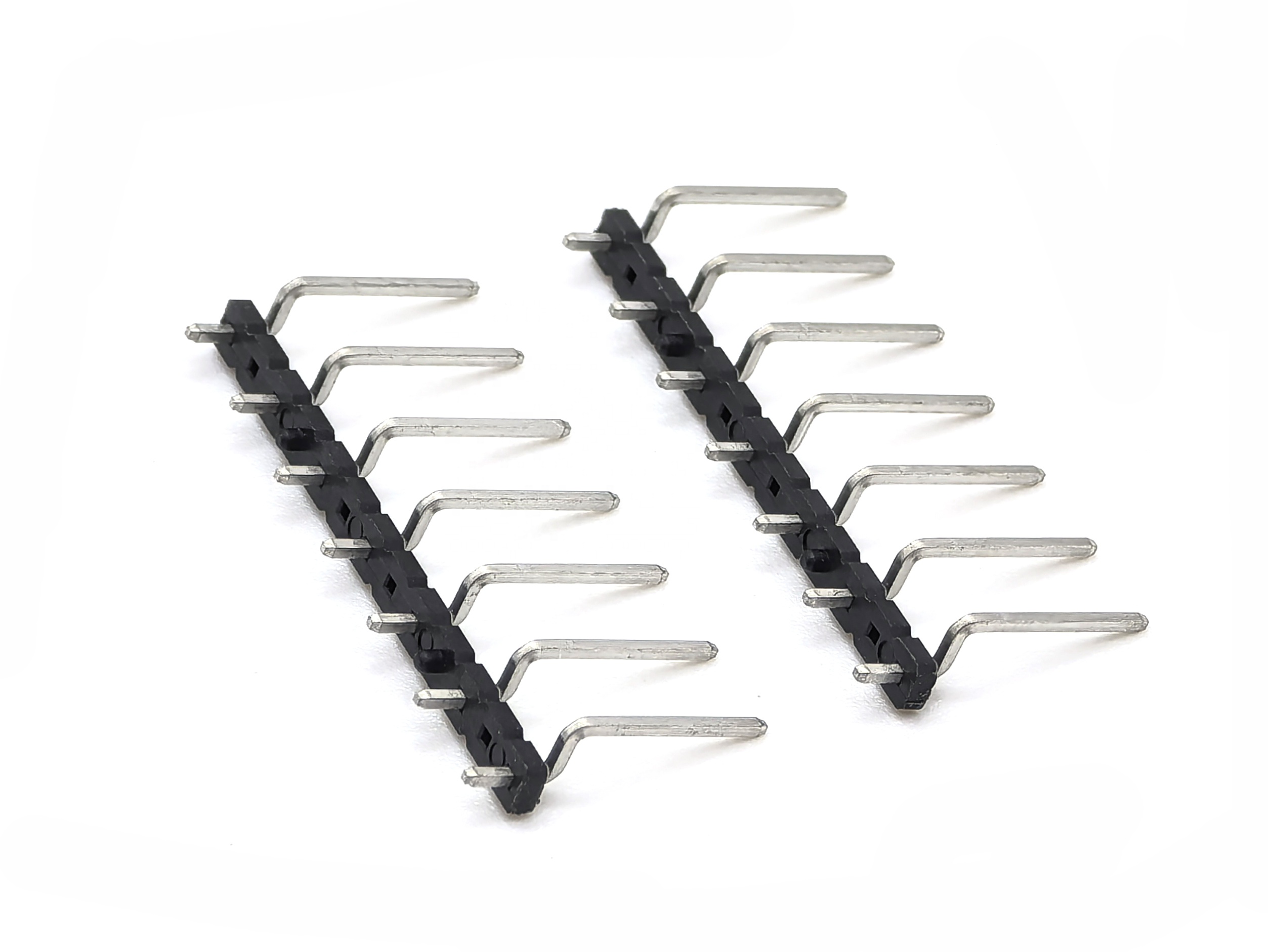

2.54mm Pitch Pin header Single Row Right Angle SMT SQ0.64mm H1.0mm 1*13P

2 month ago

5 0 

6 month

Product details

Breakthrough engineering meets practical design in YZTECH's innovative 13-pin 2.54mm pitch pin header smt , specifically crafted for today's space-constrained PCB applications. This female header connector combines advanced surface mount technology with a space-saving right-angle configuration, creating new possibilities for industrial automation, next-generation automotive systems, and cutting-edge telecommunications infrastructure. Featuring precision tin-plated brass contacts, it delivers exceptional electrical performance while enabling seamless automated assembly processes.

This 2.54mm female header effortlessly handles 5A current and 600V voltage, maintaining unwavering reliability across an impressive -40℃ to +105℃ temperature range. The innovative right-angle SMT design not only maximizes PCB real estate but also simplifies manufacturing through excellent solderability and reflow process compatibility. With outstanding resistance to corrosion and a remarkable 260℃/10s welding endurance, it ensures long-term performance stability even in the most demanding applications.

Packaged in protective tubes for guaranteed damage-free delivery, YZTECH's solution streamlines production while reducing assembly time. Compliant with international standards including RoHS, this header connector represents the perfect fusion of high-current capability, space optimization, and manufacturing efficiency - making it the smart choice for engineers seeking to push the boundaries of miniaturization without compromising performance or reliability.
