2.0mm Pitch Pin header Connector Single Row Right Angle SQ0.5mm H3.0mm 1*4P

2 year ago

57 0 

2 year

Product details

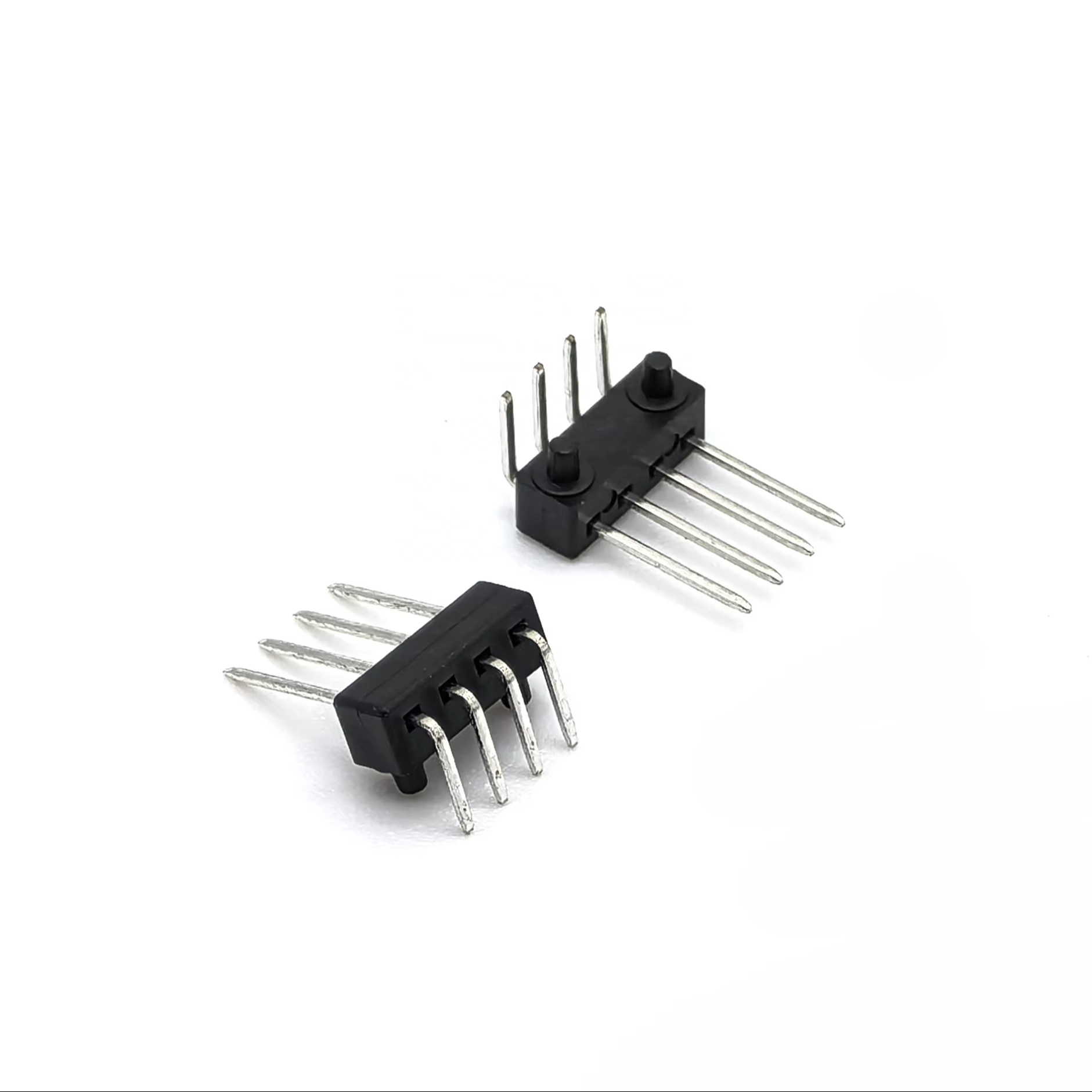

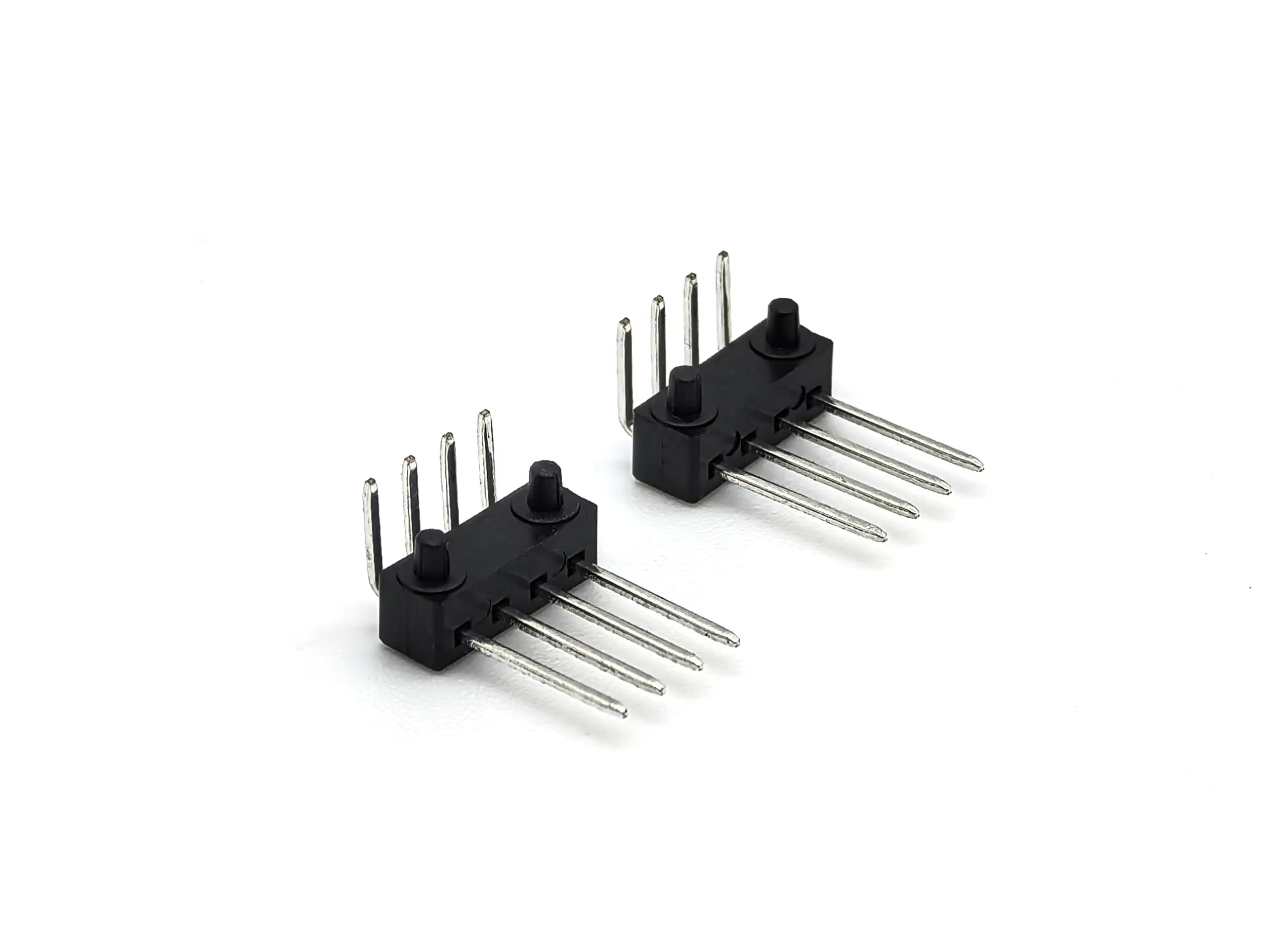

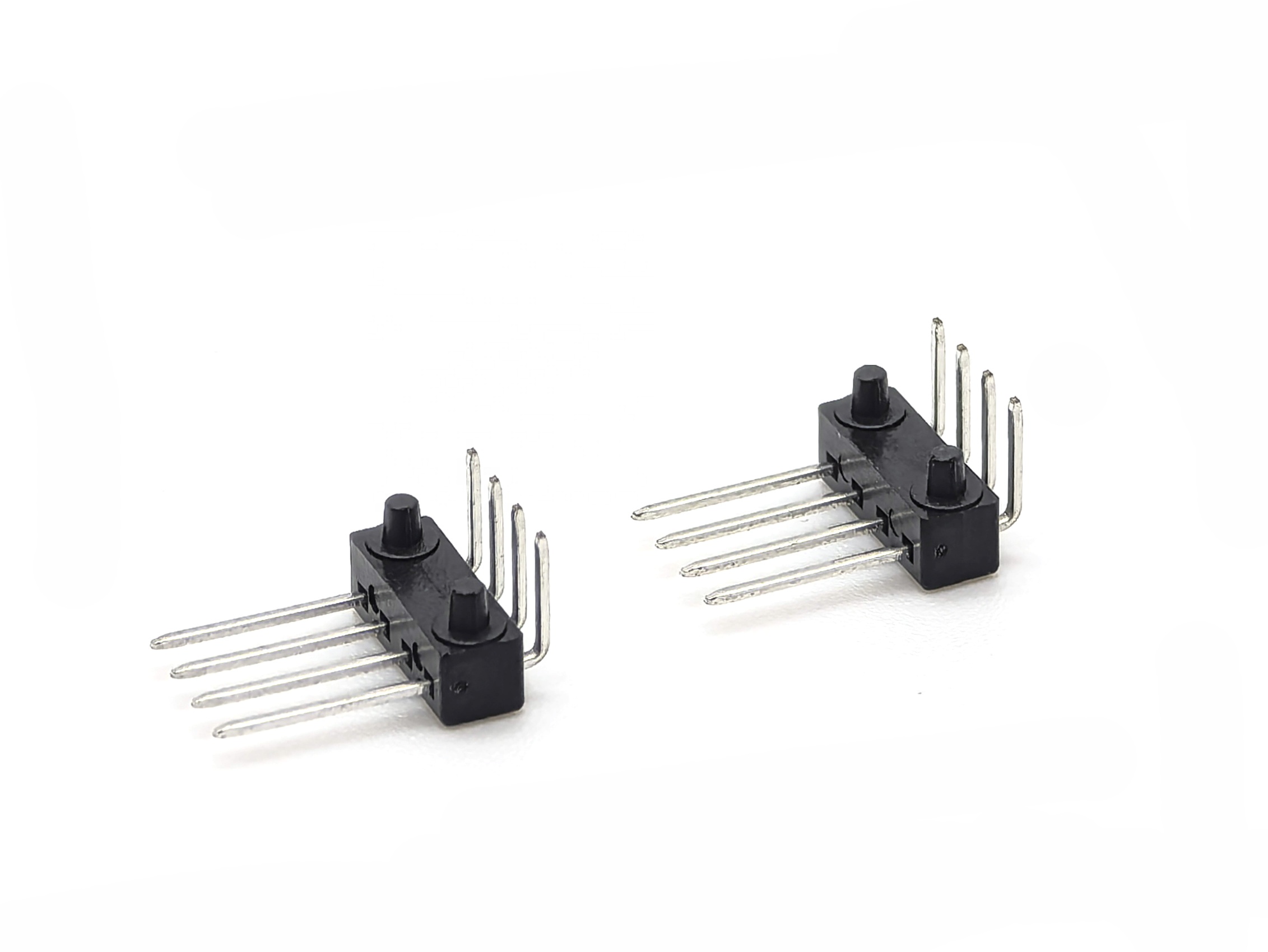

2.0mm Pitch Pin header Right Angle 4P
YZTECH 2.0mm Pitch Pin header Right Angle 4P offers a compact and durable connectivity solution ideal for space-constrained PCB designs. Featuring a bending plug installation style and DIN-standard compliance, this male 2.0mm pin header connector single row ensures secure and stable connections across industrial, automotive, and consumer electronics applications. With a rated current of 2A and voltage up to 600V, the 4p 2.0mm pin header right angle delivers dependable performance even in demanding environments.

Crafted for resilience, the 2.0mm pin header with post utilizes a brass contact base with tin plating for low resistance and reliable signal transmission. The colloidal material made of high-temperature PA9T material provides excellent insulation and mechanical strength, capable of operating within a broad temperature range of -40℃ to 105℃. Its right-angle form factor helps optimize board layout and simplifies assembly in densely packed circuits.

Designed for automated manufacturing processes, this 2.0mm pin header supports wave soldering at up to 260°C for 10 seconds. Packed in tubes to ensure damage-free delivery and smooth production handling, it combines practicality with durability. Whether for power or signal transmission, YZTECH’s pin header connector guarantees precision and long-term reliability in global applications.
