1.0mm Pitch Pin header Connector Right Angle H1.0/1.5mm 1*12P

2 month ago

5 0 

6 month

Product details

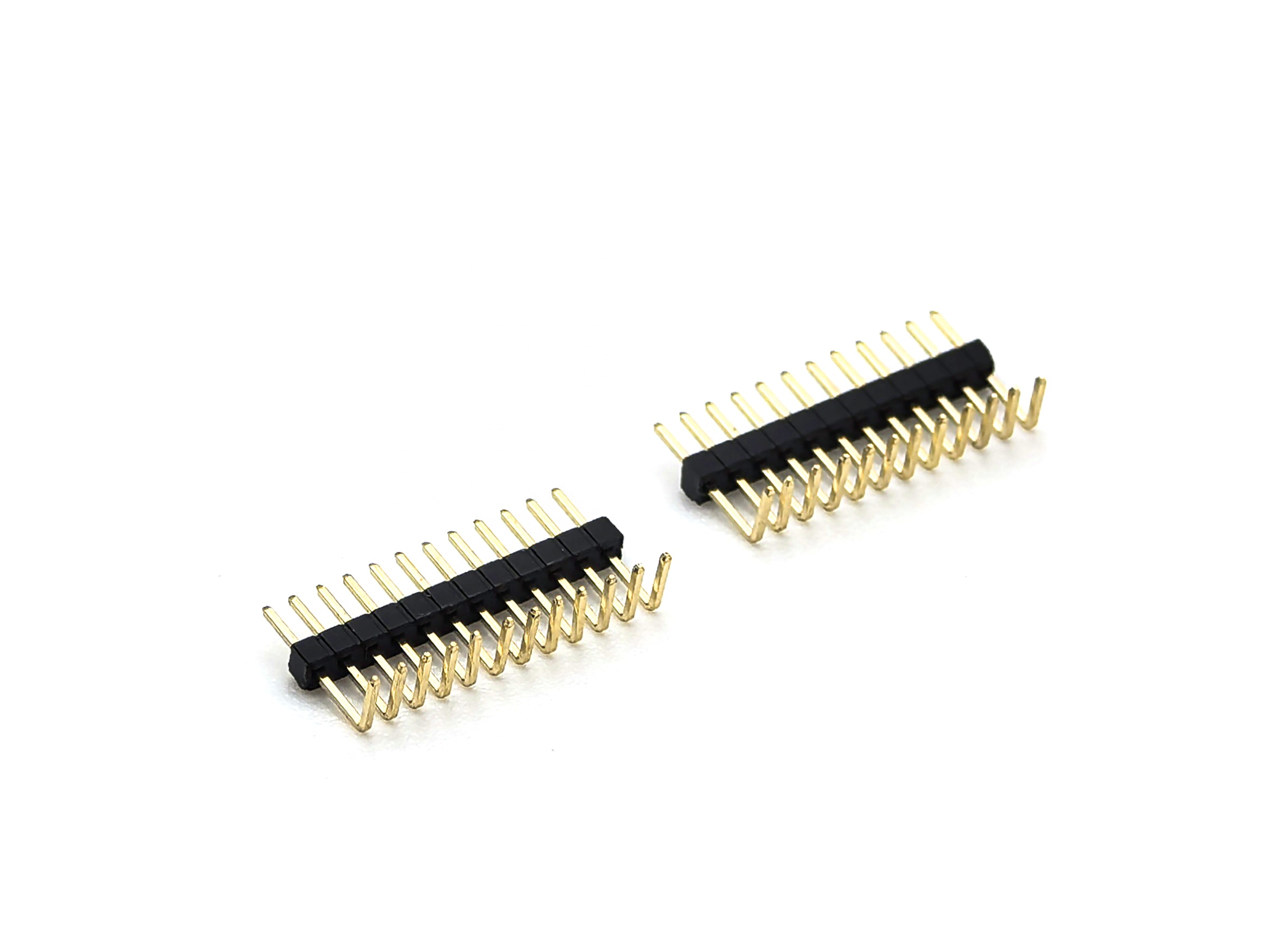

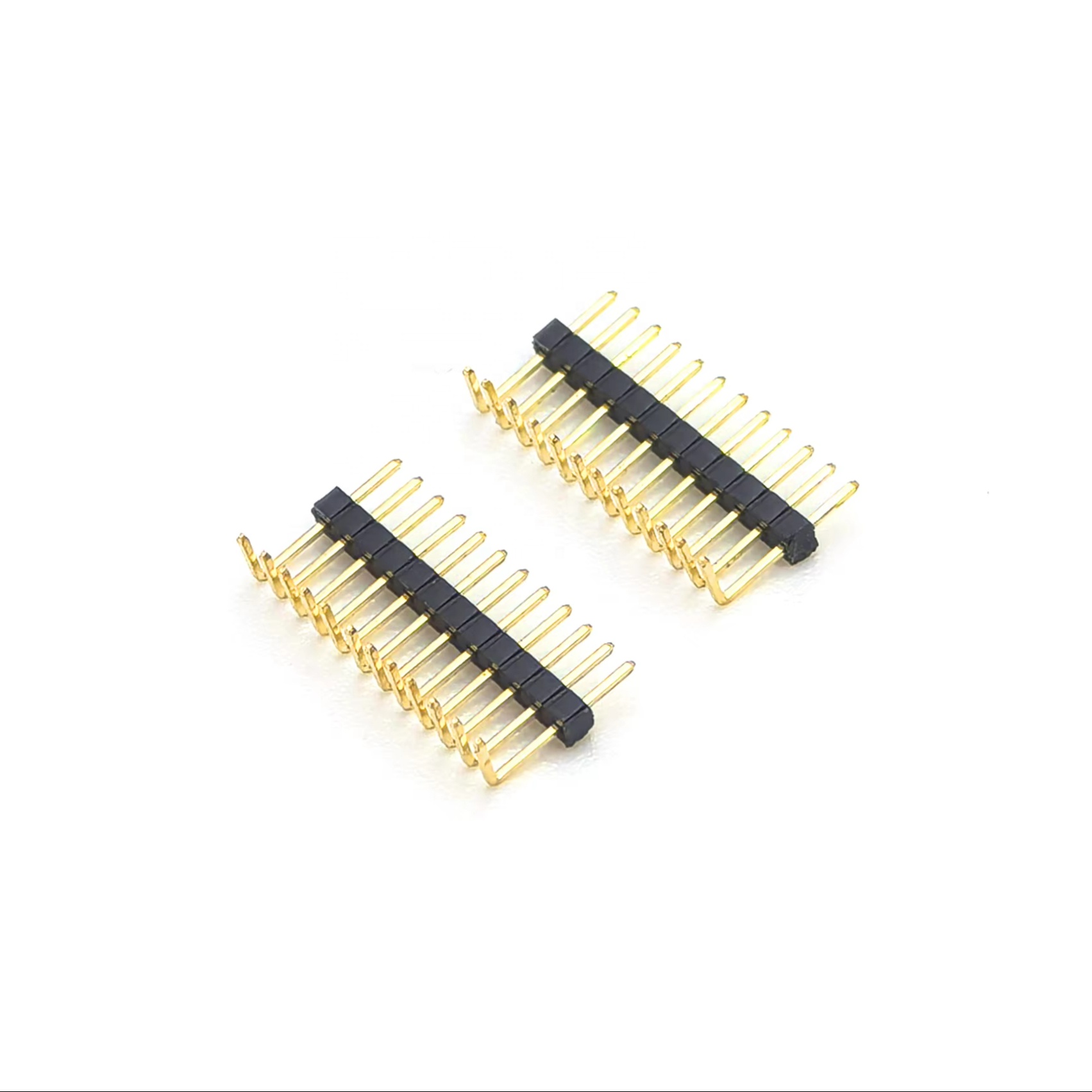

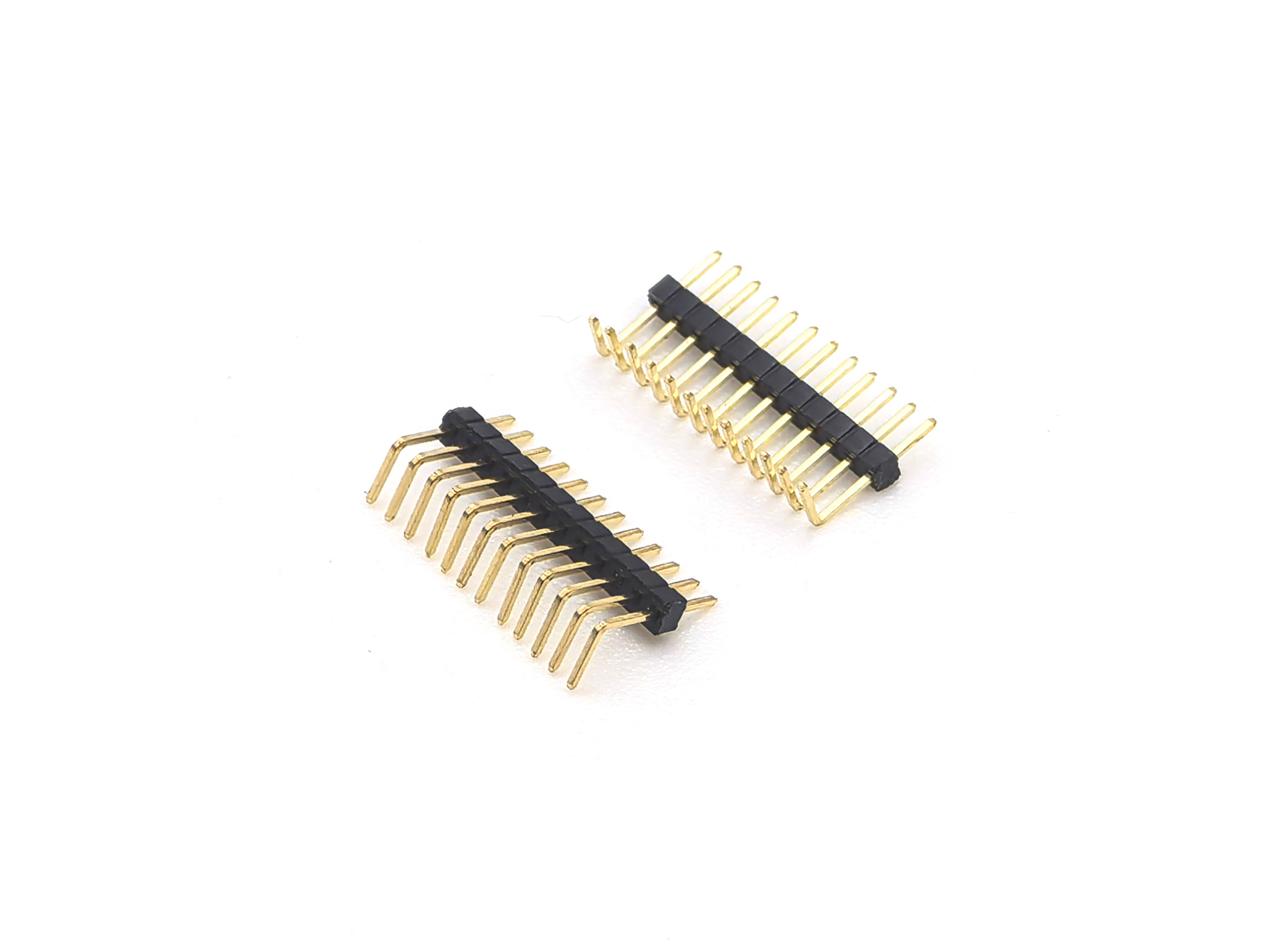

YZTECH 1.0mm Single Row Right Angle Pin Header offers a compact and reliable interconnection solution for modern PCB designs. Designed in a bending plug type with 12 positions, this male header connector features a rectangular shape and complies with DIN standards. It is constructed with a brass contact material and gold-plated coating, ensuring stable electrical performance with a rated current of 0.75A and voltage of 600V. The housing made of high-temperature-resistant PA6T provides excellent mechanical strength and insulation. Operating temperatures range from -40℃ to +105℃, making it suitable for challenging environments.

This right-angle pin header connector is ideal for space-saving applications across industries such as industrial automation, automotive electronics, consumer appliances, and communication devices. Its bending plug design allows smooth PCB mounting where vertical clearance is limited. The product supports efficient wave soldering processes with a maximum tolerance of 220°C for 10 seconds, simplifying production and reducing assembly time.

YZTECH emphasizes quality and durability, making this 2.0mm pin header a smart choice for engineers seeking efficient and dependable connectivity. Packed in secure box packaging, it ensures excellent condition during storage and transportation. Whether used in control systems, power supplies, or IoT modules, this component delivers consistent signal transmission and mechanical stability in a versatile form factor.
