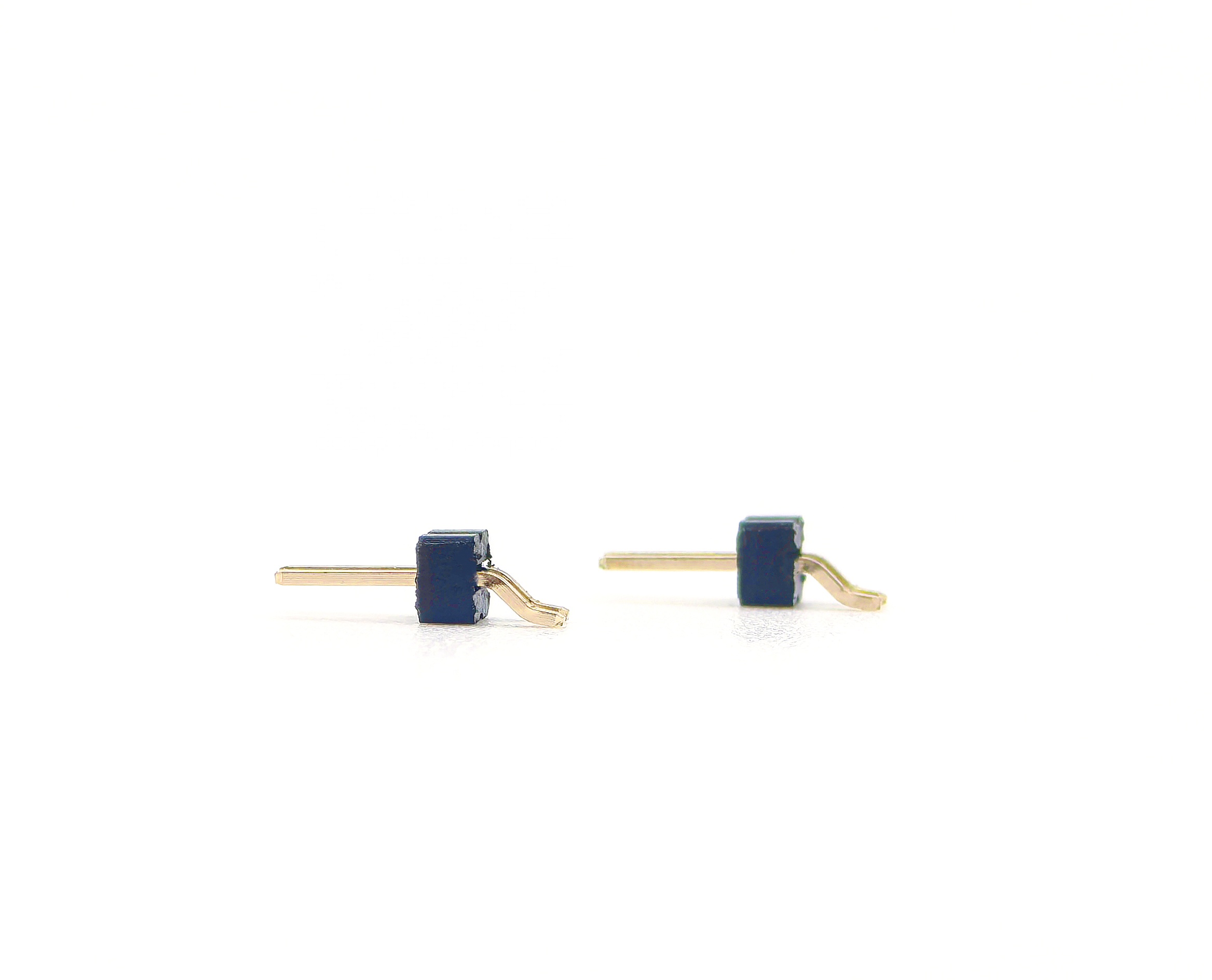

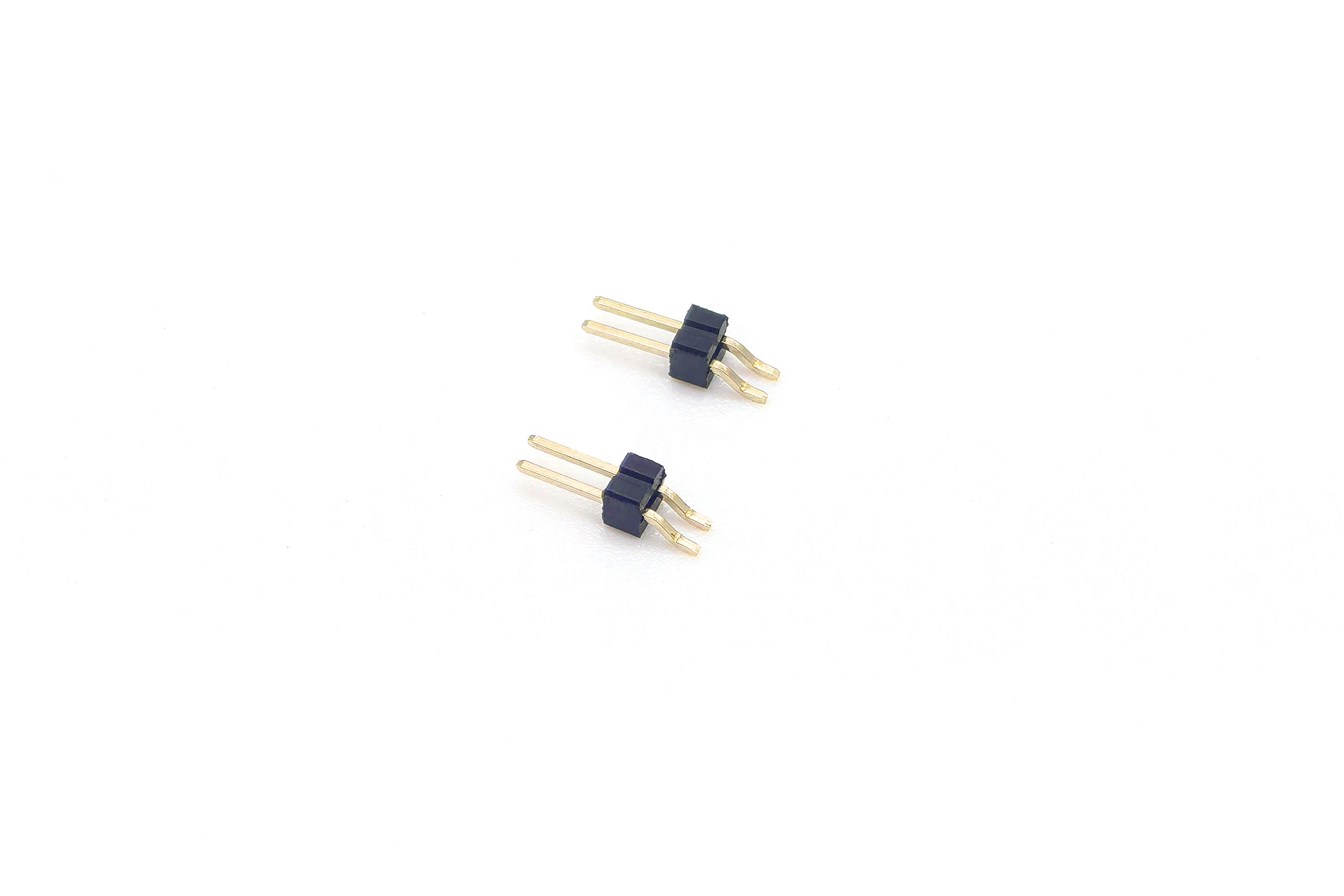

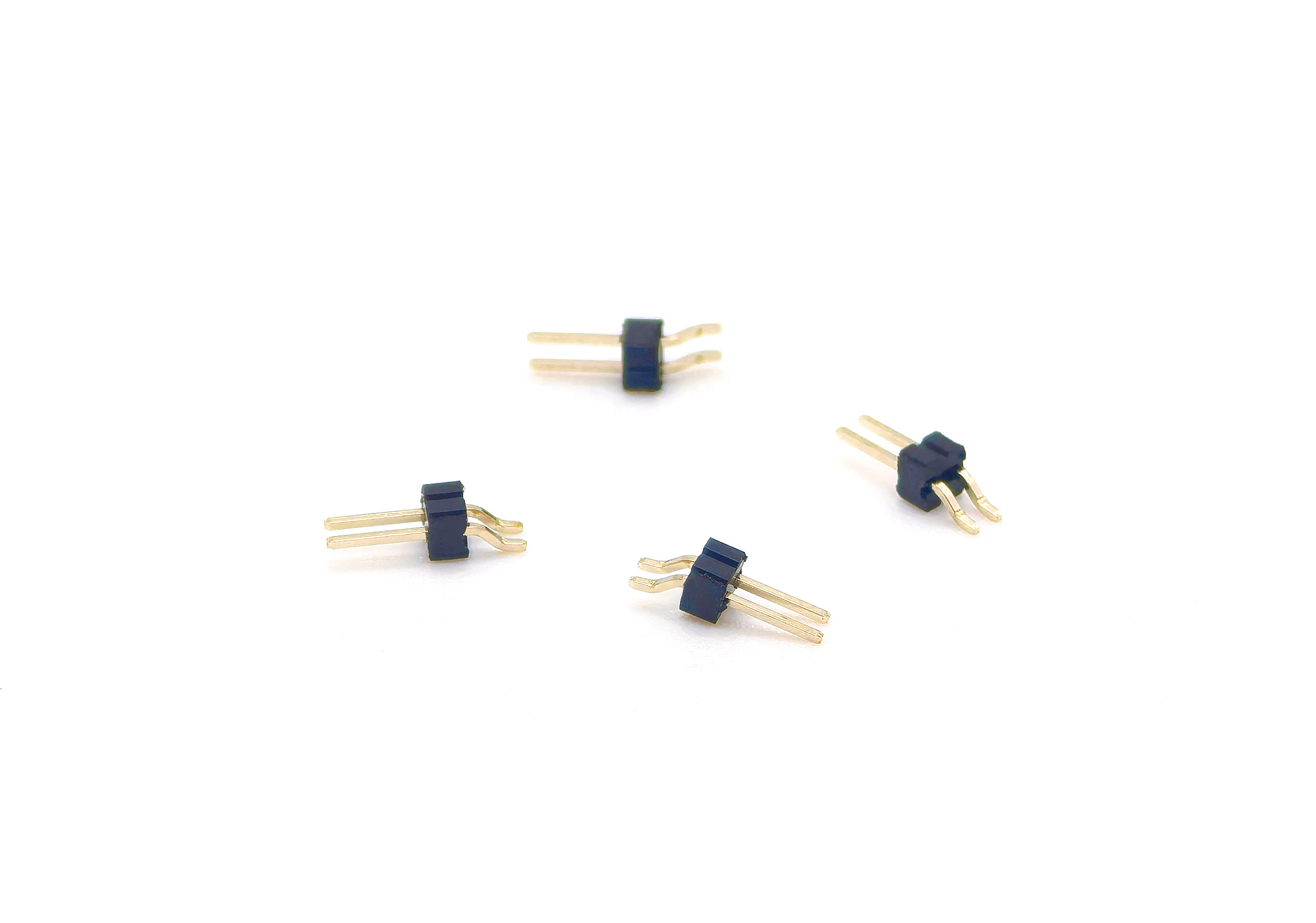

1.27mm Pitch Pin header Connector Single Row Right Angle SMT SQ0.46mm H2.5mm 1*2P

2 month ago

5 0 

6 month

Product details

YZTECH's 1.27mm pitch pin header single row smt provides an ultra-compact and precisely engineered interconnection solution tailored for high-density PCB designs. This male 1.27mm pin header, featuring gold-plated brass contacts and a surface-mount configuration, ensures exceptional signal integrity, reliable soldering performance, and space-efficient integration. Its slim rectangular profile and SMT design render it ideal for advanced electronics, miniaturized devices, and applications where board space is of utmost importance.

Rated for a current capacity of 1A and a voltage of 300V, this pin header connector operates reliably within a broad temperature range of -45℃ to +130℃. The gold-plated brass contacts offer low resistance and superior corrosion resistance, while the SMT termination facilitates reflow soldering processes with a maximum welding tolerance of 260℃ for 10 seconds. This combination of electrical and thermal stability ensures durability in challenging environments.

Packaged in anti-static bags for safe storage and handling, this connector is optimized for automated assembly and high-volume production. Compliant with industry standards, YZTECH's 1.27mm pitch pin header delivers a reliable, high-performance solution for contemporary PCB applications, including micro-sensors, communication modules, and portable electronics.
