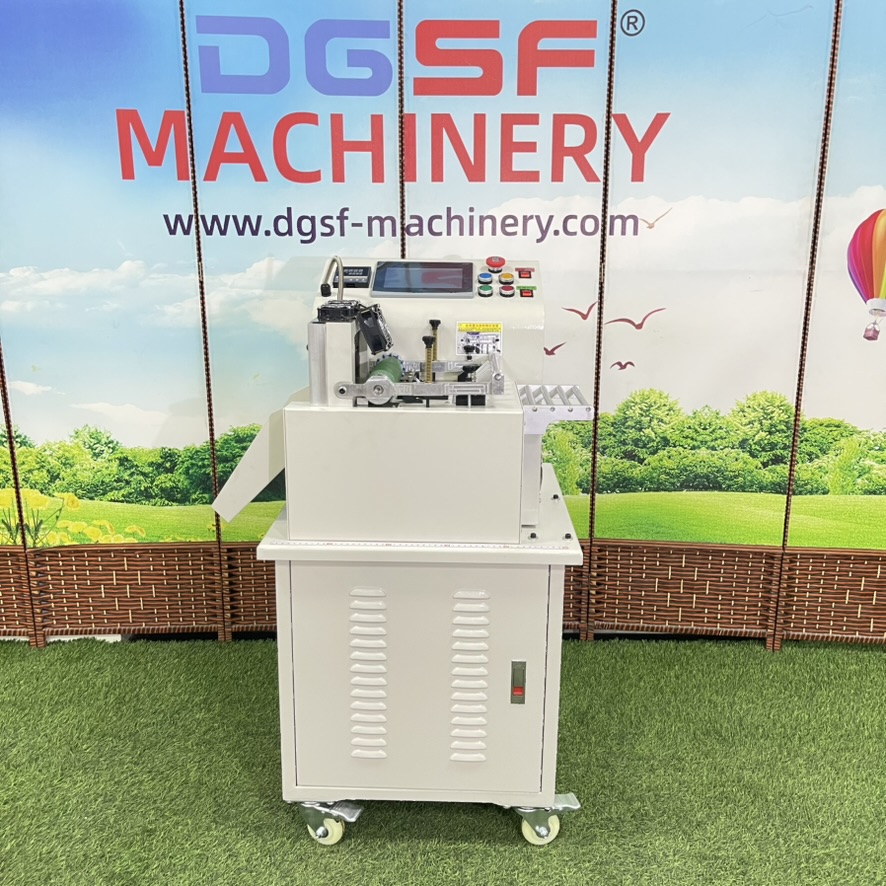

XQ-8160H Rotary Angle Hot & Cold Cutting Machine

Features

High Speed: Can cut 80-100 pieces per minute (100mm as an example).

High Precision: Each cut is controlled by a stepper motor to ensure high precision every time.

Corner Function: Simply enter parameters such as length, width, height, and angle, and the computer will automatically cut the desired shape, such as diamonds, parallelograms, squares, and pagodas.

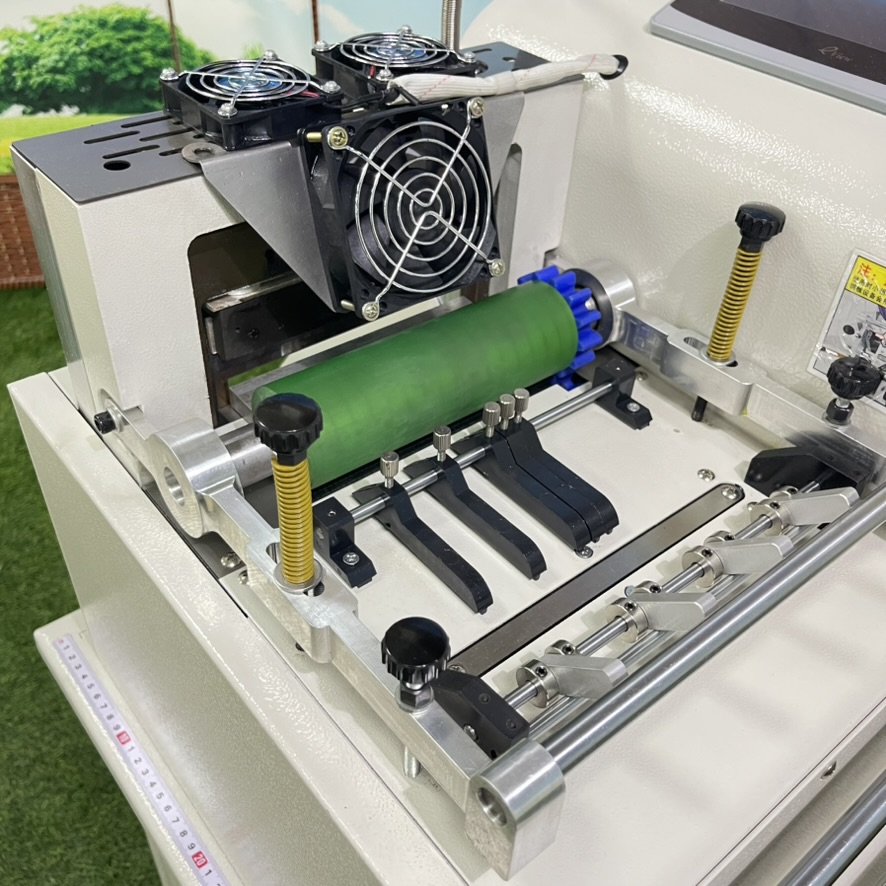

Smooth Cutting Surface: The blade is made of high-quality steel. The hot knife can heat-seal the cut surface of colored ribbons and thin woven ribbons at high temperatures, resulting in a smooth, burr-free, and unraveling edge.

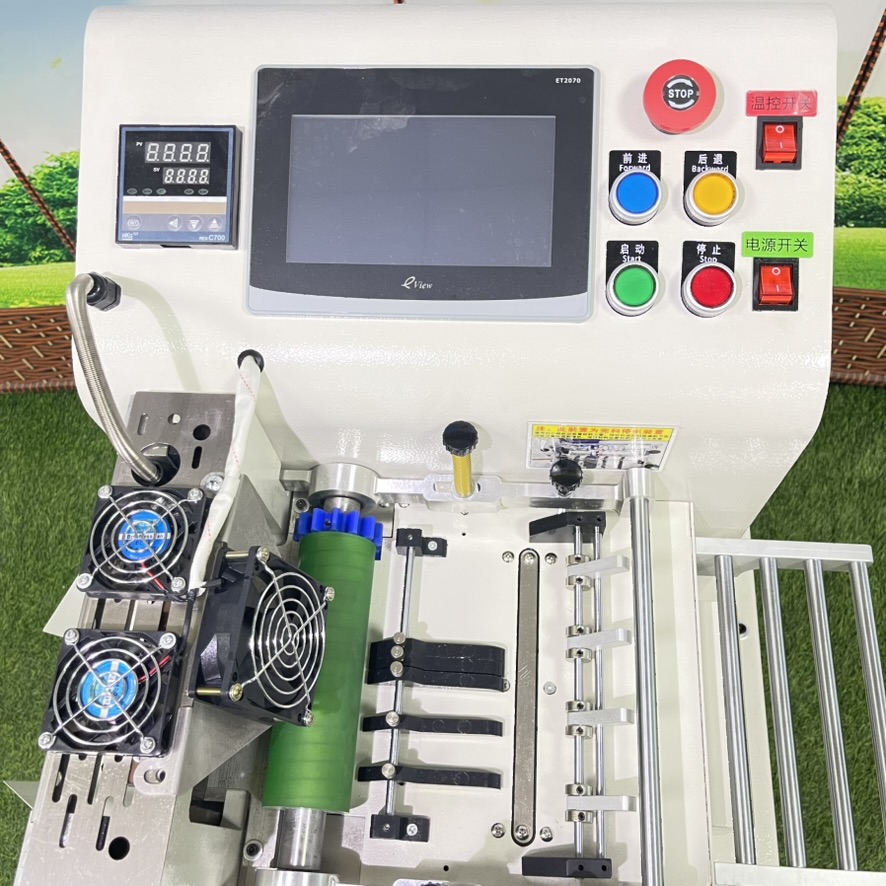

Fault Detection: If a fault occurs in the cutter block or when there is no material, the system will automatically display it on the screen.

Memory Function: Automatically stores all currently set parameters before turning the power on and off. Suitable for cutting handbags, luggage, webbing, leather, Velcro, nylon straps, and other materials.

Product Specifications

Model: XQ-8160H

Cutter: Cold/Hot Blade

Voltage: 110/220V

Power: 0.9KW

Weight: 90KG

Cutting Width: 1-110mm

Cutting Length: 1-99999mm

Blade Temperature: 250-550°C

Packing Dimensions: 53*68*120cm
