Red Heat Shrink Connectors

Product Description:

Red Heat Shrink Connectors feature composite heat shrink tubing made from polyolefin and PA hot-melt adhesive, paired with high-purity copper tubes. They combine excellent insulating protection, waterproof and corrosion-resistant properties with outstanding electrical conductivity. As shown in the diagram, the composite heat-shrink tubing offers exceptional extensibility and resistance to mechanical damage, ensuring the crimped outer layer is not easily damaged. It also boasts high elasticity and resistance to deformation, enabling easy installation with low costs and durability far exceeding that of conventional connectors. The product complies with UL224 and RoHS2.0 standards.

Product Applications:

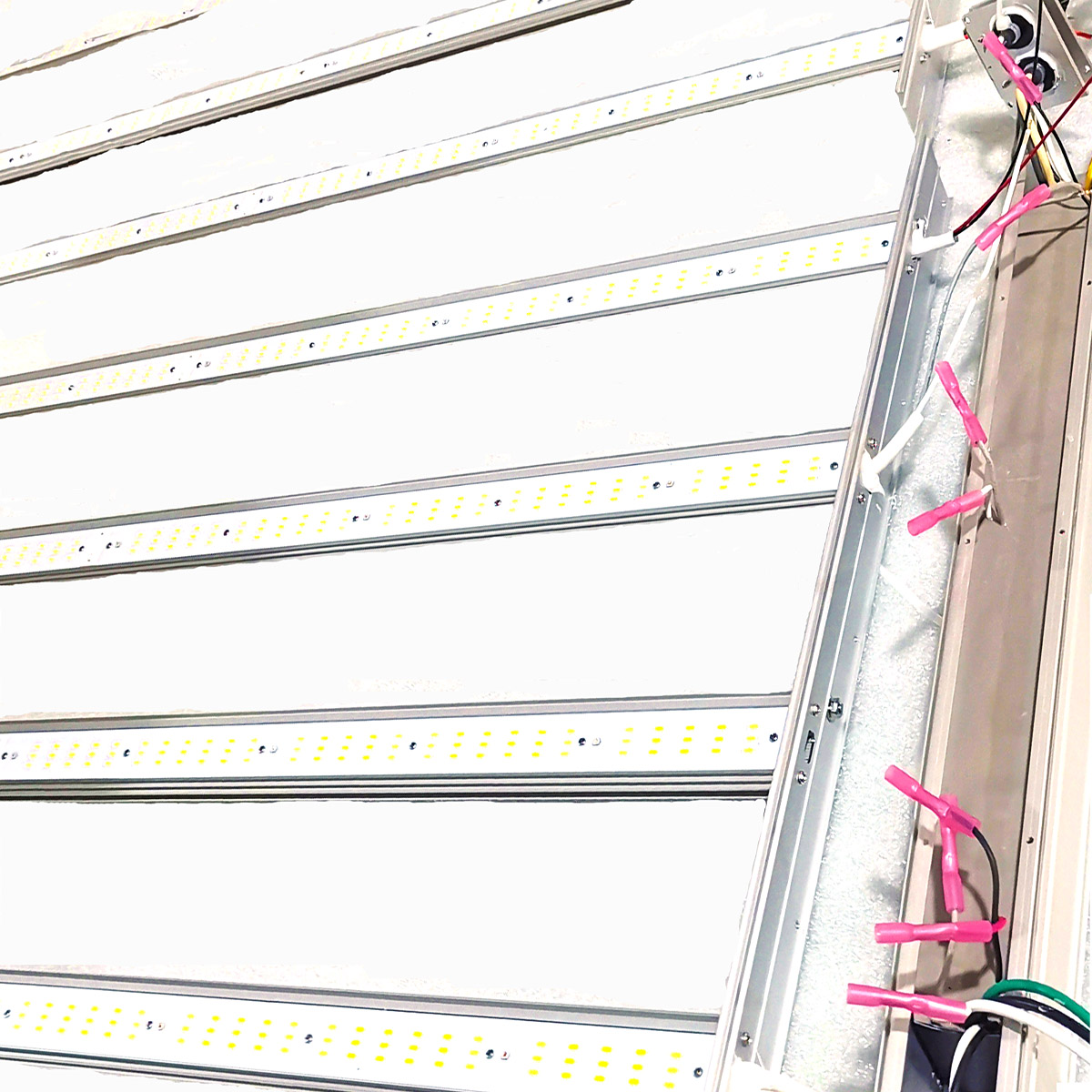

These connectors are commonly used for protecting wires, wire harnesses, and electronic connectors. They enhance fixation and resist vibration in harsh environments. As illustrated in the lighting equipment scenario in the diagram, they effectively ensure the stability and safety of connections in wiring applications for various electronic and electrical devices. They are ideal for scenarios requiring reliable electrical connections with high environmental adaptability.

Technical Performance:

Product Specifications:

Part Number	Cable Size		Shrinkable tube（mm）			copper pipe（mm）			COLOR	Packing
Part Number	A.W.G	mm2	ID	OD	L	OD	ID	L	COLOR	Pcs/bag
HSCT-01	22-18	0.5-1.0	4.7	5.8	36.0	3.8	1.7	15	RED	1000

It adopts 99% pure red copper, with the single-side thickness of the copper tube ranging from 0.8 to 1.0 mm (the thickness of low-end products in the market may only be around 0.4 mm).Intermediate Heat-Shrink Tube: The operating voltage is 600V for all models, the ultimate voltage is 2500V (dielectric breakdown voltage), and the current withstand capacity is calculated as the cross-sectional area of the tube (in mm²) multiplied by 5, with the current unit being Ampere (A).

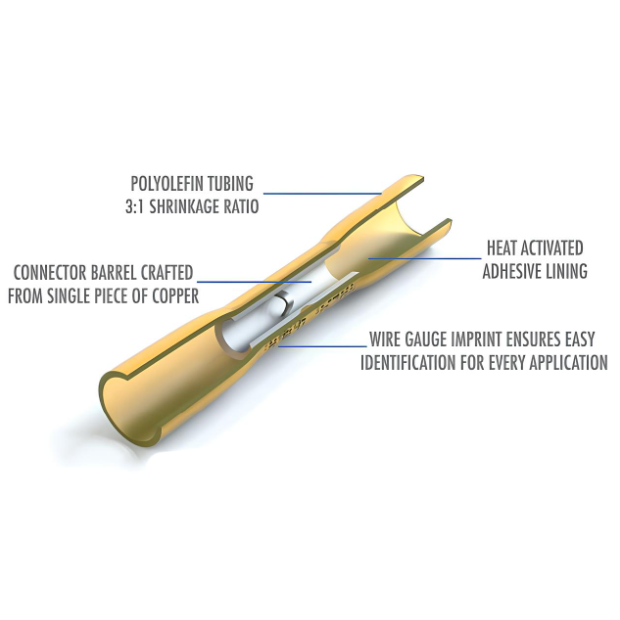

Structural Analysis Diagram:

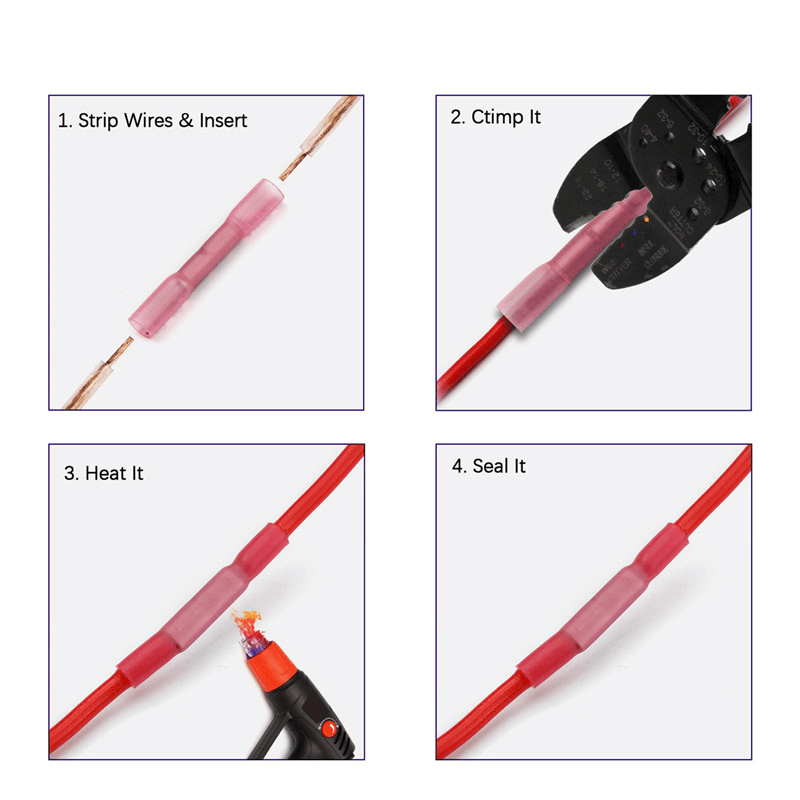

Usage Steps:
