Hydraulic Wall-Mounted Shoe Press
2 month ago

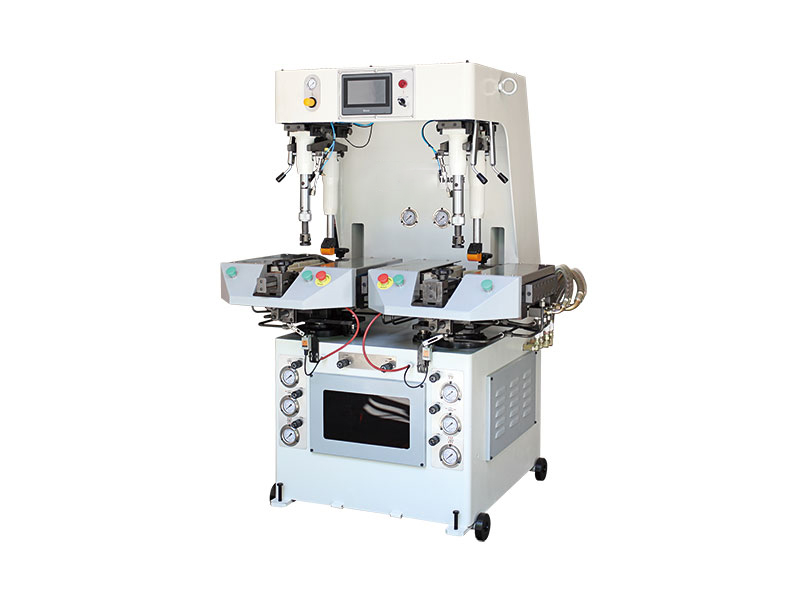

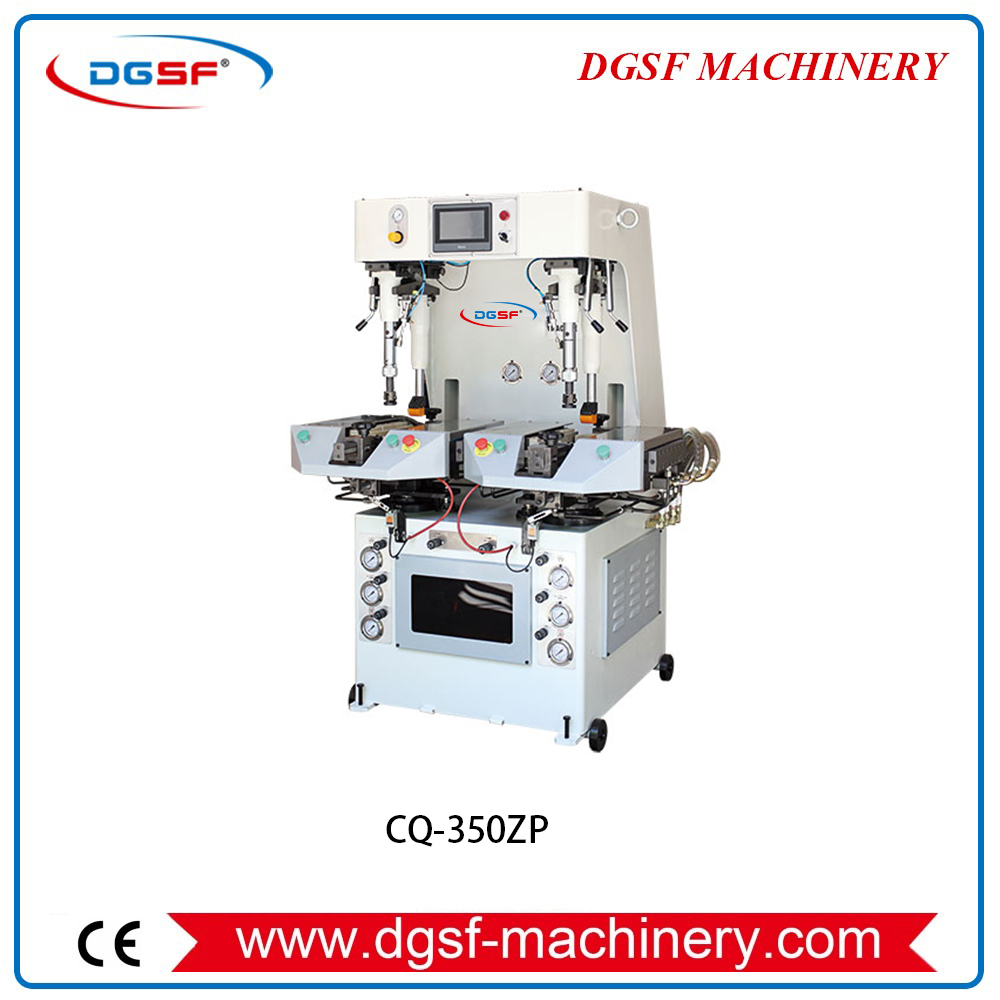

CQ-350ZP Hydraulic Wall-Mounted Shoe Press
Product Description
Features
1. The side press blocks feature a unique cornering function that automatically rotates to fit the shoe's shape and curvature, ensuring even pressure distribution and a perfectly pressed shoe edge.
2. The operating platform is designed for easy access. Front and rear press adjustments are independently adjustable with one hand, significantly improving production efficiency and reducing operator workload.
3. The presser foot utilizes a lever-type automatic balancing design, with a pull-rod adjustment for forward and backward movement. This design is simple and convenient, reducing labor intensity. This improves the machine's durability and eliminates issues like presser foot oil leakage common in similar products.
4. This machine can press sizes from 14 to 48.
Product Specifications
Power Supply: AC 380V/50Hz
Total Power: 2.2kW
Air Source Pressure: 4kg/cm²
System Pressure: 40kg/cm²
Production Capacity: 3500 units/8h
