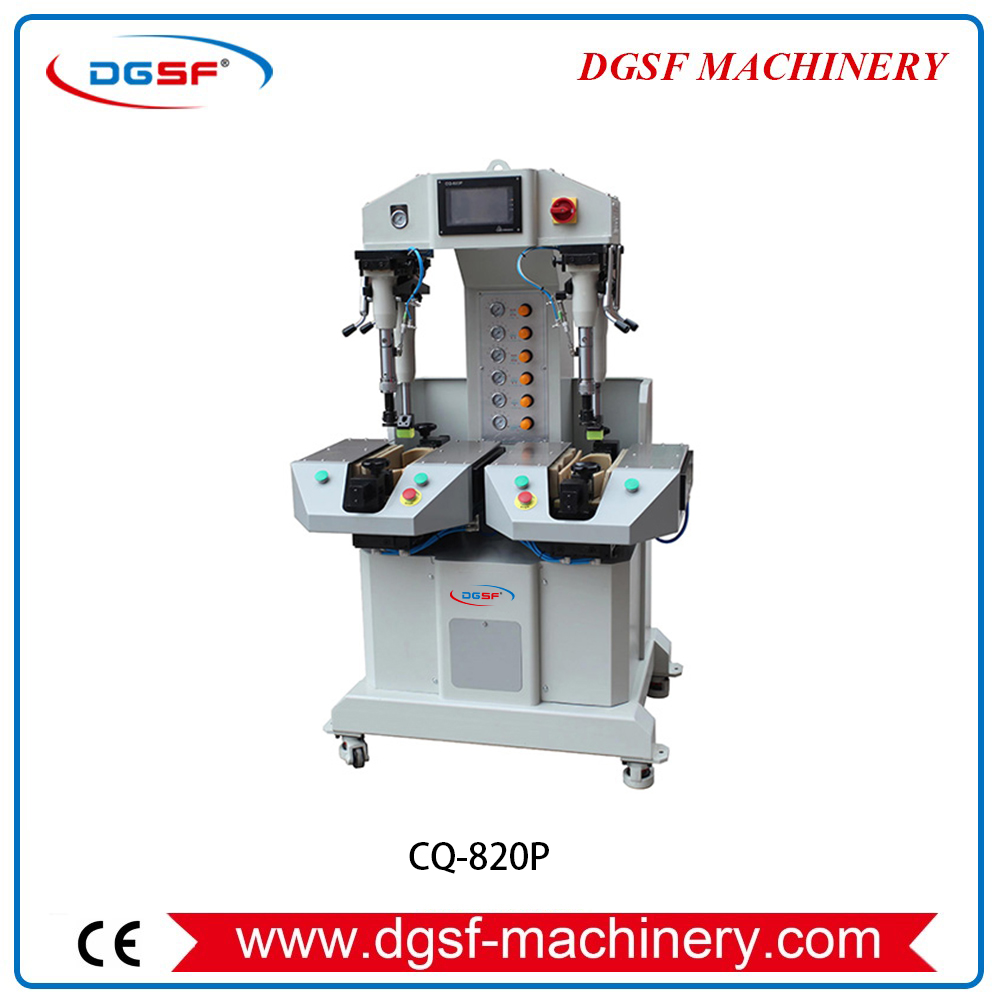

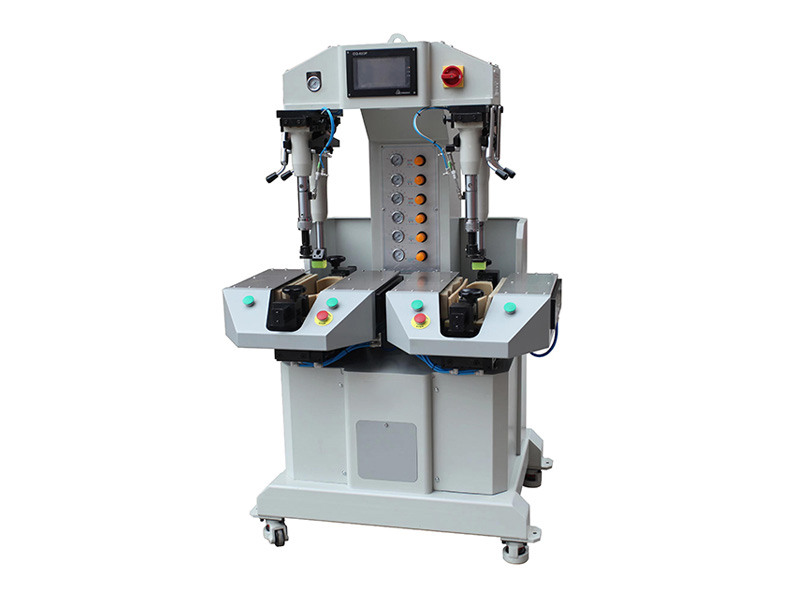

Pneumatic Wall-Type Press

Product Description

Function

Used for pressing uppers and soles of various types of high-heeled leather shoes, sneakers, and athletic shoes.

Features

1. Fully pneumatic design, offering high speed and pressure. This overcomes some common issues with hydraulic presses and significantly reduces machine failure rates.

2. More energy-efficient and environmentally friendly than existing hydraulic wall-type presses.

3. Automatic balancing mechanism for front and rear footrests, allowing for easy and quick adjustment.

4. Automatic swing angle design for the rear footrests, making shoe placement and removal easy and quick.

5. It allows for simultaneous pressing of soles, edges, and front and back presses, with the option to select any of the three modes.

6. Adjustable pressing time. 7. Actual air consumption is equivalent to 1.5 kW/hour.

Product Parameters

Power Supply: AC 220V/50Hz

Total Power: 220W

Maximum Air Source Pressure: 0.6MPa

Molding Pressure: 1.5 tons

Maximum Press Height: 150mm/260mm

Production Capacity: 3000 presses/8 hours

Dimensions: 1.5 x 1 x 1.8 m
