3D Upper Molding Machine

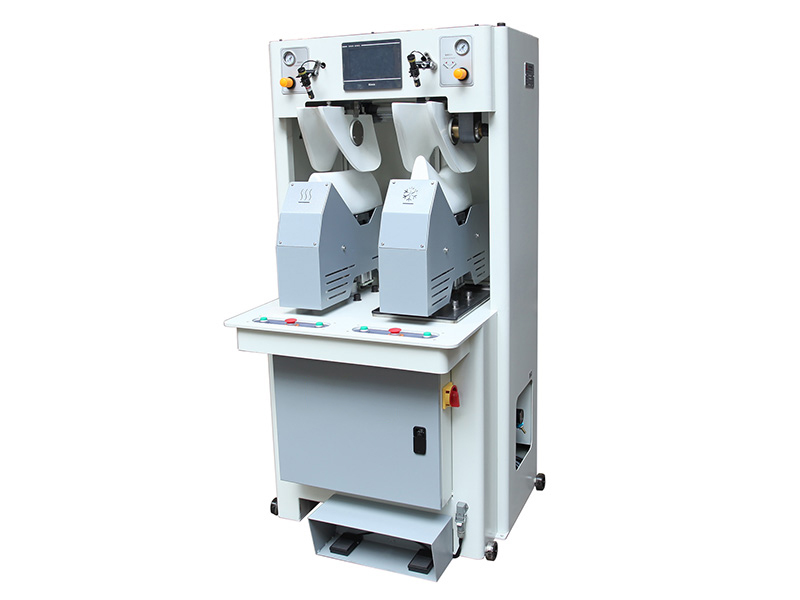

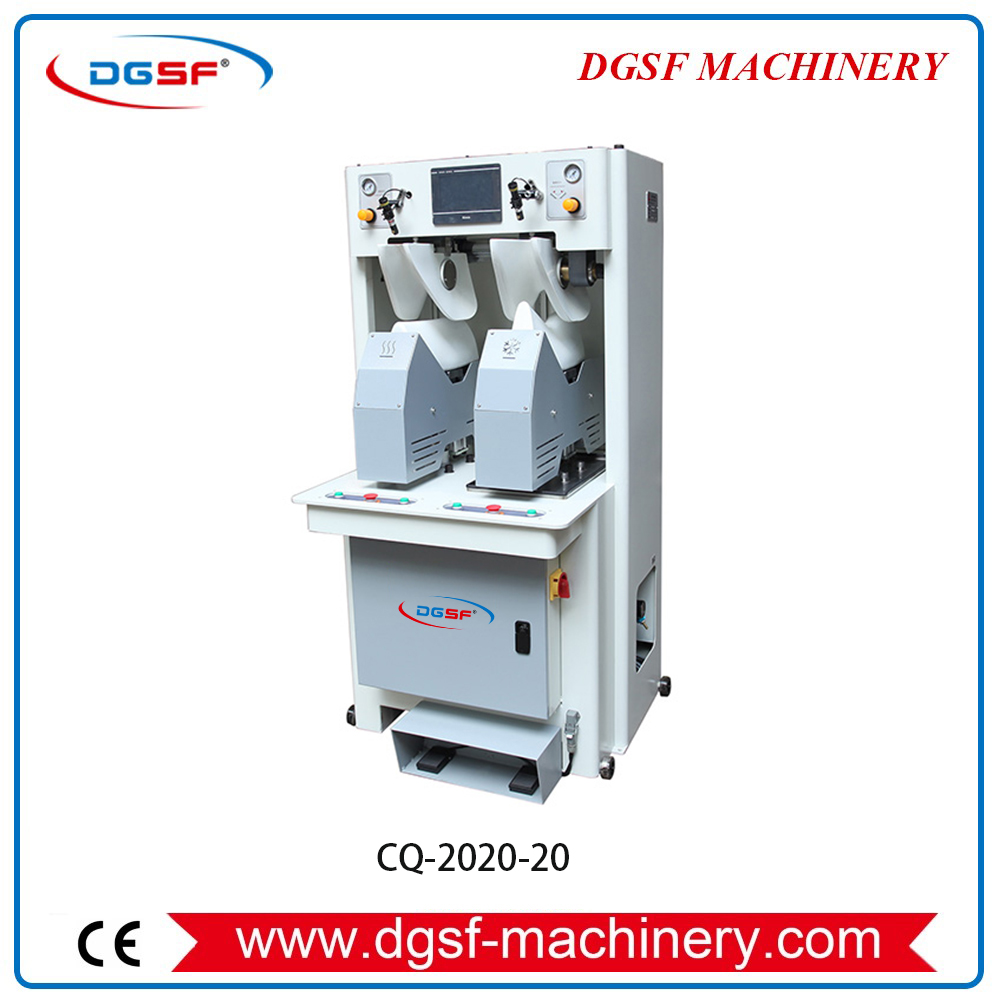

CQ-2020-20 3D Upper Molding Machine

Product Description

The 3D upper molding machine is a device used for heat setting and shaping shoe uppers in footwear production. It primarily uses heat, pressure, and a three-dimensional mold to tightly fit the upper material (such as leather, synthetic leather, or fabric) to the last, creating a stable three-dimensional shape that enhances both appearance and comfort.

1. Three-Dimensional Upper Molding

The mold forms the upper material into a three-dimensional shape that conforms to the last, ensuring smooth, full lines.

2. Heat Setting and Shape Stabilization

Using constant temperature heating and cooling to set the shape, it prevents springback or deformation, improving appearance consistency.

3. Improved Fit

The upper fits more tightly to the last, reducing wrinkles and enhancing wearing comfort.

4. Compatible with Various Materials

It can be used with a variety of upper materials, including natural leather, artificial leather, and fabric, and is suitable for a variety of shoe styles, including athletic shoes, casual shoes, and leather shoes.

5. Improved production efficiency

Short molding time (several seconds to over ten seconds), suitable for mass production on assembly lines.

Product Specifications

MODEL: CQ-2020-20

DIMENSIONS: L850*W810*H1650mm

VOLTAGE: 220v/50Hz

POWER: 1.6KW

PRODUCTION: 800 PAIRS

Production: 1100 pairs/8 hours

Air pressure: 0.6Mpa

HS.code 84532000

Country of origin: Made in China
