Split Braided Wire Loom

Product Description

Our split braided wire loom is crafted from polyester monofilaments and multifilaments. It features fire resistance, wear resistance, flexibility, dust resistance, and is easy to operate. The split structure is highly beneficial for modifying, reinstalling, maintaining, and inspecting internal wire harnesses.

As shown in the product - display image, the braided sleeving has a clearly visible split design. You can see how it can be easily opened and wrapped around wires, demonstrating its convenience in use and the protection it provides to the enclosed wires.

Technical Parameters

Parameter Name	Parameter Value
Material	Polyester Monofilaments + Polyester Multifilaments
Operating Temperature Range	-50℃-150℃
Melting Point	240±10℃
Flame Retardant Grade	Complies with UL 94 VW - 1 Standard,(Customizable) DIN5510,BS6853
Standard Color	army green
Certifications	Complies with ROHS and Halogen - Free Standards
Recommended Cutting Tool	Hot Knife

Product Dimensions Diagram

Product Specifications

Product Application

This split braided wire loom is widely used in high - speed railways, automobiles, automated equipment, and for wires, cables, flat wire harnesses, and hoses in instruments. It is particularly suitable for wire harnesses with irregular shapes.

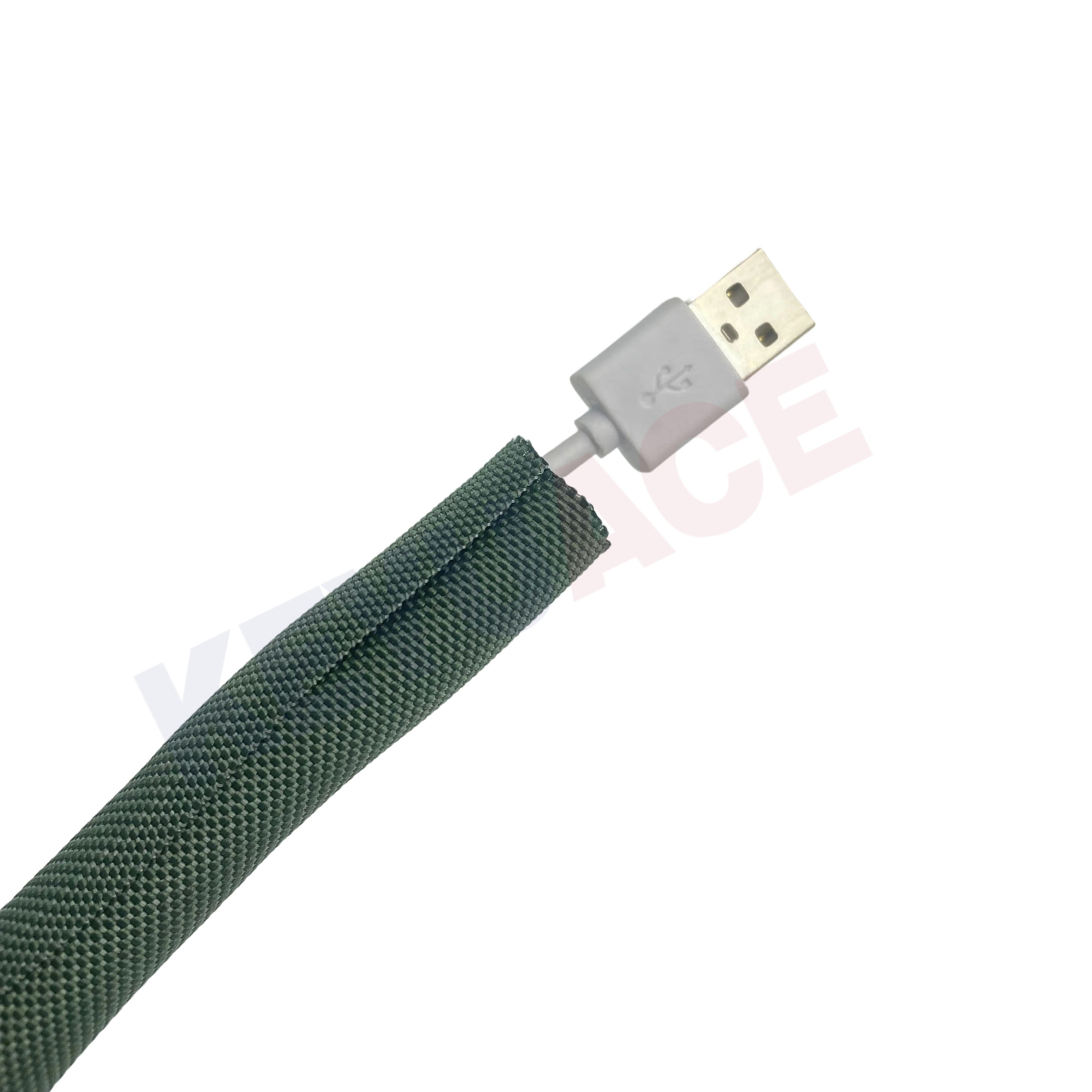

In the application - scenario image, you can see how the braided cable sleeve is used to protect a USB cable. It wraps around the cable, showcasing its ability to safeguard cables in electronic device setups and making cable management more orderly.

Notes

The inner diameter refers to the diameter of the sleeve when it is a perfect circle, not the folded diameter.
Special packaging and colors can be customized according to customer requirements.
For detailed product parameters, please refer to the sample approval sheet.
