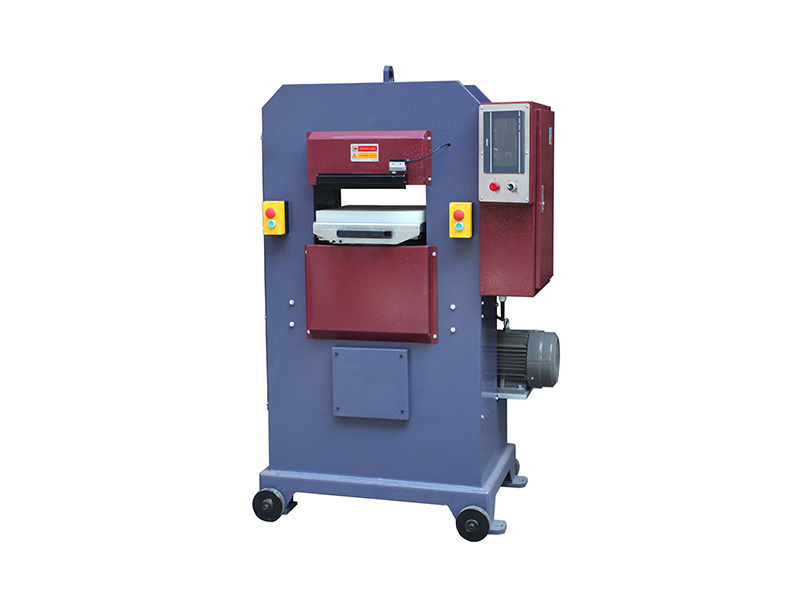

YCQ-01-120P Hydraulic Printing Machine

Product Description

1. Overview

This machine is suitable for cutting, embossing, and forming patterns on various leather shoe uppers. It can also emboss soles, cut and emboss large areas, and perform other processes.

2. Structural Features

This machine consists of a machine body, hydraulic system, upper and lower platens, and an electrical control unit. The lower platen is equipped with a sliding table and guide posts with an induction switch, making placement and removal of workpieces easier and faster, and ensuring more accurate up and down movement. The upper platen is equipped with a patented microswitch protection device to prevent product scrap. It features low energy consumption, high efficiency, high pressure, excellent embossing quality, stable operation, low noise, and a long service life.

Working Pressure: 120T

Working Stroke: 80mm

Rising Speed: 80mm/s

Working Area: 380 x 400mm

System Rated Pressure: 20MPa

Total Power: 7kW

Dimensions (L x W x H): 0.95 x 0.8 x 1.75m
