Enamelling machine-2

5/4-4/24C Type Horizontal High Speed

Enamelling Machine With Inline Drawing

1. Brief Introduction

● Production variety:PU,PEI,PEI+PAI,PEl+PAl+SL,Cu&Al

● Wire range: φ0.10～4φ0.25mm

● Production lines:4 lines(single line/single oven)

● Maximum inlet wire of drawing unit:φ0.50mm

● Maximum drawing passes:15,

NO.1-NO.14 elongtation:1.15,NO.15 elongation:1.10

● Coating passes:24 passes(BC:24,MC:10,TC:6,die)

● Wire  pitch:9mm

● Mechanical speed:Max 1000m/min

● Take-up bobbin:PT10~PT60

● Take-up mode:Automatic bobbin changing system

2. Main Features

l Low power consumption

l Zero pollution of exhaust

Secondly catalyst with special recipe, affective at 320℃ and above

only, without extra electrical heating, ensure a complete decontamination, equal to zero pollution of exhaust.

l Improvements of oven heat insulation

All insulating cottons adpot ceramic fiber material

Thicken heaters insulation zone at top of oven

l Alternate the position of capstan roller and applicator, the final

coating pass go to spooler across lower wire cooler, reduce wire

temperature on bobbin.

l Lubricant oil coated with flow control

l Management functions

Earthnet interface available for remote control

Detection, storing and collection of power consumption quantity

and unit power consumption

l Wire temperature control

l Automatic boundary of traverse when winding up

l Self-bonding coating function optional

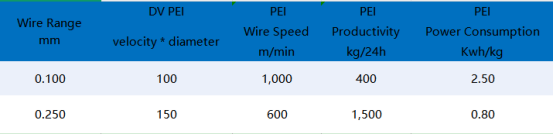

3. Production And Power Consumption Sheet)4 Lines
