2.54mm Box header Right Angle Dual Row

2 year ago

60 0 

2 year

Product details

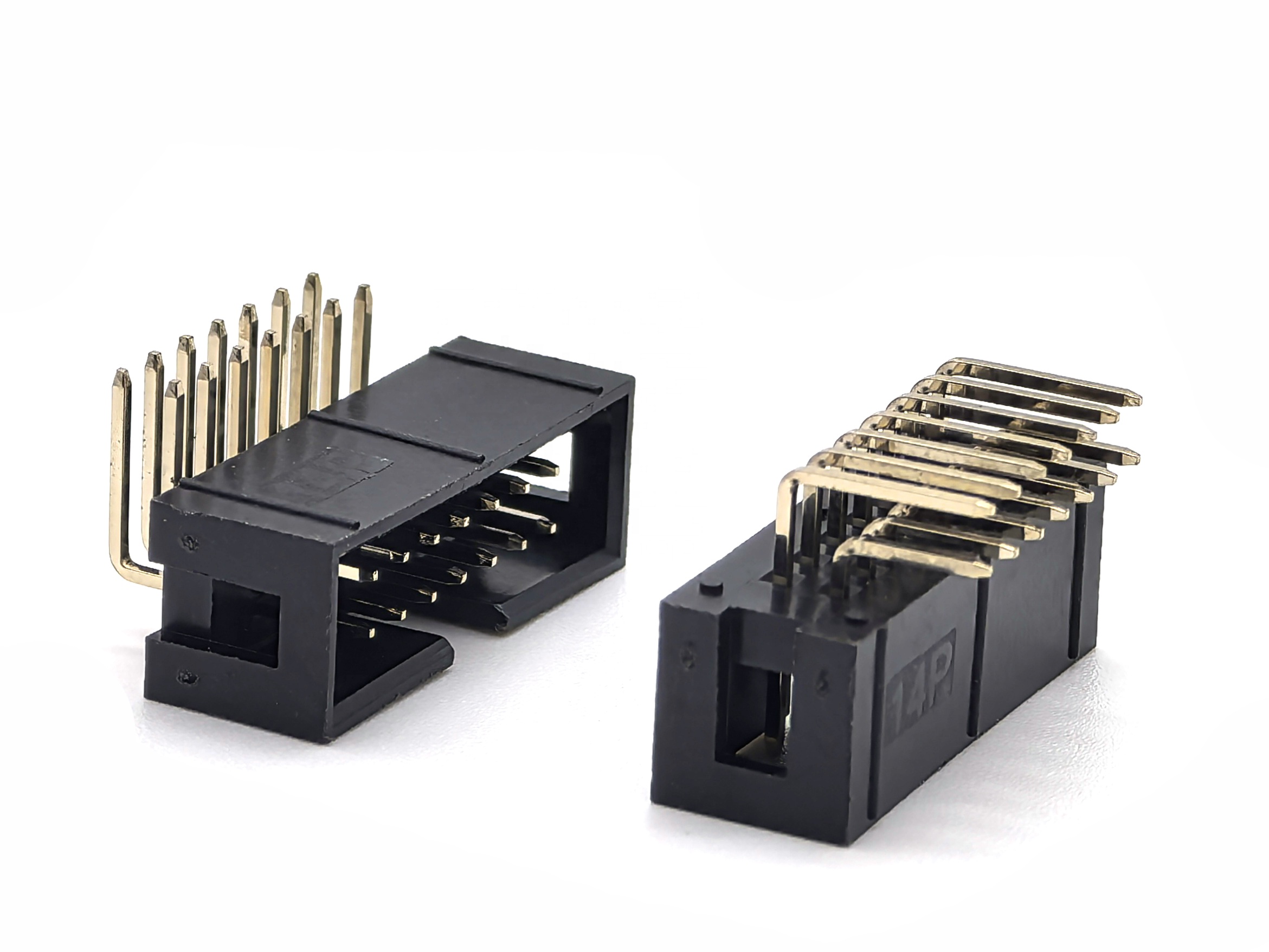

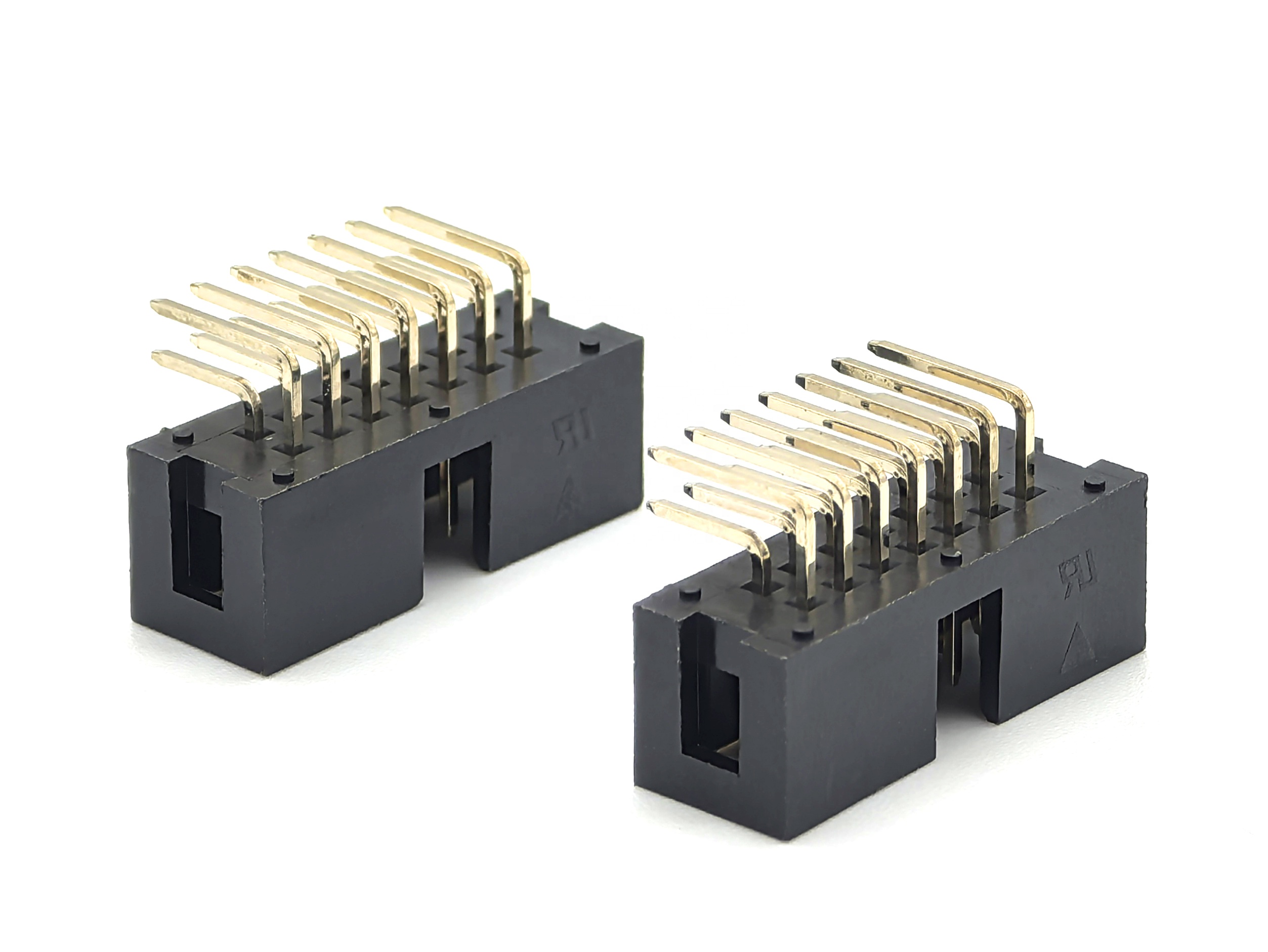

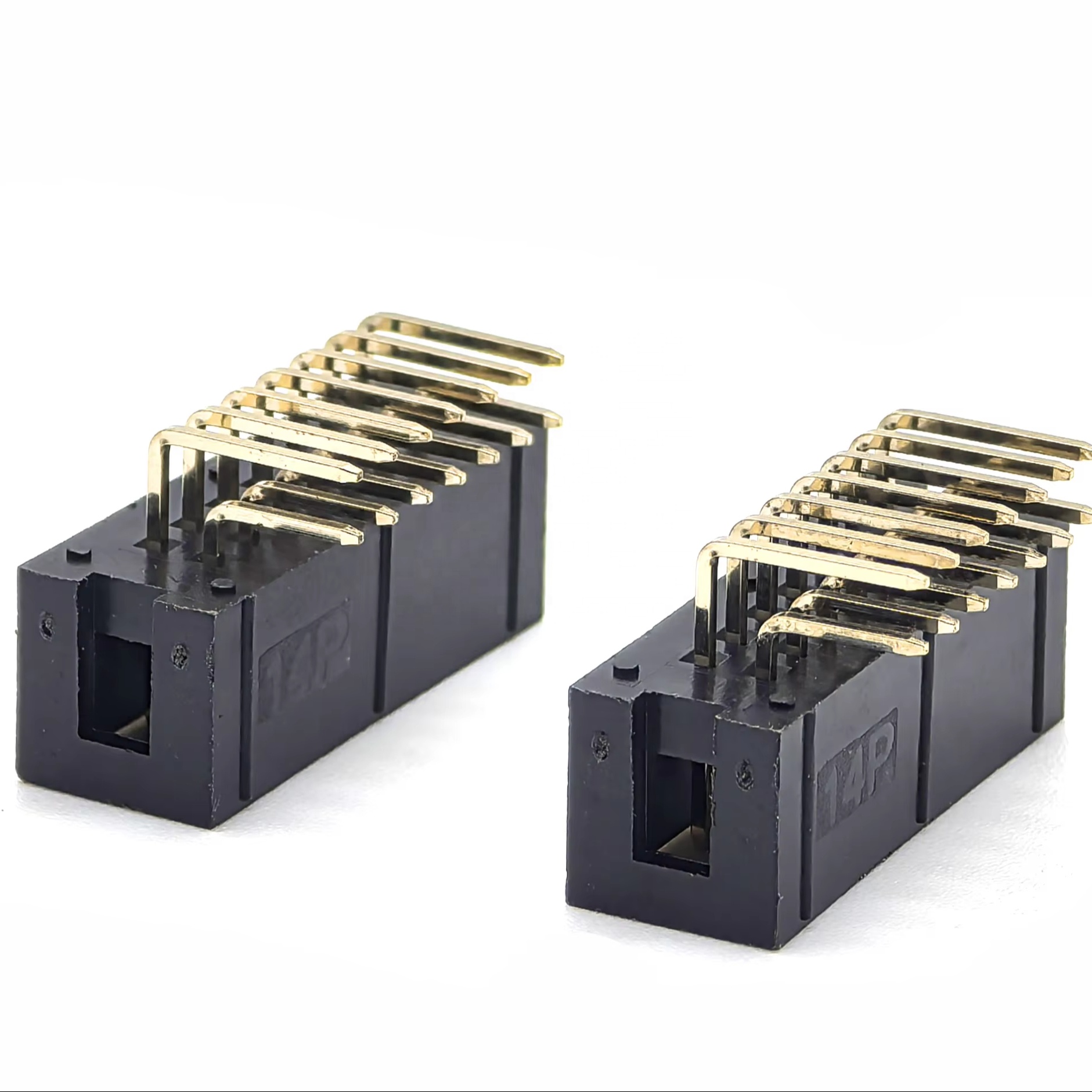

2.54mm Box header Connector Right Angle 14P

YZTECH’s 2.54mm Box header Connector Right Angle 14P is a premier interconnection solution for PCB assemblies, blending robust construction with versatile application potential. Engineered with precision, this 2.54mm box header connector 14p features dual rows of 7 pins each, crafted from durable brass contacts gold-plated for optimal conductivity and longevity. Housed in high-quality PBT material,it’s built to endure demanding electrical loads of up to 3A and 600V, while withstanding extreme temperatures from -40℃ to +105℃. Certified by UL, it meets stringent safety and performance standards, ensuring reliable operation even under harsh conditions.The header’s low-profile, space-saving design with a bending plug installation method simplifies PCB layout and integration. Its rectangular form factor and male gender configuration provide seamless compatibility with a wide array of mating connectors.

The 2.54mm box header 14p’s design emphasizes practicality and efficiency, with a maximum soldering temperature rating of 200℃ for 10 seconds or 180℃ for 30 to 60 seconds, facilitating secure and durable PCB assembly processes. Packaged in convenient box packaging, it’s ideal for streamlined inventory management and ease of use in production environments. This YZTECH box header is a preferred choice for electronics manufacturers worldwide seeking to balance cost-effectiveness with high performance.

In medical devices, its reliable performance supports diagnostic equipment, patient monitoring systems, and therapeutic devices, where precision and dependability are non-negotiable. Furthermore, its adaptability extends to consumer electronics like smart home devices, gaming consoles, and digital cameras, enhancing user experience through reliable connectivity. YZTECH’s commitment to quality and innovation makes this box header 2.54mm 14p an essential component for driving technological advancement across multiple industries in the global market.
