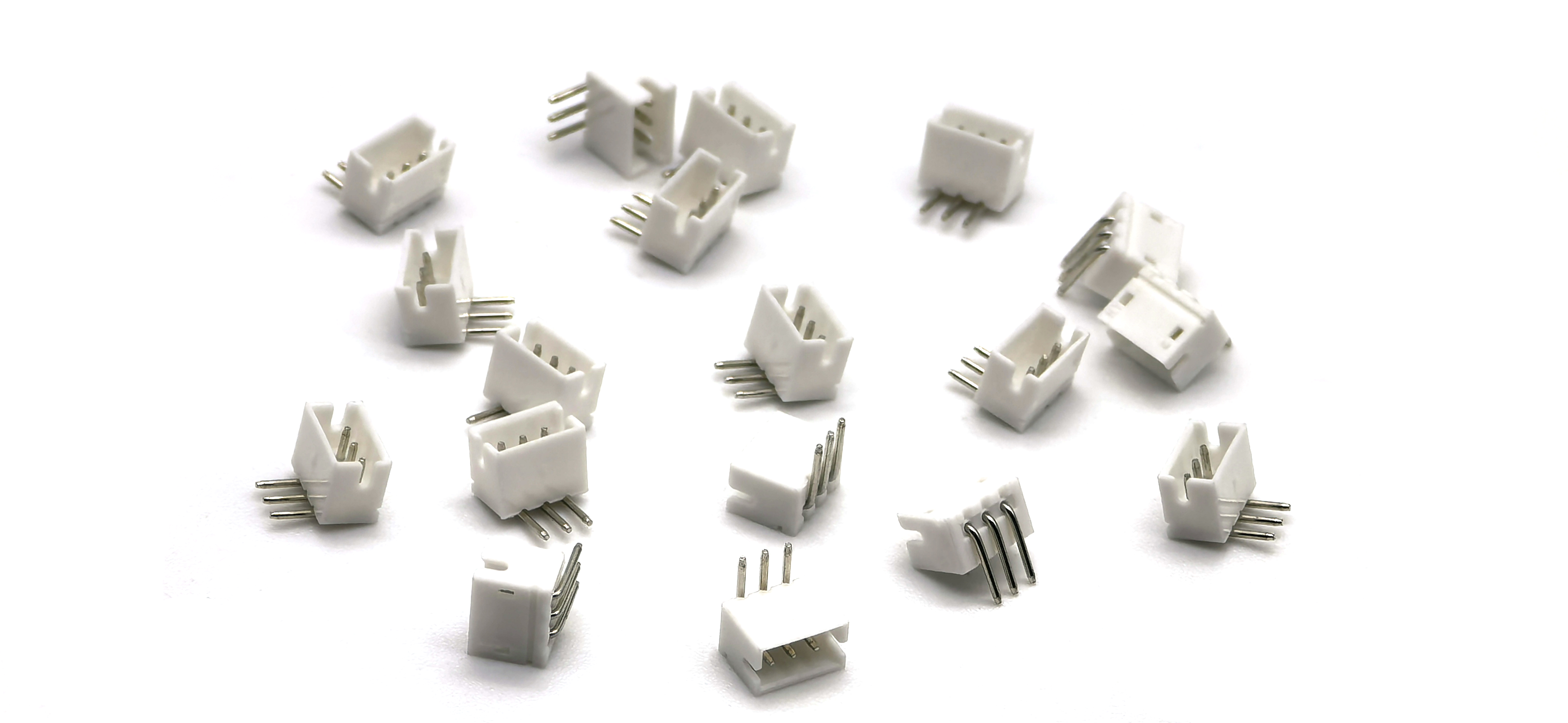

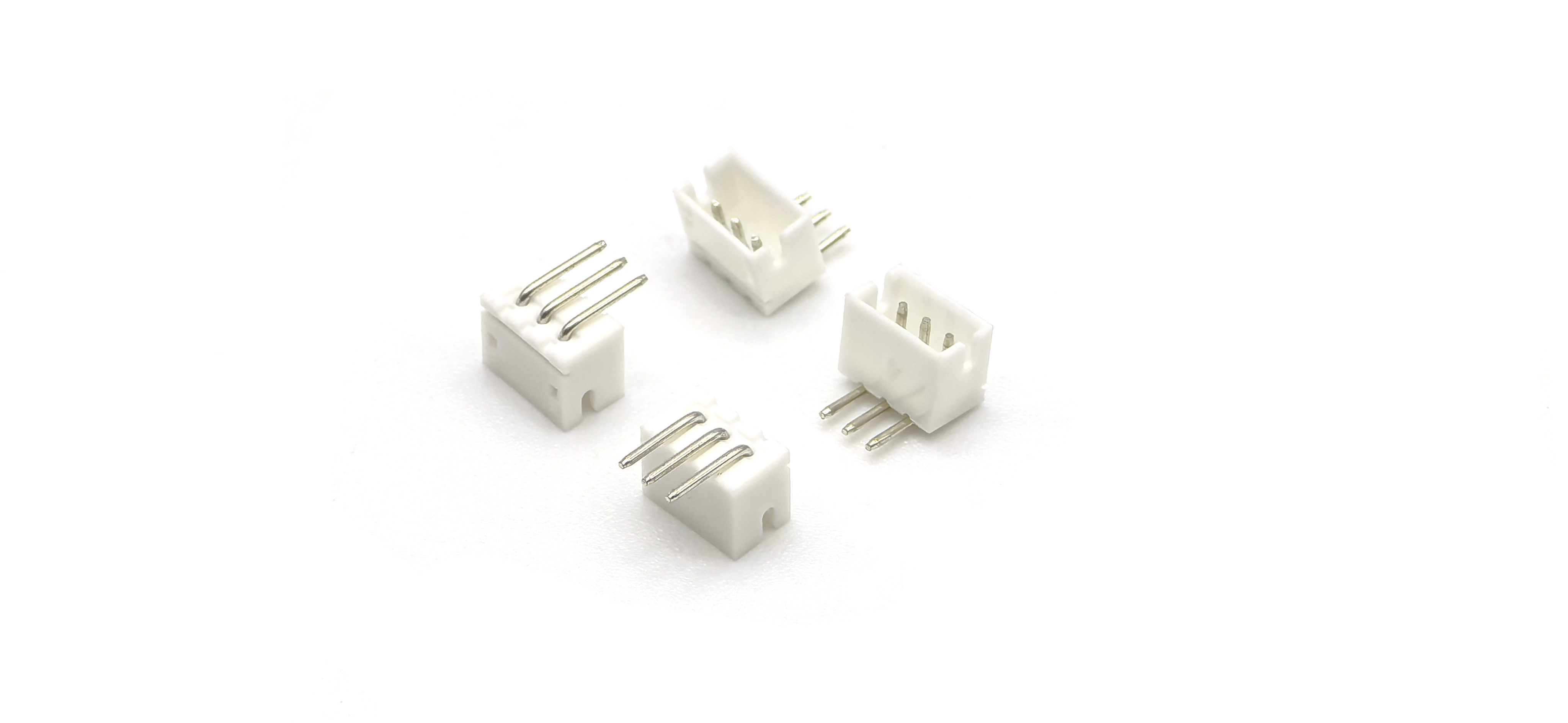

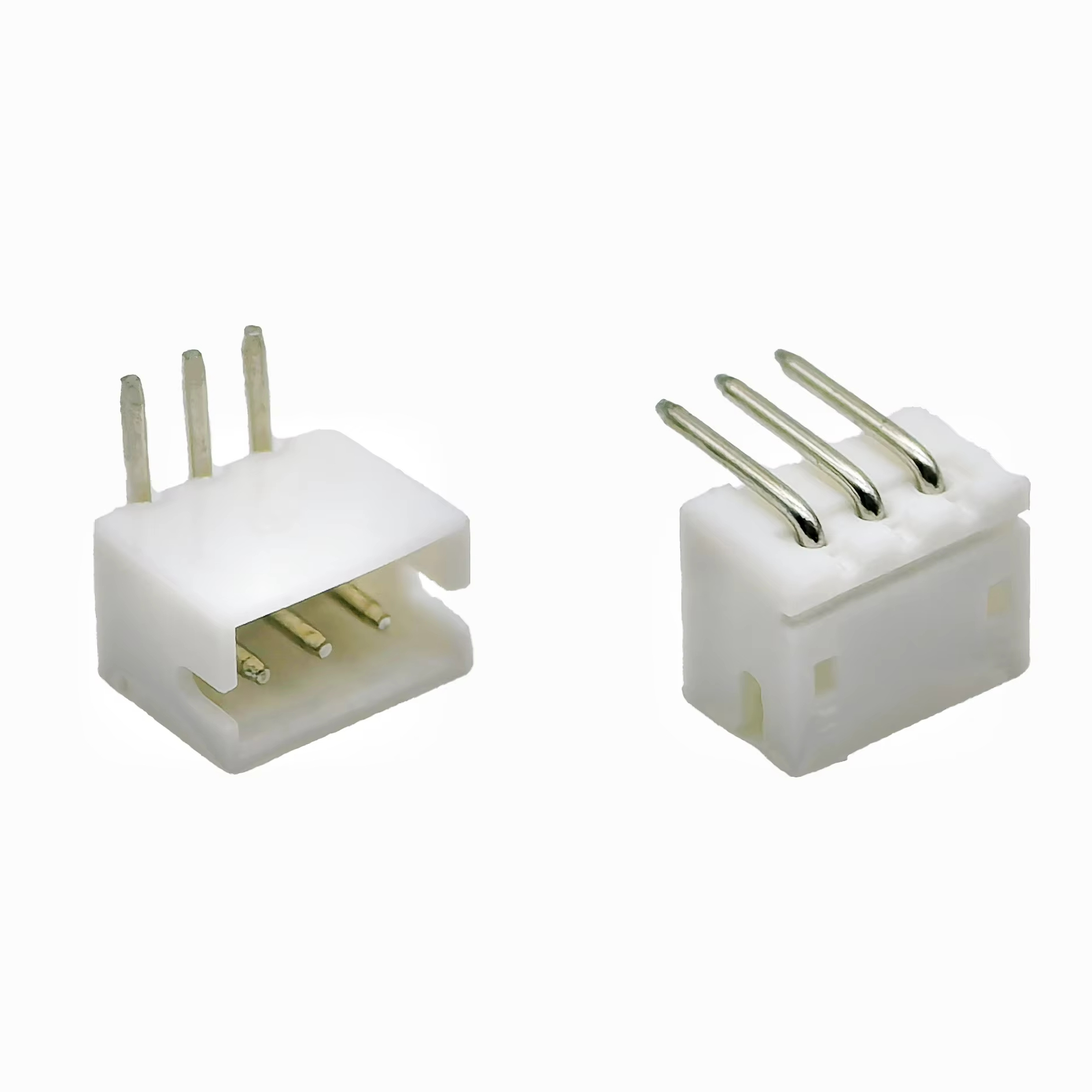

WAFER ZH1.5 Right Angle DIP Pin header Connector 1*3P

4 week ago

0 0 

6 month

Product details

The YZTECH WAFER ZH1.5 DIP Pin Header Connector is engineered for precision and durability in PCB applications. Featuring a single-row, 3-pin configuration with male gender contacts, this DIN-standard header connector ensures secure signal transmission with a 1A rated current and 100V rated voltage. Its rectangular shape and bending plug installation method provide ergonomic flexibility during assembly, while phosphor bronze contact material guarantees optimal conductivity and resilience.The tin-plated coating enhances corrosion resistance, ensuring reliable performance across a wide operating temperature range of -25℃ to +105℃.

Constructed with premium nylon colloidal material, the YZTECH wafer ZH1.5 pin header delivers exceptional mechanical strength and thermal stability. The reel packaging ensures efficient SMT line integration, optimizing production efficiency and reducing handling errors. Its single-row design minimizes space occupation on PCBs, making it suitable for compact electronic devices. The bending plug feature allows for angled mounting, accommodating diverse board layouts without compromising signal integrity.

Certified for global trade, the YZTECH ZH1.5 wafer housing terminal adheres to international quality standards, ensuring seamless integration into global supply chains. Its DIN-type design ensures compatibility with standard PCB footprints, simplifying prototyping and mass production.The reel packaging supports automated pick-and-place equipment, enhancing manufacturing throughput.This connector represents a fusion of precision engineering and practical versatility, empowering manufacturers to achieve superior electrical performance and long-term reliability in their products.

WAFER ZH1.5 Right Angle DIP Pin header Connector 1*3P
