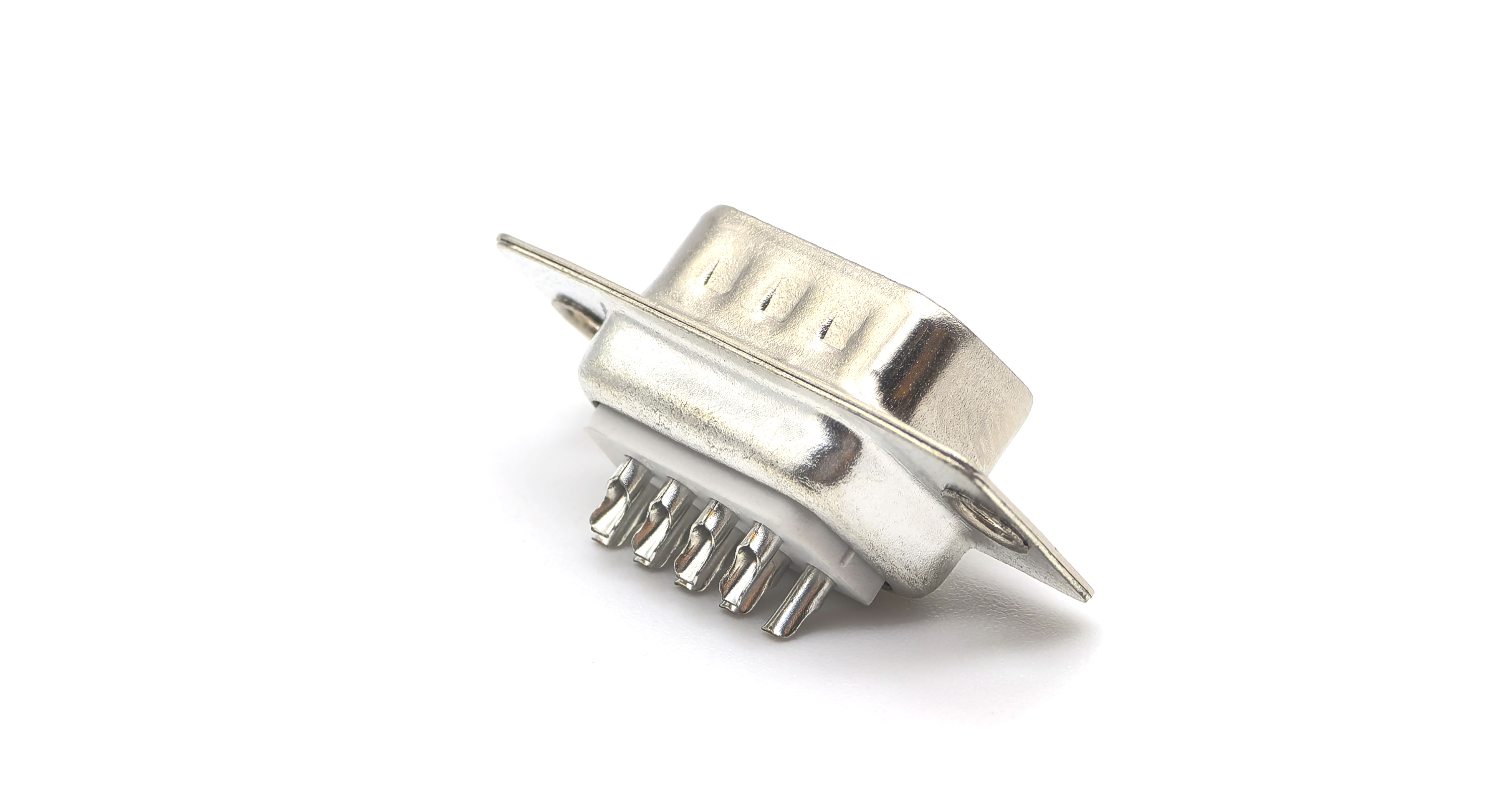

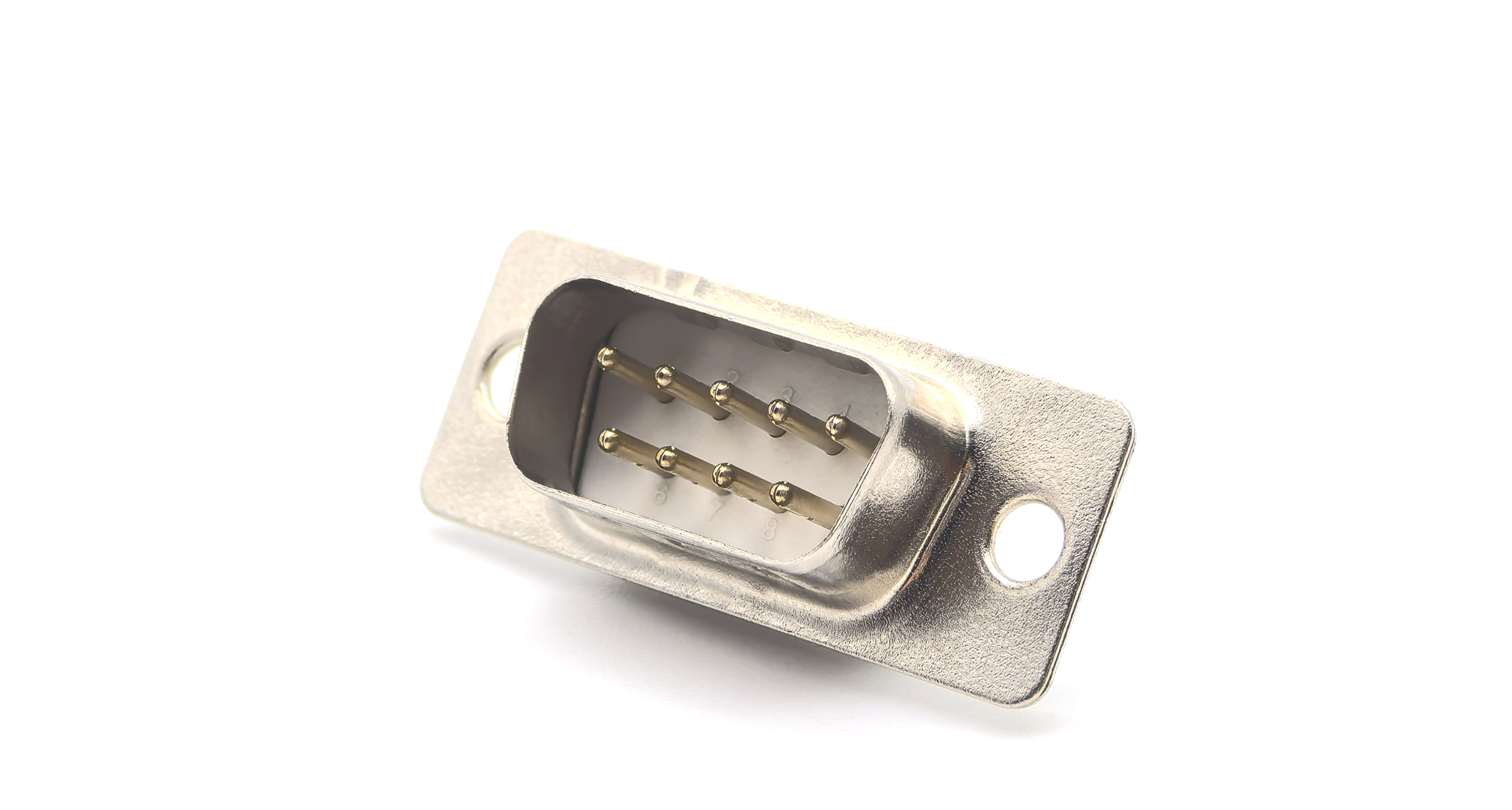

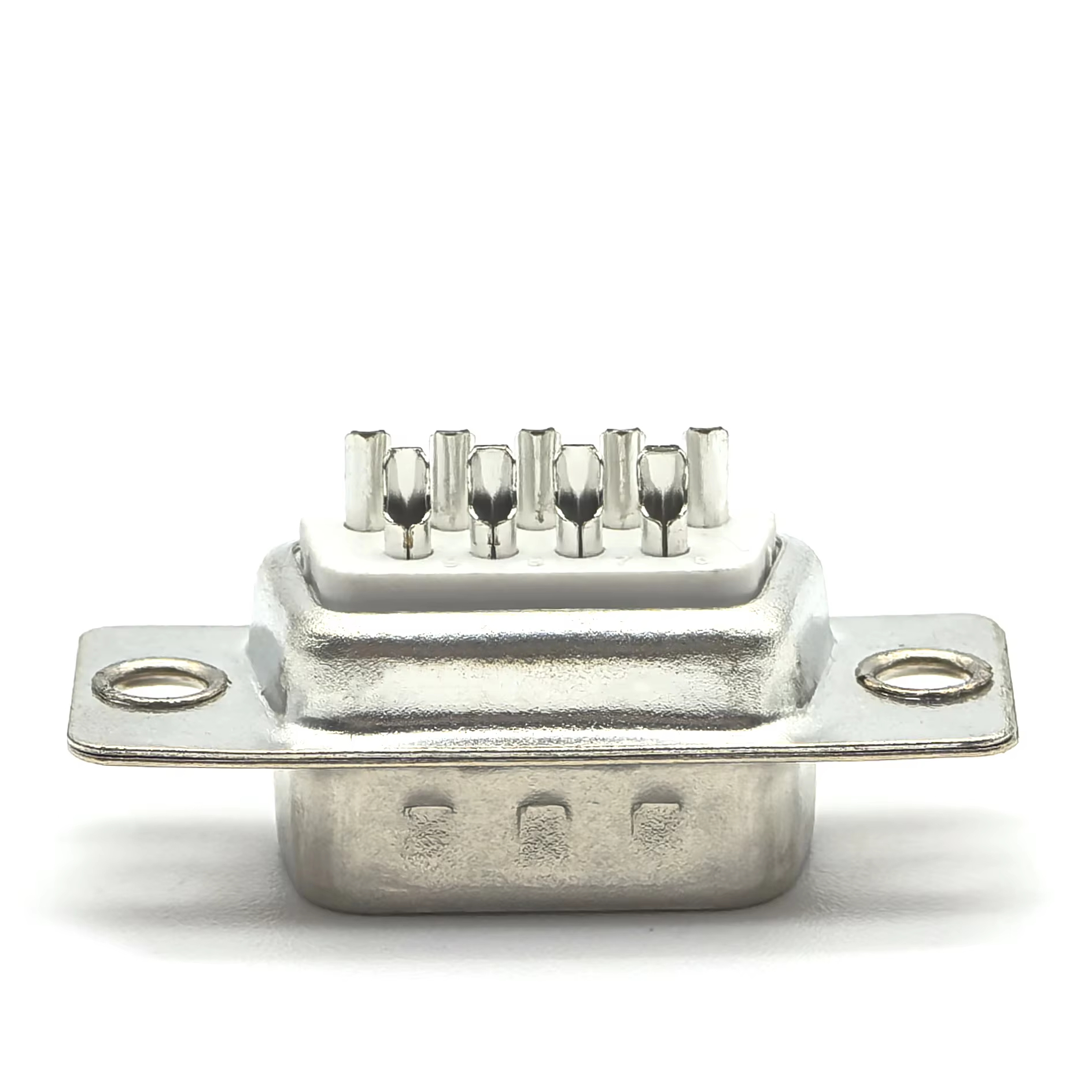

Machine DB 9P Male Solder Type White Plastic Blank Hole D-Sub Connector

4 week ago

0 0 

6 month

Product details

The YZTECH Machine DB 9P Male D-Sub Connector redefines precision engineering for PCB integration. Designed as a solder type D-Sub connector with dual-row 9-pin configuration, it features a circular shape and male gender contacts to ensure secure signal transmission at 3A rated current and 100V voltage. Engineered for DIN-standard compatibility, this solder type D-SUb connector excels in harsh environments with a wide operating temperature range of -55℃ to +105℃. The copper contact material and tin-plated coating guarantee optimal conductivity and corrosion resistance, while the white colloidal housing enhances thermal stability and mechanical durability.Its solder-type installation method ensures robust mechanical bonding, minimizing connection failures under vibration or thermal cycling.

Constructed with premium-grade copper contacts and white colloidal material, the header connector delivers exceptional electrical performance and environmental resilience. The solder-type design allows for efficient manual or automated soldering processes, with a maximum welding temperature of 250℃/5S to prevent thermal damage to components. The dual-row configuration optimizes space utilization on PCBs, making it suitable for high-density electronic assemblies. The UL certification ensures compliance with global safety standards, while the tray packaging supports streamlined SMT line integration and reduces handling errors.

With a focus on user-centric design, YZTECH provides comprehensive technical documentation, including soldering profiles and mechanical drawings, to support seamless adoption. The connector’s round shape and dual-row layout accommodate diverse board geometries, while the tin-plated contacts ensure low signal loss and stable connections. Backed by rigorous testing for thermal shock, humidity resistance, and electrical performance, this connector empowers manufacturers to achieve superior reliability and long-term durability in their products.

Machine DB 9P Male Solder Type White Plastic Blank Hole D-Sub Connector
