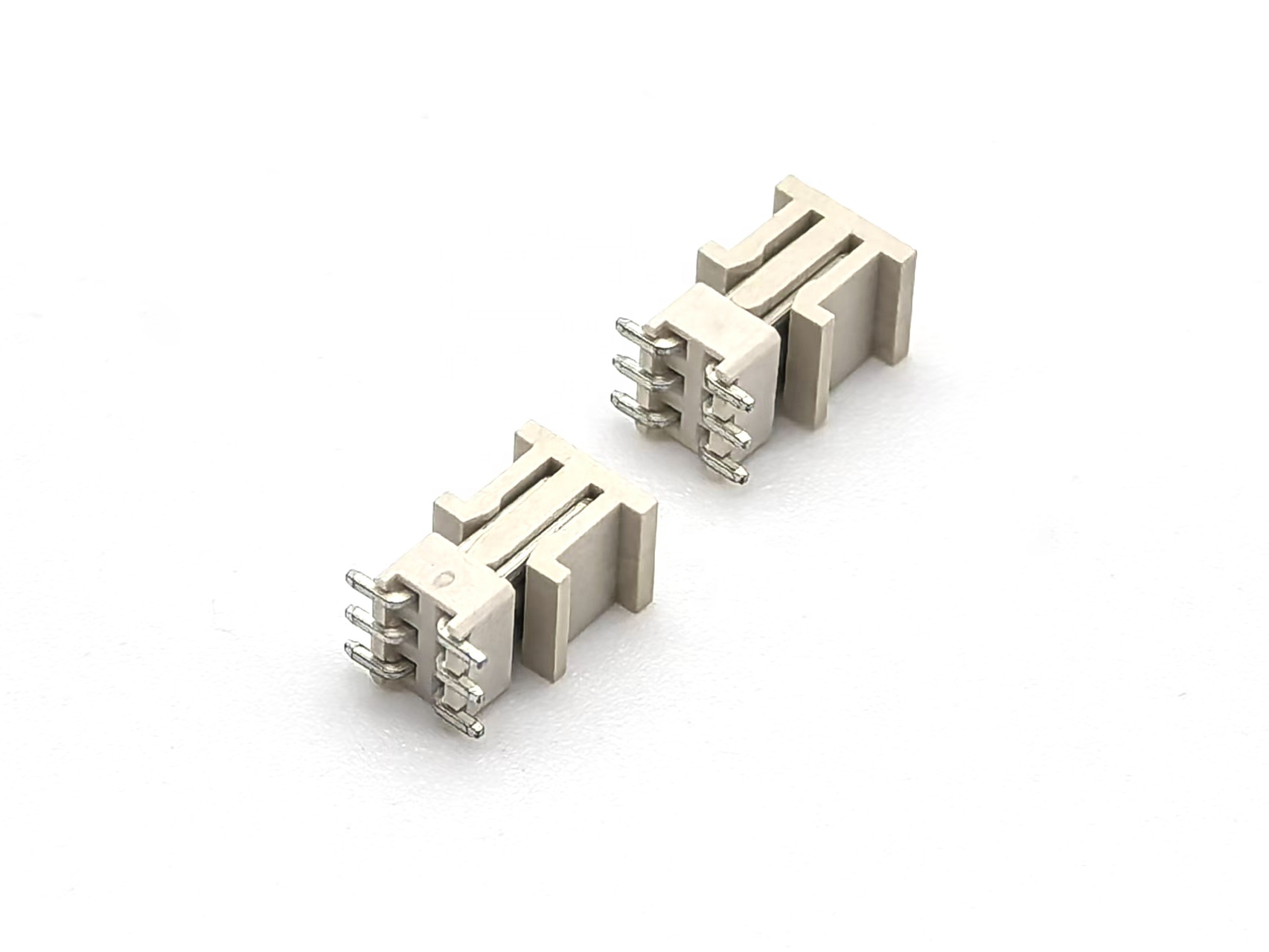

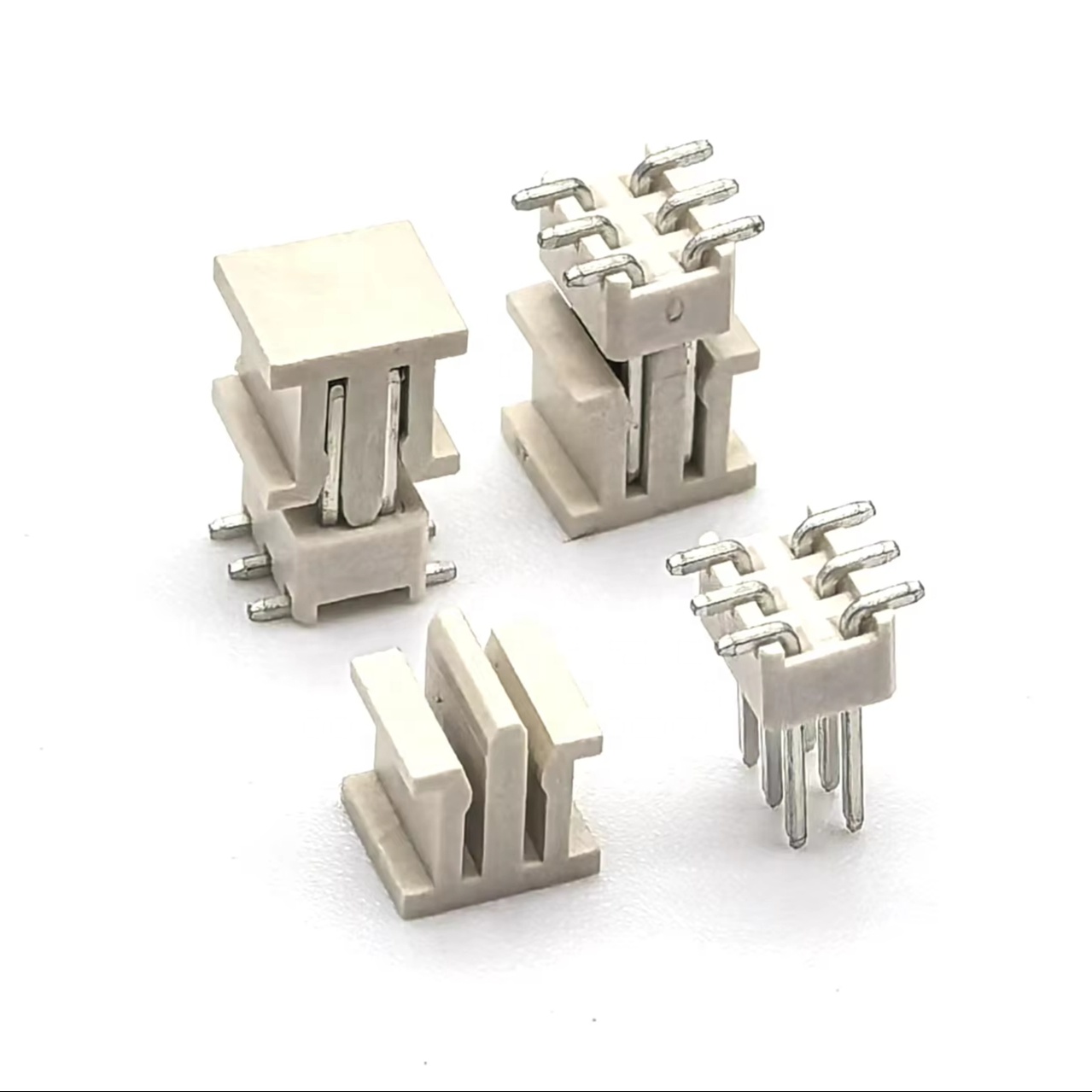

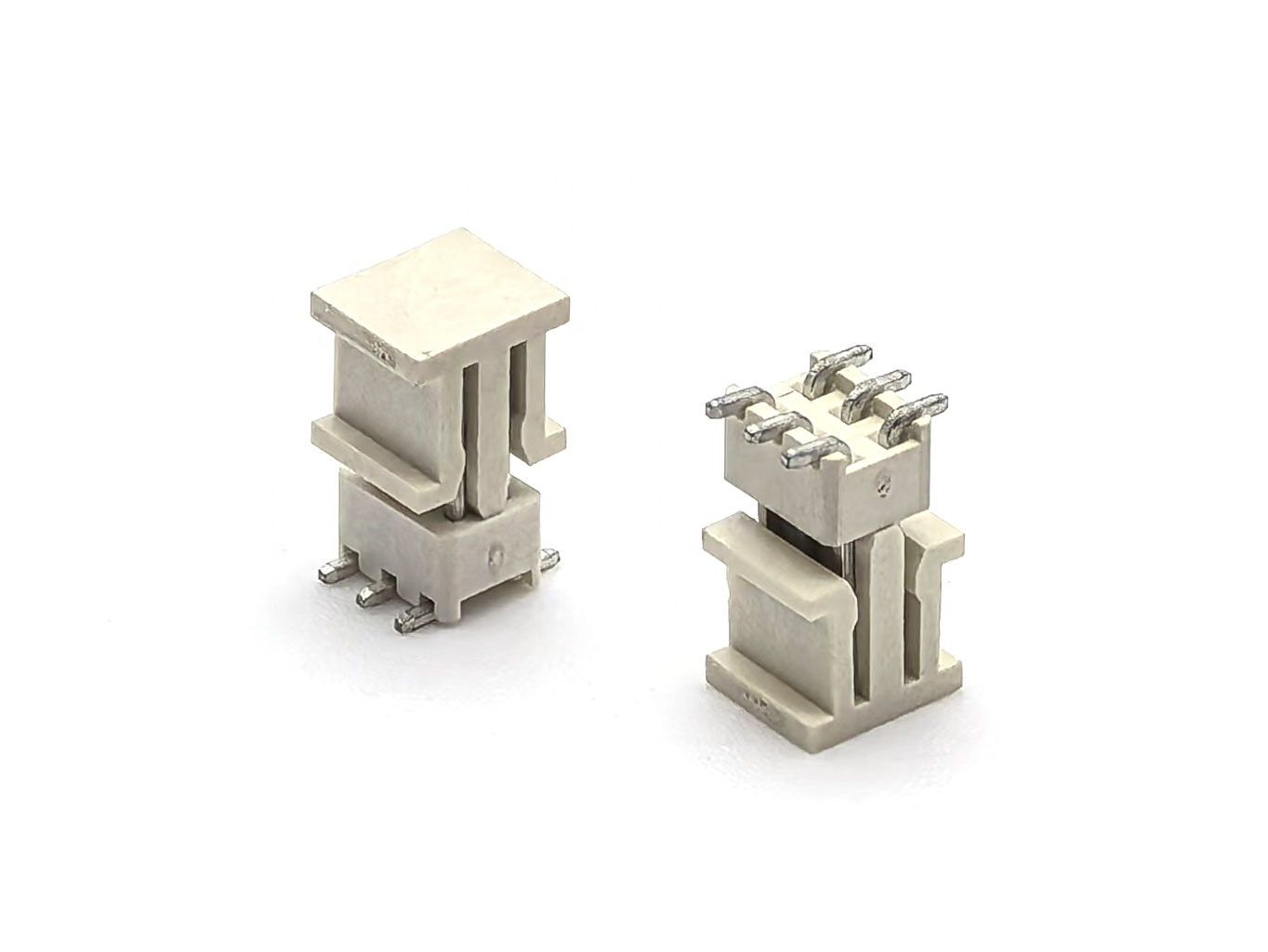

Dual Row SMT H2.5mm 2*3P LCP Lighting LED Strip Connector 1.5mm Pitch Pin Header Brass Contact Material for PCB Applications

4 week ago

0 0 

6 month

Product details

The YZTECH 1.5mm Lighting LED Strip Pin Header 6P introduces a dual-row, vertical-mount LED Connector designed for high-current PCB integration. Engineered with male-gender brass contacts and LCP colloidal material, this 3A/300V header connector supports demanding LED lighting systems, smart building controls, and automotive LED arrays. Its vertical mount design optimizes space utilization in compact PCB layouts, while the tin-plated contacts ensure low resistance and corrosion resistance across a wide -55℃~+105℃ temperature range. The reel packaging enables seamless integration with automated SMT lines, enhancing manufacturing efficiency and reducing handling errors.

Constructed with premium LCP colloidal material, this 1.5mm pin header connector delivers exceptional thermal stability and mechanical resilience under extreme operating conditions. The brass contact material with tin plating ensures reliable electrical conductivity and long-term durability, minimizing signal loss in high-power LED applications. The vertical mount installation method reduces mechanical stress on PCB traces, enhancing reliability in vibration-prone environments like automotive and industrial settings. With a maximum welding temperature of 220℃/10S, it supports safe soldering processes without compromising component integrity.

With comprehensive technical documentation and YZTECH’s customer support ecosystem, manufacturers can achieve seamless adoption and long-term durability. This header connector’s innovative design and sustainable materials make it a cornerstone for next-generation LED lighting solutions, aligning with global environmental standards and energy-efficient design principles.

Dual Row SMT H2.5mm 2*3P LCP Lighting LED Strip Connector 1.5mm Pitch Pin Header Brass Contact Material for PCB Applications
