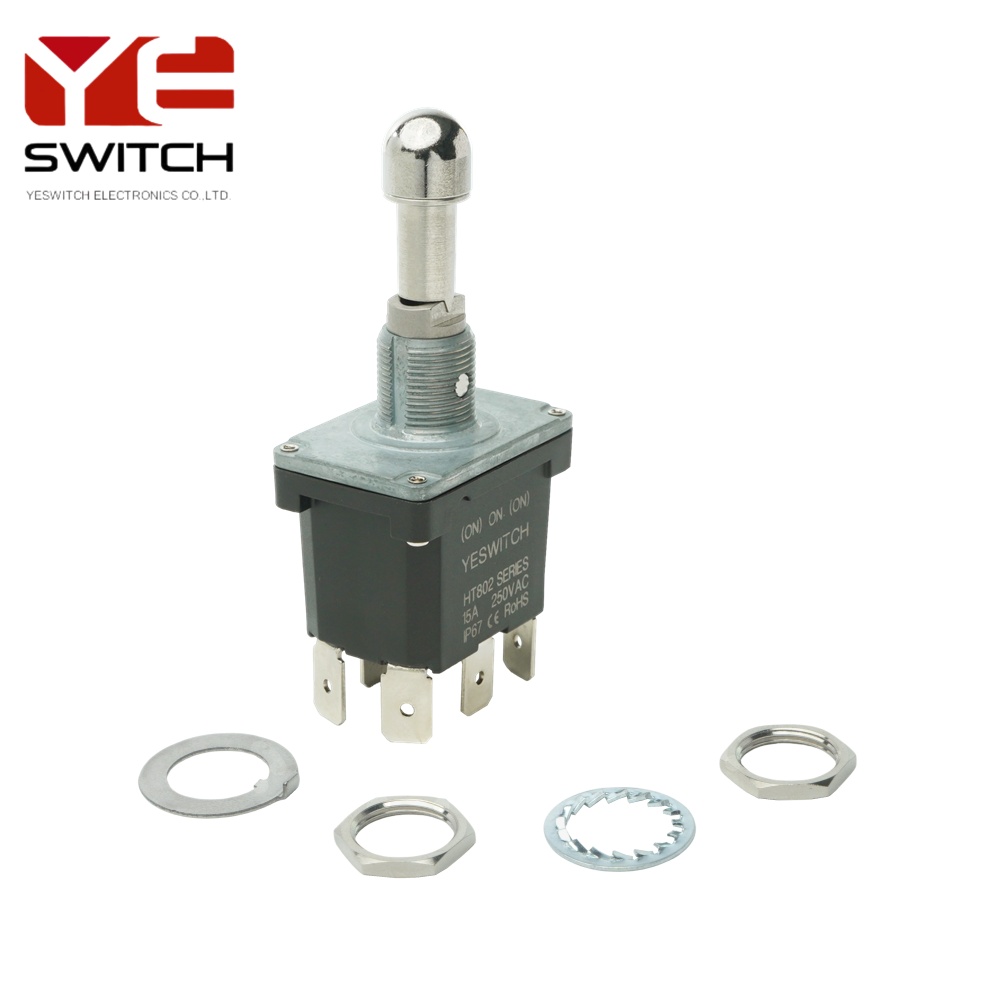

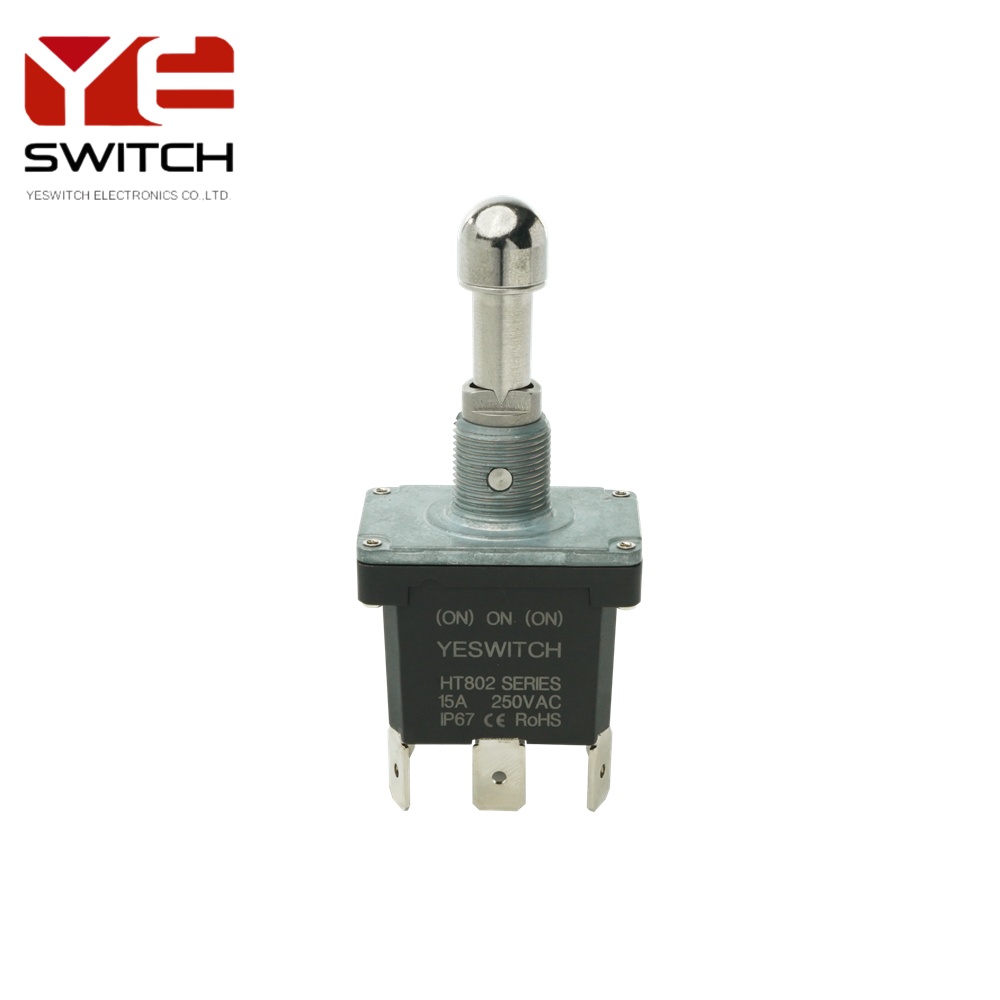

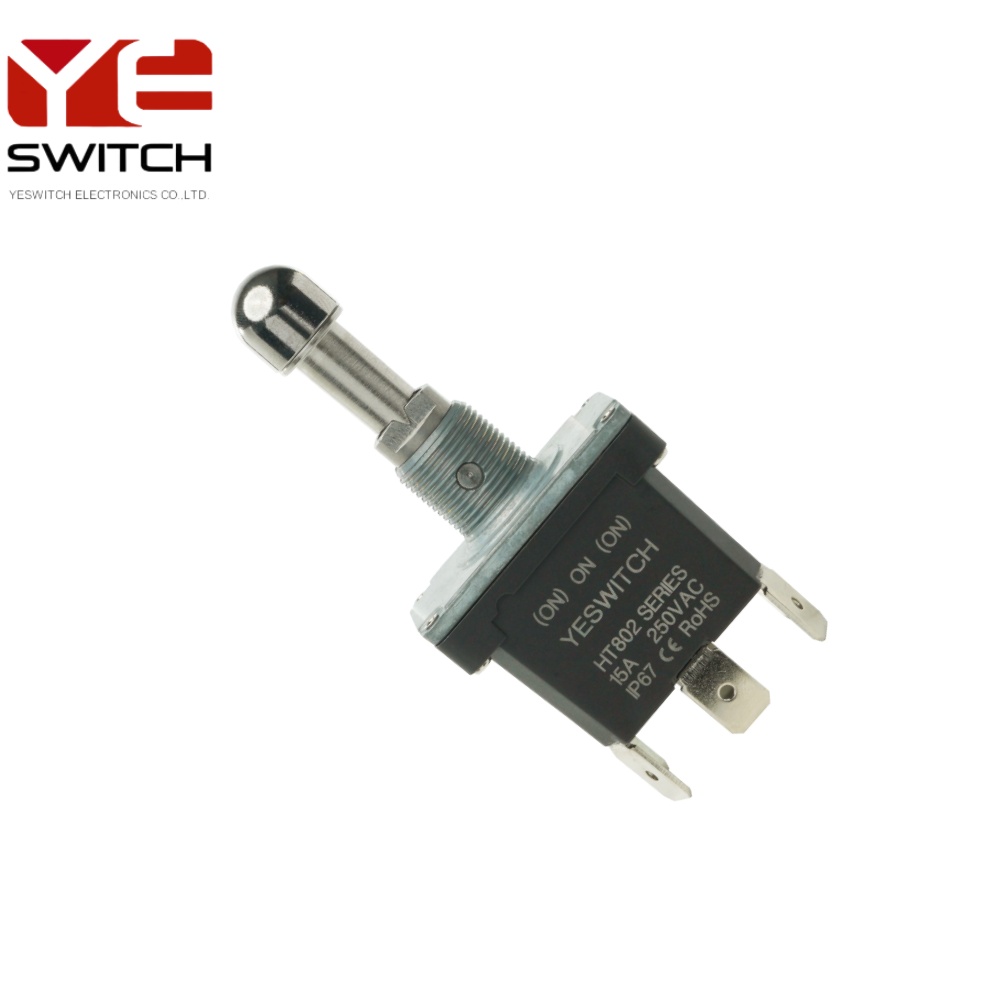

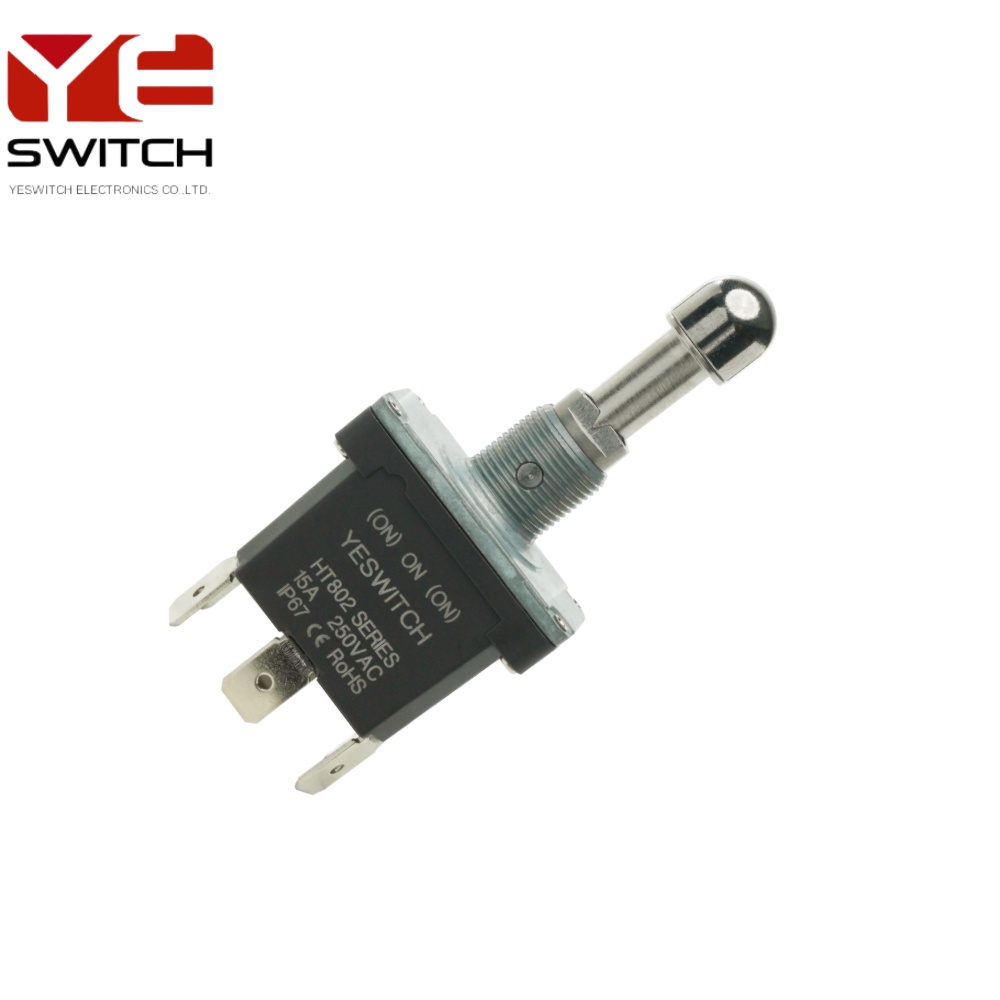

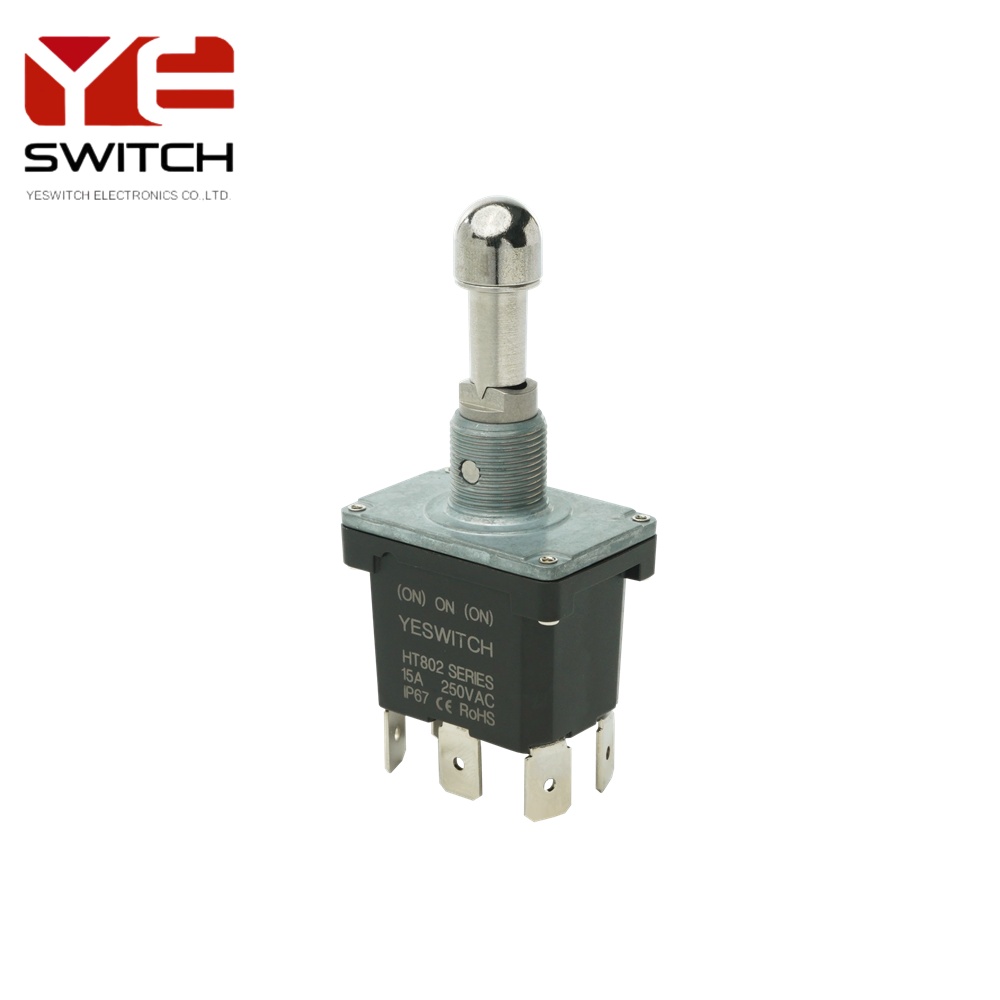

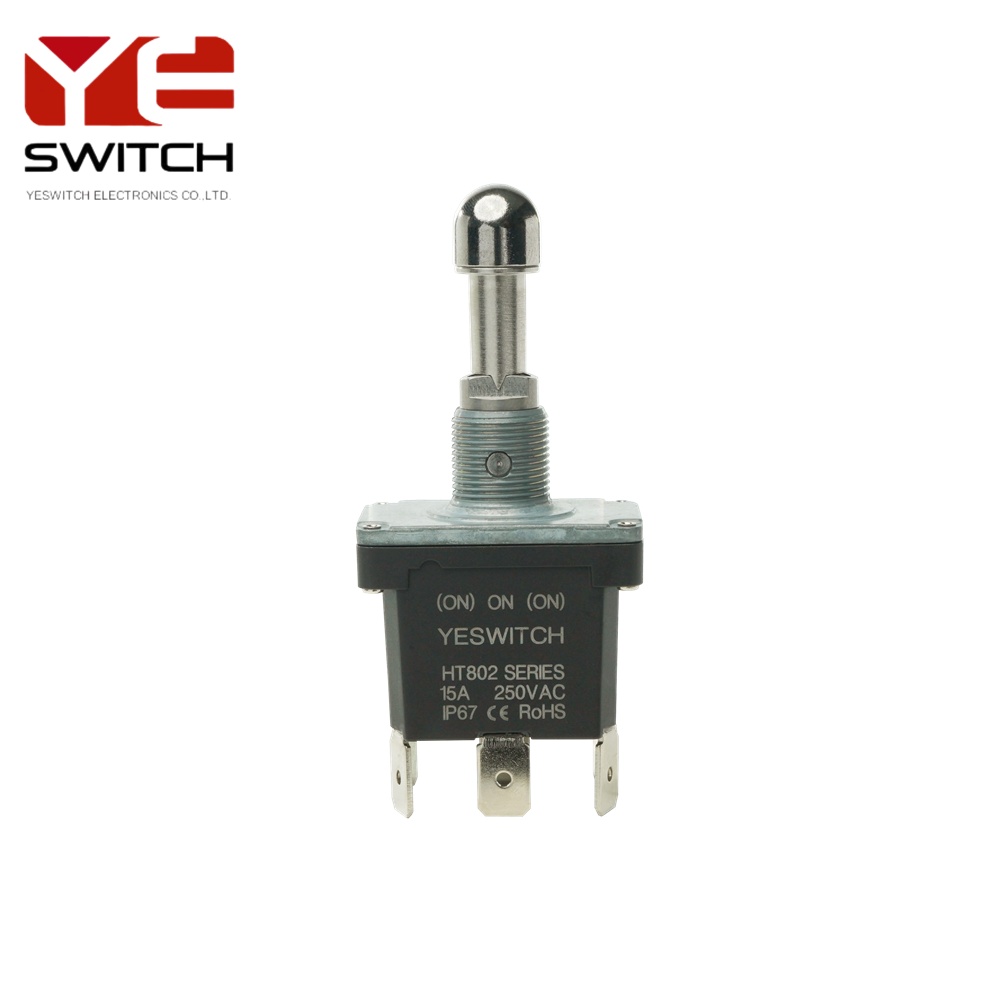

Industrial (ON)-ON-(ON) DP3T IP68 Toggle Switch
4 week ago
Product details
The YESWITCH HT802 series is a high-performance toggle switch designed for harsh industrial environments and high-load electrical applications. Its excellent electrical characteristics, rugged mechanical structure, and top-tier protection make it an ideal choice for control systems in critical equipment such as heavy machinery and aerial work platforms.
Core Features
Dual-Circuit (ON)-ON-(ON) Three-Position Switching
The switch operates two completely independent circuits simultaneously. This means a single toggle can control two independent circuits simultaneously, enabling complex functions such as motor forward/stop/reverse, switching between dual lighting systems, and switching between primary and backup power sources.
Application Advantages: A single switch can achieve complex dual-circuit control, simplifying panel design, improving operational efficiency, and enhancing system integration.
Locking Metal Lever
Material and Construction: The handle is made of high-strength metal (such as copper alloy or stainless steel), offering exceptional resistance to impact, wear, and corrosion, and can withstand frequent and rough operation.
Locking Function: This feature is crucial. The operator needs to lift the handle or press a button on the handle to toggle the switch. This effectively prevents accidental impact, inadvertent contact, or vibration from causing the switch to change state, significantly improving equipment safety. It is an essential safety feature for heavy machinery and aerial work platforms.
Quick-Connect PC Terminals
Connection method: Utilizes quick-connect tabs (fork-shaped terminals).
Efficient wiring: No tools are required to tighten screws; simply crimp the wires onto the tabs and insert them, significantly improving production, assembly, and maintenance efficiency.
Reliable contact: The tabs form a large, high-pressure contact with the spring inside the terminal, resulting in low contact resistance and a secure connection that effectively resists loosening caused by vibration.
IP68 Ultra-High Protection Rating
This means the HT802 switch can fully withstand harsh outdoor environments, such as heavy rain, dusty construction sites, high-pressure water jet cleaning, and even brief immersion. This is crucial for aerial work platforms, mining machinery, and agricultural machinery operating 24/7, ensuring long-term, stable operation under extreme conditions.
16A High Current Carrying Capacity
High Load: The 16A rated current (typically at 250VAC) means this switch can directly control high-power loads such as motors, hydraulic pumps, solenoid valves, and heating elements, eliminating the need for intermediate relays. This simplifies circuit design, reduces system costs, and improves reliability.

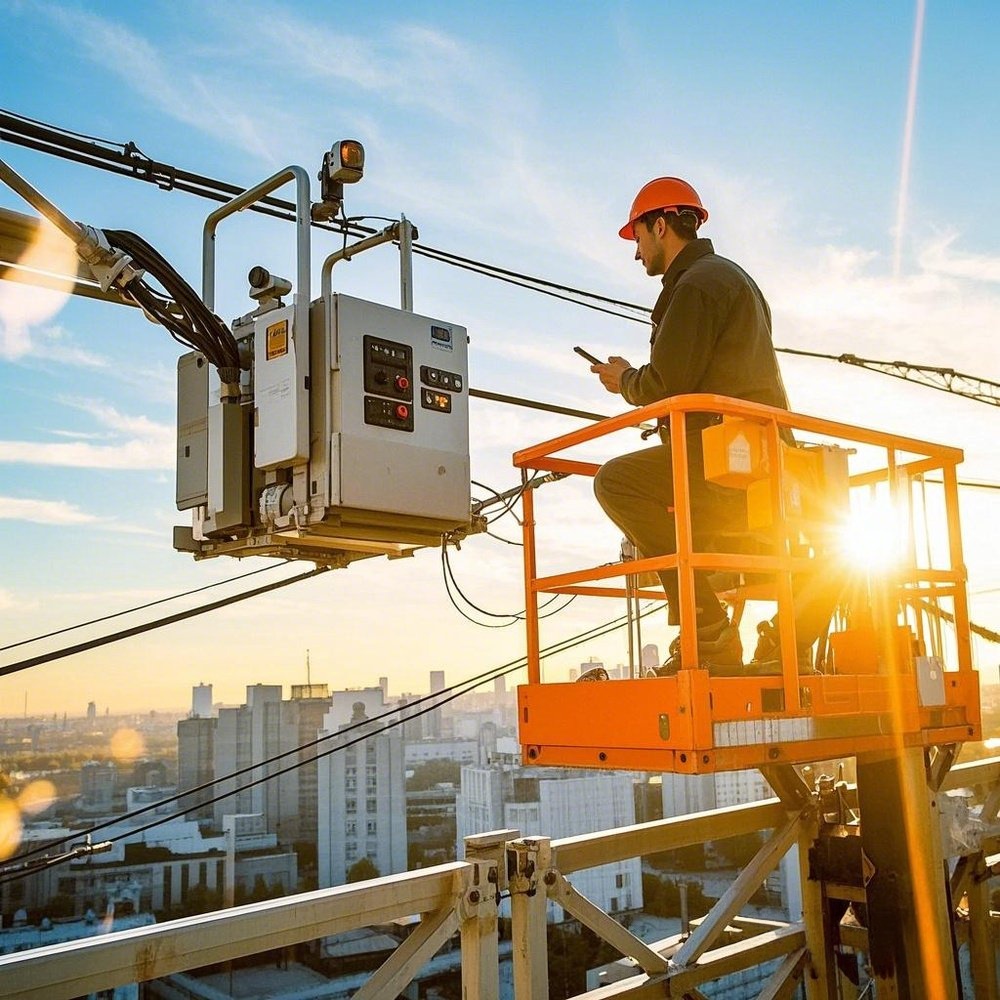

Typical Applications: Aerial Work Platform
Function Control: Used to control the bidirectional motor drive for platform raising and lowering, boom extension and retraction, and equipment travel (forward/stop/reverse).
Lighting System: Switches high-power work lights and warning lights.
Hydraulic System: Starts and stops high-current hydraulic pump stations.
Advantages: IP68 protection withstands outdoor wind, rain, and washdown operations; the lockable handle prevents accidental contact during aerial work; and high-current directly drives the core motor hydraulic system.
Heavy Duty Machinery
Construction Machinery: Switches various functions on excavators, loaders, and cranes, such as operating mode selection (fine/power) and attachment control (breaker/grab bucket). Mining Machinery: Switches high-power equipment on mining trucks and drilling equipment.
Agricultural Machinery: Controls complex functions on large tractors and harvesters.
Advantages: The metal handle and rugged housing withstand severe vibration and shock; dual-path functionality simplifies multi-actuator control; and the IP68 rating provides protection against dirt, dust, and rain.
SPECIFICATIONS
- CONTACT RESISTANCE:20m ohm(Max)
- INSULATION RESISTANCE:100VDC-100M ohm(Min)
- DIELECTRIC STRENGTH:1500VAC-1MINUTE
- MECHANICAL LIFE CYCLE:100.000 CYCLES
- OPERATING TEMPERATURE:-40 to +85 DEGREES
- FRONT SEAL:IP68
RATING
- RESISTIVE LOAD:16A 125/250VAC,15A 28VDC
- INDUCTIVE LOAD:15A 28VDC
MATERIAL
- ACTUATOR:COPPER ALLOY
- HOUSING:NYLON (UL94V-0)
- BUSHING:ZINC ALLOY
- TERMINAL:COPPER ALLOY
- CONTACT:COPPER ALLOY
- O-RING:SILICONE RUBBER
- SHEEL:STAINLESS STELL
