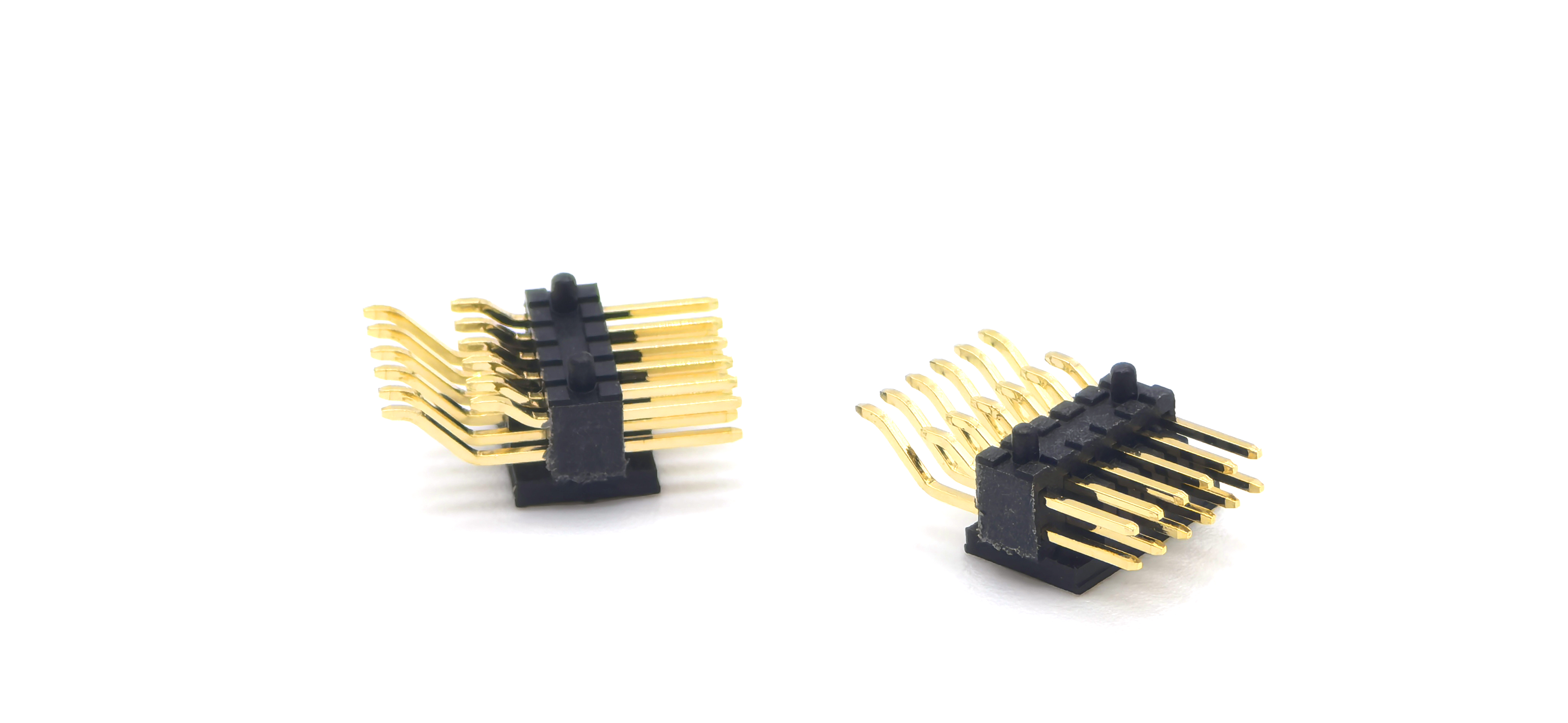

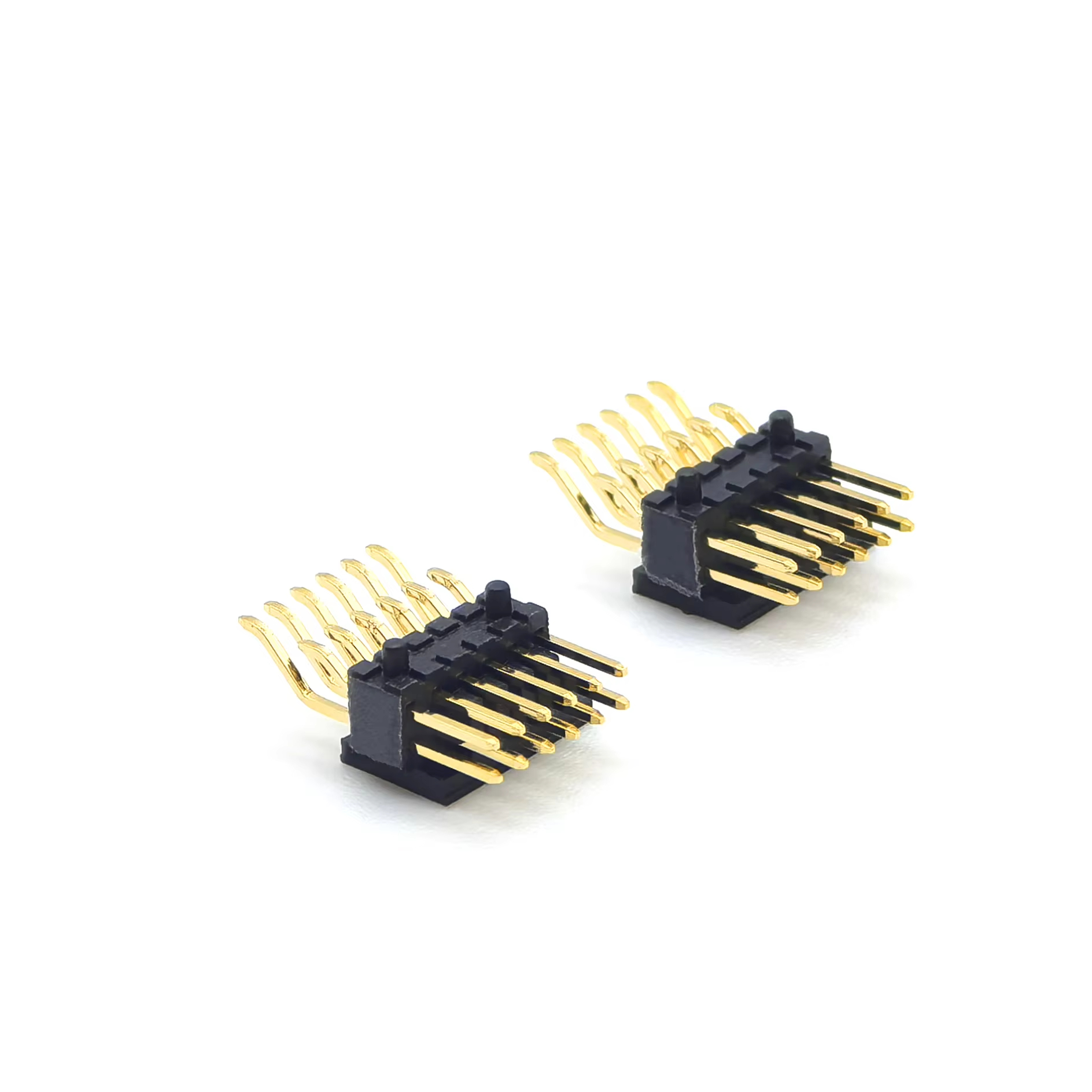

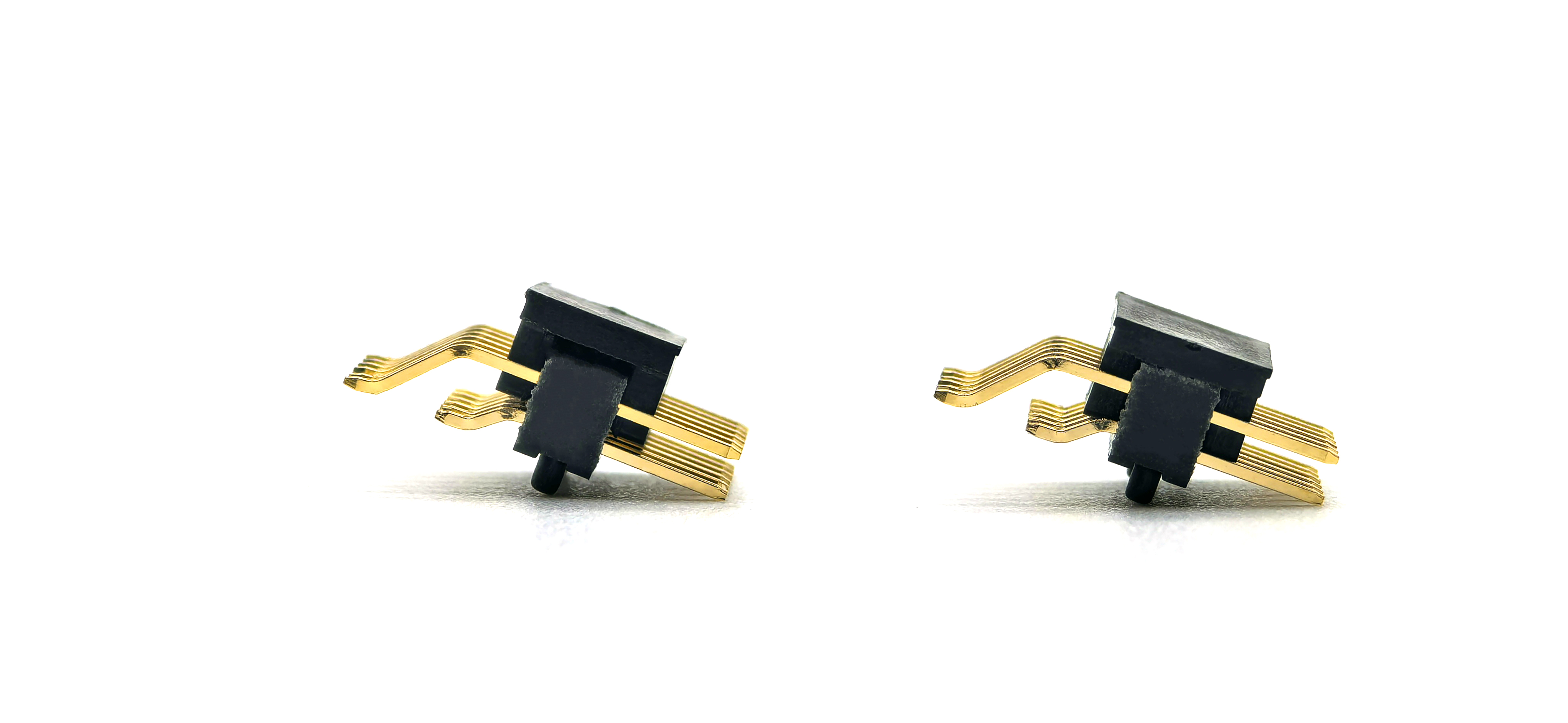

1.27mm Pitch Pin header Connector With Side Posts Dual Row Right Angle SMT SQ0.4/0.46mm H2.5mm 2*6P

3 week ago

0 0 

6 month

Product details

YZTECH's 12P dual-row male pin header redefines reliability in PCB applications with its 1.27mm pitch design. Engineered for horizontal mount installation, this DIN-standard header connector features brass contacts with gold plating, ensuring optimal conductivity ≤3mΩ contact resistance and corrosion resistance up to 300V AC at 1A current.Designed for automated SMT assembly, the 220°C@10s soldering temperature compatibility aligns with lead-free reflow processes, while reel packaging ensures efficient pick-and-place operations. The dual-row 8P configuration provides 16 contact points for signal/power distribution in compact spaces, making it ideal for industrial control systems, IoT devices, and consumer electronics.

The YZTECH pin header distinguishes itself through advanced material science and precision manufacturing. Brass contacts with gold plating offer 50% higher conductivity than standard tin-plated alternatives, reducing signal loss in high-speed circuits. PA6T housing material maintains dimensional stability across -45°C to +105°C, preventing warping during thermal cycling.The horizontal mount design enables flush PCB integration,minimizing profile height for space-constrained applications.RoHS certification ensures seamless entry into global markets,while the reel packaging supports JIT manufacturing workflows.The gold-plated contacts provide 200+ mating cycles without degradation,ensuring long-term reliability in vibration-prone environments.

Beyond PCB applications, this 1.27mm pin header excels in automotive electronics , telecommunications, and medical devices. The 1.27mm pitch accommodates fine-pitch PCB layouts, while the dual-row design supports daisy-chaining for complex circuit integration.The reel packaging reduces shipping costs by 30% compared to tray packaging, optimizing supply chain efficiency.

1.27mm Pitch Pin header Connector With Side Posts Dual Row Right Angle SMT SQ0.4/0.46mm H2.5mm 2*6P
