Product details

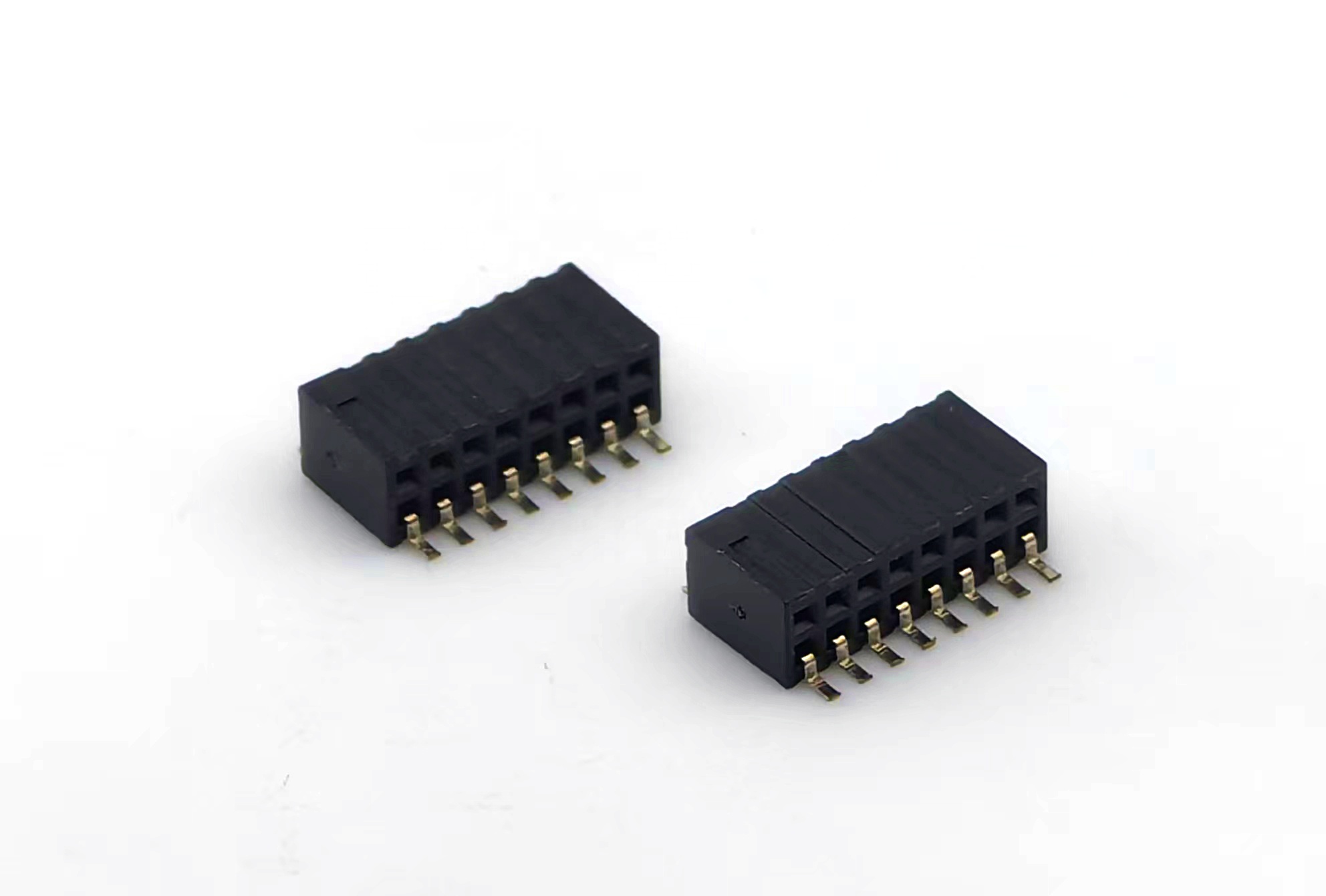

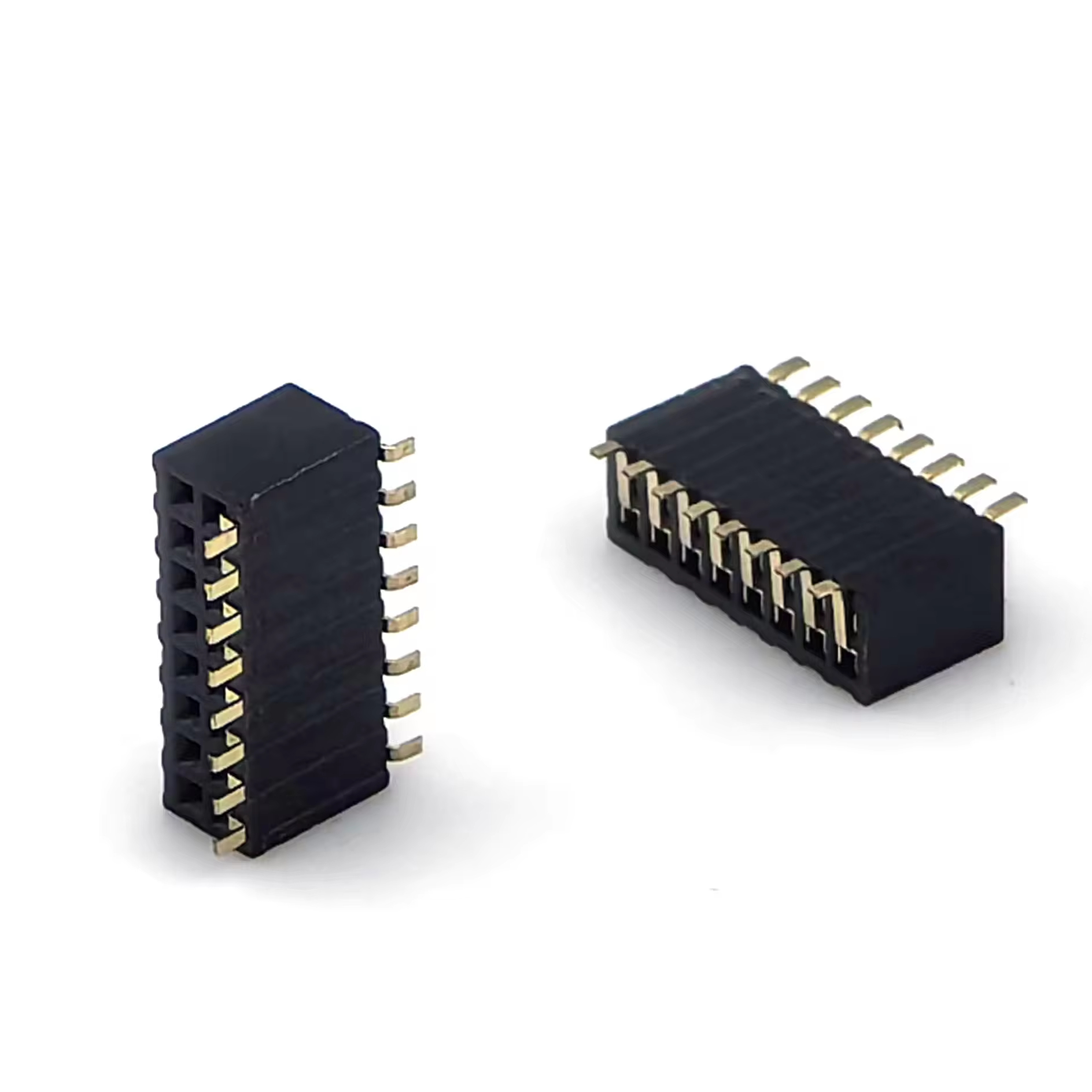

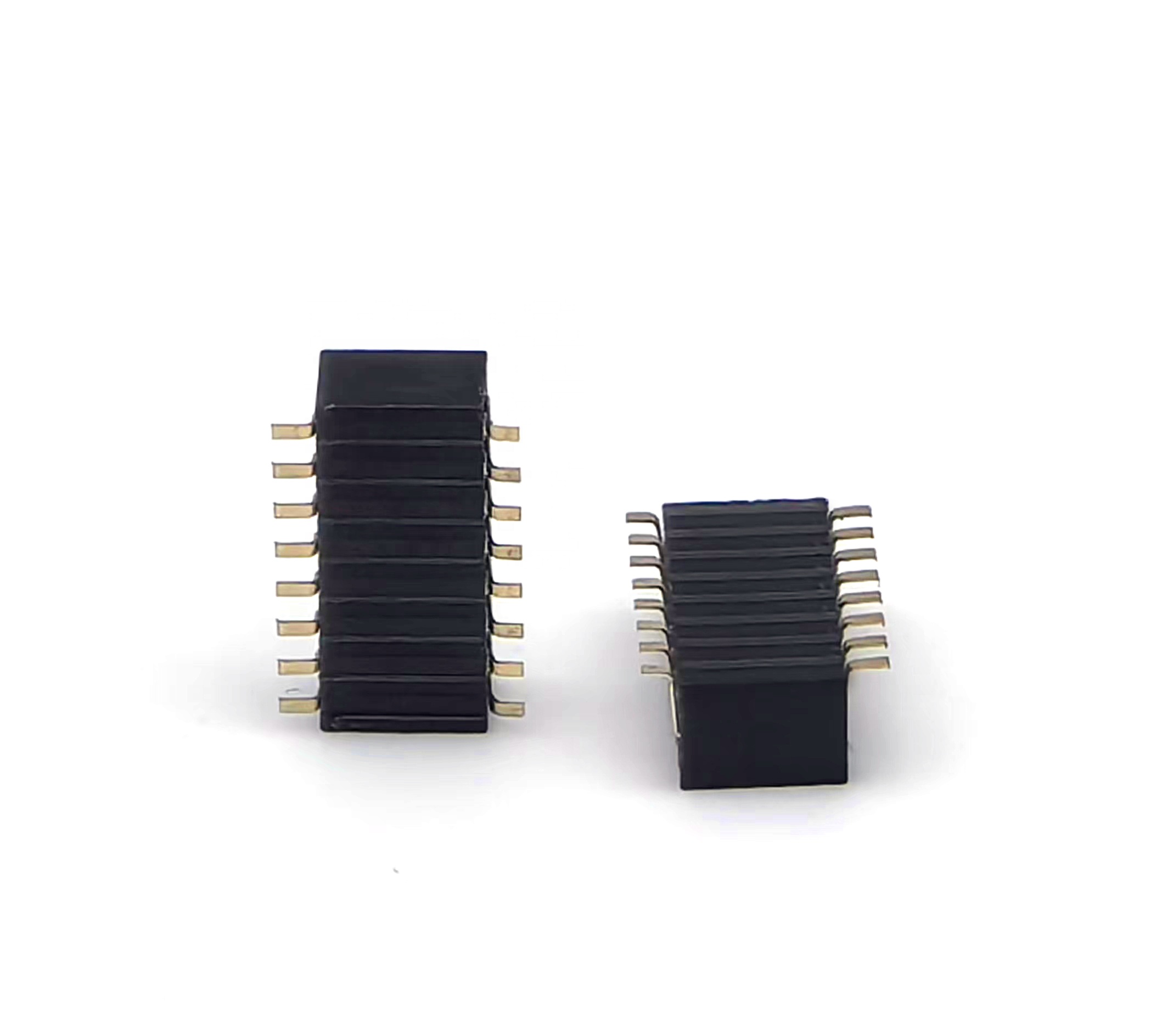

1.27mm Pitch Female Header Side Entry 16P
YZTECH’s 1.27mm Pitch Female Header Side Entry 16P offers a compact horizontal-mount solution for space-sensitive PCB designs. With 8 pins per row arranged in a rectangular layout, this DIN-standard 1.27mm female header h3.45mm enables reliable side-entry interconnection, ideal for applications where vertical clearance is limited. Constructed with a high-temperature PA6T housing and gold-plated brass contacts, the 1.27mm female header smd 16P maintains stable performance across an operating temperature range of -40°C to +105°C. Delivering a rated current of 1A and voltage up to 1000V, it supports both signal transmission and low-power power needs. Supplied in tube packaging, the connector is optimized for automated SMT assembly, with a maximum soldering resistance of 220°C for 10 seconds.

1.27mm Pitch Female Header Connector Dual Row Side Entry SMT H:3.45mm 2*8P

Designed to meet rigorous industrial requirements, this 1.27mm female header black ensures low contact resistance and high insulation performance, critical for maintaining signal accuracy in high-density electronic layouts. The gold-plated contacts provide oxidation resistance, supporting repeated mating cycles without degradation.The PA6T material delivers strong mechanical stability, flame retardancy, and resistance to thermal cycling.

Ideal for use in telecommunications equipment, industrial control systems, embedded computing, and portable medical devices, this side-entry header meets the growing demand for miniaturized yet robust interconnects. Its low-profile horizontal footprint makes it suitable for networking hardware, IoT gateways, and automotive control modules where space optimization is essential. Compatible with pick-and-place automation and reflow soldering processes, YZTECH’s 1.27mm female header streamlines high-volume manufacturing while ensuring long-term reliability.By combining precision engineering with broad compatibility,it serves as a dependable solution for global developers designing next-generation electronic products.
