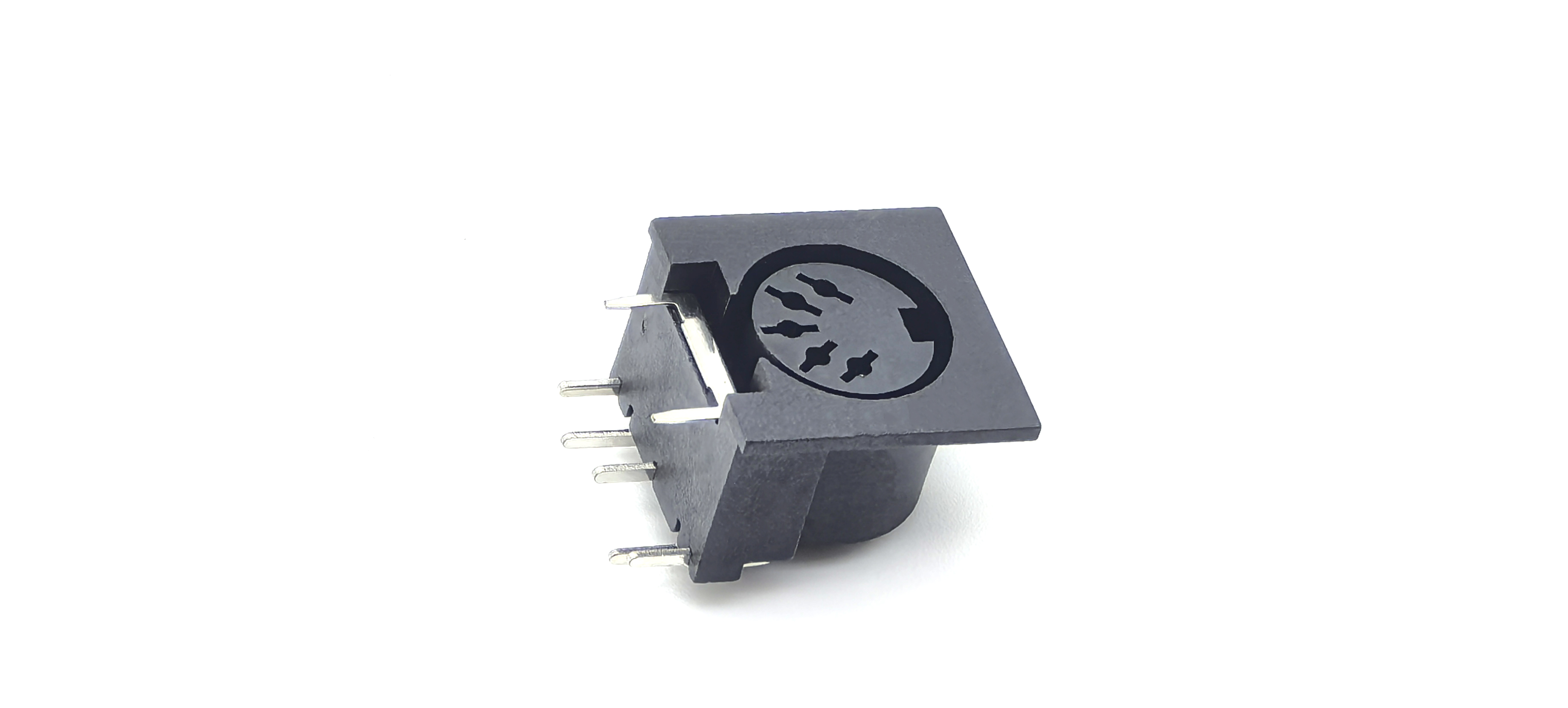

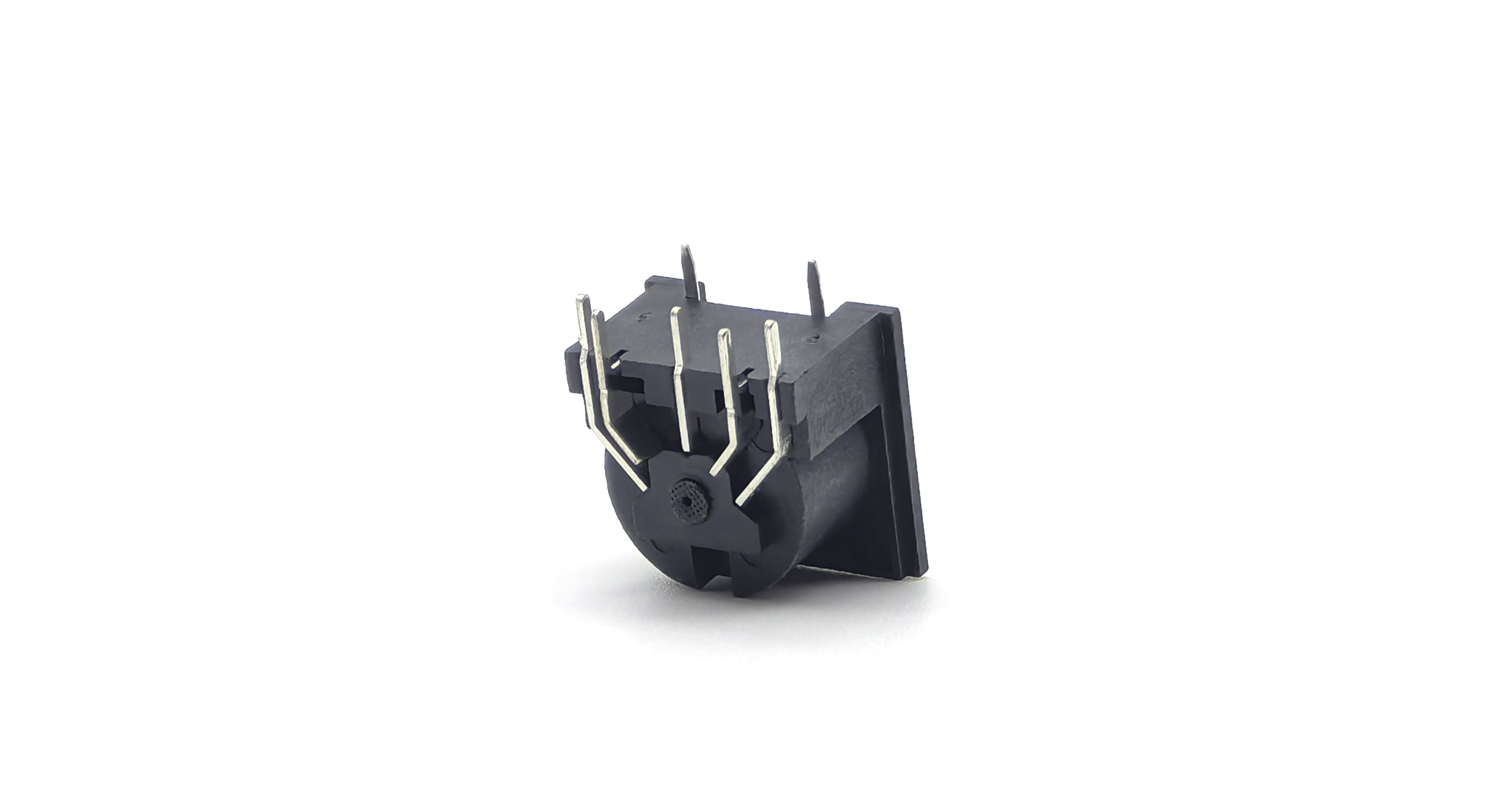

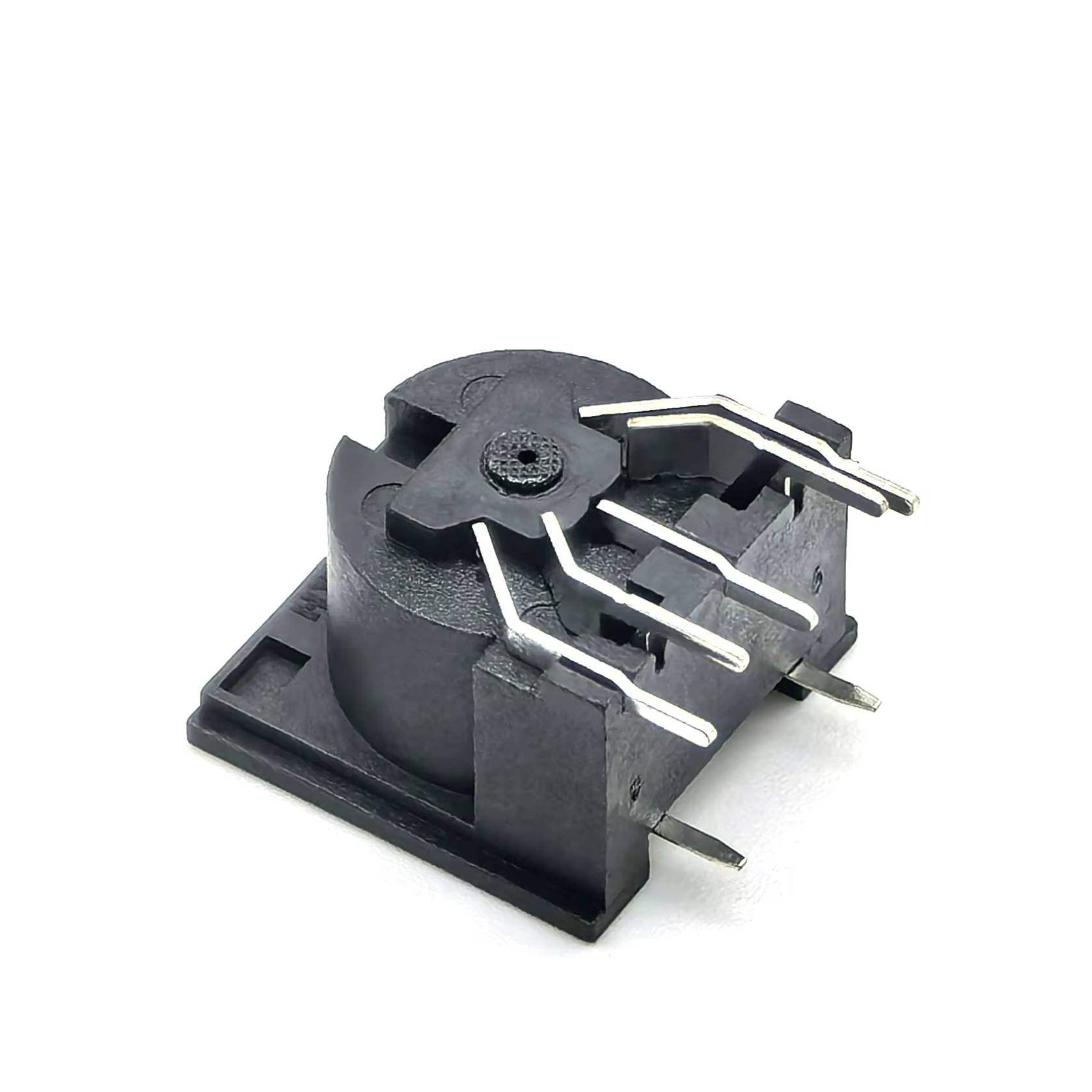

MINI DIN Board Connector:Large DIN Female header Connector Black Right Angle DIP

3 week ago

0 0 

6 month

Product details

The YZTECH Large DIN Female Header Connector redefines compact connectivity with its single-row 5-pin design tailored for PCB installations. Engineered as a right-angle DIP header connector,this black-finished female header features tin-plated copper contacts for reliable 2A current handling at 100V rated voltage. Its DIN-standard rectangular shape ensures seamless integration into industrial control systems, consumer electronics, and automation equipment. The -25℃~+70℃ operating temperature range and box packaging make it ideal for temperature-sensitive applications, while the tin plating enhances corrosion resistance and solderability. This connector’s right-angle design optimizes PCB space utilization, supporting vertical mount configurations in dense circuit layouts.

Designed for durability and eco-conscious manufacturing, this MINI DIN connector incorporates halogen-free materials meeting RoHS and REACH standards. The copper contact base with tin coating minimizes contact resistance (<30mΩ) and ensures 100+ mating cycles without degradation. Its 100V dielectric strength and 500MΩ insulation resistance guarantee safe signal transmission in low-voltage circuits. The box packaging solution aligns with automated assembly lines, reducing handling costs for global buyers. Unlike traditional connectors, this design features a streamlined DIP footprint that simplifies PCB routing while maintaining mechanical robustness. Flame-retardant properties (UL94 V-0) and vibration resistance enhance reliability in mobile or industrial environments.

MINI DIN Board Connector:Large DIN Female header Connector Black Right Angle DIP
