2.54mm Pitch Pin header Connector Single Row Right Angle SMT SQ0.64mm H2.5mm 1*4P

12 month ago

49 0 

2 year

Product details

2.54mm Pitch Pin header Connector SMT 4P

Engineered for demanding PCB applications,the YZTECH 2.54mm Pitch Pin header Connector SMT 4P redefines compact power distribution with its 600V/3A ratings.This DIN-compliant rectangular male 2.54mm pin header connector 4p features horizontal mount compatibility,optimizing assembly efficiency in space-constrained designs.Brass contacts with gold plating deliver superior conductivity and oxidation resistance, ensuring stable signal integrity across industrial environments.

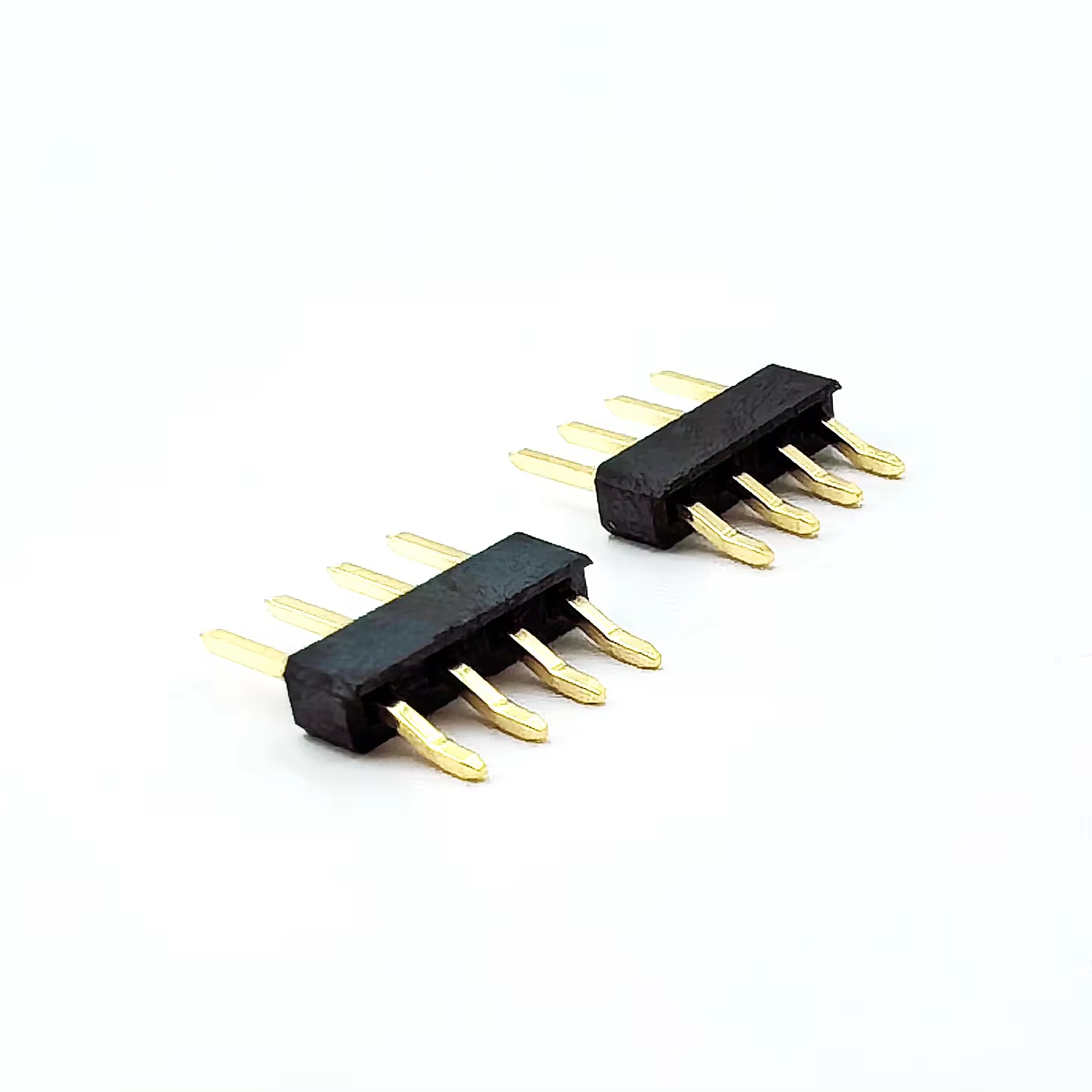

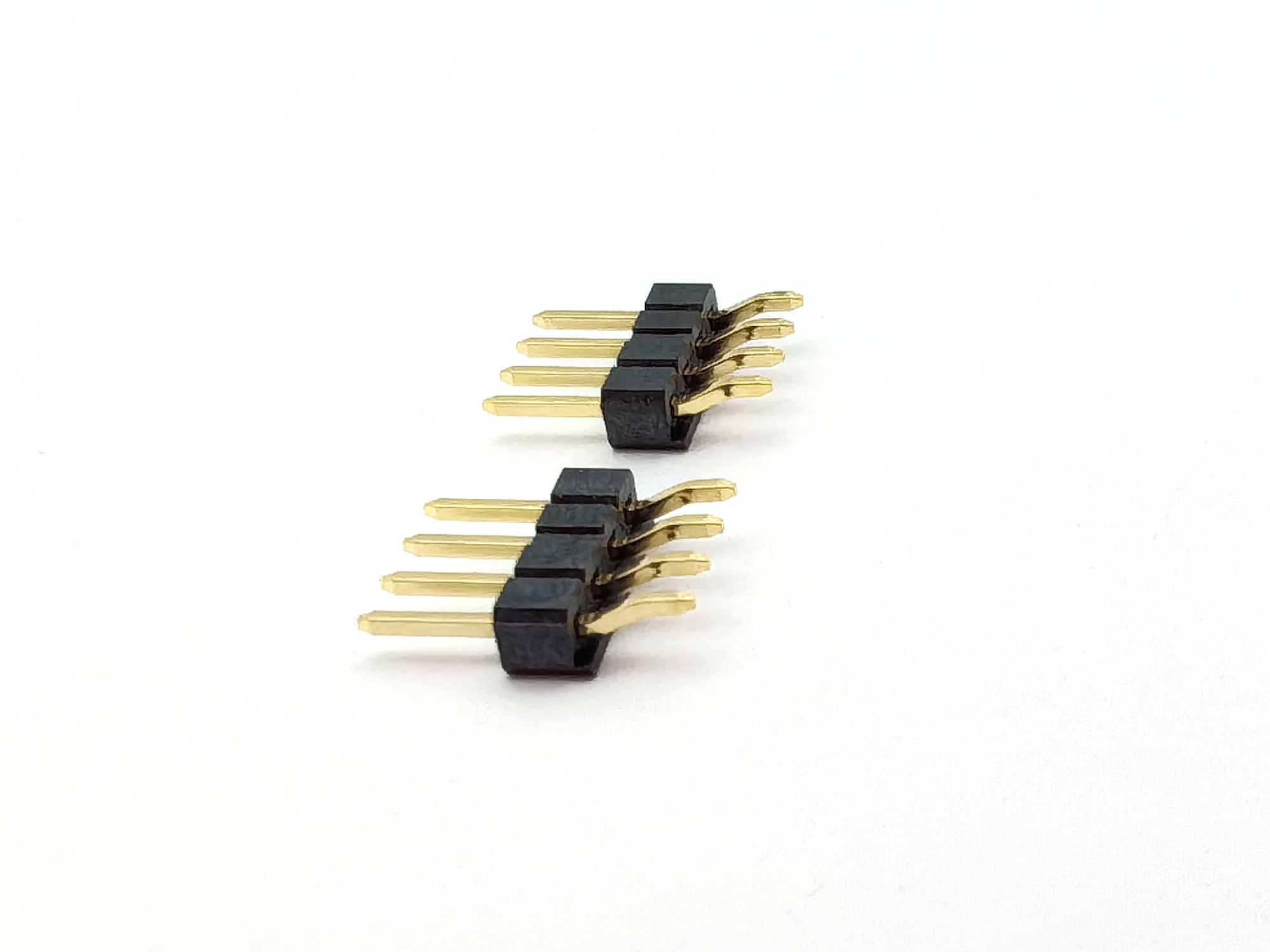

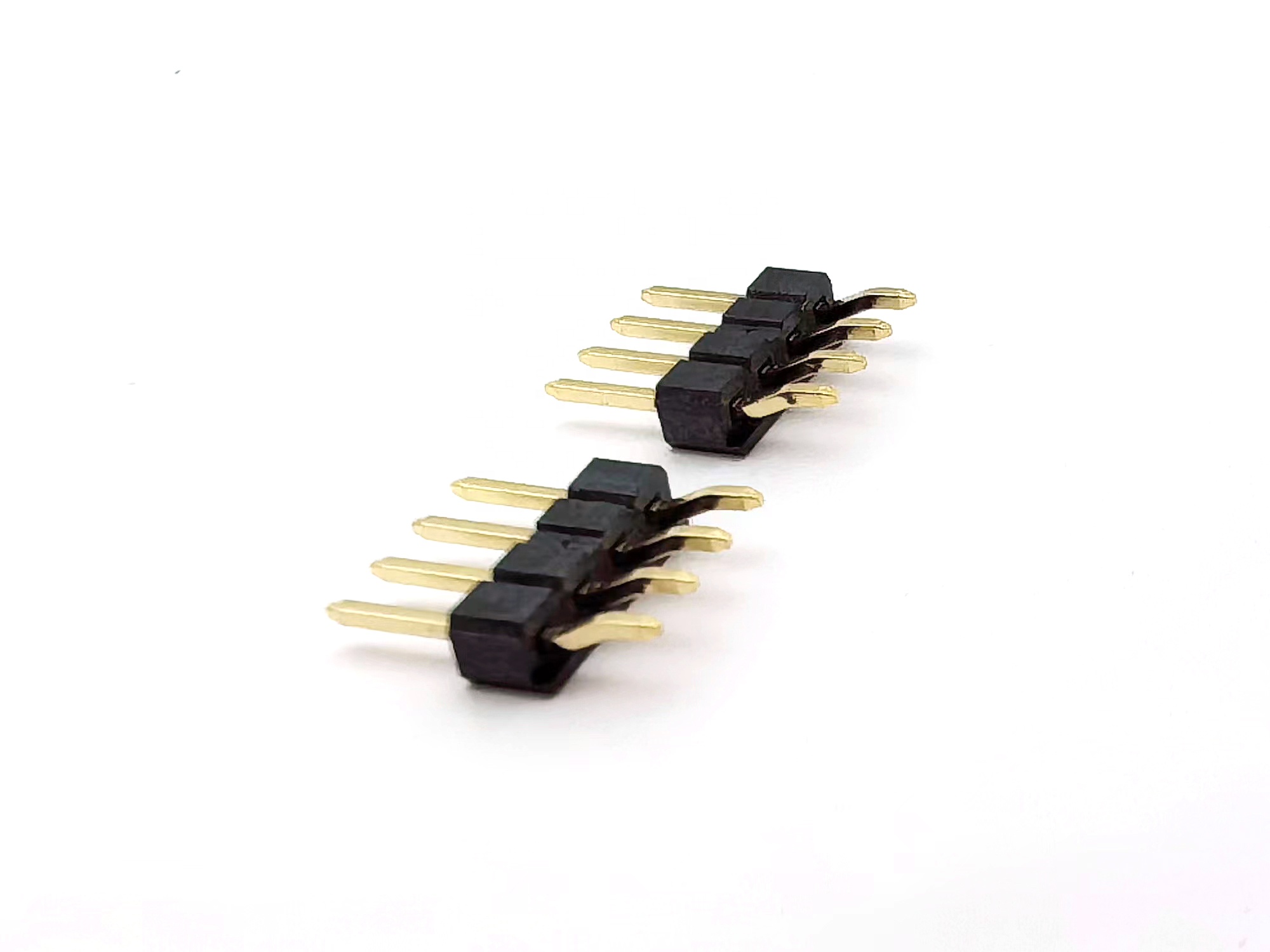

2.54mm Pitch Pin header Connector Single Row Right Angle SMT SQ0.64mm H2.5mm 1*4P

The nylon colloidal material of 2.54mm pin header smt 4p provides exceptional mechanical strength and heat resistance, supporting operation from -40℃ to +105℃.The SMT-compatible right-angle design of 4p 2.54mm pin header connector enables automated pick-and-place assembly,reducing production costs while maintaining precision alignment. The reel packaging streamlines automated tape-and-reel processing, ideal for high-volume PCB manufacturing.

Gold-plated brass contacts ensure low contact resistance and high mating cycles,critical for mission-critical systems.The 220℃/10s soldering profile aligns with lead-free reflow processes, ensuring compatibility with modern SMT assembly lines.Operating temperature resilience from -40℃ to +105℃ enables deployment in harsh environments including automotive electronics and renewable energy systems. The 2.54mm pitch design prevents signal cross-talk, optimizing high-speed digital circuit performance.RoHS and REACH regulations, this 2.54mm pin header connector supports global compliance requirements.
