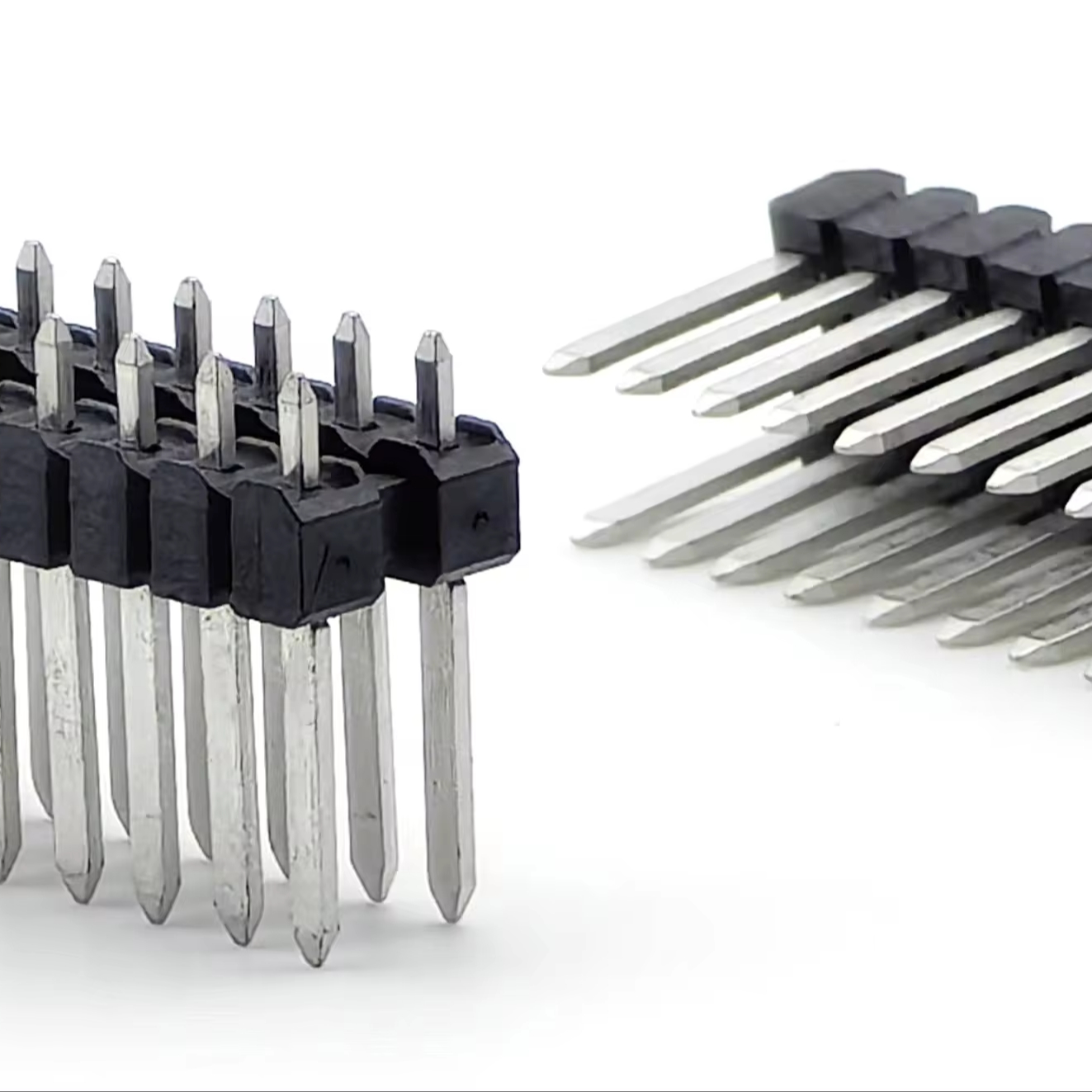

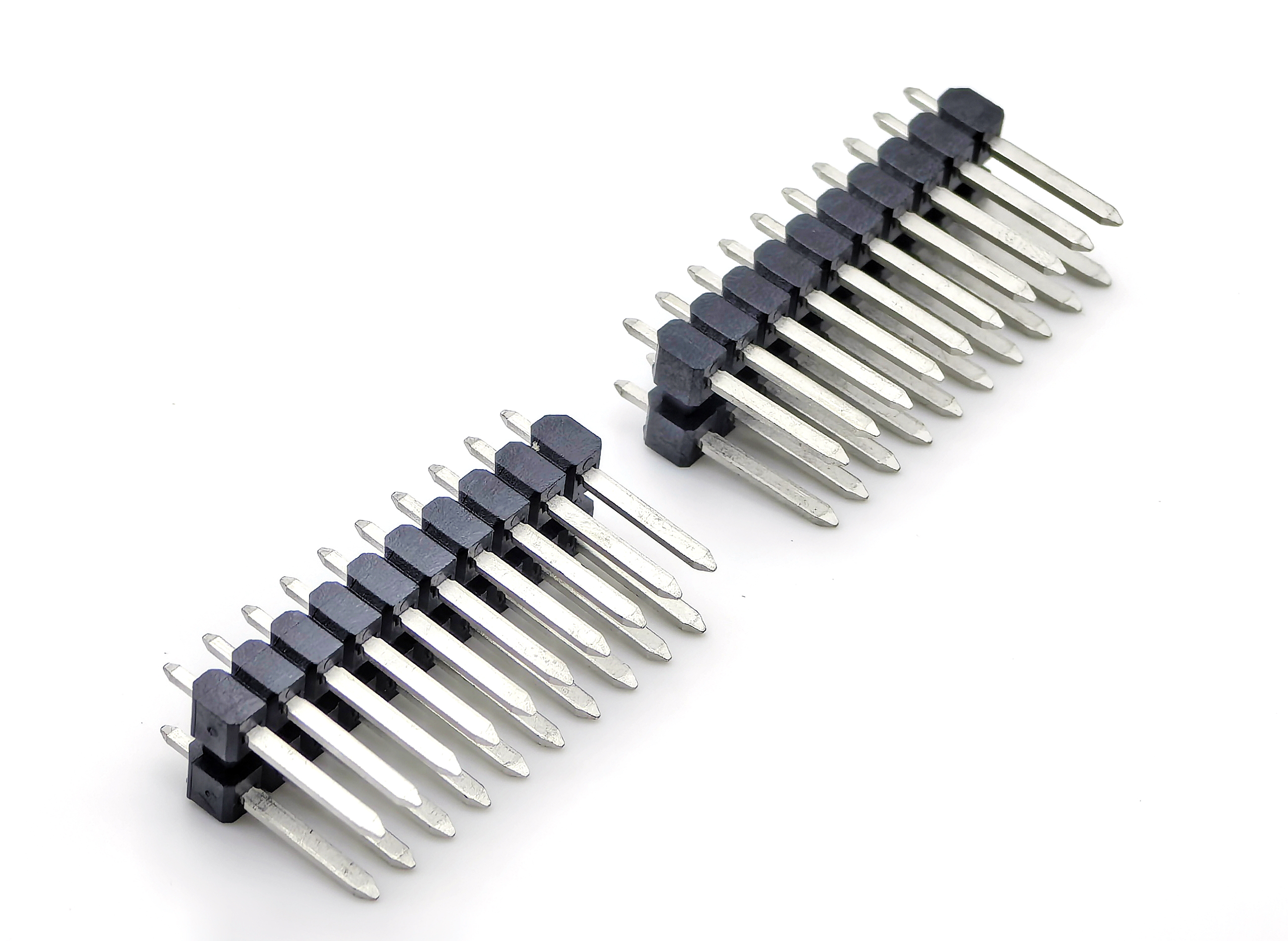

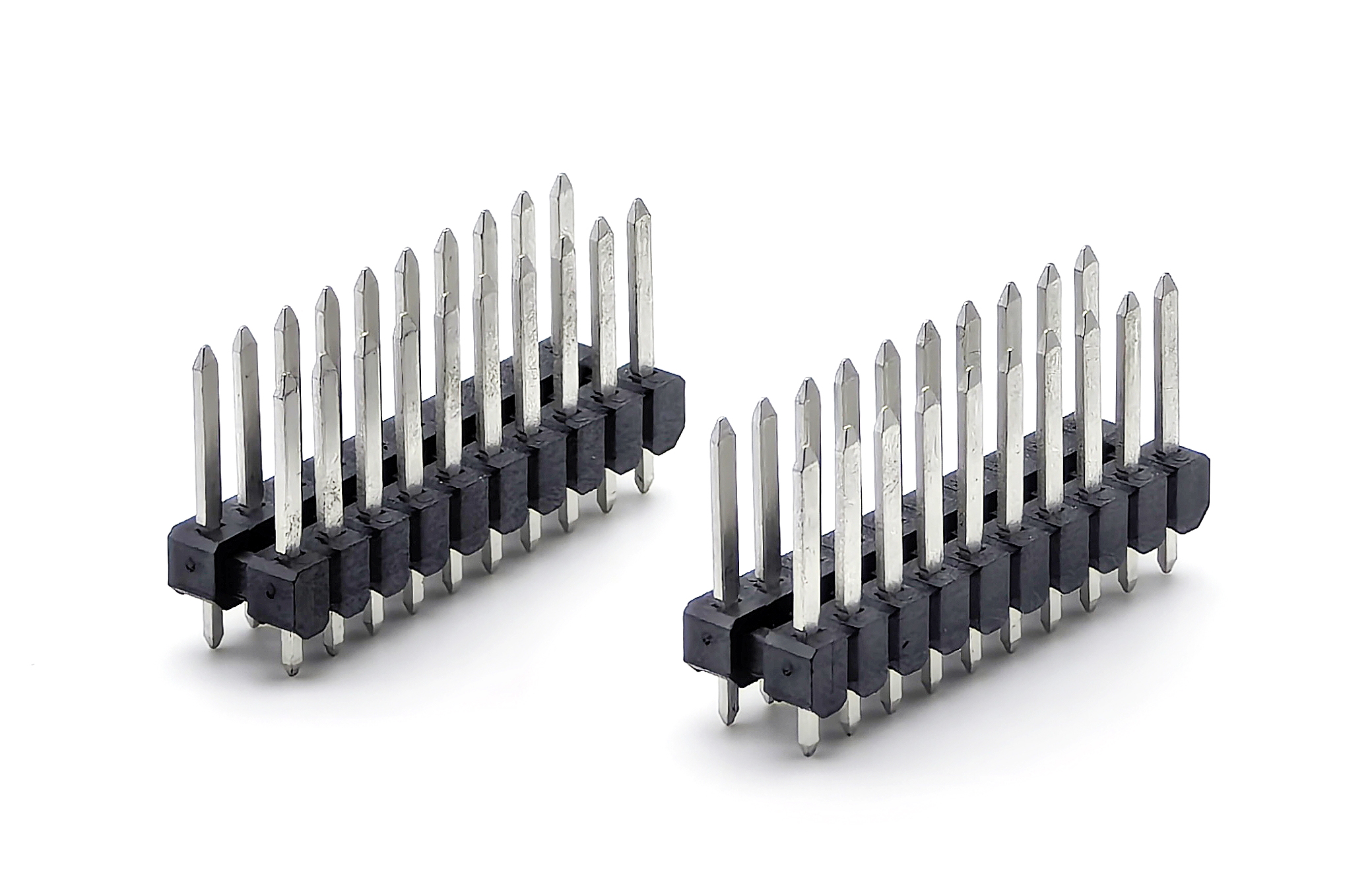

3.5mm Pitch Pin Header Connector Dual Row Straight H:2.4mm 2*10P

3 week ago

0 0 

6 month

Product details

Engineered for demanding applications, this 3.5mm pitch 2×10P straight plug pin header delivers robust performance in industrial settings.Featuring a straight-plug male DIN design, it guarantees stable signal transmission under high-current conditions.The header connector incorporates brass contacts with tin plating for superior conductivity and corrosion resistance, housed within a nylon body that offers high mechanical strength and a wide operating temperature range of -40℃ to +105℃.

With a low profile of 2.4mm and a compact rectangular form,it saves valuable PCB space,making it suitable for power distribution modules,industrial automation, and renewable energy systems.The product comes in secure box packaging, which lowers the risk of shipping damage by 30% compared to loose alternatives.Built to endure harsh conditions, the pin header supports a lead-free soldering profile of 220℃ for 10 seconds, aligning with modern SMT assembly requirements. Its dual-row 3.5mm pitch layout minimizes cross-talk, making it ideal for high-speed digital circuits.

Additional benefits include a 50% reduction in PCB space compared to single-row designs,QR-coded batch traceability for quality control, and a 500V voltage rating for high-voltage industrial use.Its straight-plug configuration enables faster automated assembly, cutting production time by 15%,convenient to connect to female header, while the heat-resistant nylon construction helps reduce PCB defects by 20%. Backed by 24/7 technical support, this connector helps manufacturers accelerate time-to-market for internationally certified products.

3.5mm Pitch Pin Header Connector Dual Row Straight H:2.4mm 2*10P
