MDC Micro Terminal Female Right Angle DIP

2 month ago

2 0 

7 month

Product details

Designed for demanding PCB applications, the YZTECH MDC Micro Terminal Female Right Angle DIP combines dual-row 4P configuration with DIN-standard compatibility to deliver reliable female header connections in space-constrained designs.This female header features a right-angle DIP installation method,enabling seamless integration into vertical or horizontal PCB layouts while maintaining optimal signal path geometry.Rated for standard PCB applications,this micro terminal block solution supports efficient power and signal distribution.

The female header connector leverages advanced material science to balance performance and cost-effectiveness.Tin-plated copper contacts offer reliable conductivity,making it suitable for environmentally conscious manufacturing.The black plastic resists thermal degradation up to 105°C and withstands mechanical stress during installation.With a dual-row 4P configuration,this header connector optimizes pin density without compromising signal integrity,ideal for high-speed digital circuits and mixed-signal applications.The right-angle design minimizes PCB footprint while ensuring secure mating with male headers.Compliant with DIN standards,it supports interoperability across global supply chains.Packaging in trays ensures easy inventory management and rapid deployment in mass production environments.

Targeting industries from industrial automation to renewable energy systems,this female header connector excels in terminal block applications, power distribution units,and IoT device interfaces.The right-angle DIP form factor suits compact devices like wearable electronics and medical instrumentation.As a female header connector, it enables secure connections with male headers in PCB-to-PCB stacking and cable-to-board interfaces.YZTECH’s global distribution network and ISO-certified manufacturing ensure consistent quality for OEMs worldwide.

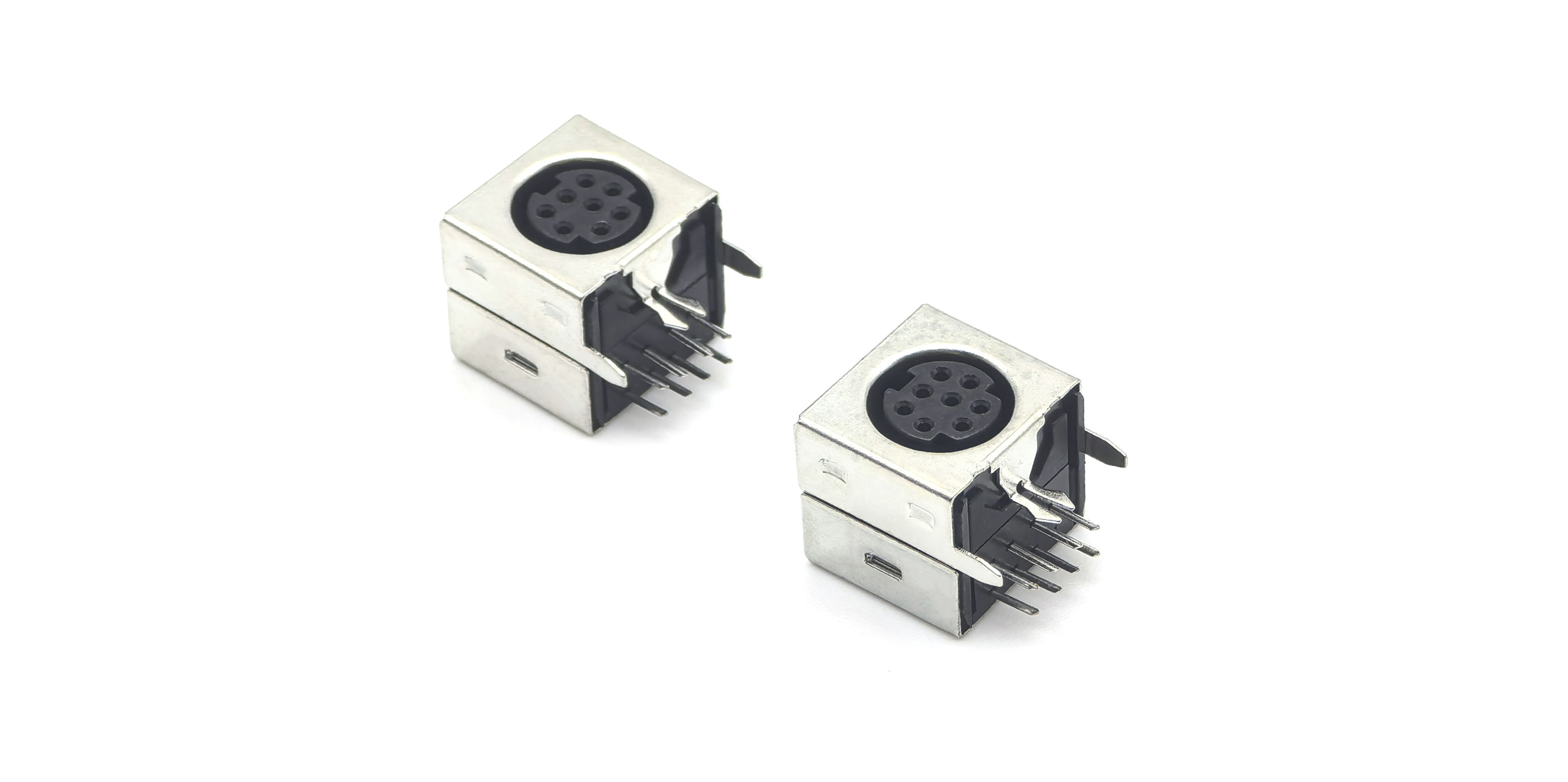

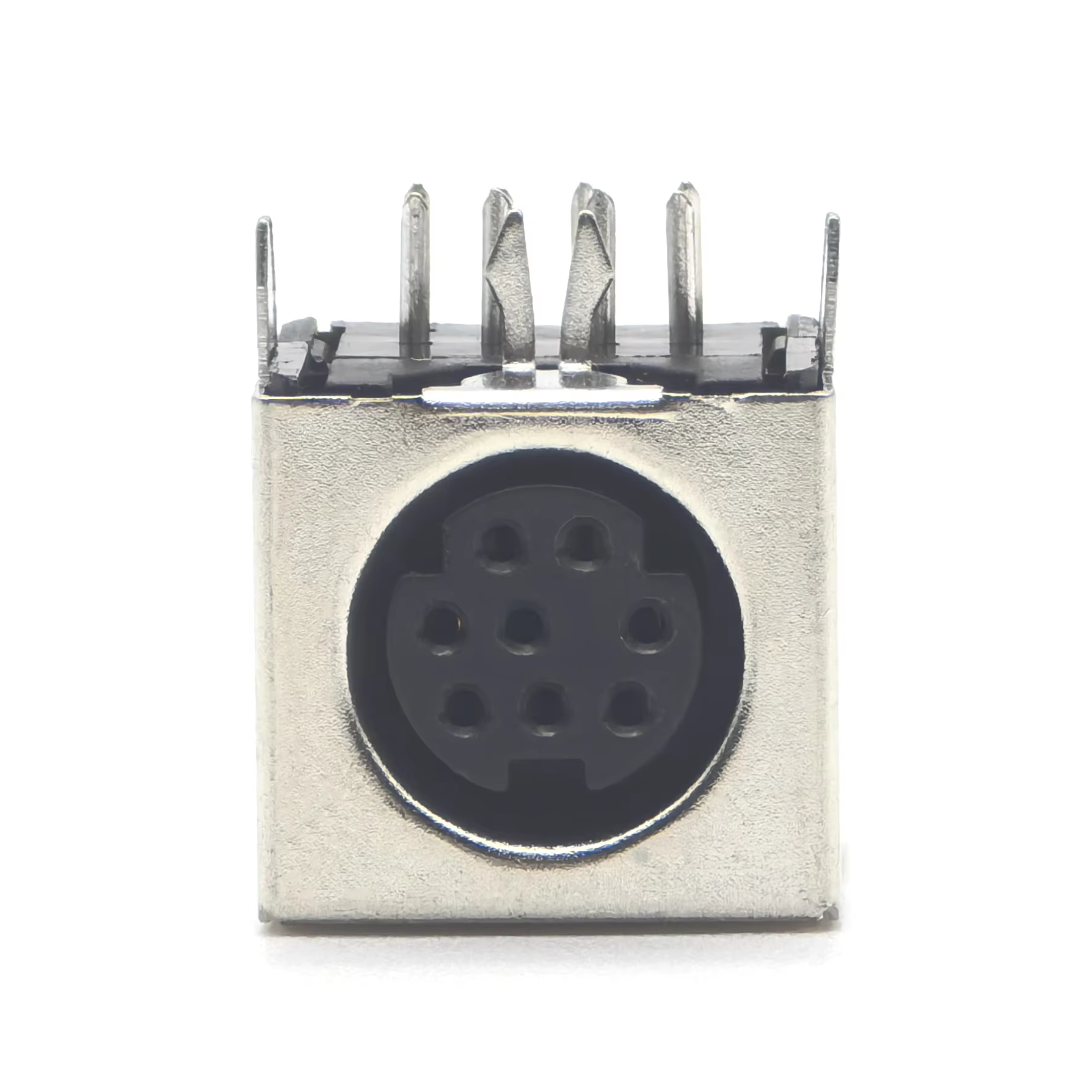

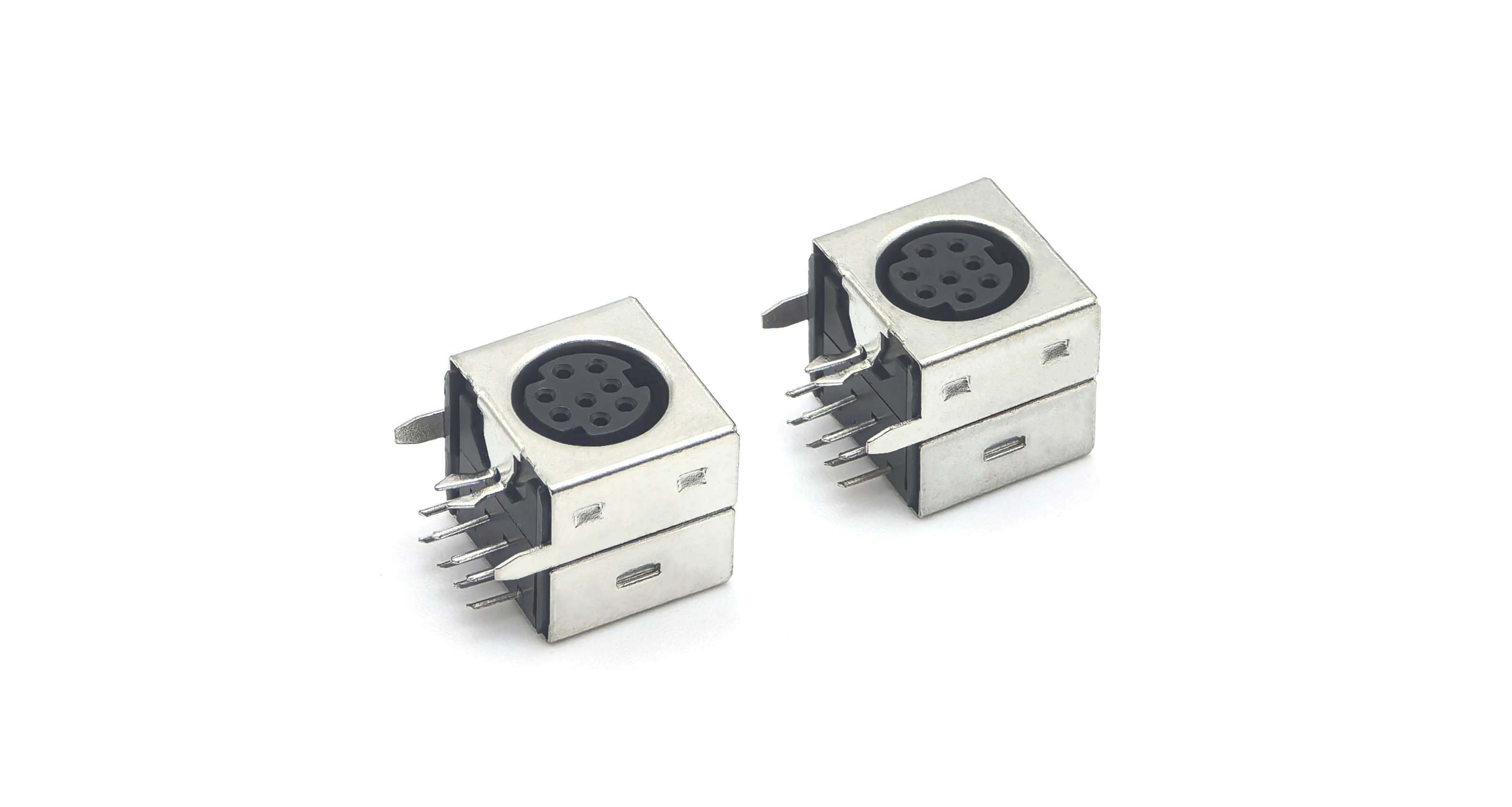

MDC Micro Terminal Female Right Angle DIP 2*4P
