2.54mm Pitch Box header Connector Straight

2 month ago

6 0 

7 month

Product details

The YZTECH 2.54mm Pitch Box Header Connector Straight redefines PCB connectivity with its dual-row, 25P-per-row architecture engineered for precision automotive and industrial applications.This male-gendered DIN-standard header connector features a robust brass contact system plated with gold for optimal signal integrity and long-term durability.Its straight-plug installation method ensures secure mating in high-vibration environments.The box packaging includes ESD-safe materials, protecting components during global logistics and storage.

With a 3A/600V rating, this box header supports high-current applications while gold-plated contacts minimize insertion loss and corrosion risk.The PBT colloidal material exhibits low water absorption and high thermal stability,operating reliably within -40°C to +105°C while maintaining UL certification for safety compliance.Welding parameters are optimized for industrial assembly lines,accommodating 200°C for 5-10 seconds or 180°C for 30-60 seconds without compromising joint integrity.Dual-row configuration maximizes pin density while maintaining a compact 2.54mm pitch,enabling efficient PCB layout design.The connector’s straight-angle orientation simplifies automated assembly and reduces signal path length,enhancing electromagnetic compatibility in dense electronic systems.

Certified by UL for automotive and industrial safety standards,this 2.54mm box header connector exceeds IEC 60664-1 insulation requirements and withstands rigorous environmental testing including thermal cycling and salt spray resistance.With a 10,000+ mating cycle lifespan and comprehensive technical documentation,YZTECH provides end-to-end support for global manufacturers.The product exemplifies YZTECH’s commitment to precision engineering,combining UL-certified safety with scalable customization for automotive,industrial automation, and consumer electronics applications worldwide.

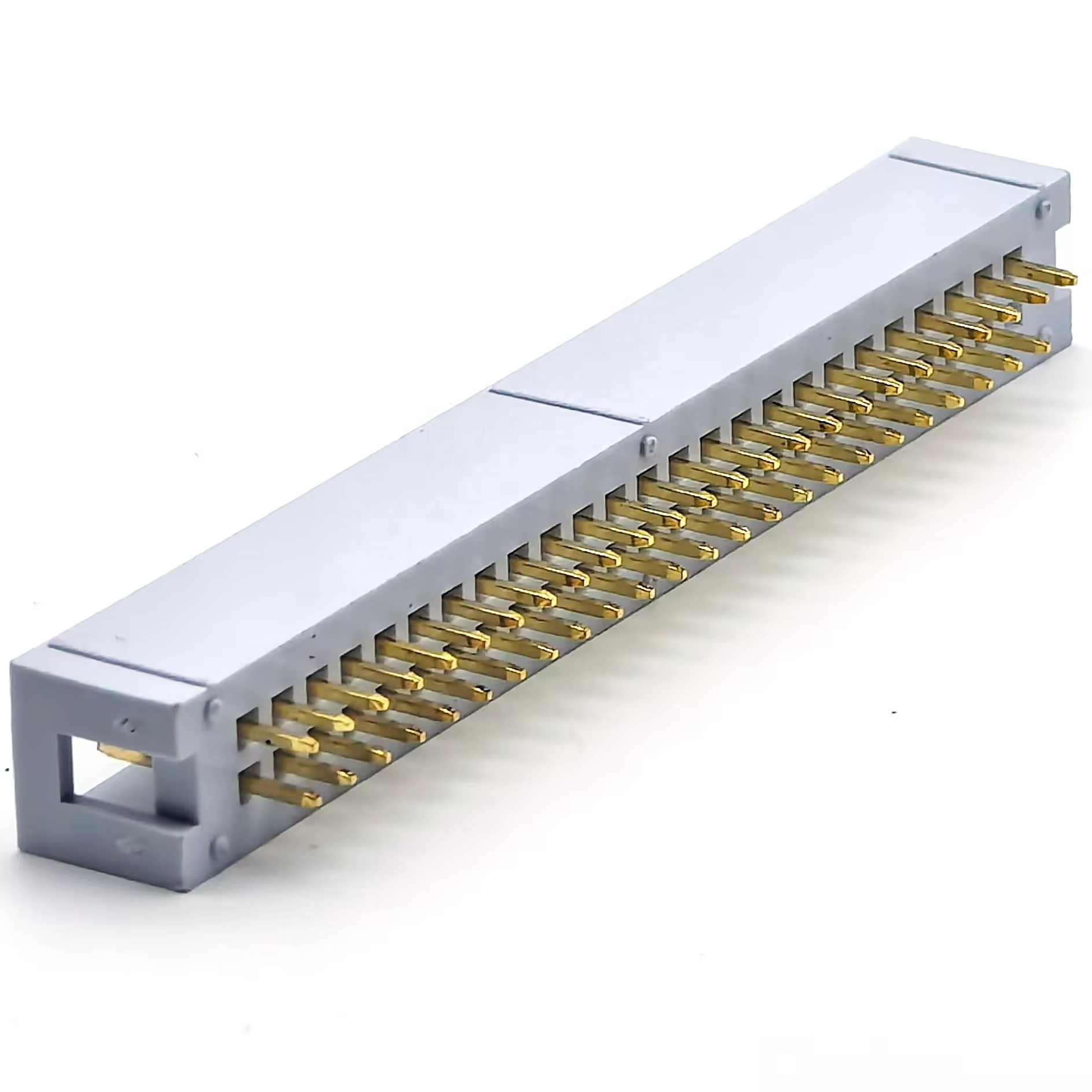

2.54mm Pitch Box header Connector one pin Missing Straight H:8.8mm 2*25P
