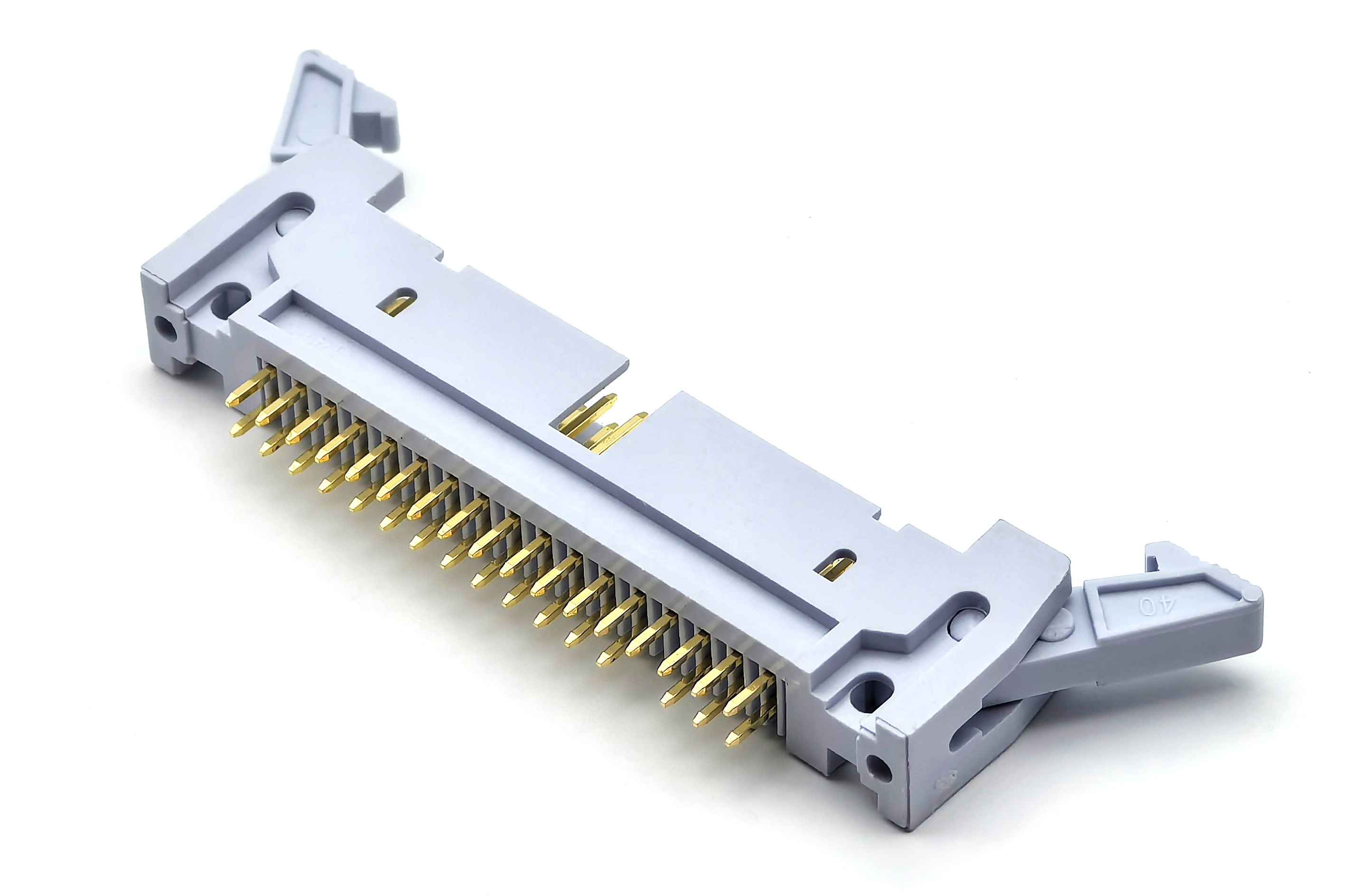

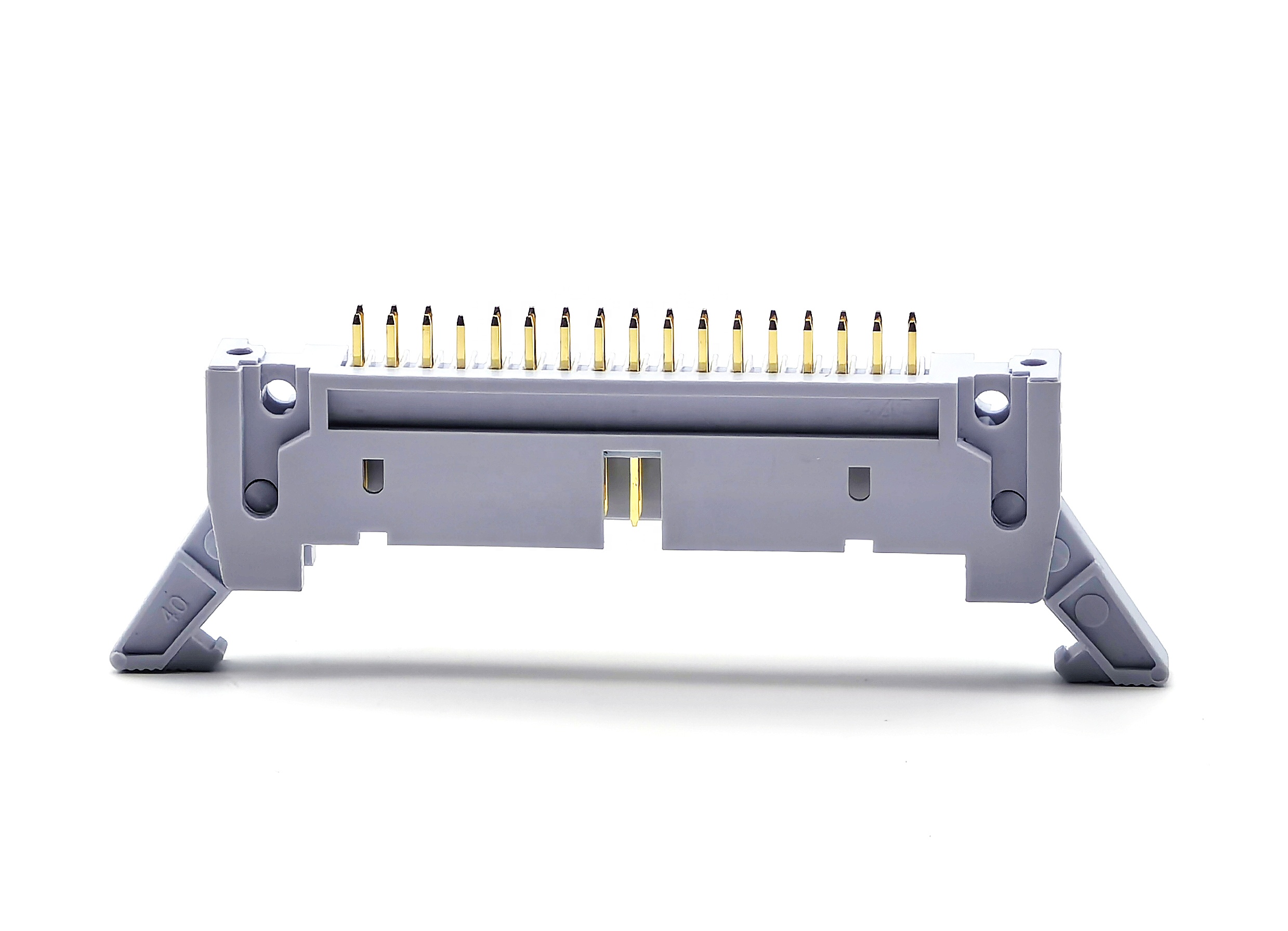

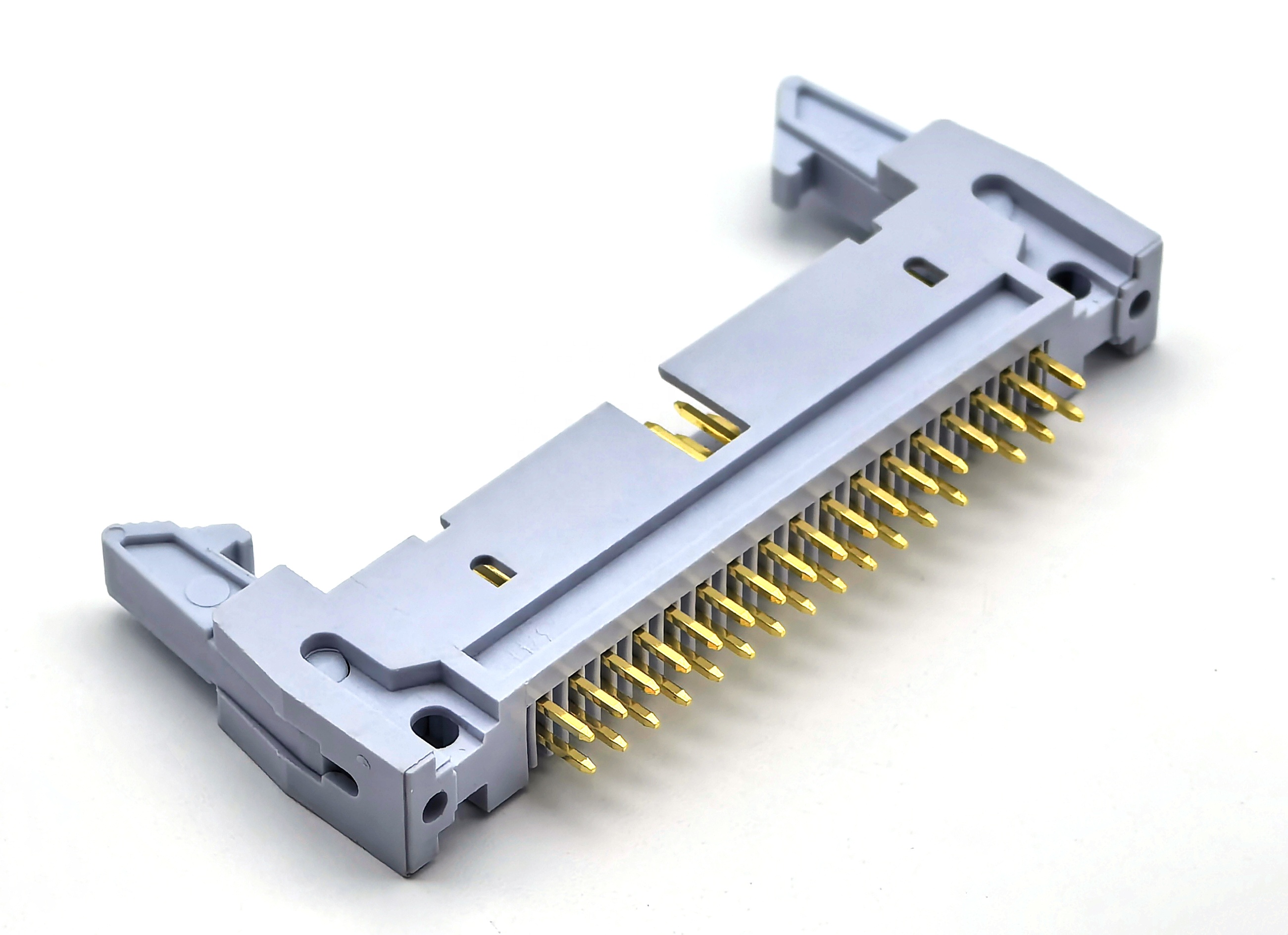

2.54mm Pitch Ejector header Connector One Pin Missing Straight 2*17P

YZTECH’s innovative 2.54mm pitch ejector header connector redefines precision engineering with its unique one-pin-missing straight plug design, optimized for dual-row 17-pin configurations in demanding PCB environments.This DIN-compliant male header connector features brass contacts with gold plating, ensuring exceptional conductivity and corrosion resistance at 3A/600V ratings.The straight-plug installation method enables reliable through-hole assembly,while the PBT colloidal housing delivers superior thermal stability and mechanical durability. Operating across a wide -40°C to +105°C temperature range,it excels in industrial automation,power distribution, and high-temperature electronics.UL certification guarantees safety compliance, and box packaging ensures secure transportation for global deployments.The one-pin-missing design accommodates specialized PCB layouts or alignment requirements,enhancing design flexibility.



The ejector header leverages advanced material science to balance performance and longevity.Gold-plated brass contacts minimize signal loss and ensure low contact resistance, critical for high-current applications.PBT housing offers excellent flame retardancy (UL94 V-0) and resistance to thermal aging, maintaining dimensional integrity during soldering and operation.The 200°C/5-10s soldering profile aligns with lead-free manufacturing standards,while the dual-row 17-pin configuration maximizes signal density without compromising signal integrity.Unlike traditional headers,the one-pin-missing design reduces assembly errors by accommodating custom PCB footprints,streamlining production workflows.DIN-standard dimensions ensure global compatibility,and the straight-plug design simplifies manual or automated insertion.
