PH1.5mm Wafer Pin header Connector SMT 10P

Compact 1.5mm Pitch Wafer Connector for PCB Applications

The PH1.5mm wafer pin header connector 10p is a compact 10-position SMT connector designed for PCB applications where space efficiency and reliable electrical connection are important. With a 1.5mm pitch and surface-mount configuration, this wafer connector is suitable for compact electronic modules, control boards, consumer electronics, instrumentation, and other applications requiring a practical board connection solution.

The connector uses brass contacts with gold plating to provide stable contact performance and resistance to oxidation under normal operating conditions. It features a rated current of 3A, rated voltage of 30V, and an operating temperature range of -25℃ to +85℃. Customers requiring a compatible Wafer Housing Terminal can also select matching housing and terminal components according to their connection requirements.

Product Specifications

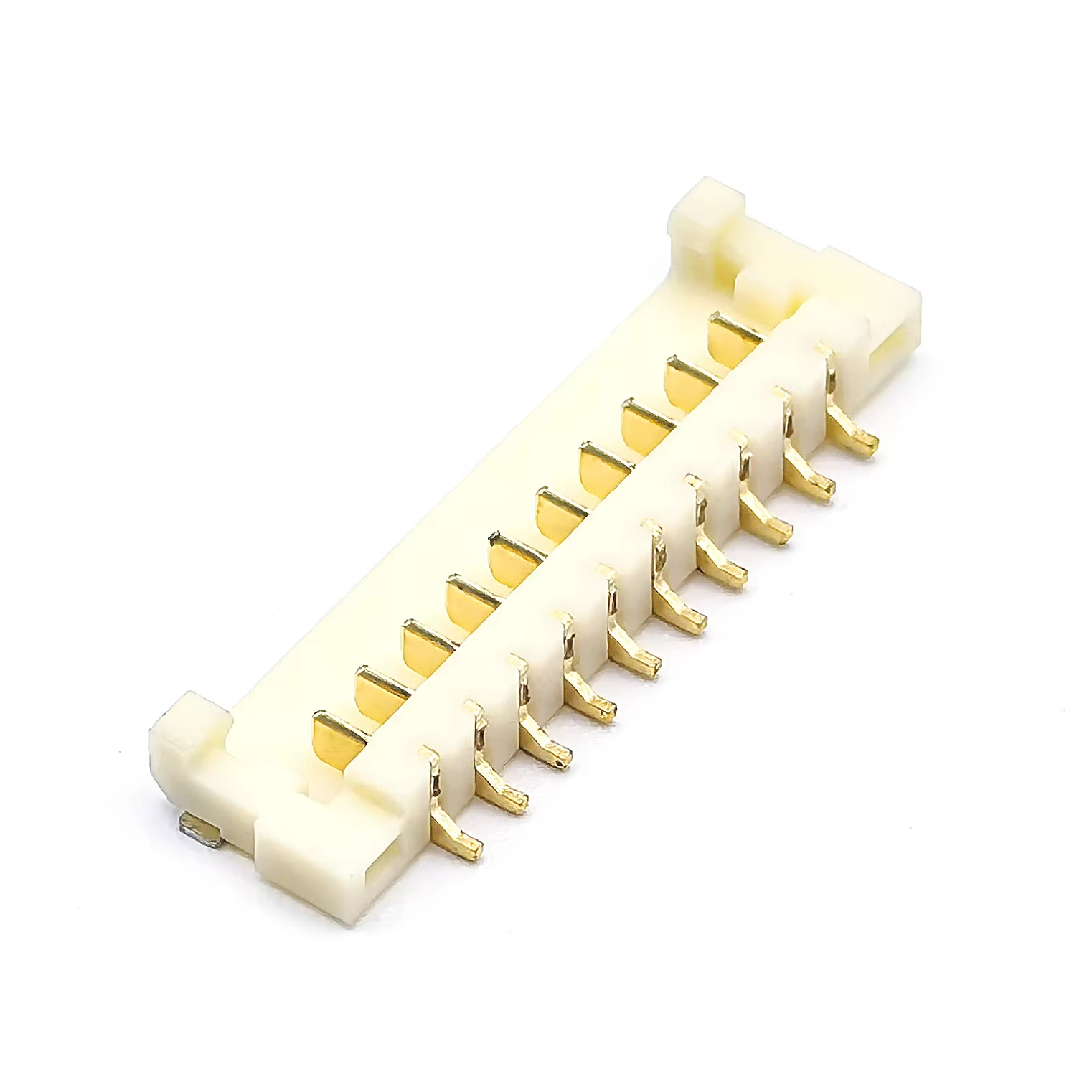

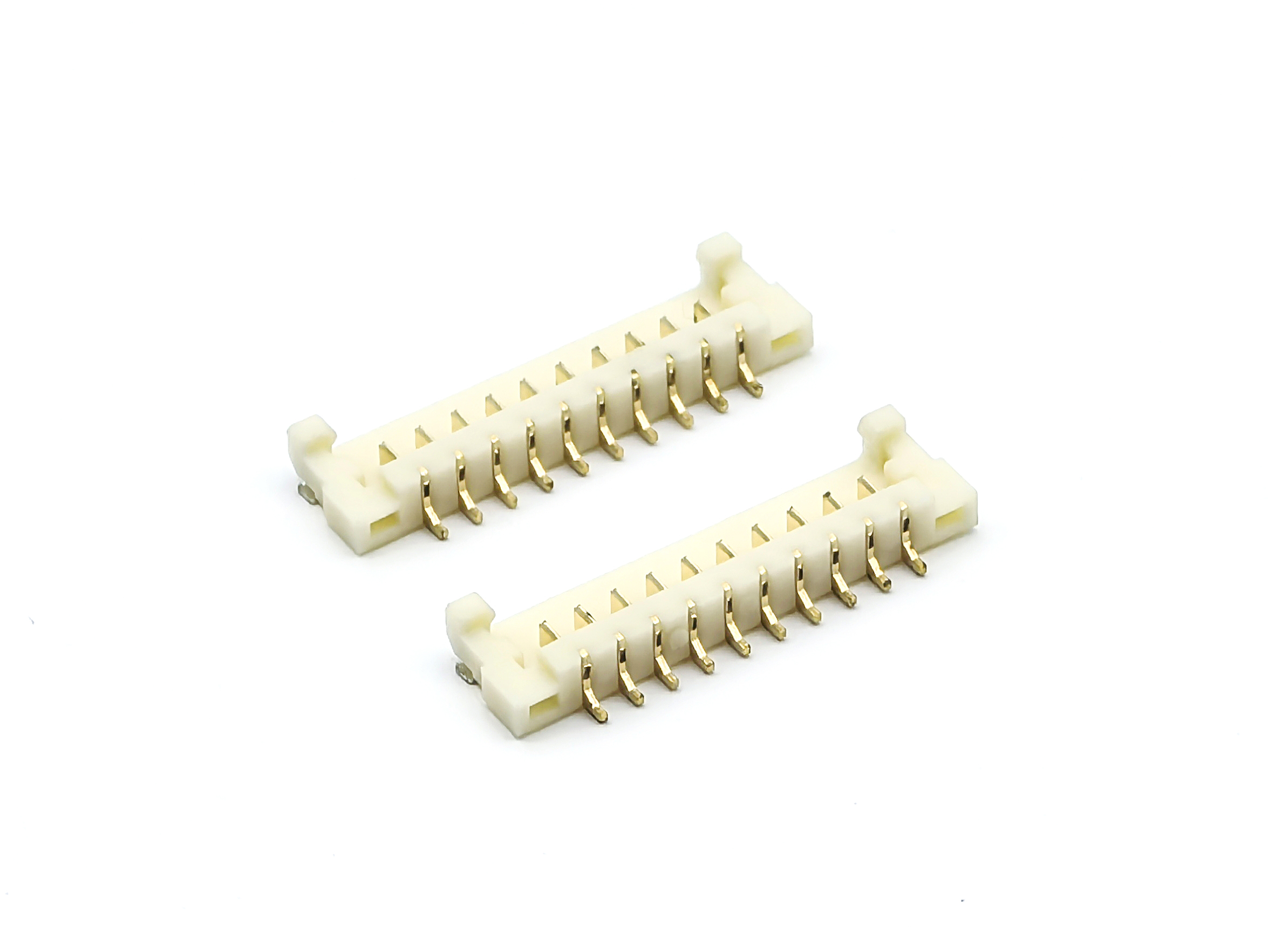

Ivory Wafer Pin Header with Horizontal SMT Configuration

The PH1.5mm wafer pin header ivory features an ivory-colored insulating housing and a 10P contact configuration, providing a compact connection option for PCB assemblies. Its SMT construction is suitable for surface-mount production processes and can be integrated into automated PCB assembly lines, helping manufacturers maintain consistent placement and assembly efficiency.

For applications requiring a horizontal mounting direction, this product can be used as a wafer housing connector horizontal smt solution. The 1.5mm pitch helps optimize PCB space while maintaining a practical contact arrangement. For customers sourcing compatible terminals and related components, Buy Wafer Terminals solutions can be matched according to terminal dimensions, PCB layout, and specific application requirements.

Why Choose Shenzhen Yangzhan Electronics

Shenzhen Yangzhan Electronics, operating under the YZTECH Electronics brand, was established in 2014 and specializes in the R&D and manufacturing of precision connectors, industrial terminal blocks, and cable assemblies. For products such as the PH1.5mm Wafer Pin header Connector SMT 10P, the company provides integrated manufacturing capabilities covering plastic and metal terminal mold development, precision processing, assembly, inspection, and product delivery. This integrated production process supports consistency across key connector components.

YZTECH Electronics works closely with Taiwanese enterprises and has introduced advanced production and inspection equipment from Japan, Germany, and Taiwan. With experience in precision connector manufacturing, the company can support customers requiring Wafer Pin Header and Housing Connector solutions for different specifications and application environments. YZTECH follows a quality-focused approach based on continuous improvement and zero-defect objectives, providing customers with reliable connector products and systematic manufacturing support.
