PH1.25mm Wafer Horizontal SMT Type Pin header Connector 4P

2 year ago

61 0 

2 year

Product details

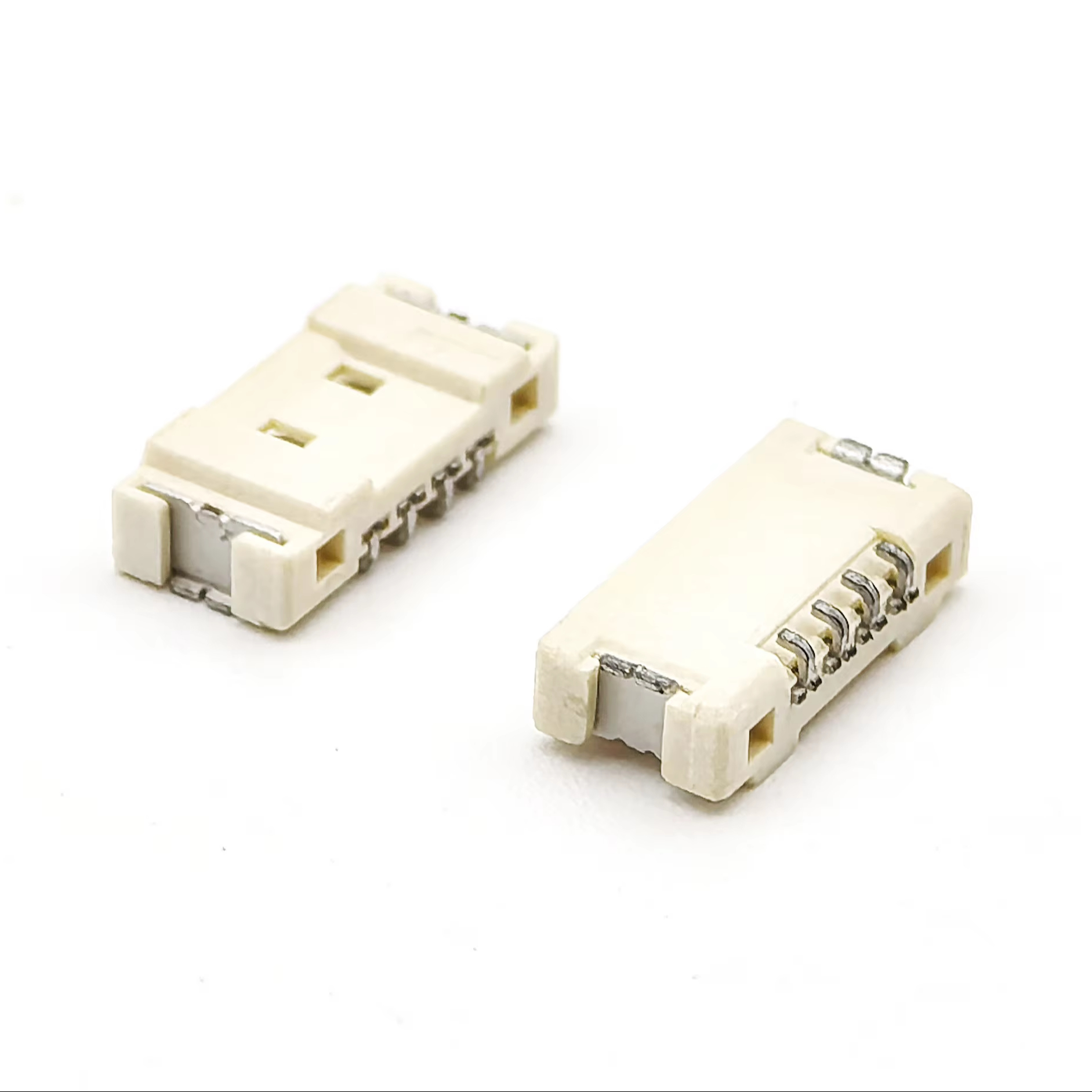

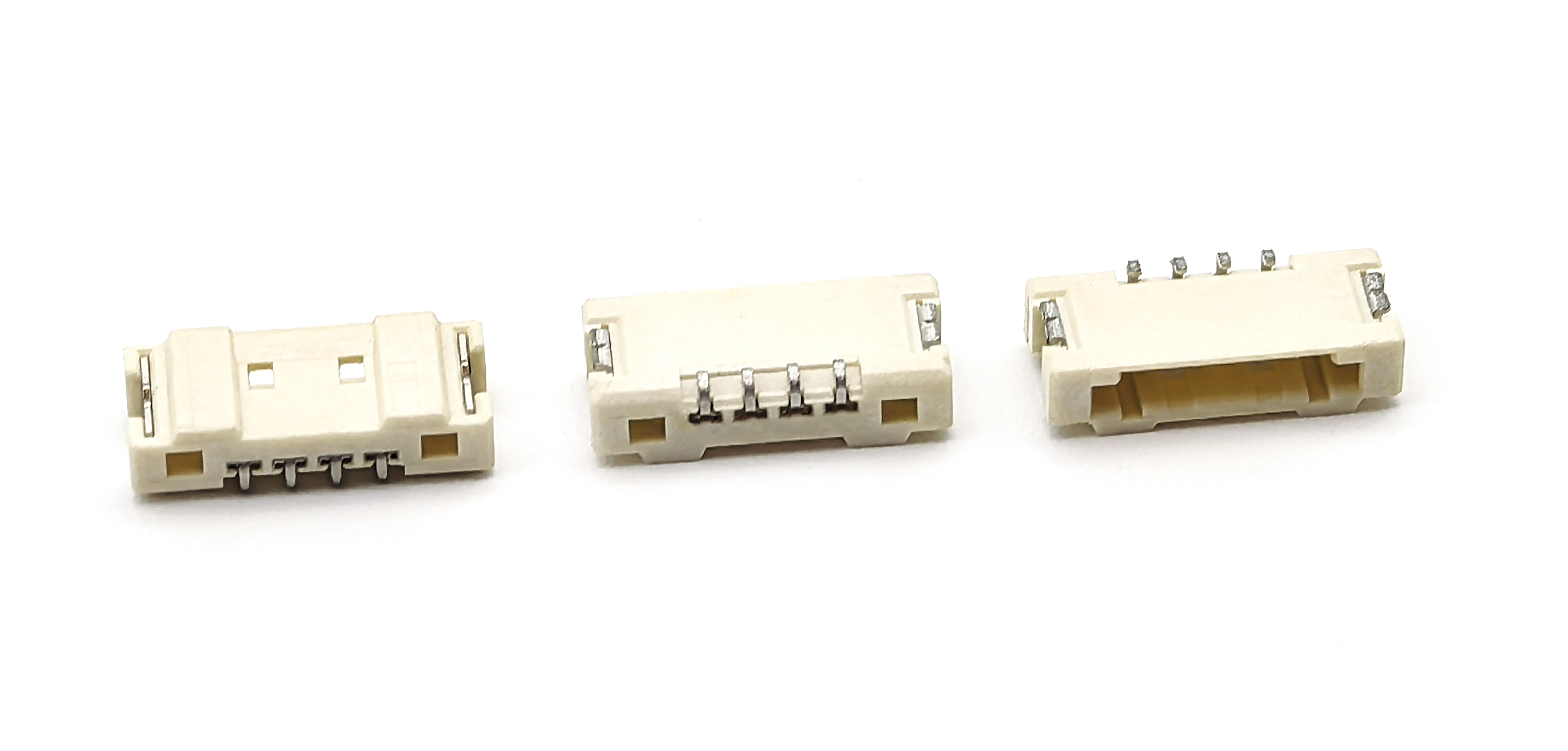

PH1.25mm Wafer Pin header Horizontal SMT Type

The YZTECH PH1.25mm Wafer Pin header Horizontal SMT Type delivers precision-engineered connectivity tailored for space-constrained designs where vertical clearance is critical. This single-row, 4-position male PH1.25mm wafer pin header connector features a horizontal orientation that aligns the mating interface parallel to the PCB, minimizing assembly height while maintaining robust electrical performance. Constructed with phosphor bronze contacts plated uniformly with tin, it supports 1A current and 125V voltage ratings, ensuring reliable signal integrity. The high-performance LCP housing provides exceptional thermal stability and mechanical resilience, operating reliably from -25°C to +85°C and withstanding high-temperature reflow soldering without warping or deformation.

PH1.25mm Wafer Horizontal SMT Type Pin header Connector 4P

Designed for seamless integration into SMT production lines,this PH1.25mm wafer pin header incorporates precision-engineered coplanarity control to ensure consistent solder joint reliability during high-speed pick-and-place operations.The LCP material’s resistance to thermal stress minimizes warpage,enhancing assembly yield and process efficiency.Supplied in industry-standard reel packaging, it supports automated equipment compatibility, reducing manual handling and enabling cost-effective high-volume fabrication while maintaining stringent quality standards.

Perfectly suited for space-optimized designs,this PH1.25mm wafer housing connector excels in ultra-slim devices such as Bluetooth modules, smart wearables,ultra-thin client systems, and portable audio equipment.Its low-profile architecture maximizes internal space utilization, enabling innovative form factors where traditional vertical connectors are impractical. Engineered for durability and performance,this wafer housing terminal empowers next-generation electronic designs requiring minimal footprint without compromising electrical or mechanical integrity.
