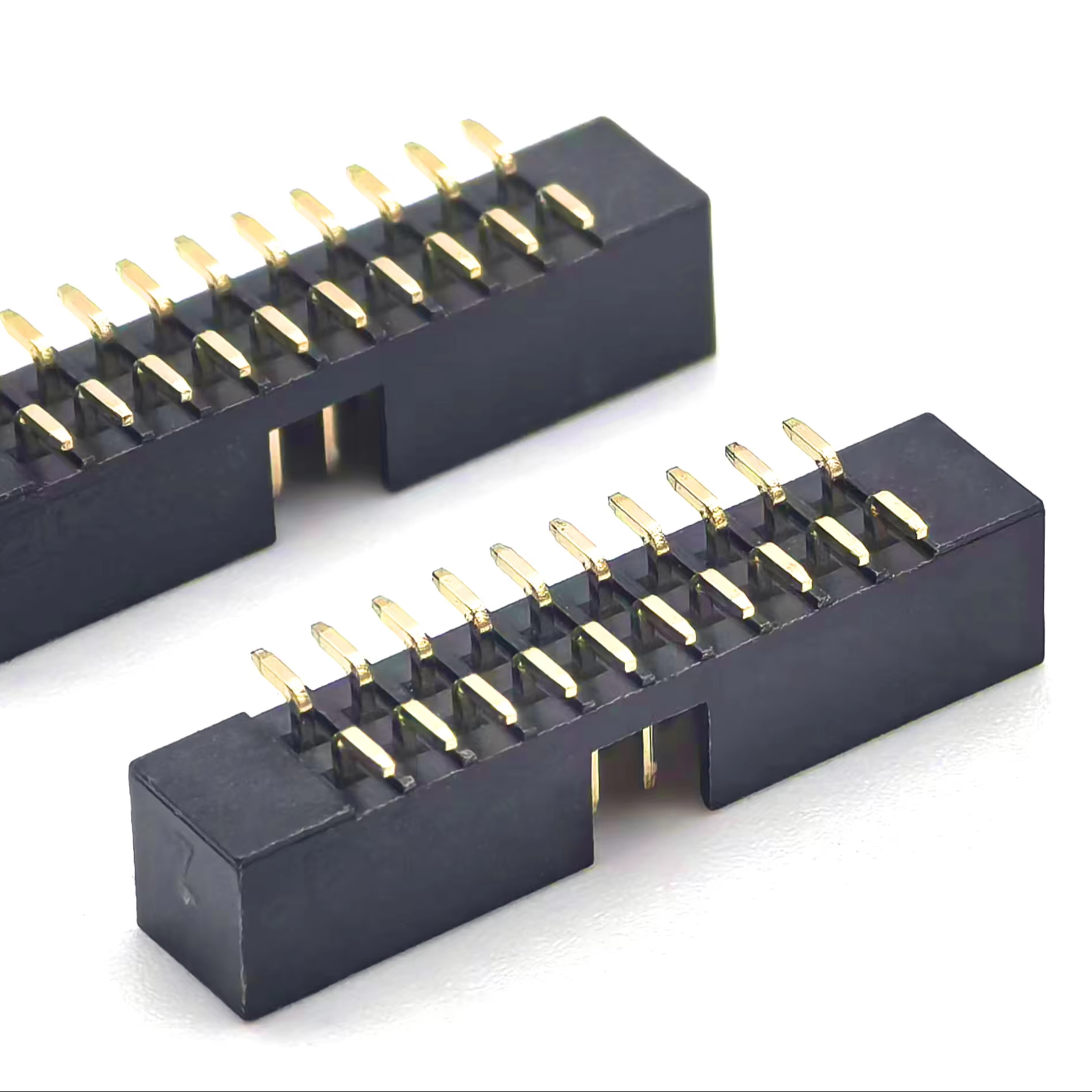

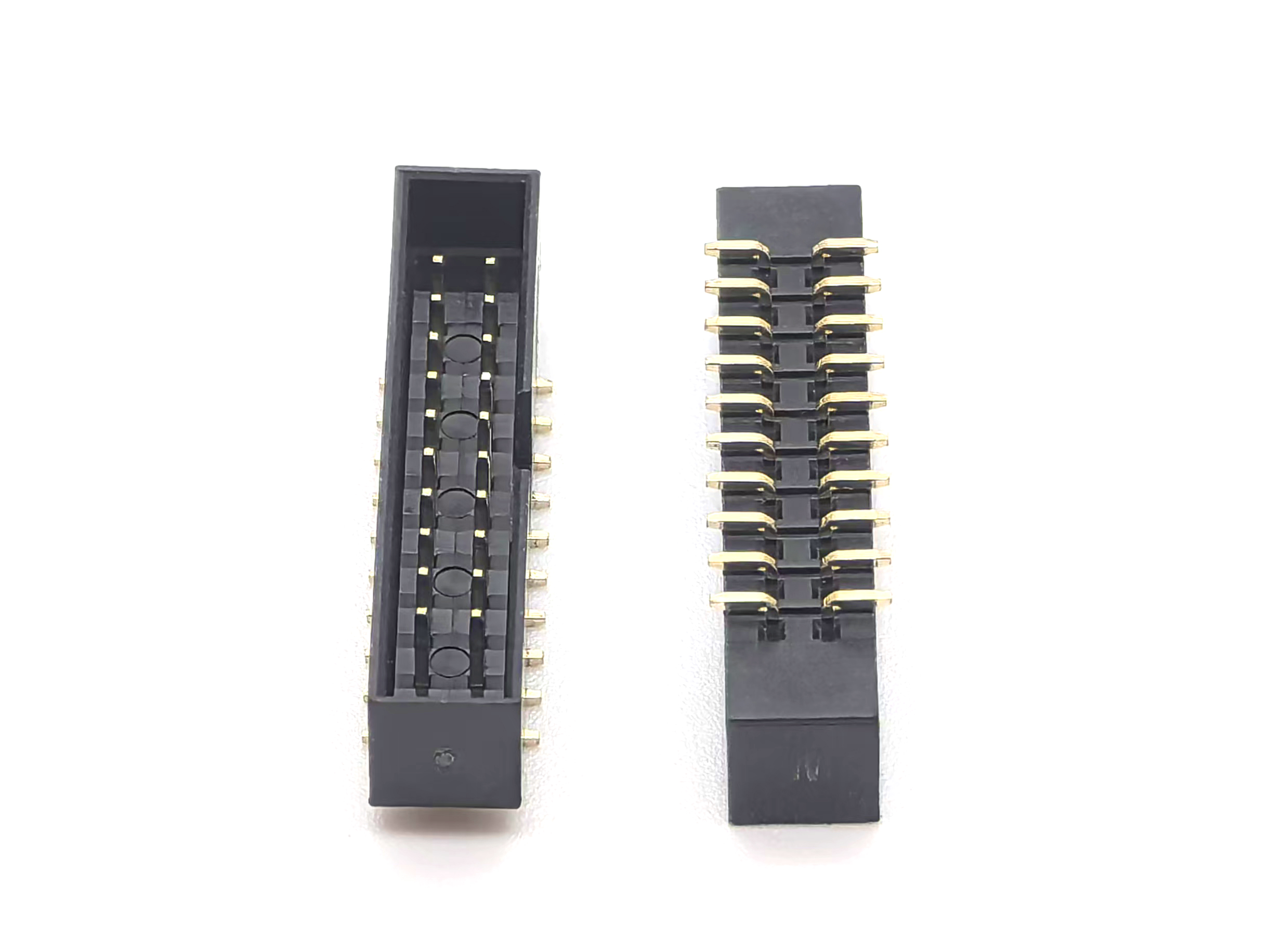

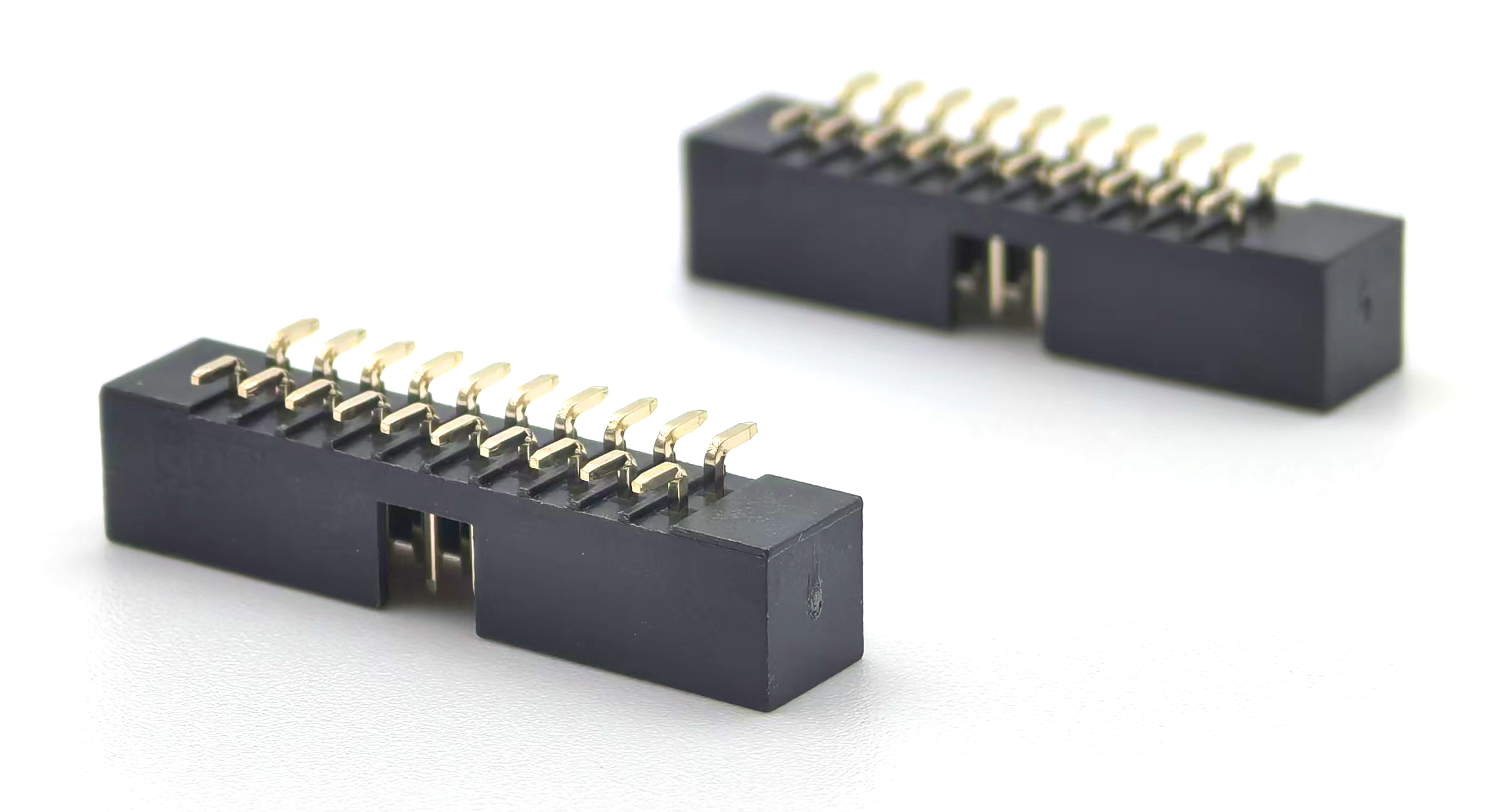

2.0mm Pitch Box Header Connector SMT H:5.7mm 2*10P

2 month ago

2 0 

7 month

Product details

YZTECH presents a high-reliability 2.0mm pitch box header connector engineered for demanding applications requiring enhanced electrical isolation and mechanical strength.This dual-row vertical mount header connector features a 10-pin-per-row configuration,encapsulated within a robust black PA9T plastic housing that provides superior insulation properties and structural integrity.The brass contacts employ a strategic hybrid half-gold/half-tin plating system—gold at the mating interface for optimal conductivity and corrosion resistance,and tin at the termination for excellent solderability.Rated for 2A current and an impressive 1000V voltage,this connector operates reliably across an extended temperature range of -40℃ to +105℃,making it suitable for challenging environments.

The connector's box-style construction offers superior protection against mechanical misalignment and physical damage during mating cycles,while providing complete finger-safe operation.Its advanced PA9T thermoplastic housing demonstrates exceptional resistance to high-temperature soldering processes, withstanding up to 220℃ for 10 seconds without deformation.The vertical SMT design ensures stable positioning during reflow soldering while optimizing board space utilization.Packaged in protective trays,these connectors maintain precise alignment and prevent damage to the delicate contacts during transportation and handling,ensuring consistent performance throughout automated assembly processes.

This high-voltage 2.0mm box header is ideally suited for power supply units,industrial control systems,automotive electronics,renewable energy applications,and medical equipment where safety and reliability are paramount.The combination of its 1000V rating,robust box construction,and advanced PA9T material delivers exceptional performance in applications exposed to electrical surges,mechanical stress, and elevated temperatures.

2.0mm Pitch Box Header Connector SMT H:5.7mm 2*10P
