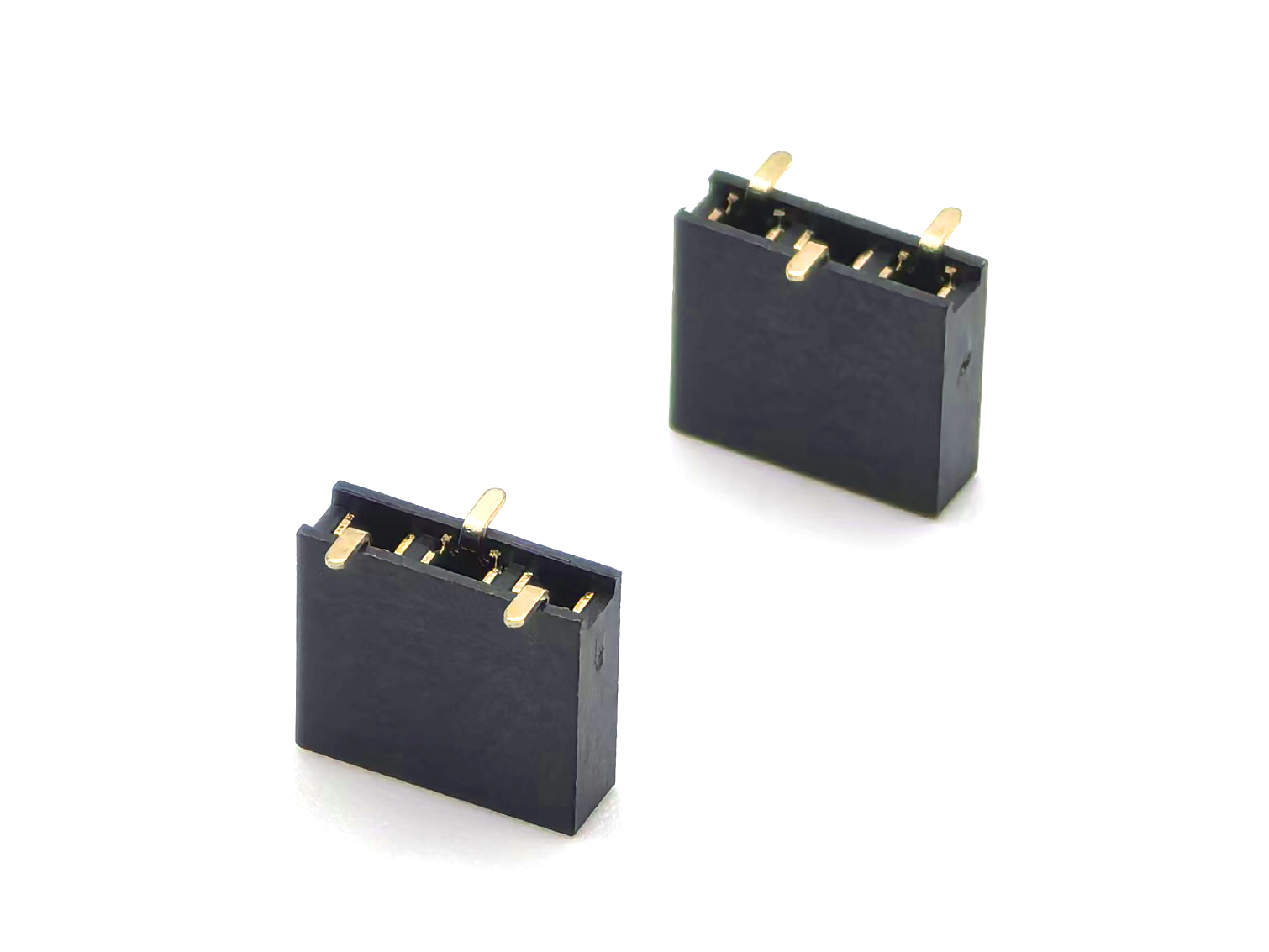

2.54mm Pitch Female Header Connector Single Row SMT H:7.1mm 1*3P

11 month ago

46 0 

2 year

Product details

2.54mm Pitch Female Header Connector SMT 3P
Engineered for demanding circuit applications,the YZTECH 2.54mm Pitch Female Header Connector SMT 3P delivers exceptional electrical performance in a robust single-row configuration.This 3-position vertical mount 2.54mm female to female header 3p features a DIN-standard rectangular profile with brass contacts finished in full gold plating,ensuring minimal contact resistance and superior corrosion protection. Rated for substantial 3A current and high 600V voltage capacity, this 2.54mm female header smt 3p operates reliably across an extensive -40℃ to +105℃ temperature range.

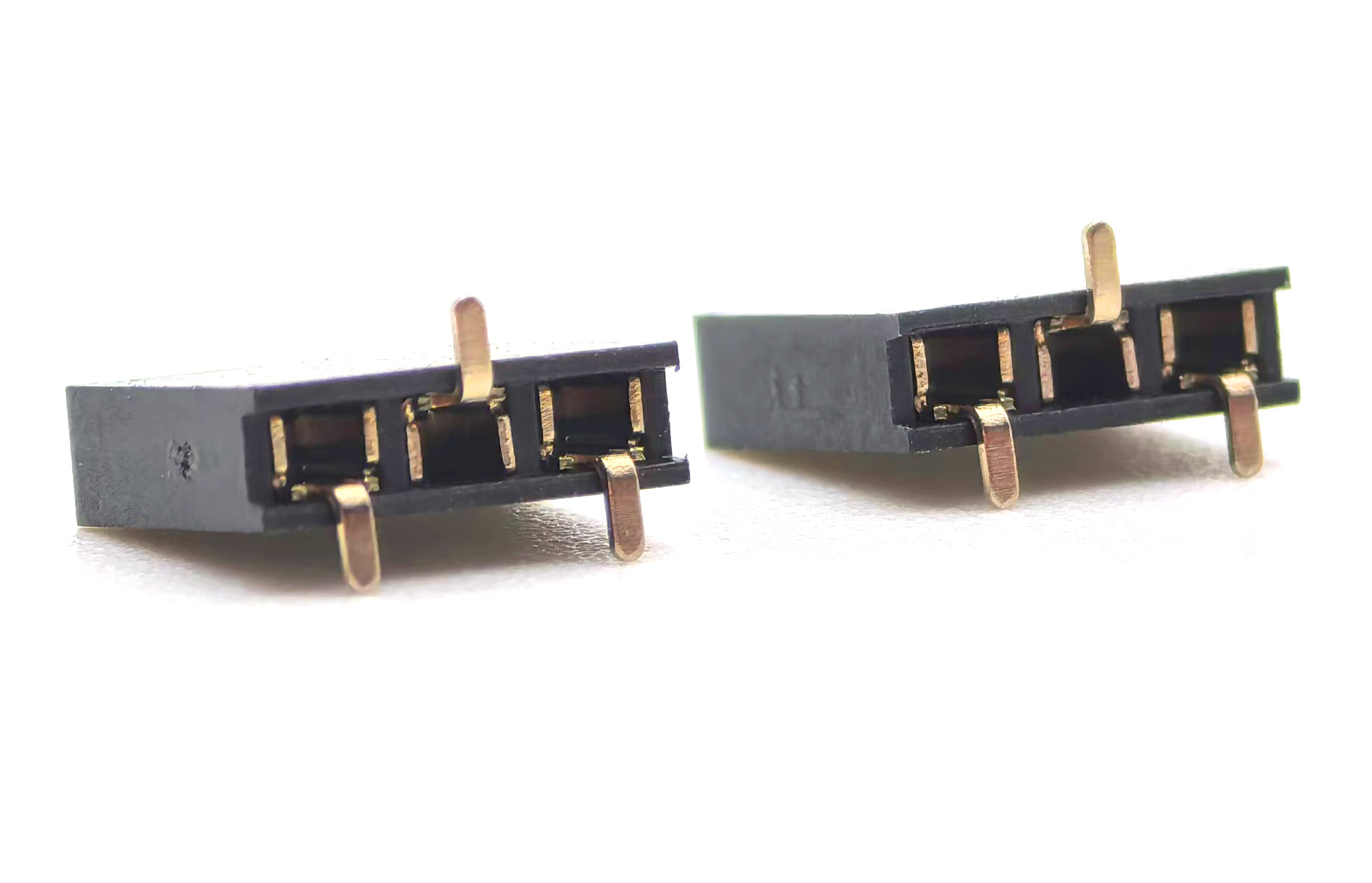

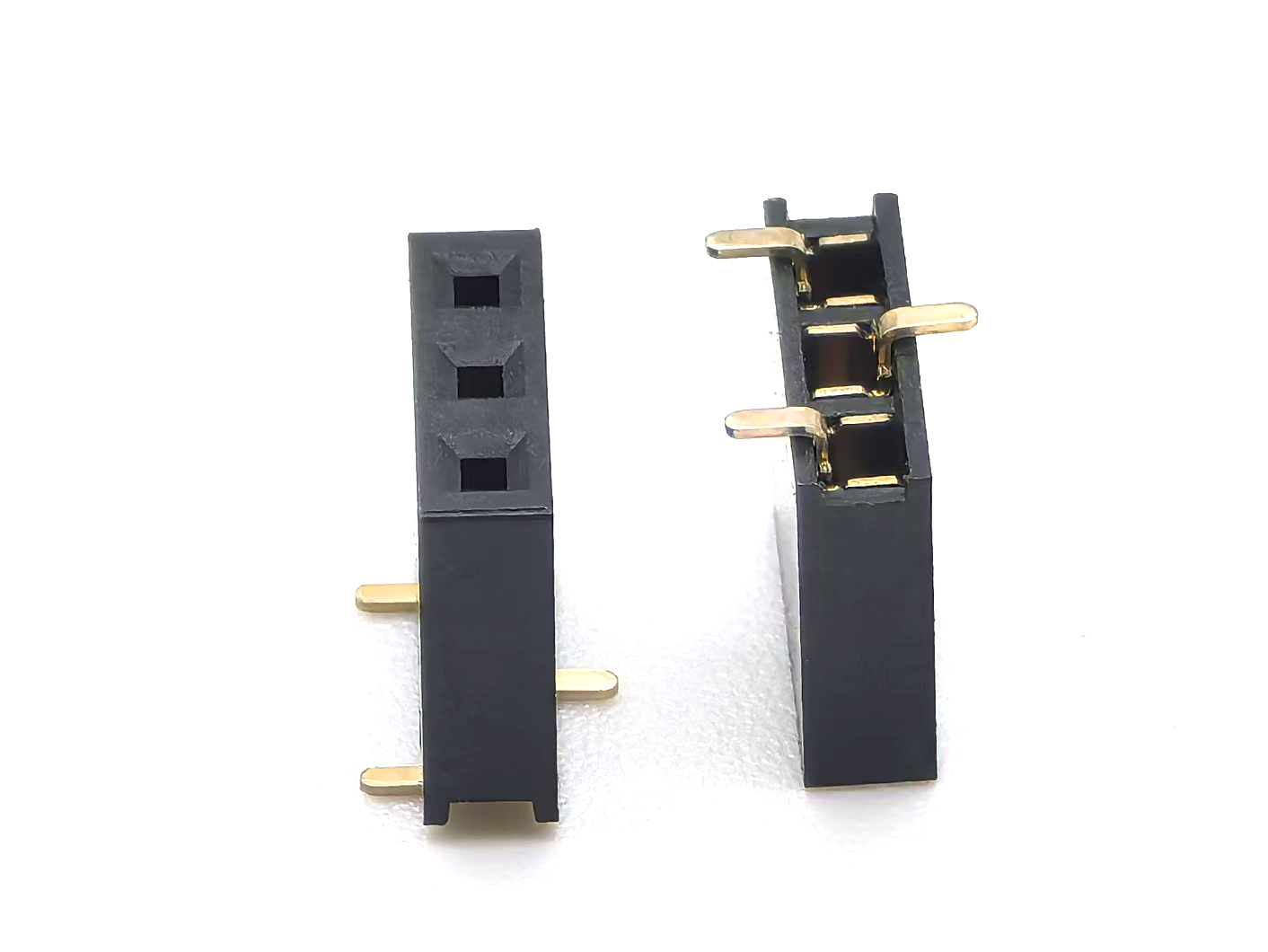

2.54mm Pitch Female Header Connector Single Row SMT H:7.1mm 1*3P

This 2.54mm header female smt incorporates precision engineering for streamlined manufacturing integration.The vertical SMT design ensures optimal PCB space utilization while facilitating automated placement processes. The high-temperature PA6T material demonstrates exceptional dimensional stability,preventing warping during soldering and guaranteeing consistent coplanarity across all contacts,maintaining structural integrity during reflow processes with a maximum welding tolerance of 220℃ for 10 seconds. The generous gold plating thickness on the contact surfaces ensures multiple mating cycles without performance degradation, while the secure tube packaging protects the delicate contacts from damage and contamination throughout the supply chain.

Ideal for power distribution systems, industrial automation controls, automotive electronics, and high-voltage measurement equipment, this connector excels in applications requiring both compact dimensions and robust electrical characteristics. The combination of its 600V rating, 3A current capacity, and gold-plated brass contacts makes it particularly suitable for precision instrumentation and power management systems where signal integrity and safety are paramount.This female header represents an optimal balance of compact design, electrical robustness, and manufacturing convenience for engineers developing next-generation electronic systems.
