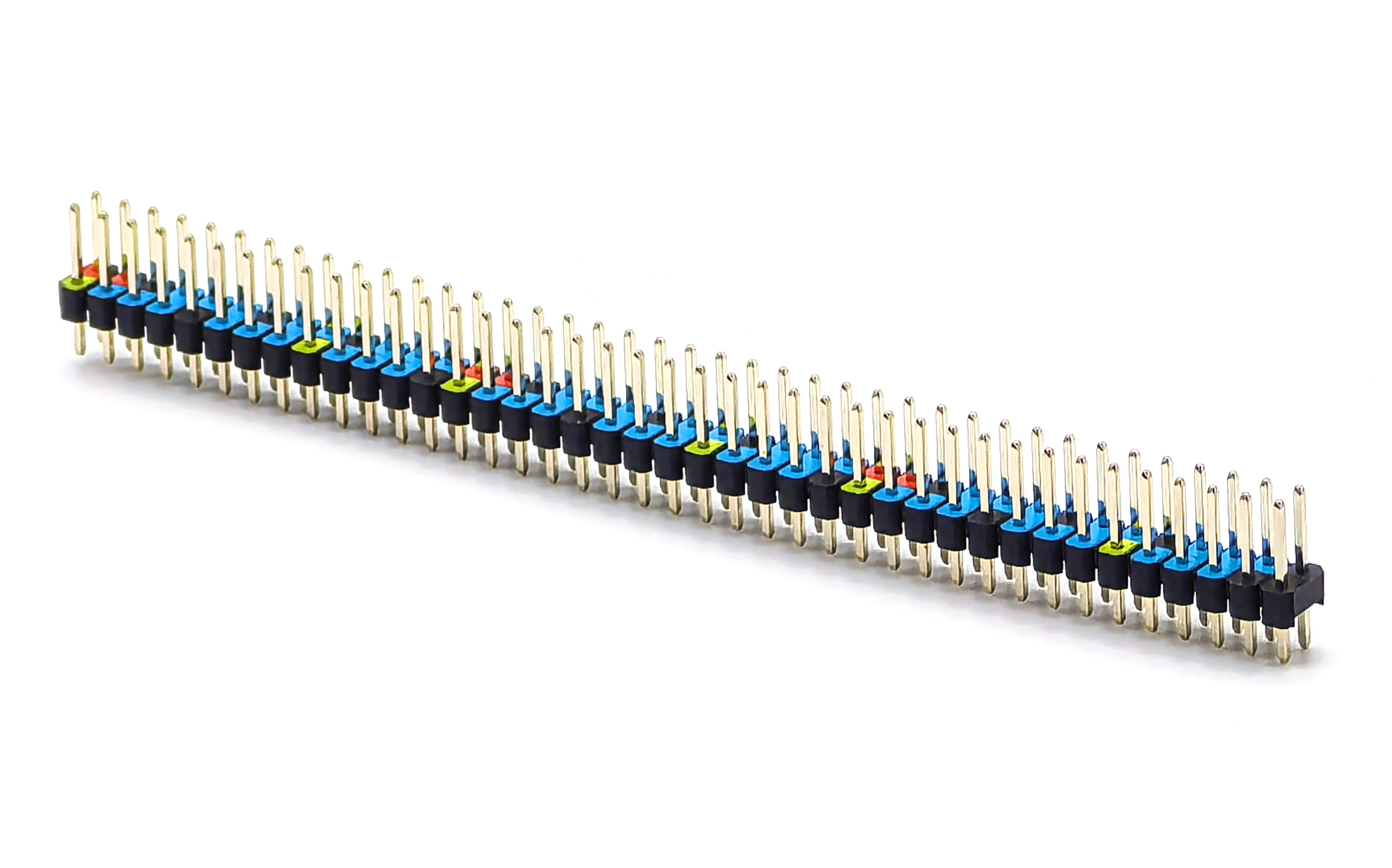

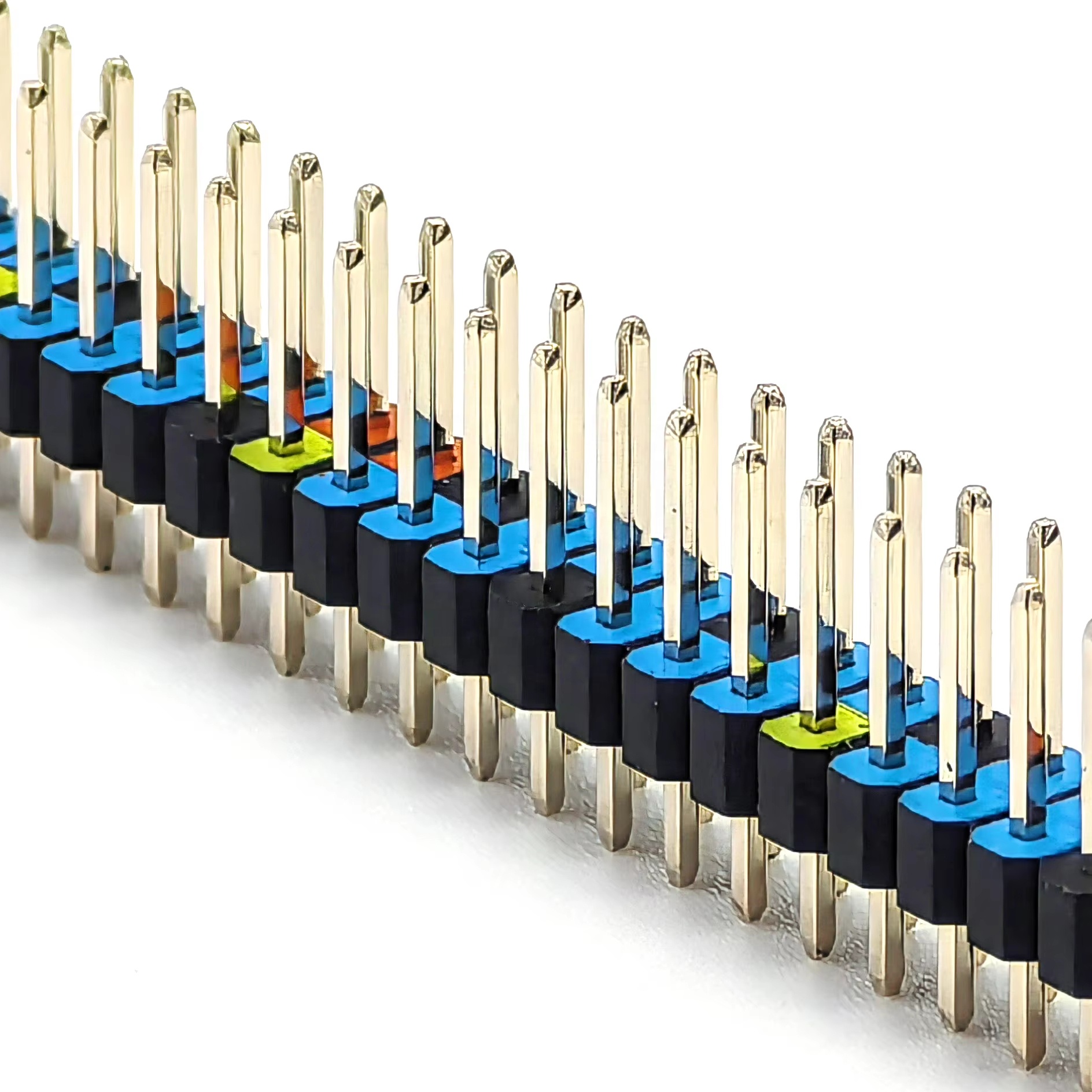

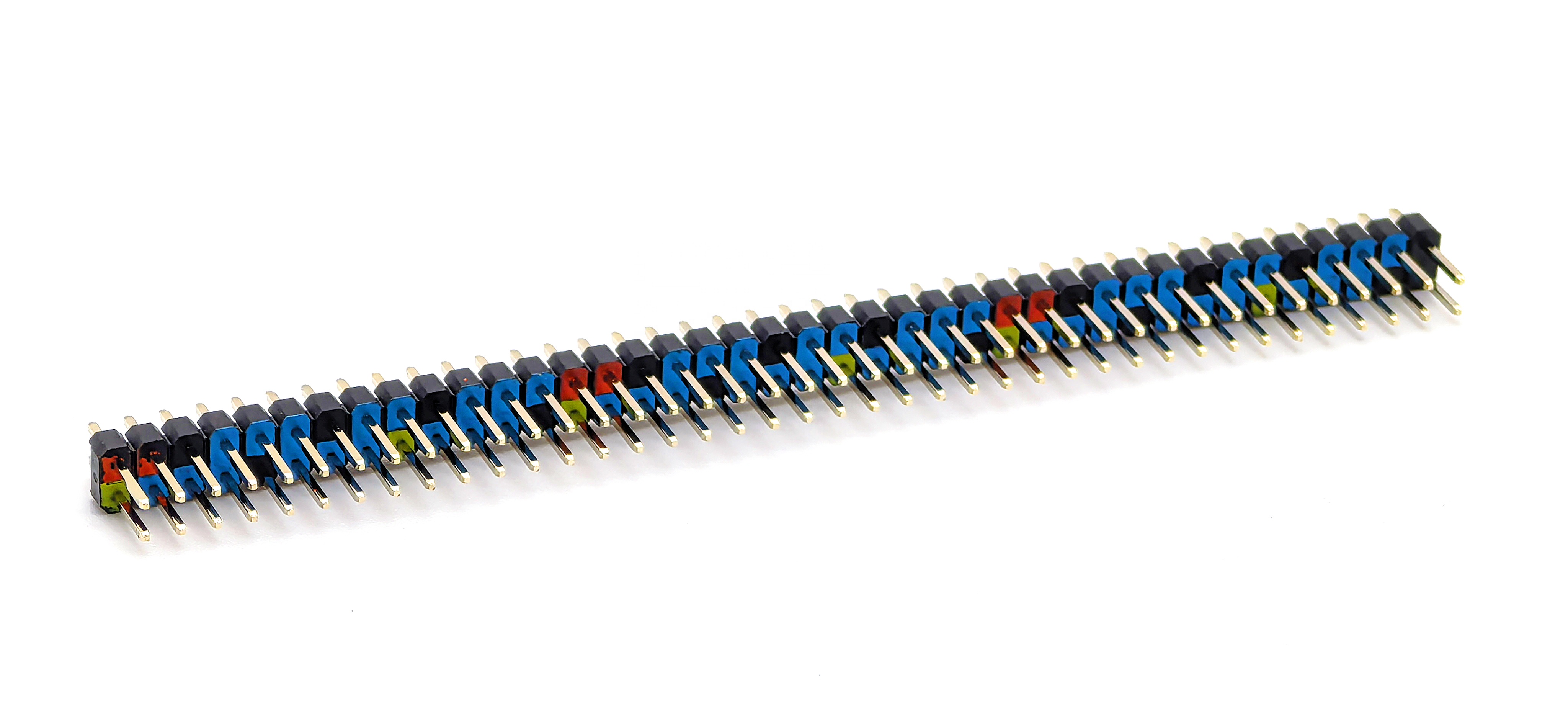

2.54mm Pitch Colored Pin Header Connector Dual Row Straight SQ0.64mm H:2.5mm 2*40P

YZTECH’s 2.54mm Pin Header Dual Row Straight Plug offers unmatched reliability for PCB integration in industrial and consumer electronics.Engineered with a robust rectangular male form factor, this header connector features 40P per row across dual rows,ensuring optimal signal transmission at rated 3A/600V performance.The brass contacts with gold plating provide corrosion resistance and low contact resistance,while the PA6T colloidal material ensures mechanical stability under extreme temperatures from -40℃ to +105℃.Designed for straight plug installation,it aligns perfectly with DIN standards,making it ideal for automated assembly lines.The box packaging guarantees safe transit and storage,with a maximum welding temperature tolerance of 260℃/10S to prevent thermal damage during soldering.This pin header is globally certified for compatibility with diverse PCB layouts and supports rapid prototyping for high-mix production environments.



Beyond standard specifications,YZTECH’s solution incorporates cutting-edge material science.The PA6T material demonstrates superior flame retardancy and dimensional stability, outperforming conventional plastics in harsh environments.Gold-plated brass contacts ensure 50μ” minimum thickness for durable conductivity,reducing signal loss in high-speed digital circuits.The dual-row 80-pin total configuration accommodates complex circuit designs without compromising signal integrity.Operating temperature resilience from -40℃ to +105℃ enables deployment in outdoor equipment,automotive systems,and industrial controllers.The straight-plug design simplifies installation with zero-degree insertion force, minimizing PCB strain during mating cycles.Compatibility with reflow soldering processes ensures seamless integration into mass production workflows,while the box packaging supports automated pick-and-place machinery for efficient logistics.
