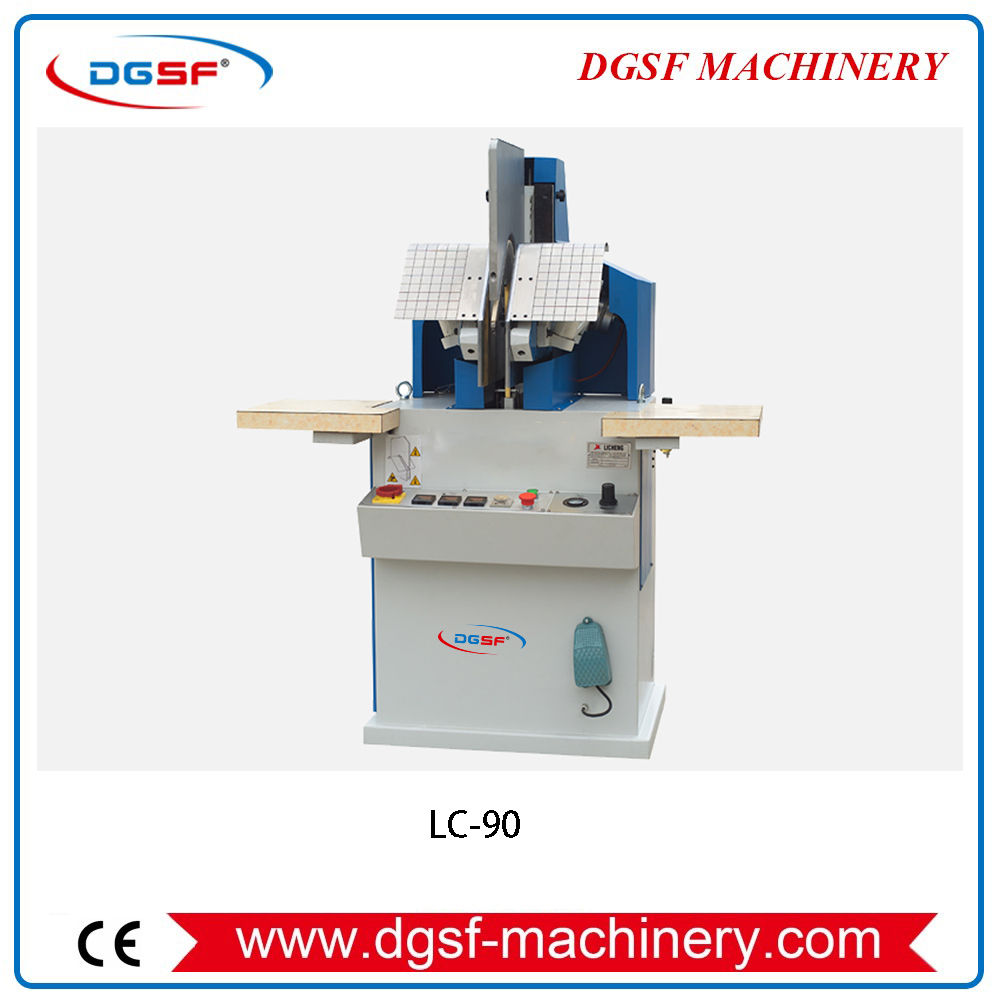

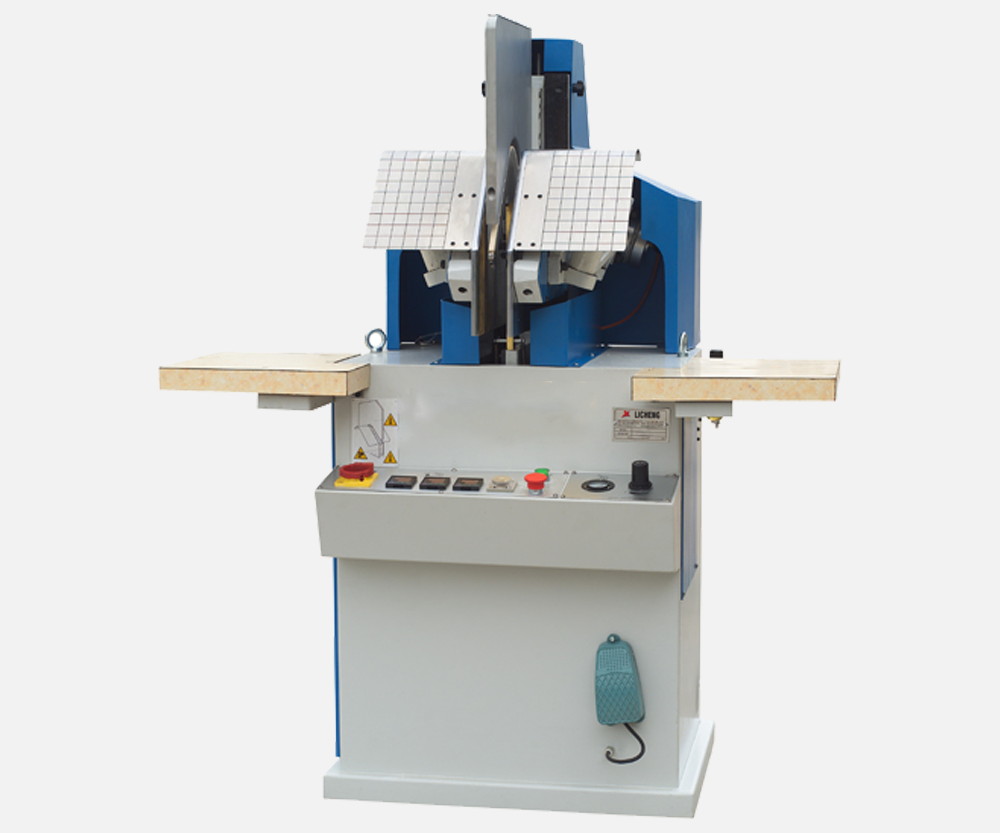

LC-90 Hydraulic Upper Crimping Machine (Short Plates)
2 month ago
LC-90 Hydraulic Upper Crimping Machine (Short Plates)
Features:
l Mainly used for crimping upper in the production of boots.
l Adopts hydraulic and pneumatic driving system that utilizes heat and pressure to crimp the upper into the required curved shape.
l Pressure, heating temperature and crimping time can be adjusted based on the thickness and the type of the leather in order to obtain the optimal crimping result.
l The heating temperature of the left and right positioning plates can be regulated independently to adapt to the nature of specific material.
l The stroke regulators of the crimping plates are installed outside, making it easy to adjust the stroke of the crimping plates for different materials accordingly.
l The positioning and crimping plates can be customized in demand.
l LC-90 comes with short plates for short boots only.
|
Dimension |
800*800*1600mm |
|
Packing size |
850*850*1650mm |
|
Power |
1.75kW |
|
Voltage |
380V/50Hz |
|
Net weight |
290KG |
