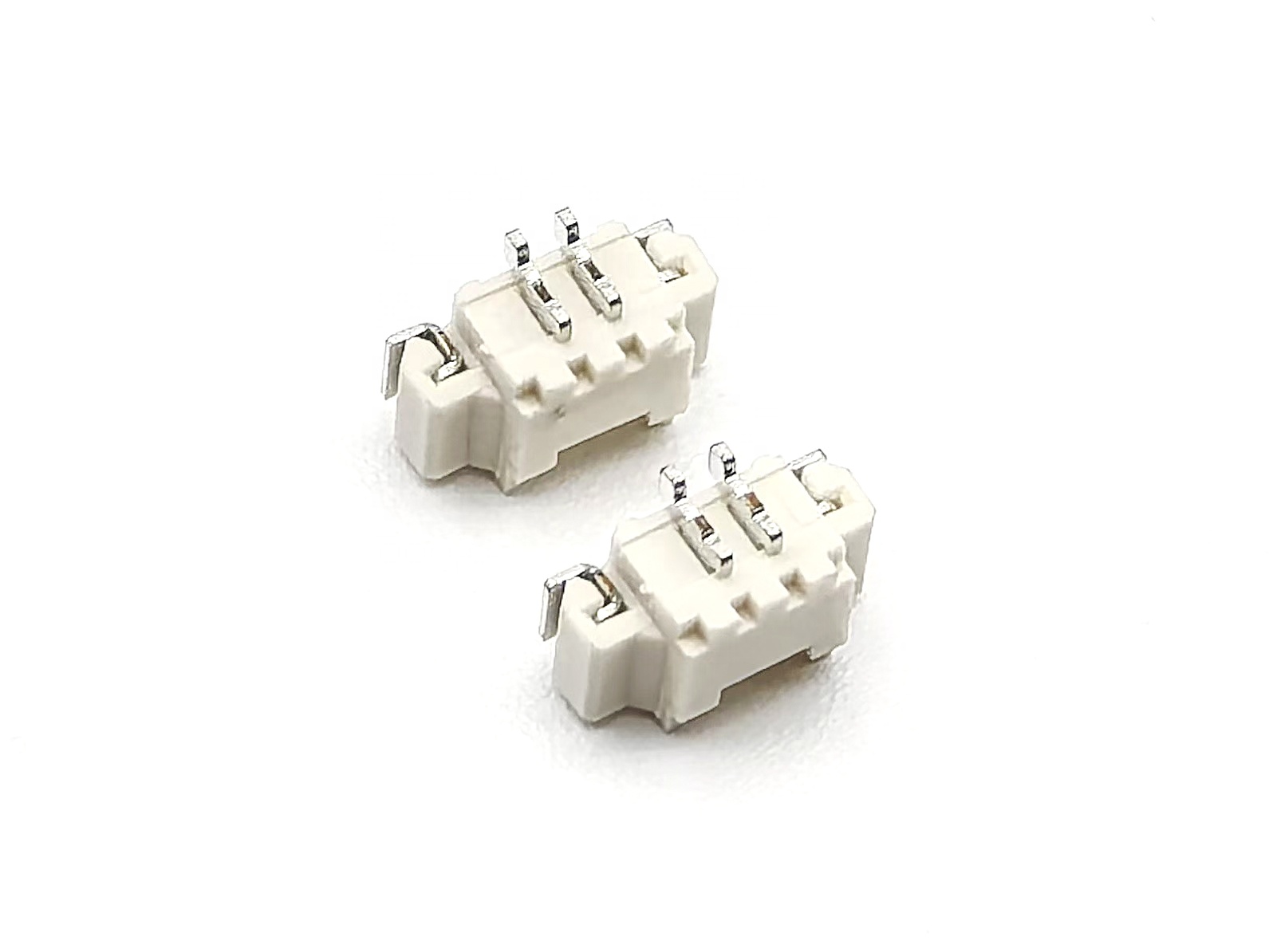

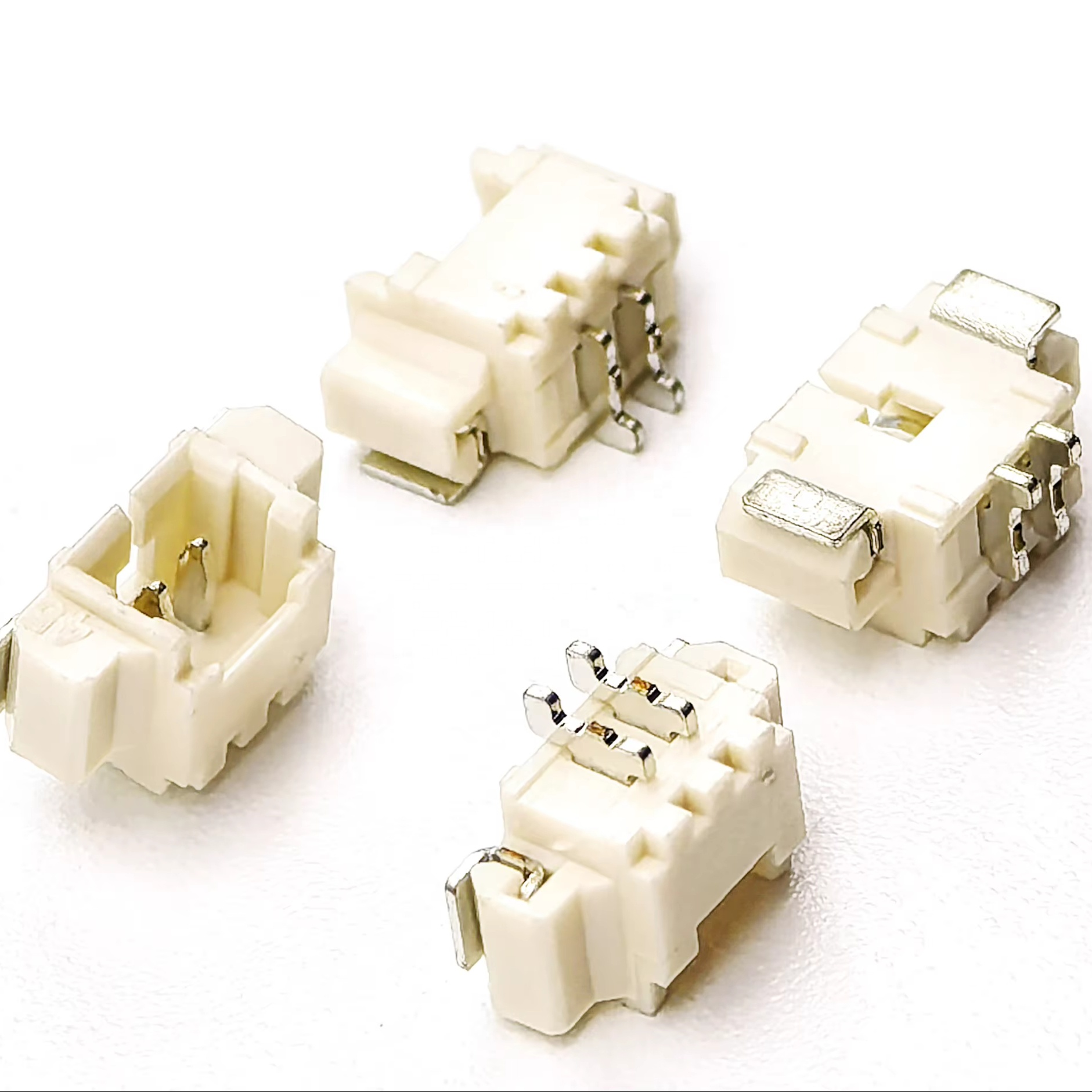

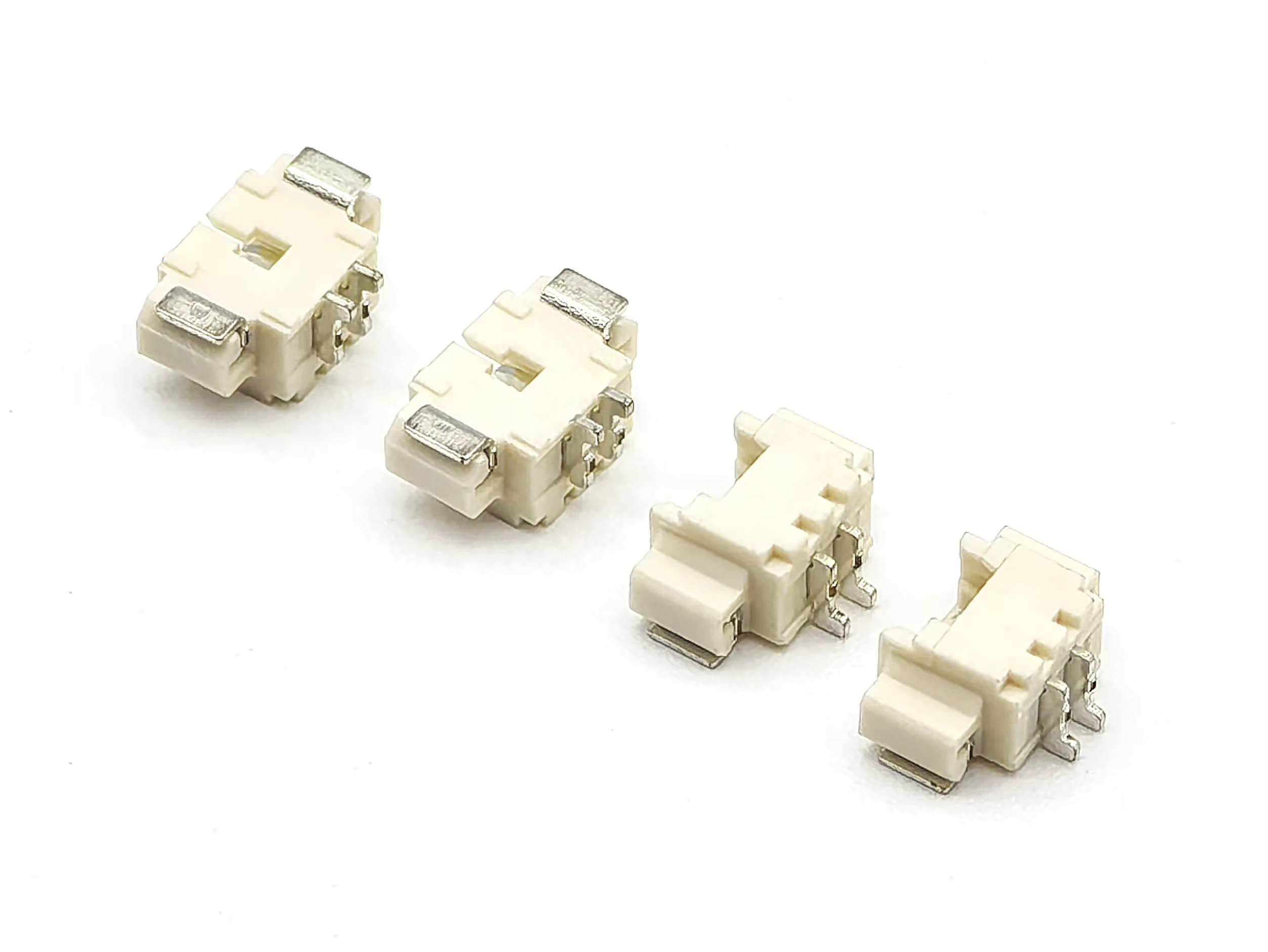

1.25mm Wafer Pin Header Right Angle SMT

Compact 1.25mm Wafer Pin Header for SMT Assembly

The 1.25mm wafer pin header connector smt is a compact board-level connector designed for electronic assemblies where PCB space is limited and a reliable surface-mount connection is required. Featuring a 1.25mm pitch and right-angle configuration, this wafer pin header is suitable for compact control boards, consumer electronics, instrumentation, communication equipment, and other electronic modules requiring a low-profile connection layout.

The connector uses brass contacts with tin plating to provide practical electrical contact performance and compatibility with standard SMT assembly processes. The product is rated for 1A current and 125V voltage, with an operating temperature range of -25℃ to +85℃. For applications requiring matching terminals and housing components, a compatible Wafer Housing Terminal can be selected according to the mating structure and PCB design.

Product Specifications

Right Angle SMT Design for 2P Wafer Applications

The 1.25mm wafer pin header smt 2p configuration provides a compact two-position connection solution for PCB assemblies. Its right-angle design changes the mating direction relative to a vertical pin header, making it suitable for applications where the available vertical space is restricted or where the mating component needs to connect horizontally along the PCB edge. The SMT construction supports automated placement and reflow soldering for efficient production.

For projects requiring a complete 1.25mm connection system, the 1.25mm wafer housing connector 2p can be matched with suitable terminals and mating components according to the electrical and mechanical requirements. Customers can also use Buy Wafer Terminals resources when selecting compatible terminal products. The combination of compact pitch, right-angle orientation, and 2P configuration makes this connector suitable for densely arranged electronic assemblies.

Why Choose Shenzhen Yangzhan Electronics

Shenzhen Yangzhan Electronics, under the YZTECH Electronics brand, was established in 2014 and specializes in the R&D and manufacturing of precision connectors, industrial terminal blocks, and cable assemblies. For products such as the 1.25mm Wafer Pin Header Right Angle SMT, YZTECH provides integrated manufacturing capabilities covering plastic and metal terminal mold development, precision processing, connector assembly, inspection, and delivery. This integrated production approach supports customized connector requirements based on PCB dimensions, mounting direction, pitch, and contact configuration.

YZTECH Electronics maintains close cooperation with Taiwanese enterprises and uses advanced production and inspection equipment from Japan, Germany, and Taiwan. The company can support customers sourcing Wafer Pin Header and Housing Connector products for different electronic applications, with manufacturing processes focused on dimensional consistency, contact quality, and assembly reliability. With reel packaging and a minimum packaging quantity of 1,500 pieces, this 1.25mm connector is also suited to volume PCB assembly requirements, while Shenzhen-based shipping provides convenient supply support for domestic and international customers.
