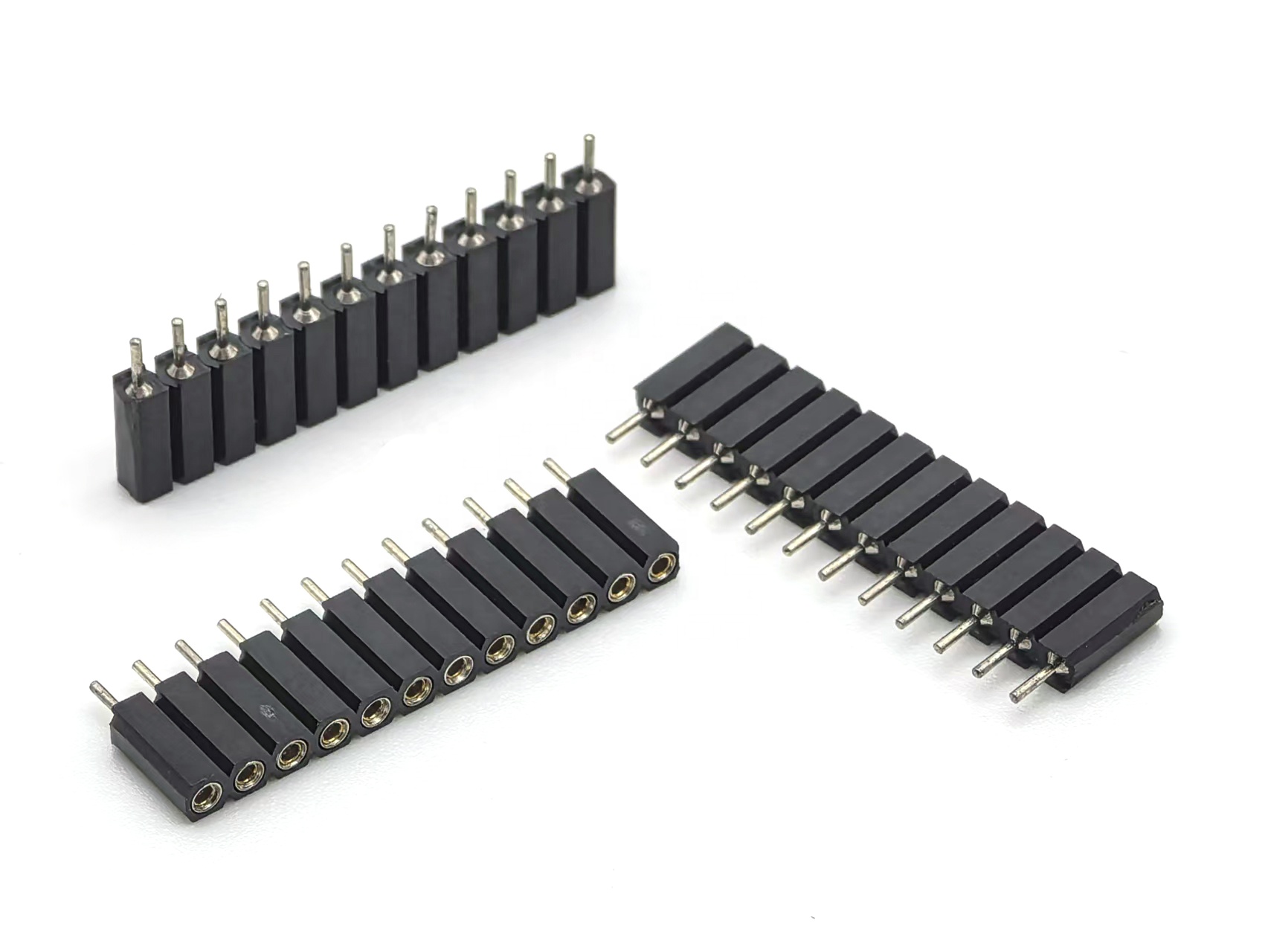

2.54mm Pitch Machined Female Header Connector H7.0mm L12.4mm 1*12P

2 month ago

3 0 

7 month

Product details

The YZTECH 2.54mm Machined Female Header is a premium interconnect solution designed for demanding applications that require superior electrical and mechanical performance. This 12-position,single-row female header connector in a straight plug design ensures easy and reliable integration into printed circuit boards.It stands out with an impressive rated capacity of 3A and 600V,providing robust power delivery and signal integrity.Its distinctive round pin receptacles,precision-machined for optimal contact,guarantee a secure and stable connection with male pin headers.The straight-through design simplifies the PCB layout process and offers a straightforward vertical mounting solution,enhancing assembly efficiency.

This header connector is built for exceptional durability and long-term reliability.The contacts are crafted from brass and feature a specialized dual-surface treatment:selective gold plating on the mating area ensures low contact resistance and superior corrosion resistance for a stable electrical connection over countless mating cycles,while the solder tails are coated with tin for excellent solderability to the PCB.The insulator is molded from high-performance nylon,a material chosen for its outstanding dielectric strength,mechanical rigidity,and ability to perform flawlessly across a broad operating temperature range from -40℃ to +105℃.This construction allows it to withstand wave soldering processes at temperatures up to 260℃ for 10 seconds.

Packaged conveniently in bags for secure handling and storage,this 2.54mm female header is an ideal component for a wide spectrum of industrial,automotive, and high-reliability consumer electronics.Its high-temperature resilience and robust electrical ratings make it suitable for systems exposed to harsh environments.

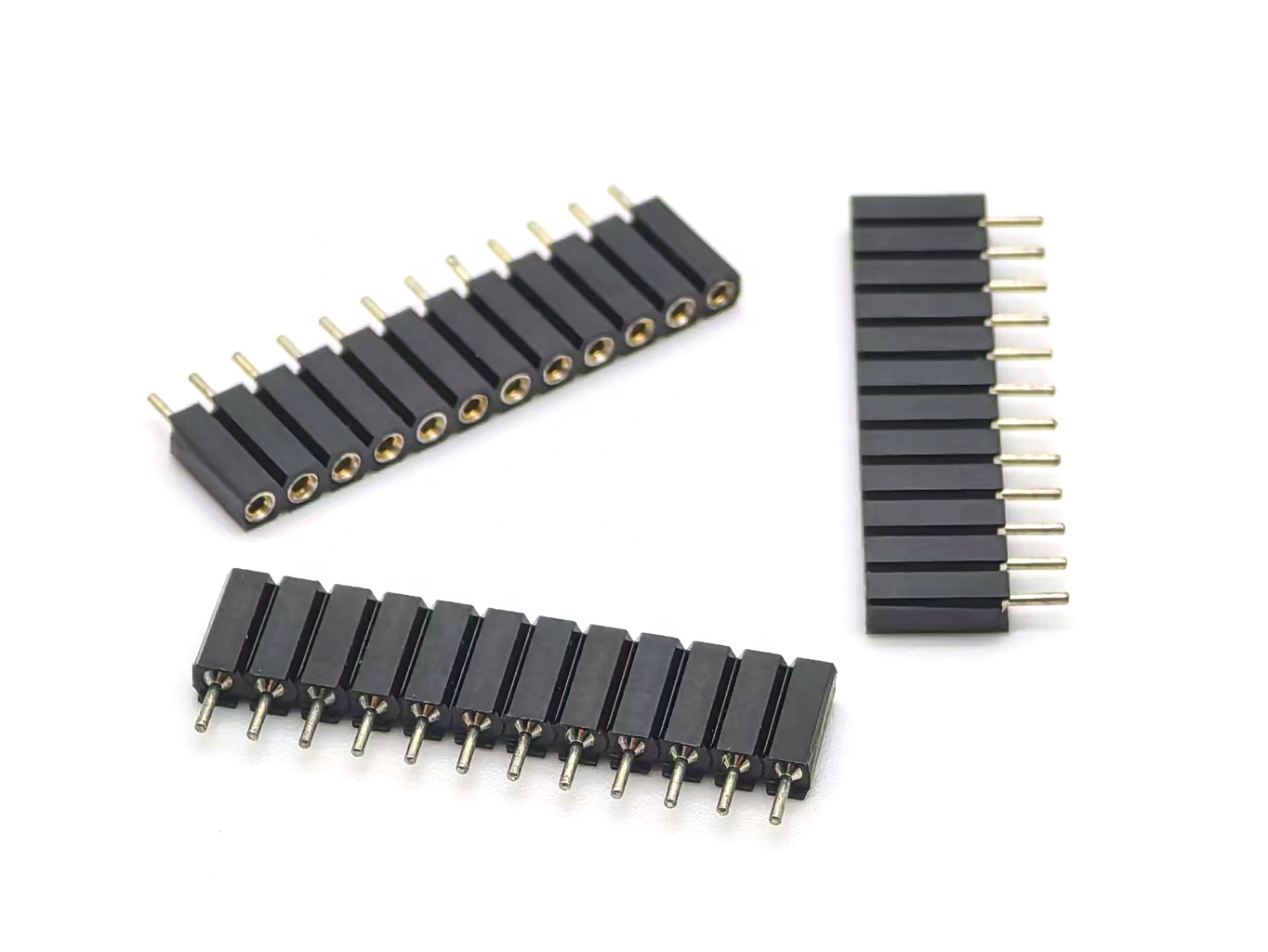

2.54mm Pitch Machined Female Header Connector H7.0mm L12.4mm 1*12P
