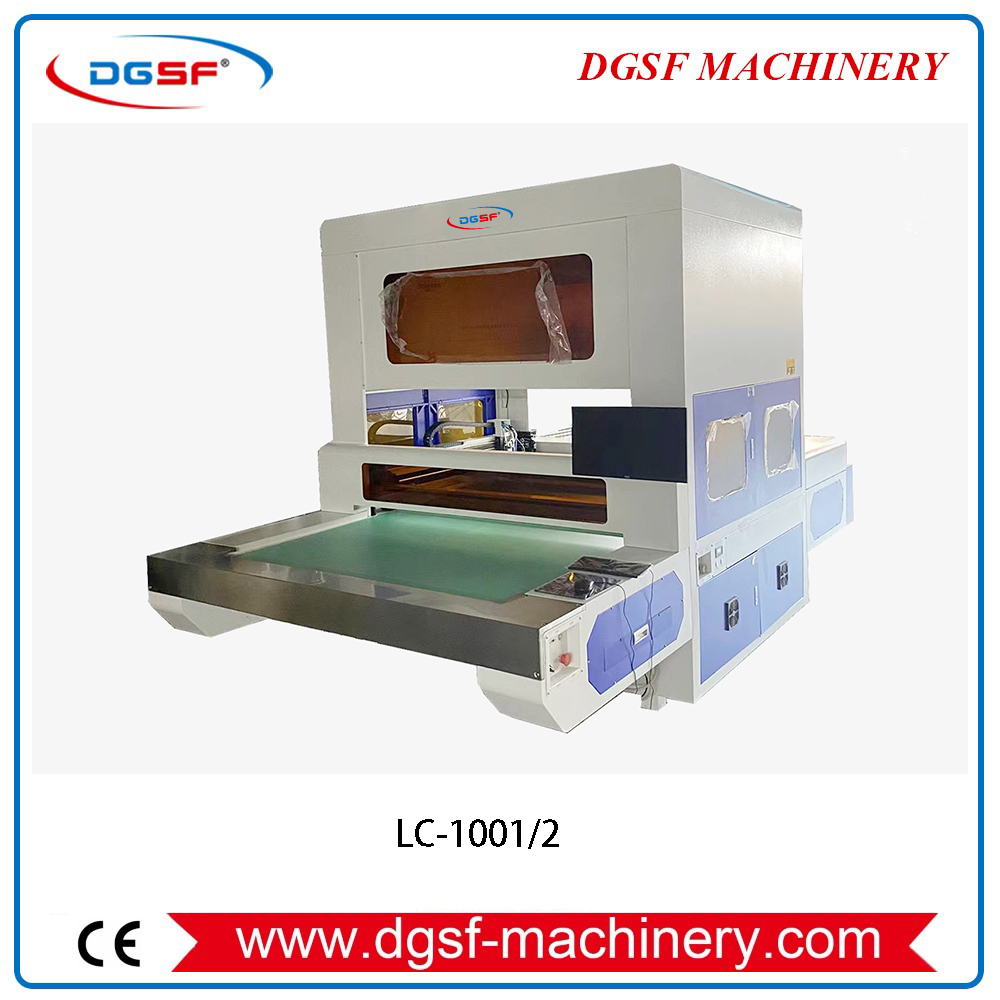

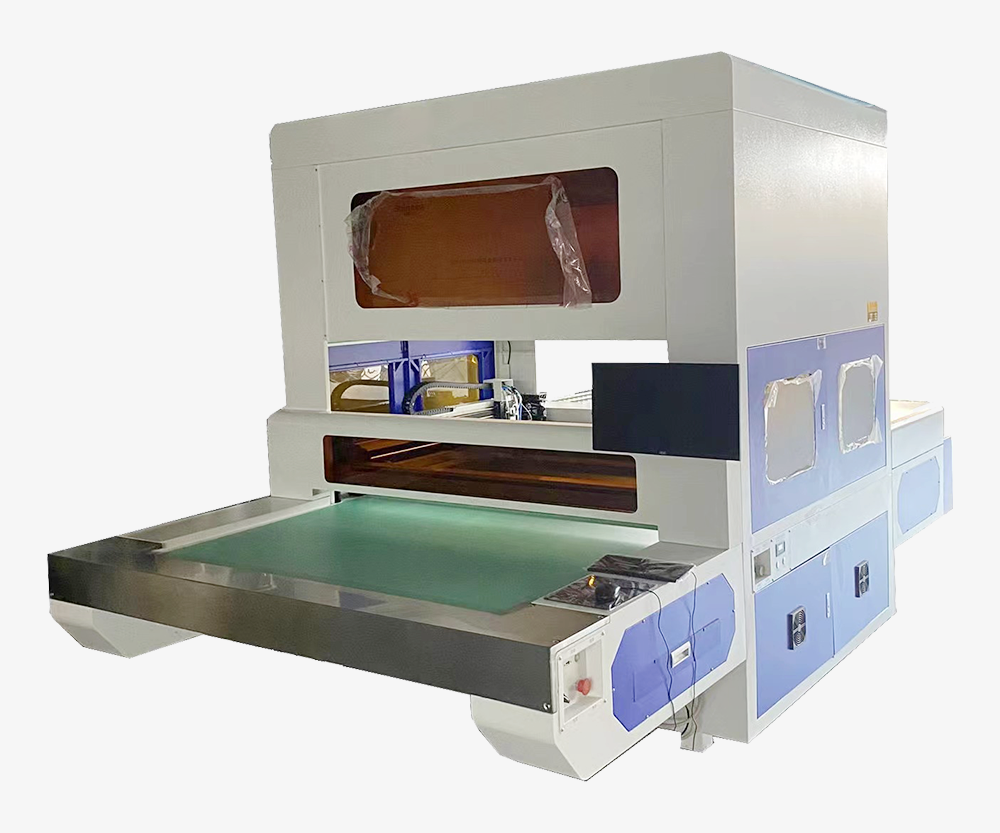

LC-1001-2 Intelligent Upper Marking Machine
2 month ago
LC-1001/2 Intelligent Upper Marking Machine
Features:
l Suitable for different kinds of materials including fabric, leather, microfiber, flannelet, canvas, lamination fabric, flyknit, etc.
l Equipped with visual system so that materials can be placed at random direction; no need to make molds.
l Easy to operate with high marking and repeat accuracy.
l Equipped with 2 drawing stations to maximize capacity.
l Equipped with dryer to dry the ink after drawing.
|
Working area |
1300*900mm |
|
Max Drawing Speed |
2000mm/s |
|
Drawing Accuracy |
±0.5mm |
|
Repeat Accuracy |
±0.5mm |
|
Dimension |
900*1160*1870mm |
|
Power |
2.7kW |
|
Voltage |
220V/50Hz |
|
Net weight |
430KG |
|
Gross weight |
460KG |
