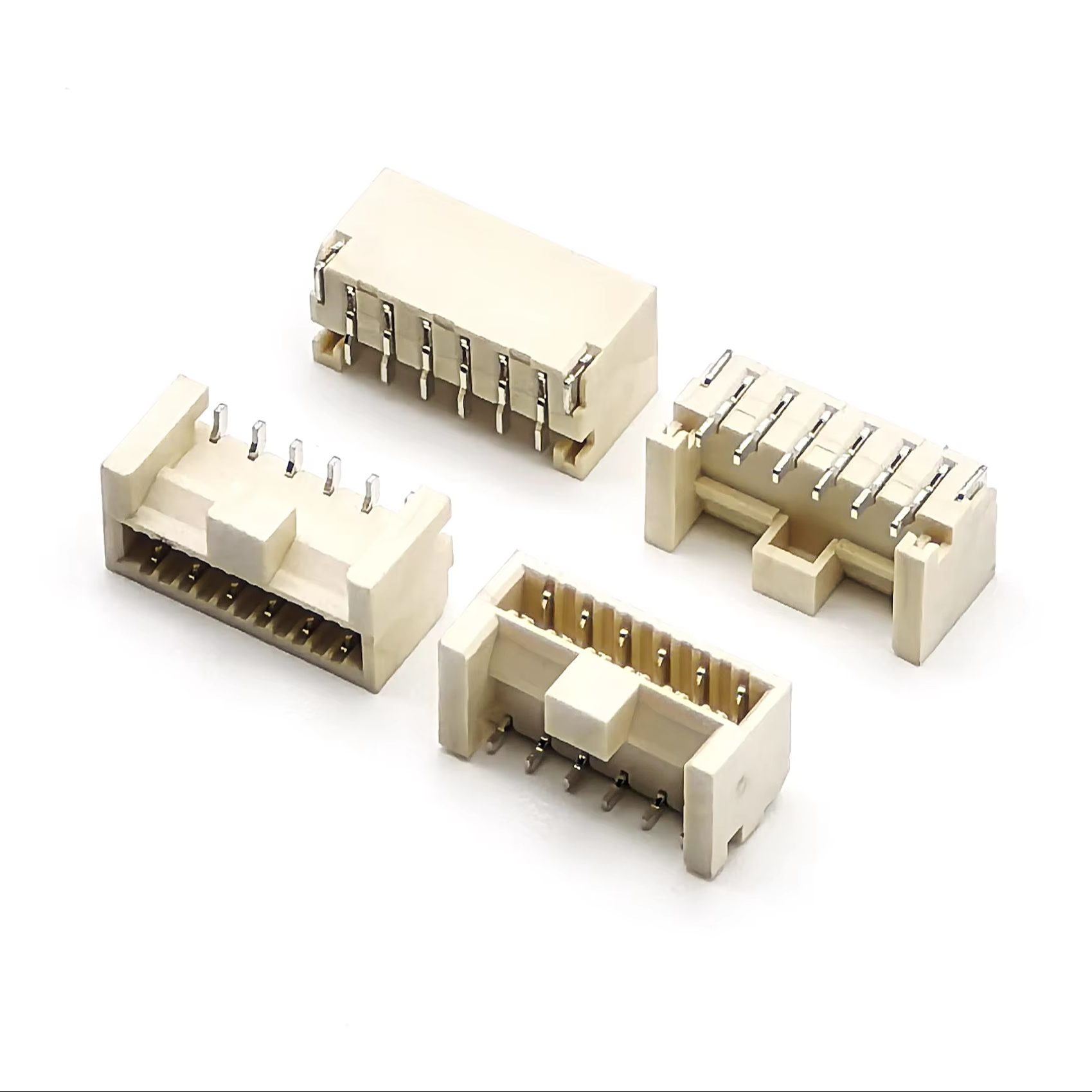

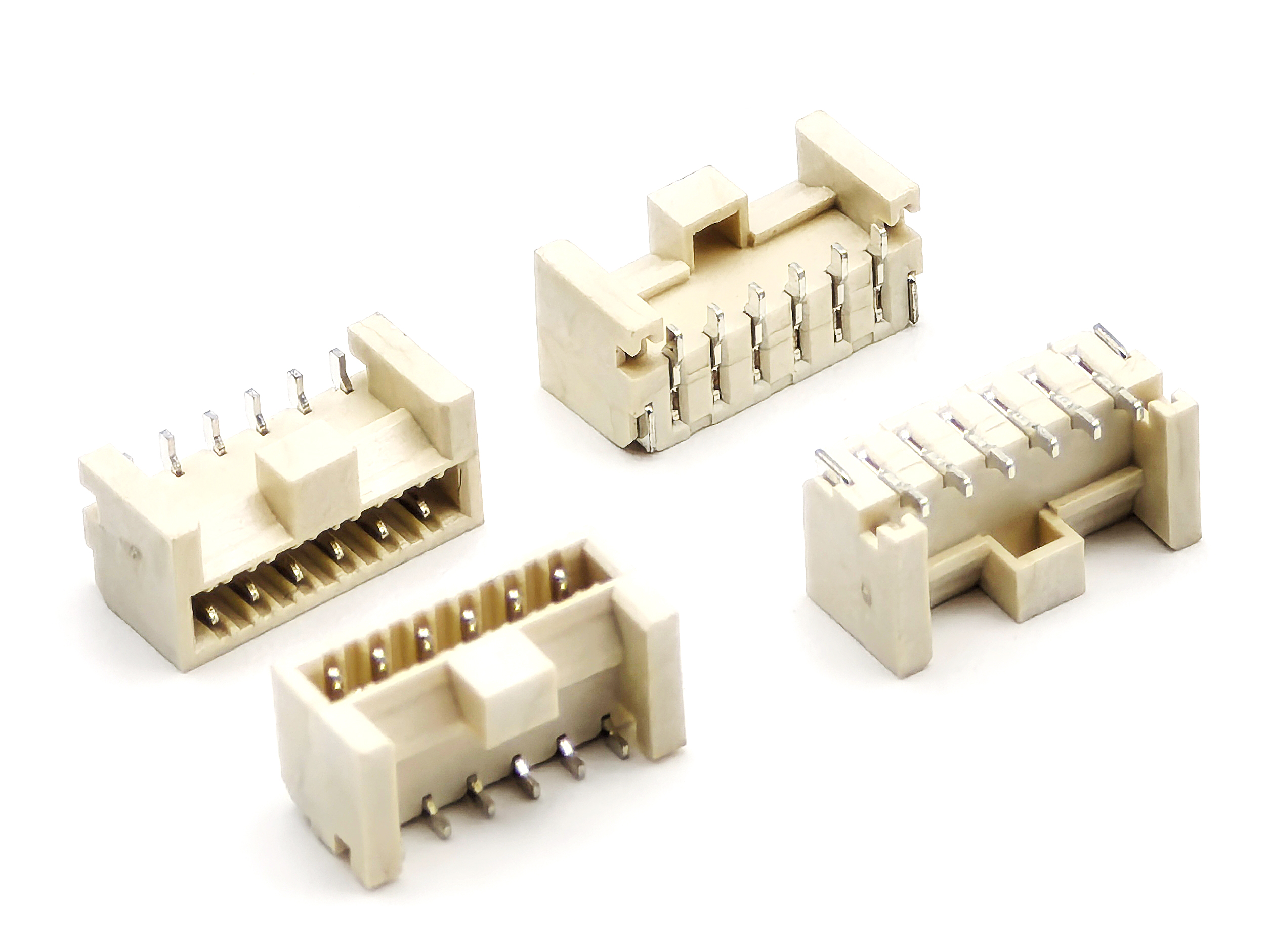

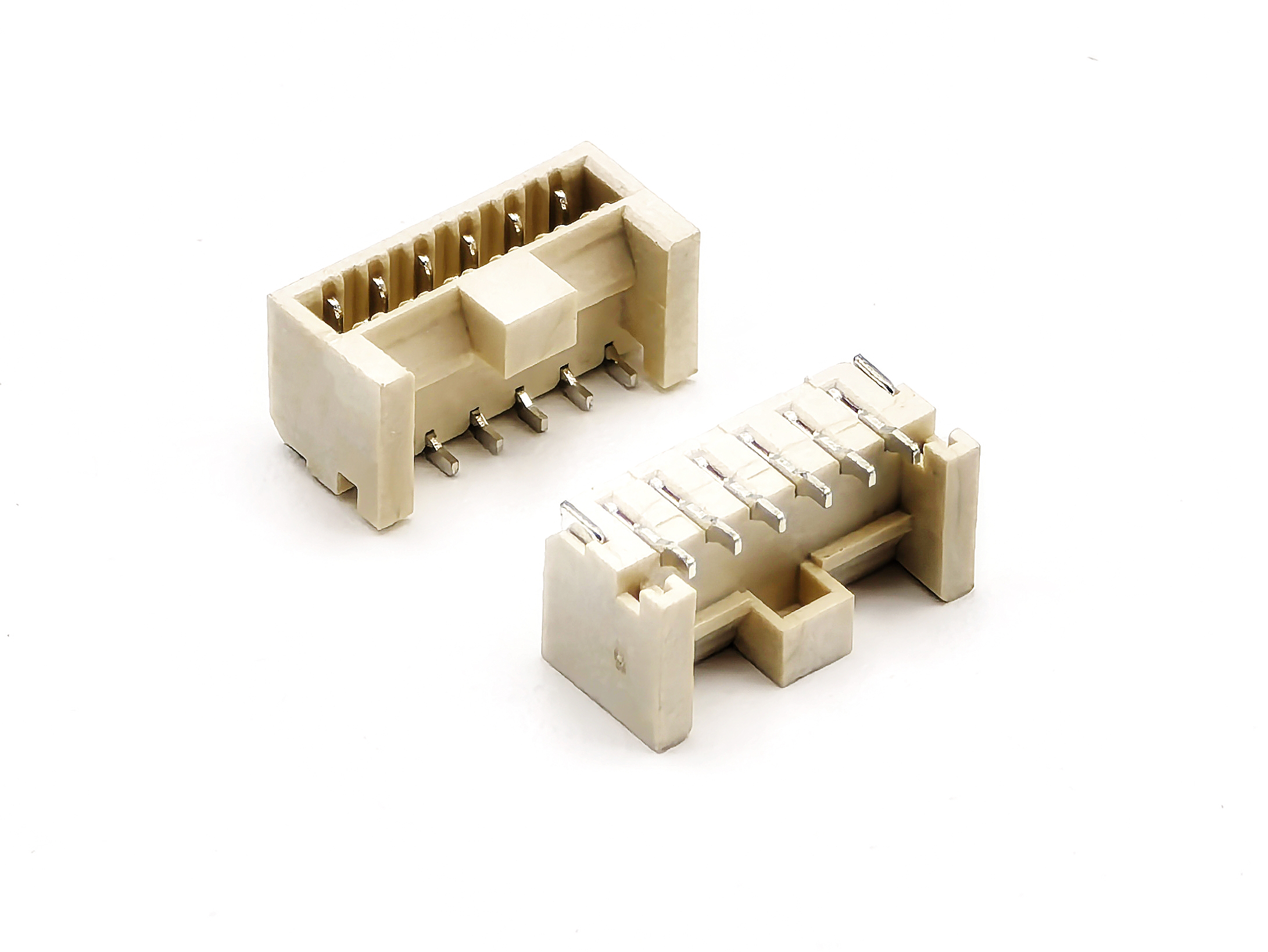

PH1.25mm Wafer Pin Header Connector 6P

Compact 1.25mm Pitch Design for 6-Pin PCB Connections

The wafer pin header connector 6p uses a 1.25mm pitch and a 6-position layout, making it a practical choice for compact PCB designs. When there is limited room around the board, the smaller pitch helps keep the connection area under control without adding unnecessary bulk to the assembly.

The vertical connector structure also keeps the terminals arranged neatly on the PCB. Inside the connector, the contacts are held by a compact Wafer Housing Terminal structure, which makes the component easier to handle during assembly and helps maintain consistent positioning in volume production.

Product Specifications

Vertical SMT Structure for Easier PCB Assembly

This connector is designed as a wafer pin header vertical smt component, with a vertical mounting structure that works well with SMT production. For manufacturers running automated PCB assembly, this type of connector can fit naturally into an existing placement and soldering process, reducing the need for additional manual installation.

The contacts are made from phosphor bronze and finished with tin plating. With a rated current of 1A, rated voltage of 50V and operating temperature range from -25°C to +105°C, the connector can be used in a range of compact electronic equipment, control boards and internal wiring applications.

A Practical Choice for Compact Connection Applications

For projects that need six connection positions while keeping the PCB layout clean, this wafer housing connector 6p offers a straightforward option. The tube packaging also makes the parts easier to organize during production, while the standard minimum packing quantity of 100 pieces suits regular production orders and component stocking.

If your project also requires matching terminal components, you can explore our Buy Wafer Terminals range for other wafer-style connection options. For projects involving housing and terminal combinations, the Housing Connector series can also be selected according to the required pitch, mounting style and connection structure.
