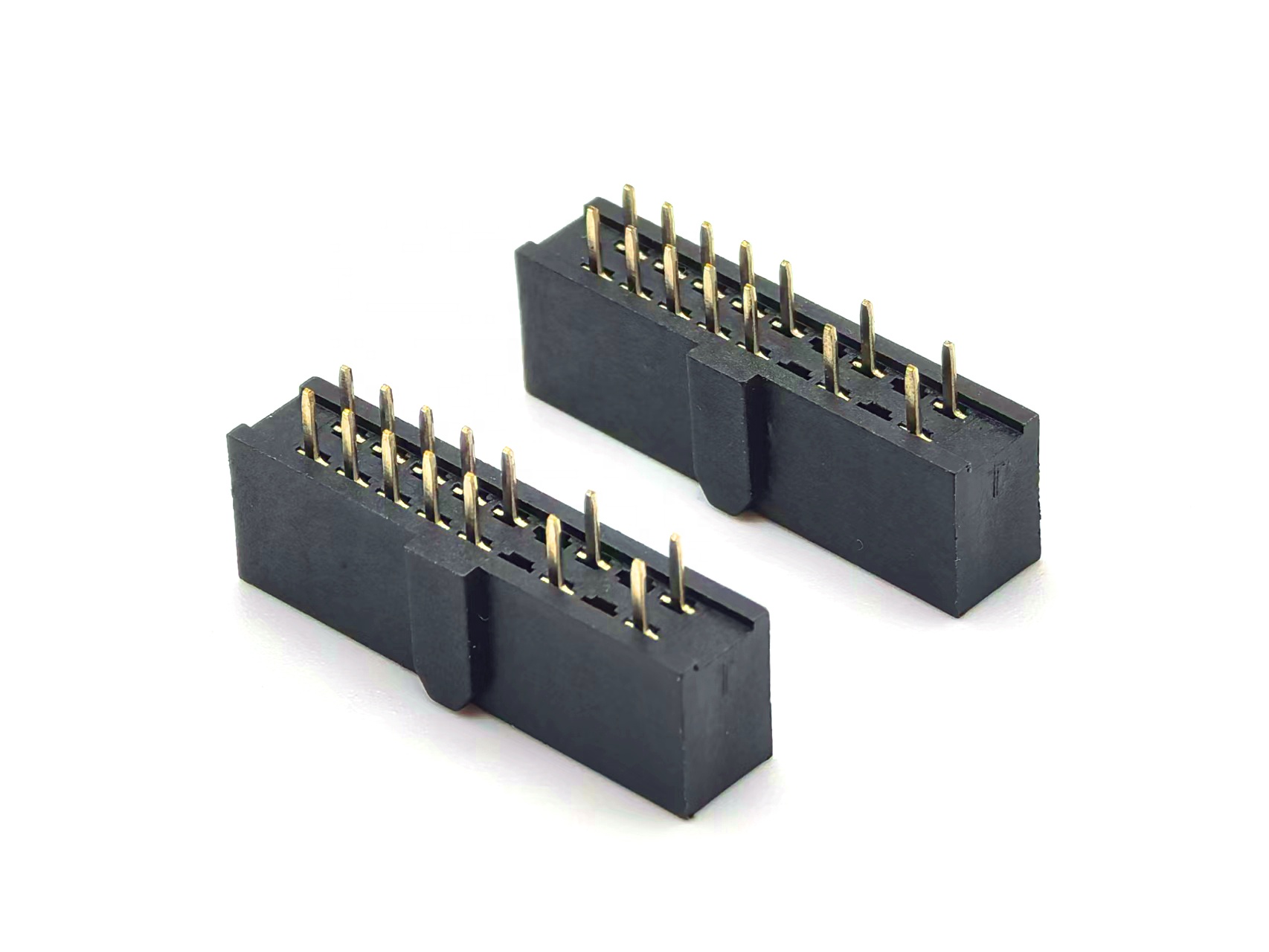

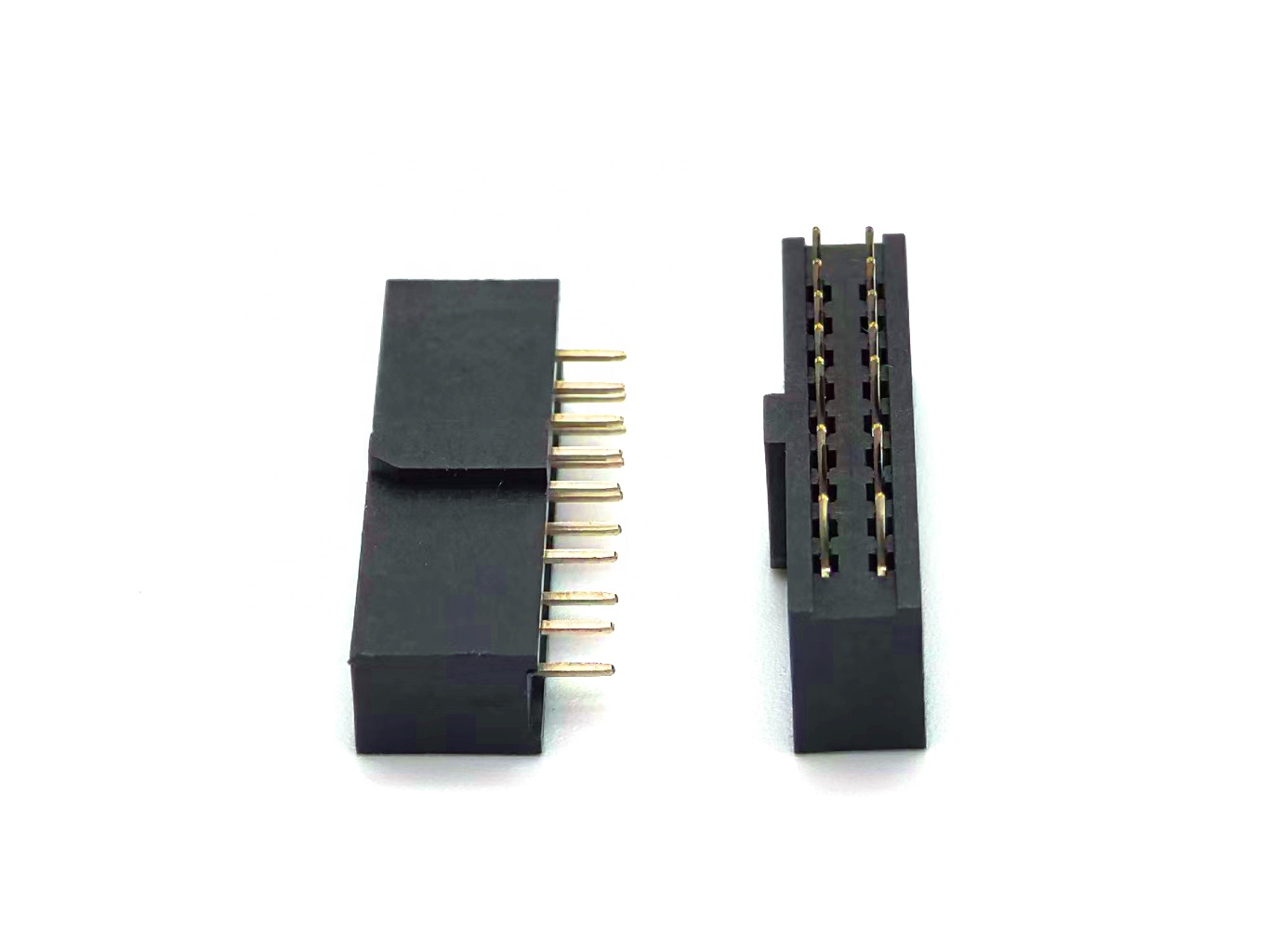

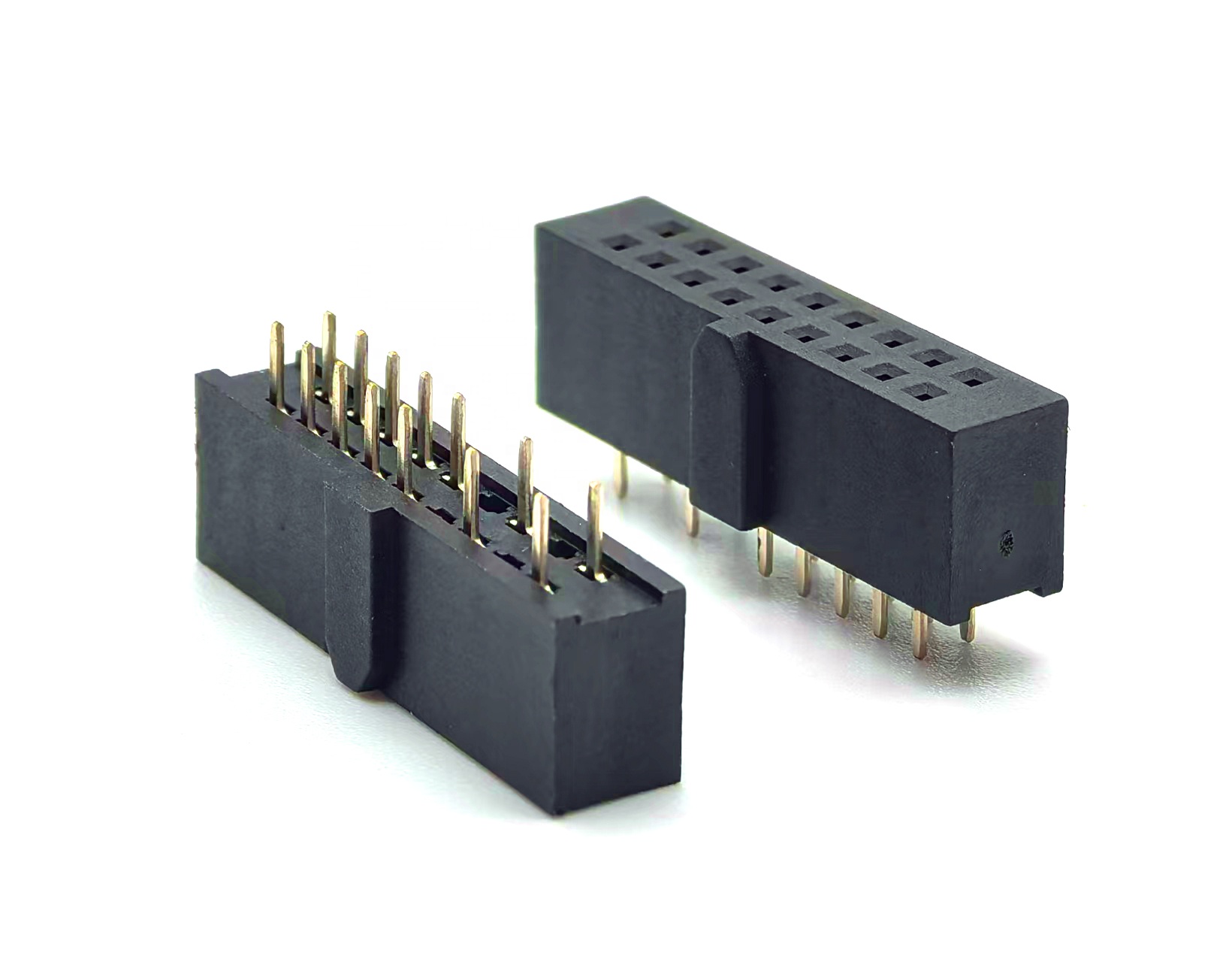

2.54mm Pitch Female Header Connector Dual Row Straight H8.5mm 2*11P Pins 1, 2, 5, 6, 9, 10, 21, 22: No Connect

YZTECH’s 22-position dual-row female header,featuring a compact 2.54mm pitch,redefines reliability in PCB applications.Designed with a straight-plug installation method,this 2.54mm female header ensures seamless integration into dense circuit layouts while maintaining optimal signal integrity.The dual-row configuration incorporates strategically placed non-contact pins at positions 1,2,5,6,9,10,21,and22—a thoughtful design that enhances electrical isolation and prevents short-circuit risks in high-density mounting scenarios.Crafted with high-grade brass contacts coated in durable gold plating,it guarantees low contact resistance and exceptional corrosion resistance,ensuring long-term performance in demanding environments.The rectangular,female-gendered connector adheres to DIN standards,making it universally compatible with industry-standard PCB layouts.Rated for 3A current and 600V voltage,it operates flawlessly across a wide temperature range of -40°C to +105°C,making it ideal for industrial, automotive,and consumer electronics applications.



Constructed with PA6T colloidal material,this header connector boasts superior heat resistance and mechanical strength,withstanding maximum soldering temperatures of 260°C for 10 seconds without deformation—critical for modern reflow soldering processes.The gold-plated brass contacts not only enhance conductivity but also minimize signal loss,ensuring stable performance in high-speed data transmission.The tube packaging further streamlines production workflows by protecting components during transportation and automated assembly.Engineered for straight-plug installation,it offers effortless mating with male headers while maintaining a low-profile footprint.Its robust design is further reinforced by a rectangular shape that optimizes space utilization on PCBs,catering to compact device designs without compromising functionality.
