2.54mm Pitch Female Header Connector Dual Row Right Angle Y-Type H8.5mm 2*5P

11 month ago

51 0 

2 year

Product details

2.54mm Female Header Connector Right Angle 10P

Engineered for sophisticated PCB layouts requiring parallel board interconnection,the YZTECH 2.54mm Female Header Connector Right Angle 10P offers a reliable right-angle solution that maximizes space efficiency.This 5-pin-per-row y-type 2.54mm female header features a precision "bending plug" configuration,enabling horizontal mating to create stable parallel board-to-board connections or facilitate streamlined cable attachment.With a robust electrical rating of 3A and 600V,this 2.54mm header female black ensures secure power and signal transmission in compact electronic assemblies,making it an optimal choice for applications where vertical clearance is limited and reliable interfacing is critical.

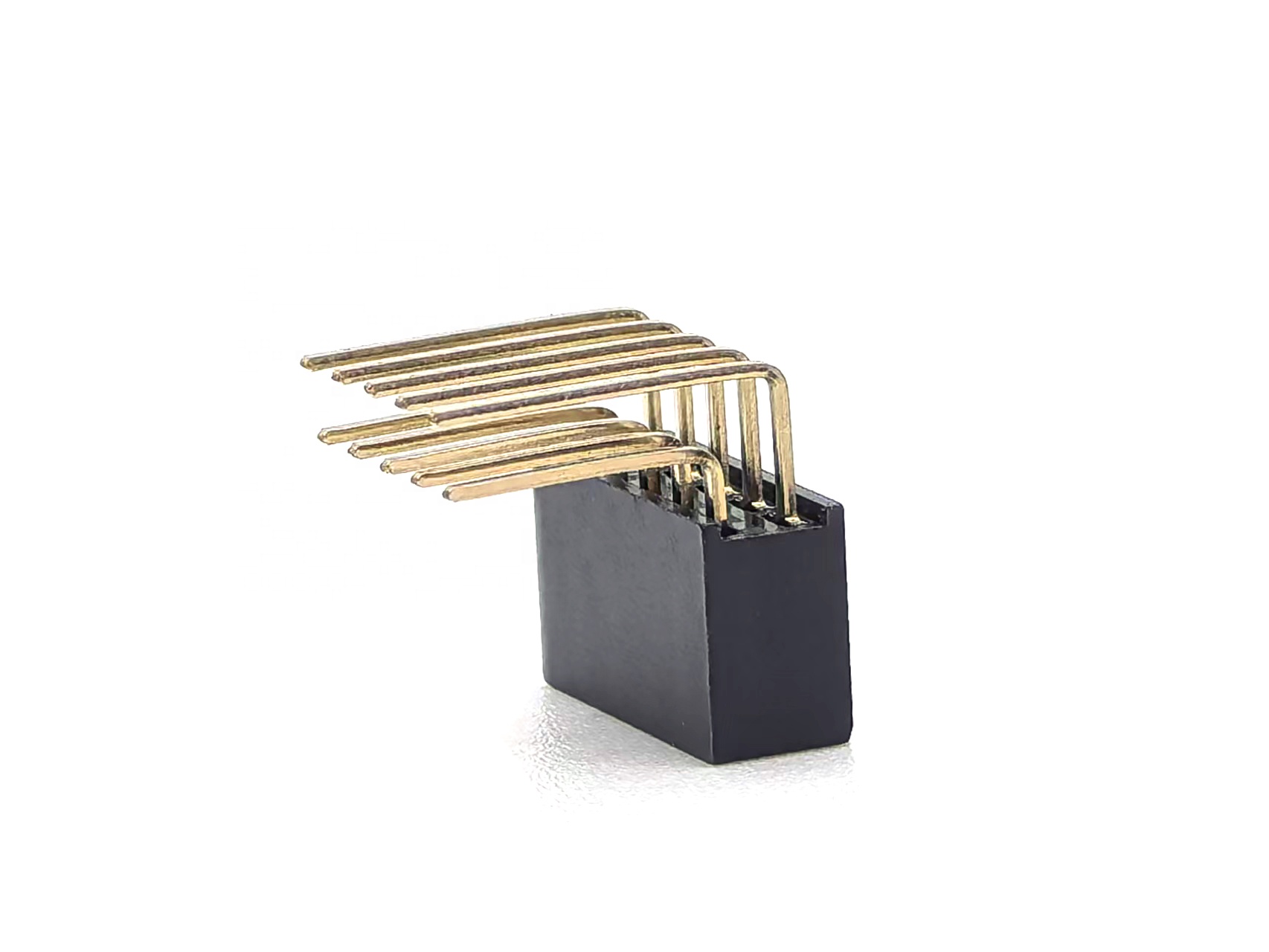

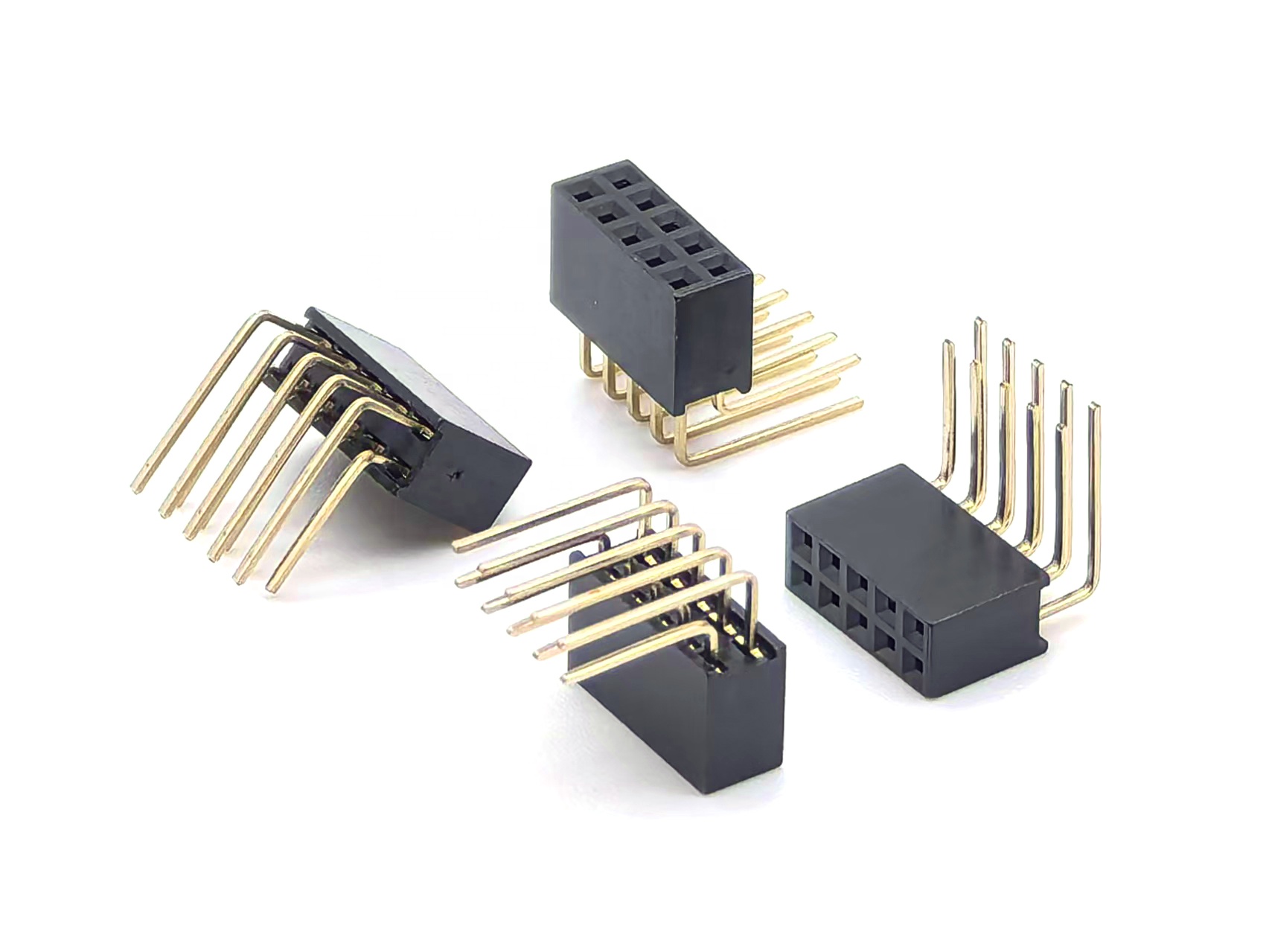

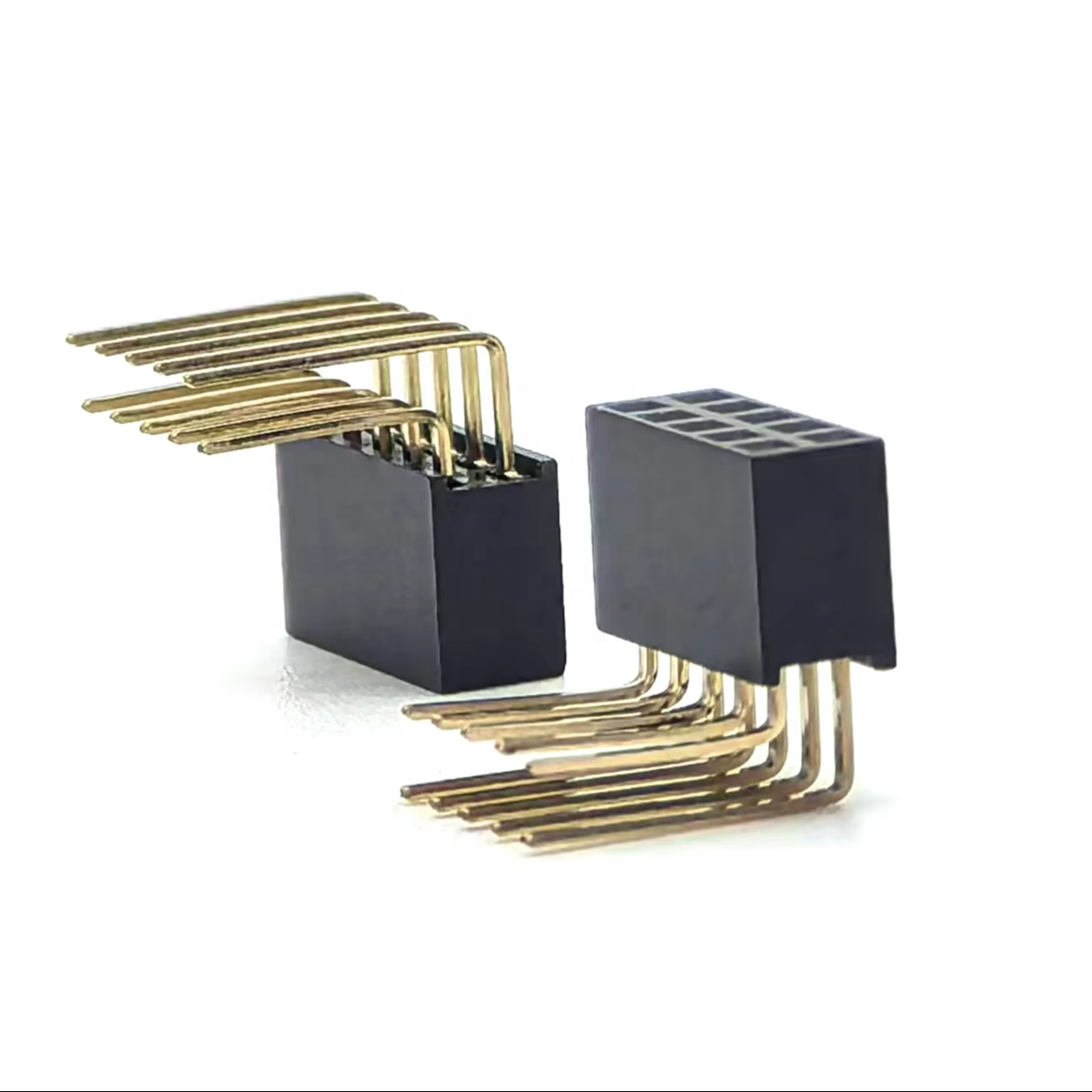

2.54mm Pitch Female Header Connector Dual Row Right Angle Y-Type H8.5mm 2*5P

Superior electrical performance and durability are achieved through premium material selection.The 10p 2.54mm female header connector contacts are crafted from brass with a full-body gold plating, delivering minimal contact resistance,exceptional corrosion resistance,and stable electrical characteristics through numerous mating cycles.The housing is constructed from high-temperature PA6T thermoplastic,providing outstanding mechanical strength,excellent insulation properties,and resilience to thermal stress during reflow processes,withstanding temperatures up to 220°C for 10 seconds while maintaining performance across an operating range of -40℃ to 105℃.

Securely packaged in protective boxes to maintain terminal alignment and prevent mechanical damage,this right-angle 2.54mm female header is ideal for manual assembly processes in sophisticated electronic systems.Its combination of dual-row stability,right-angle profile,and gold-plated contacts makes it particularly valuable for industrial control modules, telecommunications equipment,and advanced automotive electronics where consistent connection integrity in confined spaces is essential.
