2.2mm Pitch Pin Header Connector Dual Row SMT PA6T H2.5mm 2*6P

11 month ago

47 0 

2 year

Product details

2.2mm Pin Header Connector SMT 12P
YZTECH presents a high-performance 2.2mm Pin Header Connector SMT 12P, engineered to meet the evolving demands of compact and reliable PCB designs.This 2.2mm pin header connector 12p features 6 positions per row,delivering 12 contact points in a space-saving configuration that maximizes board real estate without compromising connection integrity.With an impressive electrical rating of 3A current and 600V voltage,this 2.2mm pin header 12p provides robust performance for both power delivery and signal transmission in advanced electronic systems,making it particularly suitable for applications where high circuit density and reliable power handling are paramount.

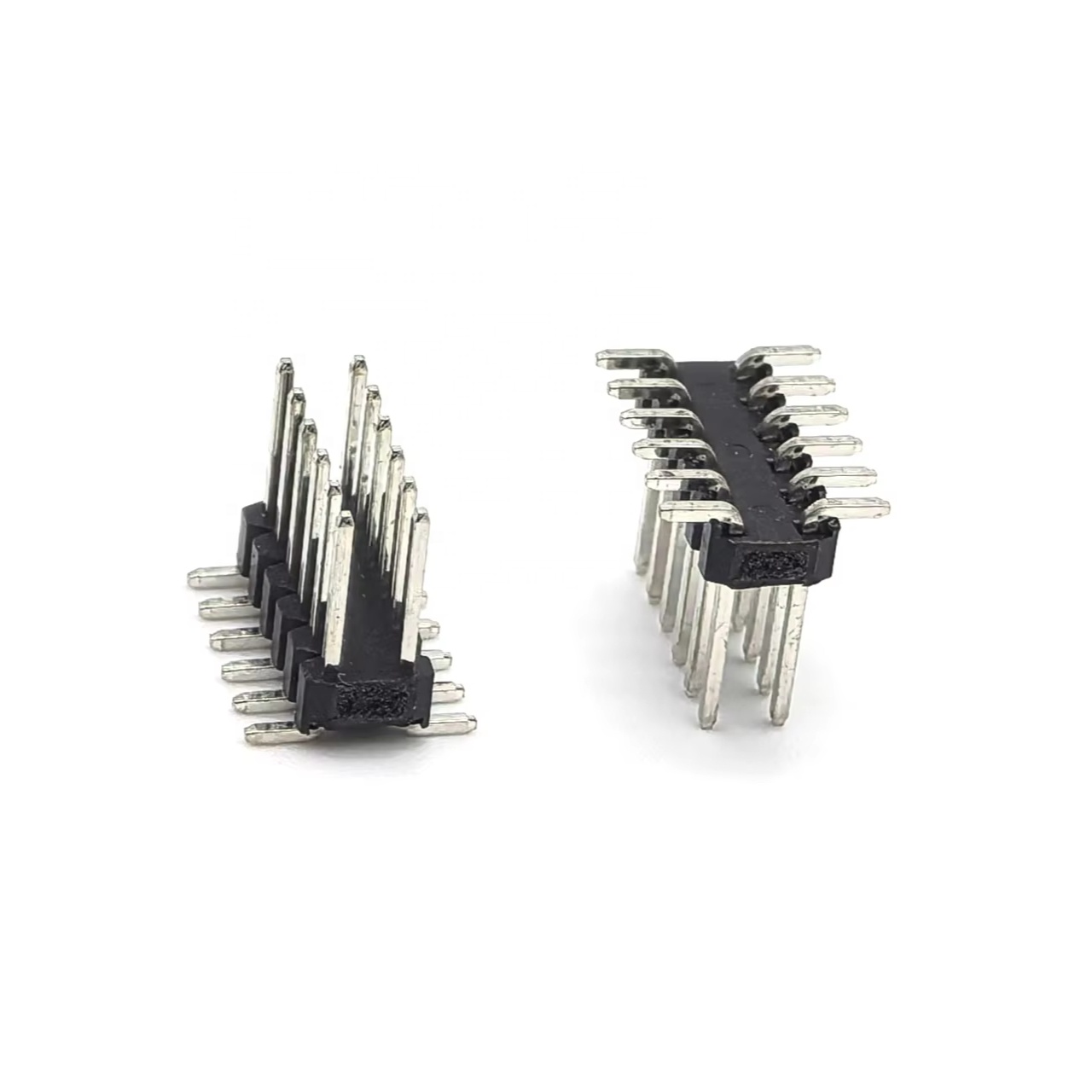

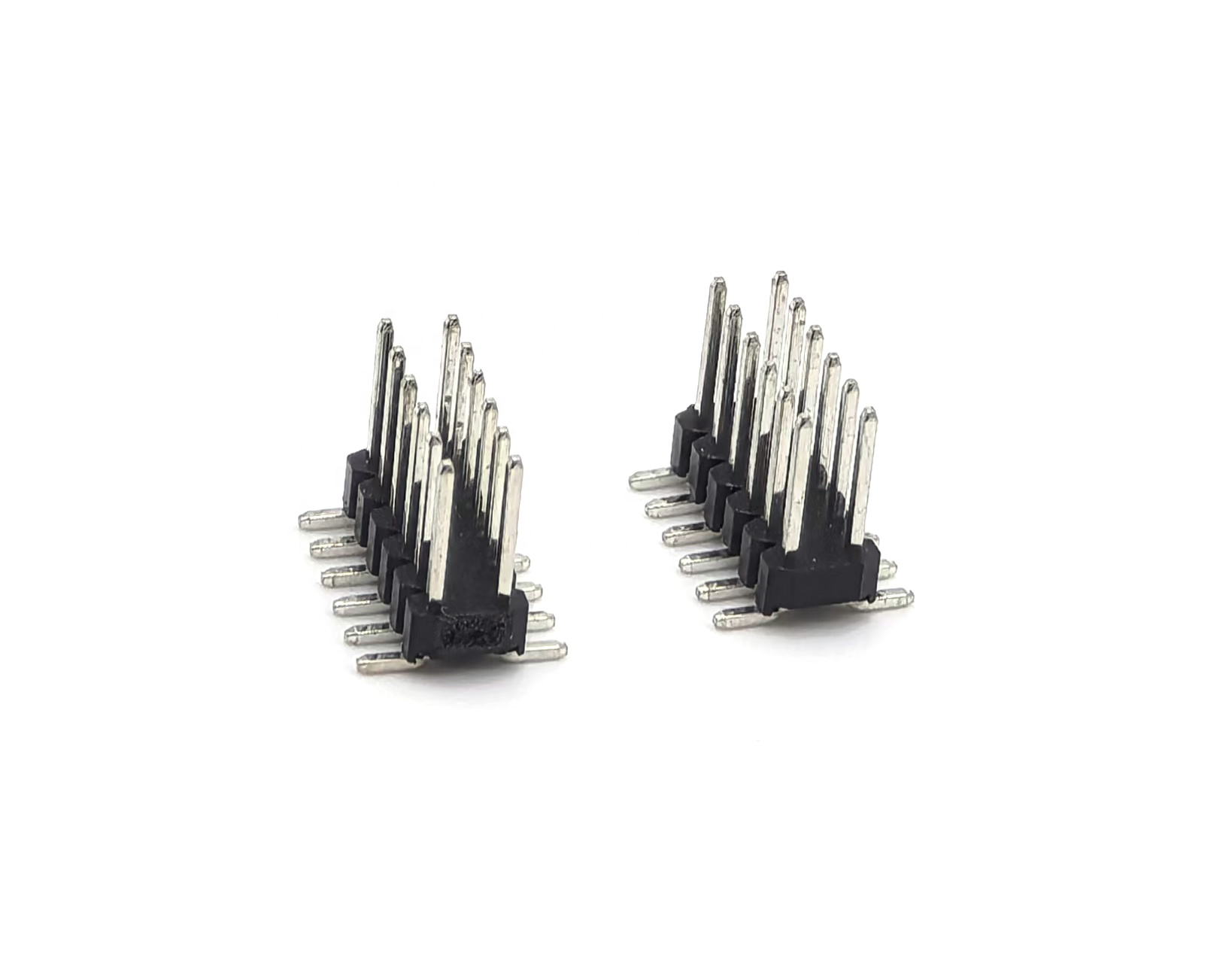

2.2mm Pitch Pin Header Connector Dual Row SMT PA6T H2.5mm 2*6P

The header connector's construction incorporates a sophisticated hybrid plating technology,featuring selective gold plating on the mating area for superior contact reliability and oxidation resistance,combined with tin plating on the solder tails for excellent board-level solderability.The contacts are crafted from high-strength brass,ensuring consistent mechanical performance,while the housing utilizes advanced PA6T thermoplastic that delivers exceptional thermal stability,mechanical rigidity,and resistance to solder reflow temperatures up to 260°C for 10 seconds.This material synergy guarantees stable operation across an extensive temperature range from -40°C to 105°C.

Packaged in protective tubes that ensure pin alignment and prevent damage during handling and transportation,this 2.2mm pin header h2.5mm is optimized for automated assembly processes,supporting high-volume manufacturing efficiency.The combination of fine pitch design,dual-row stability,and hybrid contact plating makes it an ideal solution for telecommunications infrastructure, industrial automation systems, and high-density computing applications.
