2.54mm Pitch Female Header Connector Dual Row SMT U-type H3.5mm 2*2P

11 month ago

49 0 

2 year

Product details

2.54mm Pitch Female Header Connector 4P
Engineered for space-conscious PCB designs requiring reliable board-to-board connectivity,the YZTECH 2.54mm Pitch Female Header Connector 4P delivers robust performance in a compact SMT package.This 2-pin-per-row 2.54mm female header connector U-type features a vertical mount configuration that optimizes horizontal board space while maintaining the industry-standard 2.54mm pitch for broad compatibility.Rated for 3A current and 600V voltage,the 2.54mm female to female header black provides secure interconnection capabilities for both power distribution and signal transmission in densely populated electronic assemblies, ensuring stable electrical performance across various applications.

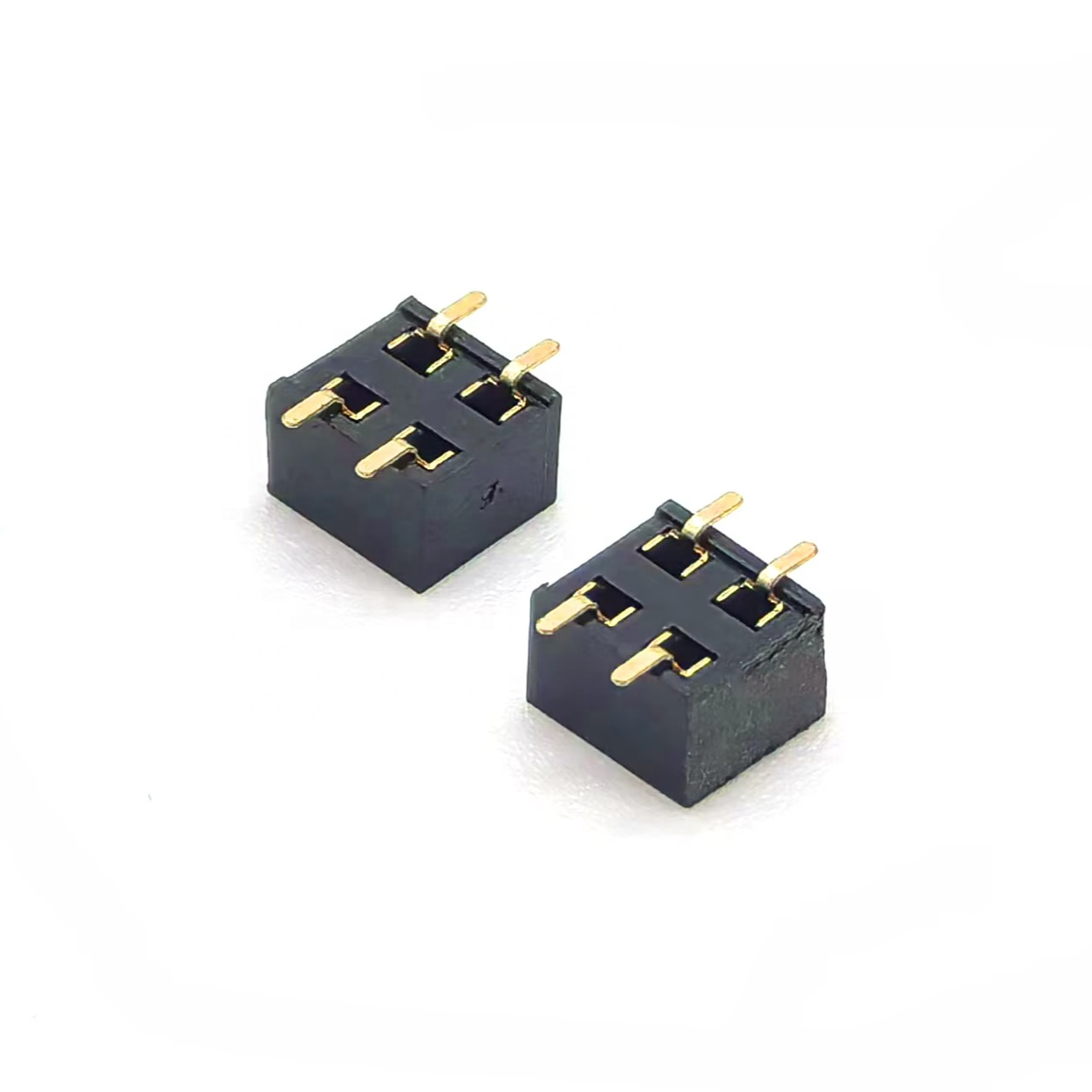

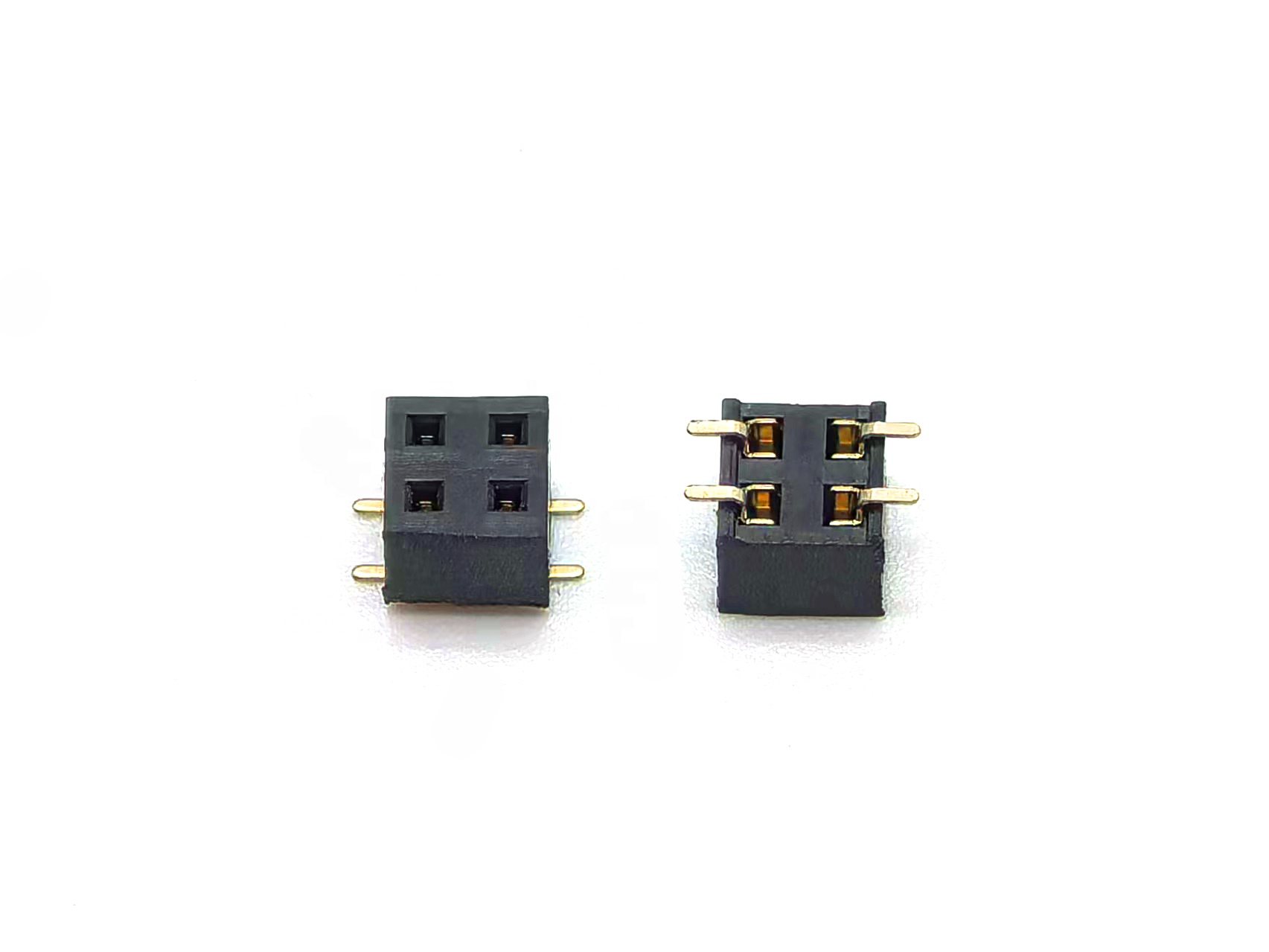

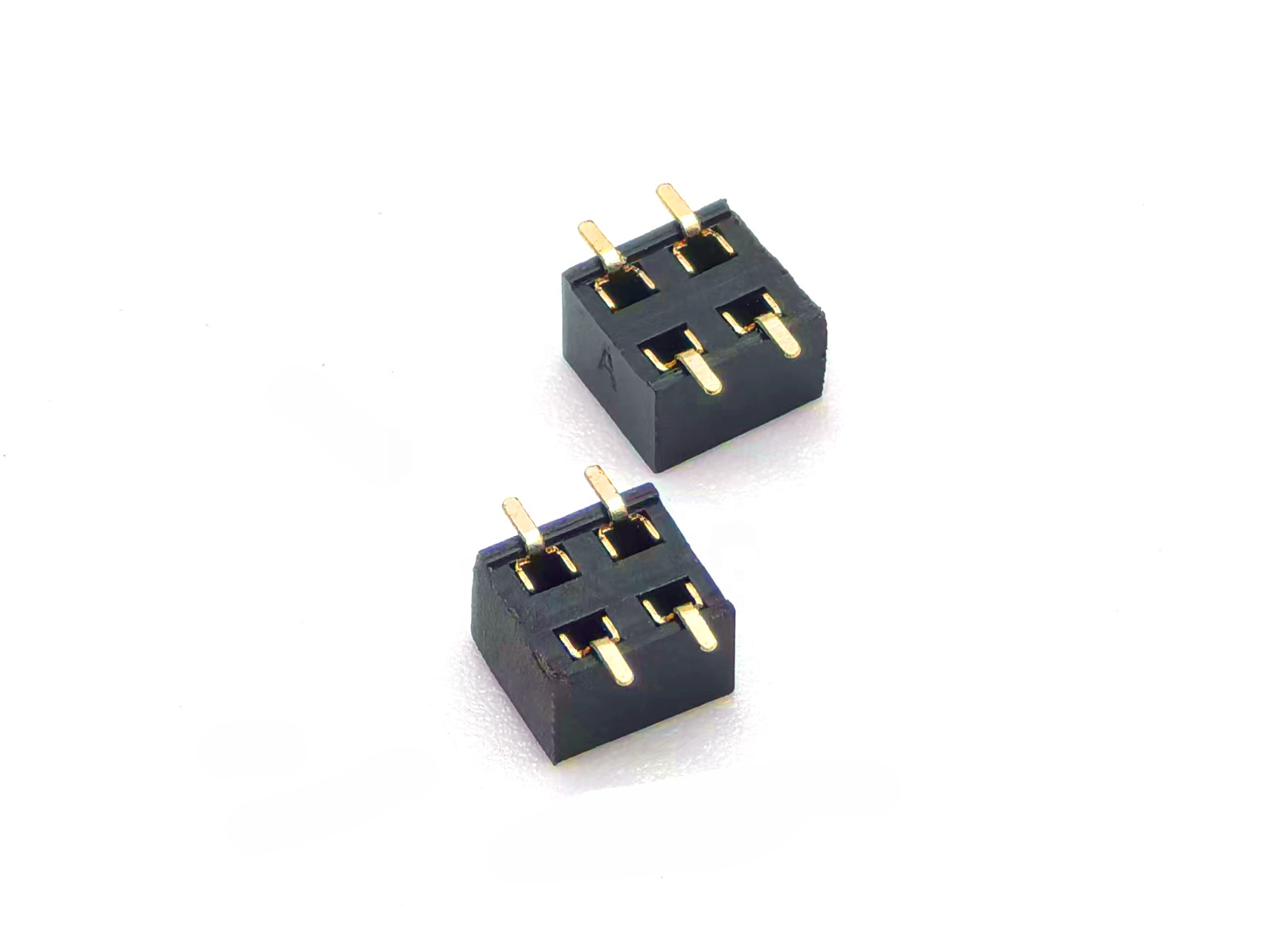

2.54mm Pitch Female Header Connector Dual Row SMT U-type H3.5mm 2*2P

The 2.54mm header female 4p achieves exceptional durability through its advanced material composition.Precision-formed brass contacts with reliable tin plating ensure excellent solderability and corrosion resistance,maintaining stable electrical characteristics through repeated mating cycles.The housing utilizes high-performance PA6T thermoplastic,delivering superior heat resistance capable of withstanding reflow soldering temperatures up to 220°C for 10 seconds.This material selection guarantees maintained structural integrity and insulation properties across the operating temperature range of -40°C to 105°C, ensuring long-term reliability in demanding environments.

Packaged in protective tubes that safeguard terminal alignment and prevent damage during transportation and handling,this 2.54mm female header is optimized for automated assembly processes.The combination of dual-row stability and surface-mount design makes it particularly suitable for applications in industrial controls,telecommunications infrastructure, and automotive electronics where vibration resistance and space optimization are critical.
