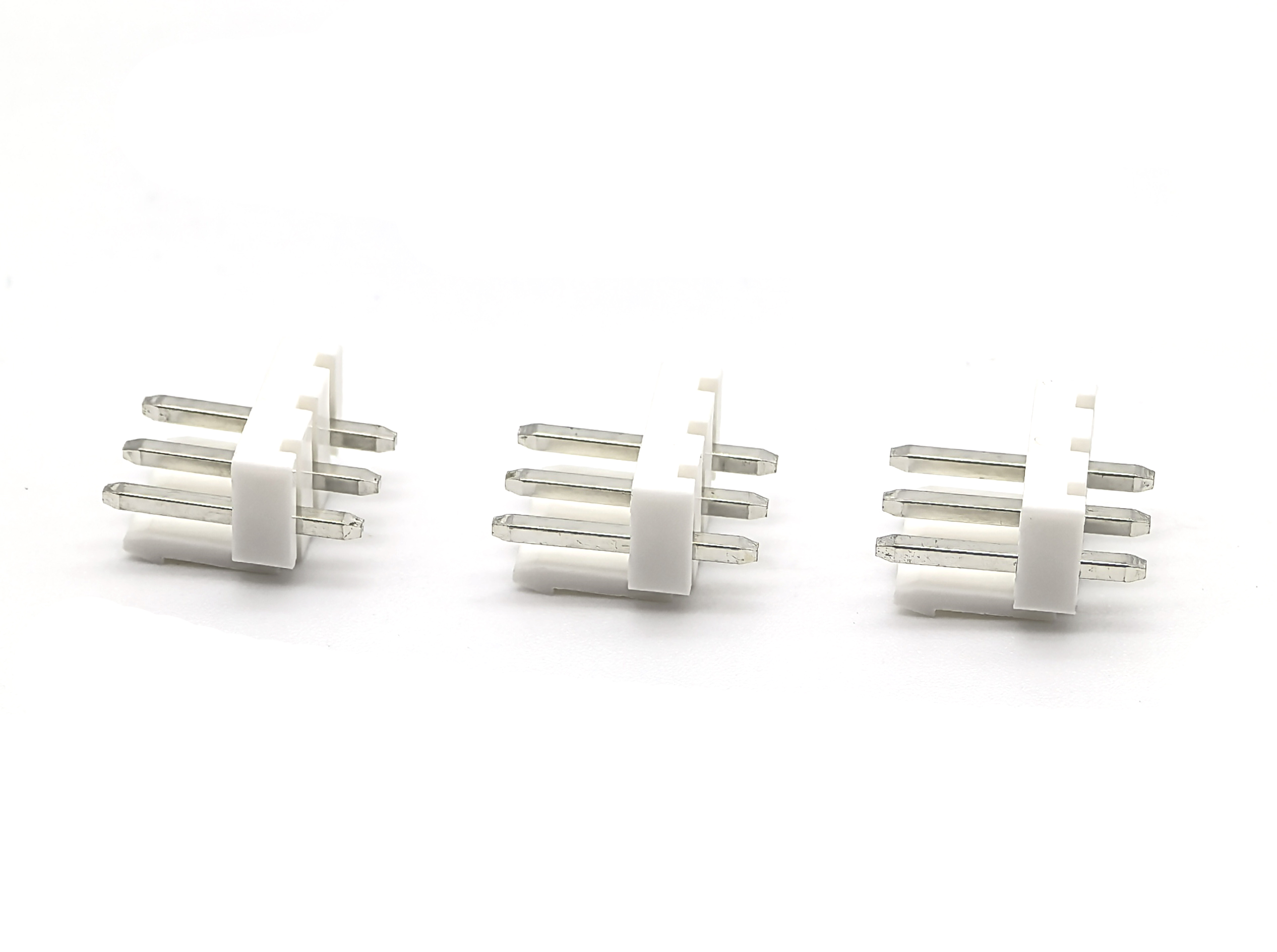

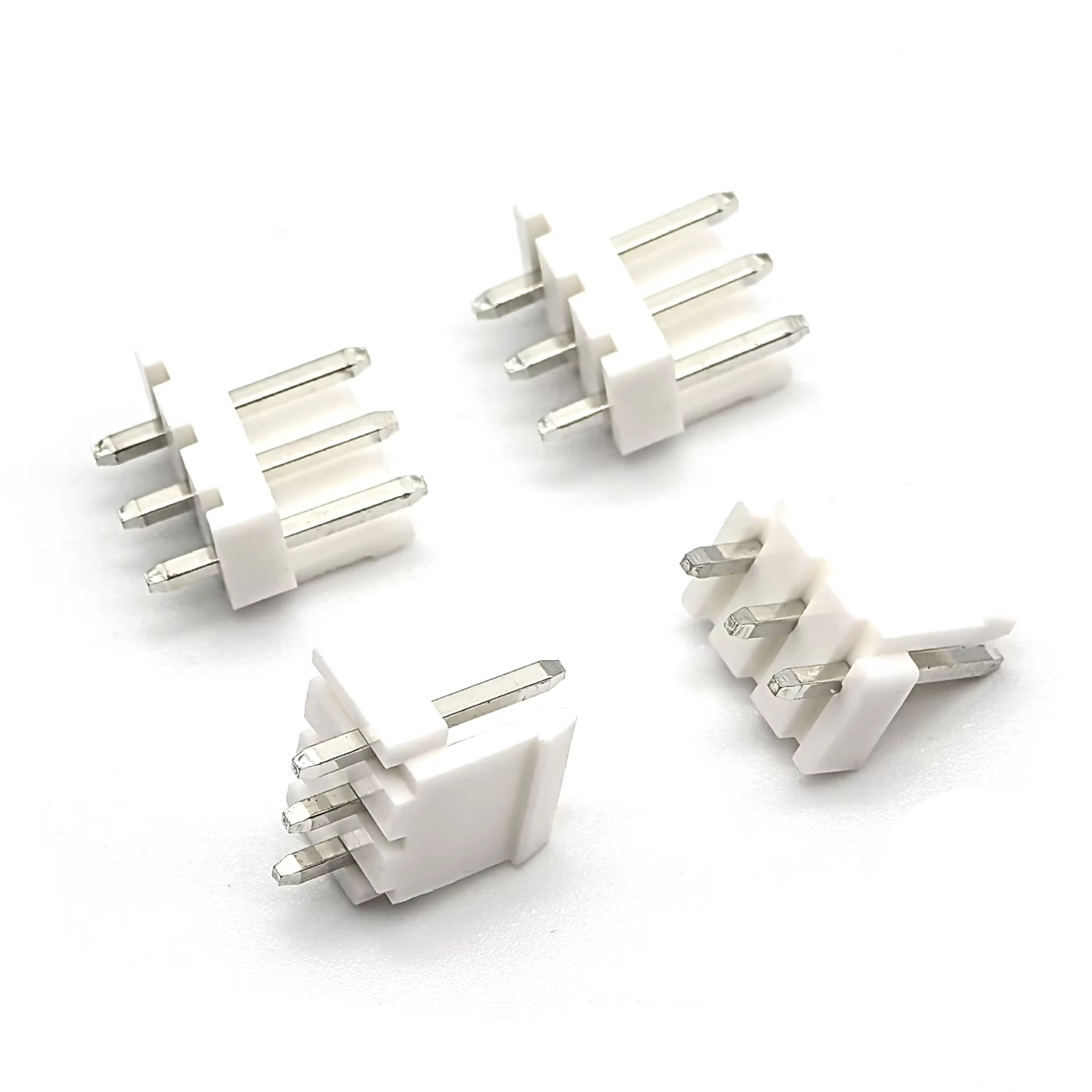

Wafer VH3.96 Pin header Connector Straight DIP 1*3P

2 month ago

2 0 

7 month

Product details

Engineered for robust power connectivity,the YZTECH VH3.96 3-position wafer pin header delivers exceptional performance in a compact,single-row format.Its substantial 3.96mm pitch is specifically designed to minimize the risk of electrical arcing and short circuits,making it an ideal choice for high-current pathways on PCBs.With an impressive rating of 5A current and 250V voltage,this straight DIP male header connector provides a reliable interface for power supplies,motor drives,and industrial equipment where consistent energy delivery is critical.The through-hole design ensures a strong mechanical bond and reliable solder joint for vibration-resistant applications.

Durability and safety are paramount in this connector's construction.The contacts are crafted from phosphor bronze, a material selected for its superior spring properties and fatigue resistance,ensuring maintained contact pressure and long-term reliability.A protective tin plating enhances conductivity and corrosion resistance. The housing is molded from NL66-V0 thermoplastic,a material recognized for its high comparative tracking index and flame-retardant certification,providing crucial protection against electrical failure in demanding environments.This robust assembly guarantees stable performance across a wide operational temperature range from -40°C to 105°C.

Supplied in practical bag packaging,this VH3.96 wafer housing terminal is convenient for storage and manual assembly processes,facilitating efficient production workflows.Its straightforward three-pin configuration and high-current capability make it a fundamental component for a diverse range of applications,including industrial control systems,automotive electronics,and high-wattage appliance controls.

Wafer VH3.96 Pin header Connector Straight DIP 1*3P
